SERVICE MANUAL

2005/11

COLOUR TELEVISION

YA340200511

AV-21V115/B

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26

BASIC CHASSIS

All manuals and user guides at all-guides.com

all-guides.com

1-8 (No.YA340)

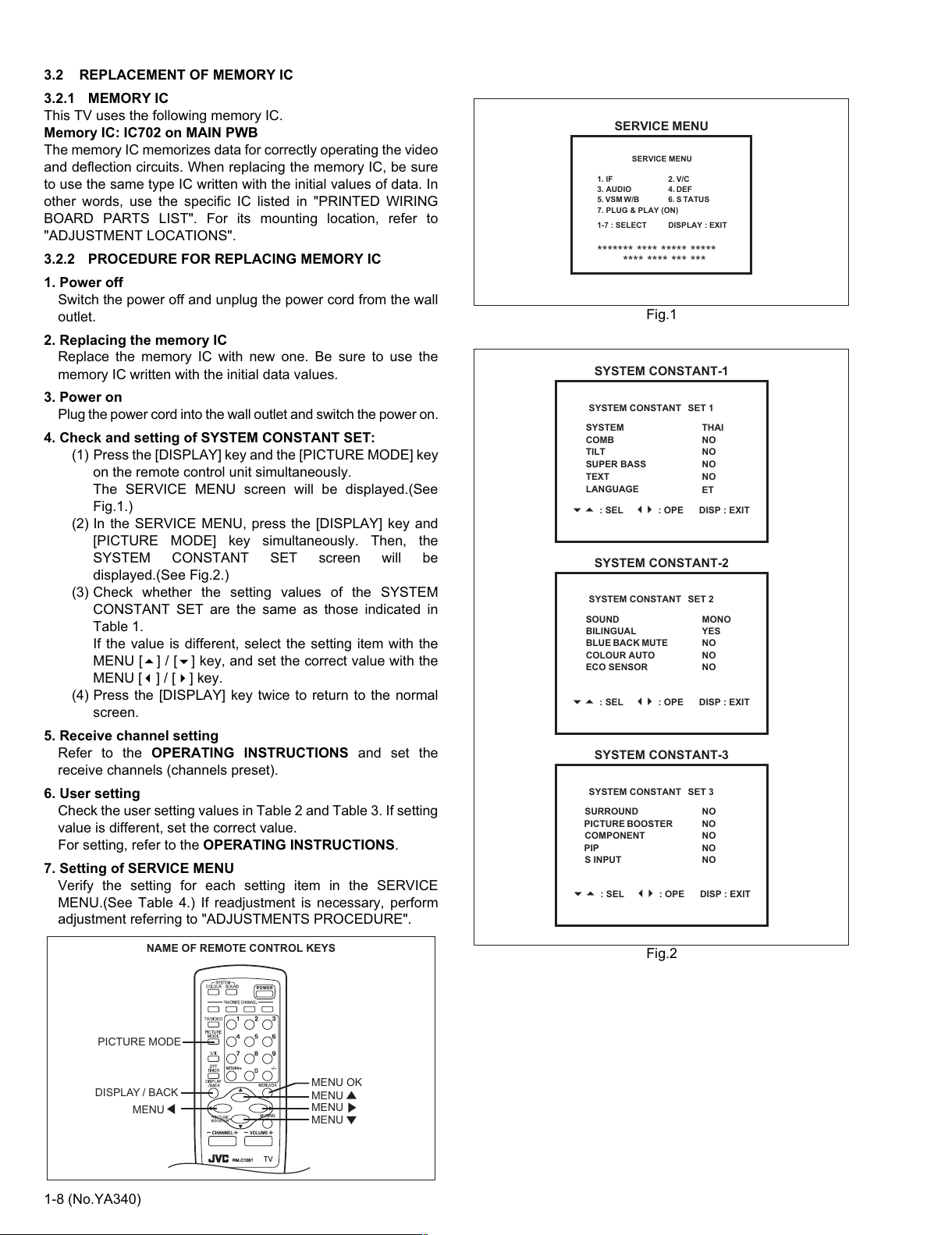

3.2 REPLACEMENT OF MEMORY IC

3.2.1 MEMORY IC

This TV uses the following memory IC.

Memory IC: IC702 on MAIN PWB

The memory IC memorizes data for correctly operating the video

and deflection circuits. When replacing the memory IC, be sure

to use the same type IC written with the initial values of data. In

other words, use the specific IC listed in "PRINTED WIRING

BOARD PARTS LIST". For its mounting location, refer to

"ADJUSTMENT LOCATIONS".

3.2.2 PROCEDURE FOR REPLACING MEMORY IC

1. Power off

Switch the power off and unplug the power cord from the wall

outlet.

2. Replacing the memory IC

Replace the memory IC with new one. Be sure to use the

memory IC written with the initial data values.

3. Power on

Plug the power cord into the wall outlet and switch the power on.

4. Check and setting of SYSTEM CONSTANT SET:

(1) Press the [DISPLAY] key and the [PICTURE MODE] key

on the remote control unit simultaneously.

The SERVICE MENU screen will be displayed.(See

Fig.1.)

(2) In the SERVICE MENU, press the [DISPLAY] key and

[PICTURE MODE] key simultaneously. Then, the

SYSTEM CONSTANT SET screen will be

displayed.(See Fig.2.)

(3) Check whether the setting values of the SYSTEM

CONSTANT SET are the same as those indicated in

Table 1.

If the value is different, select the setting item with the

MENU [] / [] key, and set the correct value with the

MENU [] / [] key.

(4) Press the [DISPLAY] key twice to return to the normal

screen.

5. Receive channel setting

Refer to the OPERATING INSTRUCTIONS and set the

receive channels (channels preset).

6. User setting

Check the user setting values in Table 2 and Table 3. If setting

value is different, set the correct value.

For setting, refer to the OPERATING INSTRUCTIONS.

7. Setting of SERVICE MENU

Verify the setting for each setting item in the SERVICE

MENU.(See Table 4.) If readjustment is necessary, perform

adjustment referring to "ADJUSTMENTS PROCEDURE".

Fig.1

Fig.2

NAME OF REMOTE CONTROL KEYS

DISPLAY / BACK

PICTURE MODE

MENU OK

1. IF

3. AUDIO

5. VSM W/B

7. PLUG & PLAY (ON)

2. V/C

4. DEF

6. S TATUS

SERVICE MENU

1-7 : SELECT DISPLAY : EXIT

SERVICE MENU

******* **** ***** *****

**** **** *** ***

SYSTEM CONSTANT-1



: SEL



: OPE

COMB

TILT

THAI

TEXT NO

SUPER BASS NO

LANGUAGE ET

SYSTEM CONSTANT SET 1

SYSTEM

DISP : EXIT

SYSTEM CONSTANT-2



: SEL



: OPE

BLUE BACK MUTE

MONO

ECO SENSOR NO

COLOUR AUTO NO

BILINGUAL YES

SYSTEM CONSTANT SET 2

SOUND

DISP : EXIT

SYSTEM CONSTANT-3



: SEL



: OPE

SYSTEM CONSTANT SET 3

SURROUND

NOPICTURE BOOSTER

NOCOMPONENT

NOPIP

NOS INPUT

DISP : EXIT

All manuals and user guides at all-guides.com

(No.YA340)1-9

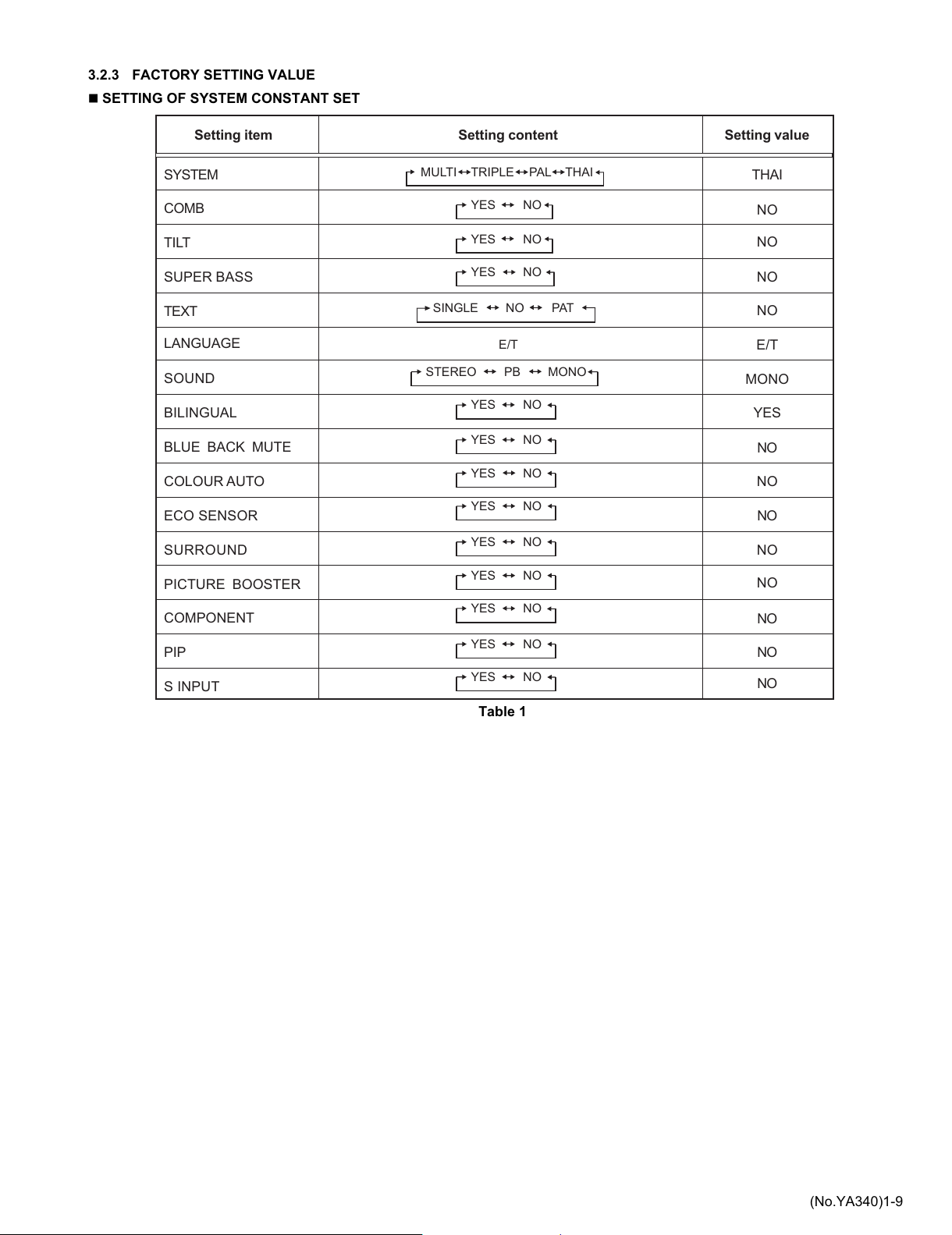

3.2.3 FACTORY SETTING VALUE

SETTING OF SYSTEM CONSTANT SET

Table 1

SYSTEM

COMB

TILT

SUPER BASS

TEXT

SOUND

BILINGUAL

BLUE BACK MUTE

COLOUR AUTO

ECO SENSOR

SURROUND

PICTURE BOOSTER

COMPONENT

PIP

S INPUT

THAI

MONO

YES

Setting item Setting content Setting value

YES NO

STEREO PB MONO

YES NO

SINGLE NO PAT

MULTI TRIPLE PAL THAI

LANGUAGE E/T

E/T

All manuals and user guides at all-guides.com

1-10 (No.YA340)

SETTING OF BASIC FUNCTIONS

Table 2

SETTING OF MENU SCREEN

Table 3

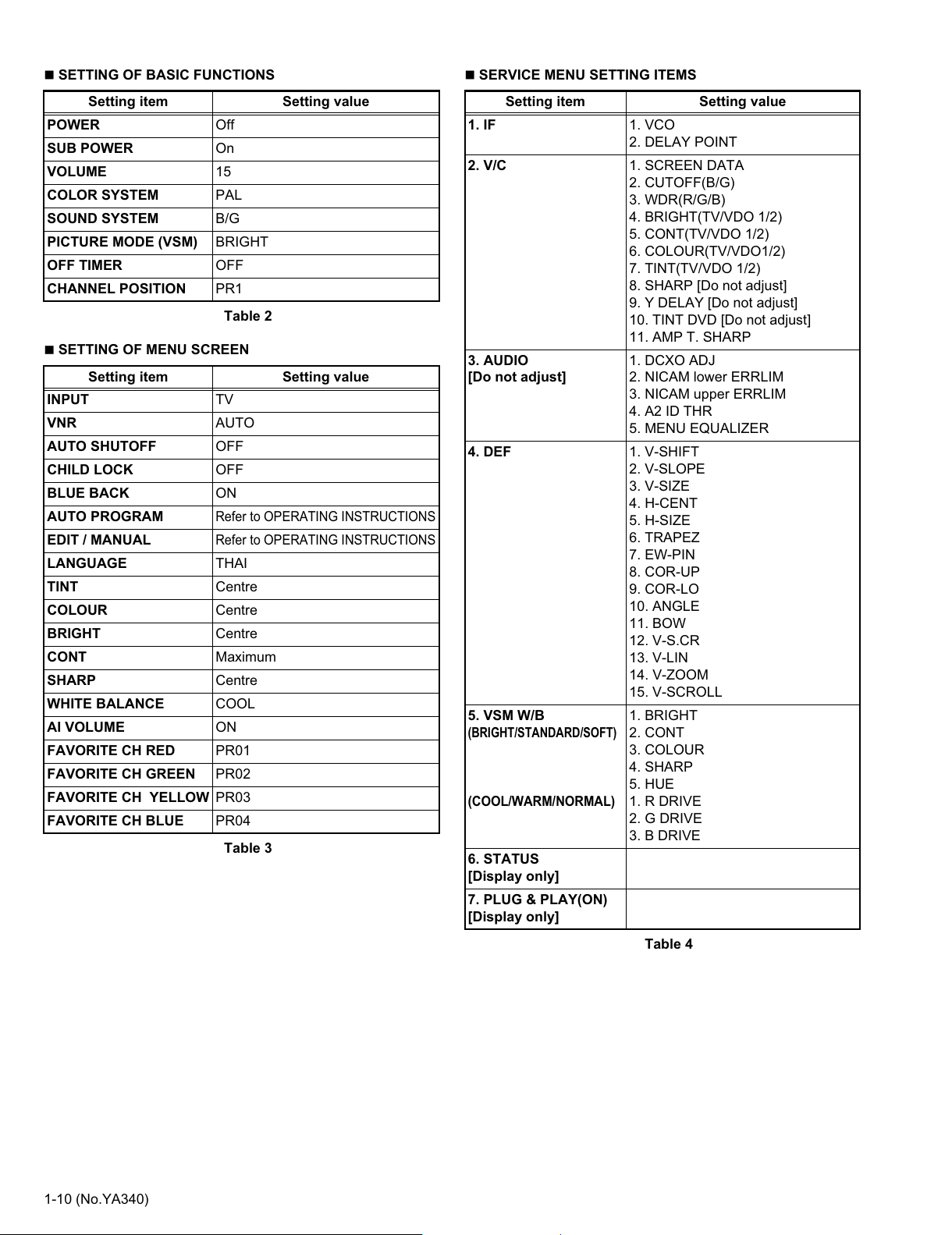

SERVICE MENU SETTING ITEMS

Table 4

Setting item Setting value

POWER Off

SUB POWER On

VOLUME 15

COLOR SYSTEM PAL

SOUND SYSTEM B/G

PICTURE MODE (VSM) BRIGHT

OFF TIMER OFF

CHANNEL POSITION PR1

Setting item Setting value

INPUT TV

VNR AUTO

AUTO SHUTOFF OFF

CHILD LOCK OFF

BLUE BACK ON

AUTO PROGRAM

Refer to OPERATING INSTRUCTIONS

EDIT / MANUAL

Refer to OPERATING INSTRUCTIONS

LANGUAGE THAI

TINT Centre

COLOUR Centre

BRIGHT Centre

CONT Maximum

SHARP Centre

WHITE BALANCE COOL

AI VOLUME ON

FAVORITE CH RED PR01

FAVORITE CH GREEN PR02

FAVORITE CH YELLOW PR03

FAVORITE CH BLUE PR04

Setting item Setting value

1. IF 1. VCO

2. DELAY POINT

2. V/C 1. SCREEN DATA

2. CUTOFF(B/G)

3. WDR(R/G/B)

4. BRIGHT(TV/VDO 1/2)

5. CONT(TV/VDO 1/2)

6. COLOUR(TV/VDO1/2)

7. TINT(TV/VDO 1/2)

8. SHARP [Do not adjust]

9. Y DELAY [Do not adjust]

10. TINT DVD [Do not adjust]

11. AMP T. SHARP

3. AUDIO

[Do not adjust]

1. DCXO ADJ

2. NICAM lower ERRLIM

3. NICAM upper ERRLIM

4. A2 ID THR

5. MENU EQUALIZER

4. DEF 1. V-SHIFT

2. V-SLOPE

3. V-SIZE

4. H-CENT

5. H-SIZE

6. TRAPEZ

7. EW-PIN

8. COR-UP

9. COR-LO

10. ANGLE

11. BOW

12. V-S.CR

13. V-LIN

14. V-ZOOM

15. V-SCROLL

5. VSM W/B

(BRIGHT/STANDARD/SOFT)

(COOL/WARM/NORMAL)

1. BRIGHT

2. CONT

3. COLOUR

4. SHARP

5. HUE

1. R DRIVE

2. G DRIVE

3. B DRIVE

6. STATUS

[Display only]

7. PLUG & PLAY(ON)

[Display only]

All manuals and user guides at all-guides.com

2-4(No.YA340)(No.YA340)2-3

J801

VIDEO-1

INPUT

TU001

TUNER

SCL

SDA

J802

OUTPUT L_OUT

V_OUT

SF102

SAW FILTER

IC601

AUDIO AMP

MAIN PWB

VOL+

REMOCON

RECEIVER

VOL- CH+ CH- MENU

POWER

LED

AC IN

F901

POWER SW

S901

J806,J807

VIDEO-2

INPUT

(FRONT)

VIDEO-1

AUDIO-1

AUDIO_OUT

VIDEO_OUT

VIDEO-2

AUDIO-2

T522

FBT

SCREEN

FOCUS

EHV

D901

RECT

T921

TRANSF.

L951

12V

3.3V_STB

32V

IC921

POWER

REG

IC973

12V REG

IC975

5V REG

IC972

3.3V REG

IC976

1.8V REG

IC974

1.8V REG

IC401

V. OUT

Q522

H. OUT

SPEAKER(L)

SPEAKER(R)

J809

HEADPHONE

MAIN PWB

(CRT SOCKET)

BV01

IC351

RGB OUT

DY01

DEF YOKE

1.8V

V1.8V

IC702

MAIN MEMORY

VIF IN

SIF DETECT

VIDEO

IDENT.

AUDIO

CONTROL

COMB FILTER

Y DELAY ADJ.

COLOUR

DEMOD

SYNC

SEP.

H. DRIVE

VIF DETECT/AGC/AFT

SOUND TRAP

DIGITAL SIGNAL PROCESS

PEAKING SCAN

VELOCITY MOD.

U/V DELAY

RGB MATRIX

GAMMA

AUDIO

SELECT

VIDEO

SELECT

I/O

PORT

AUDIO

SELECT

VOUT

LOUT

24, 25

ROUT 85

GOUT

BOUT

VDRA+,VDRB-

HOUT

22, 23

A_L 62

I2C

BUS

KEY_IN

REMOTE

PW_LED

SCL0, SDA0

SCL1, SDA1

98,99

119

127,128

108,109

V. DRIVE

MICRO

COMPUTER

BASE-BAND

DELAY LINE

B-Y R-Y

SKIN TONE

U/V TINT

SATURATION

OSD

SELECT

IC701 MAIN MICRO COMPUTER

IF.VIDEO.RGB.SYNC.DEF. PROCESS

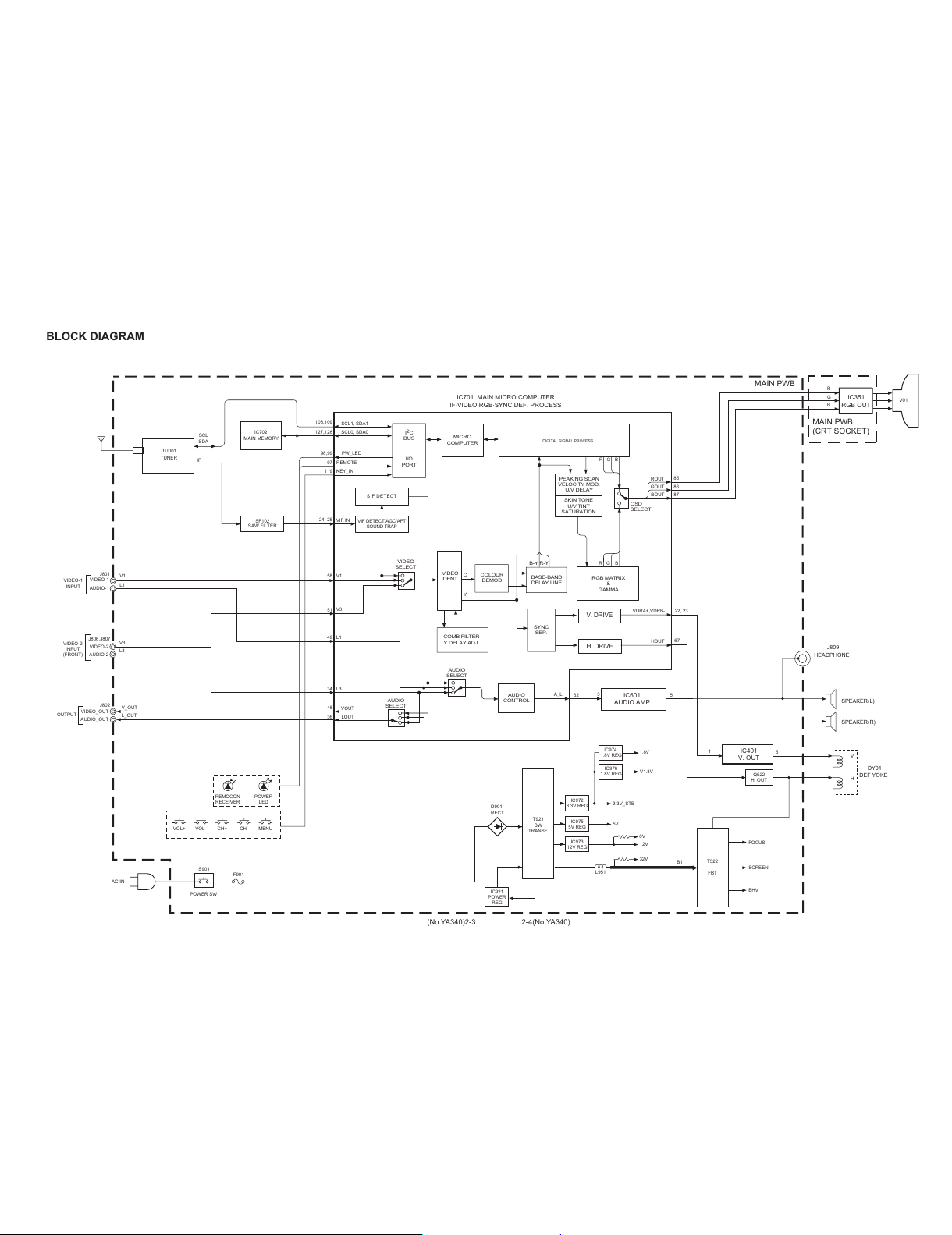

BLOCK DIAGRAM

All manuals and user guides at all-guides.com

(No.YA340)2-5 2-6(No.YA340)

CS21201

C764

C766

C778

R101

L710

L711

L709

C765

C101

C753

C752

C751

R782

R729

D101

C780

C750

C749

C748

L101

C746

C109

R107

Y004

L716

D601

C721

IC601

SF101L002

NECK

C615

R002

C107

SF102

R001

C004

IC801

C003

R766

R767

C001

C106

VER_PROTECT

R345

R778

C670

Y003

R670

C317

LC801

J801Y802

J802

Y801

R801

Y009

K701

C779

C809 D813

Y981

C760

D603

Q760

R318

Q307

R320

R321

C316

Y713

C315

C313

R783

R779

C312

D706

C311

C310

C309

L303

R728

R726

R727

CN00T

C705

C757

C756

C718

C747

L706

C754

C755

R732

R733

R734 R735

L708

C758

C759

L707

X701

C709

C712

V_SHIFT

Q609

C761

C717

IC701

R005

C706

R731 D708

R701C710

C711

C762

R708

C763

R709

D701

R759

C713

R781

C714

C707

C708

R705

R703

R704

C716

C715

R706

R707

C719

C720

R780

TU001

CF101

C789

Q703

Y604

GND

C656

GND

K107

R604

R974

Y505

R606

R341

R344

R343

D341

STB1

R602

R603

R611

C985

C111

C986

IC976

R978

Q605

Y712

Q602

R610

C609

Q601

R609

R608

C607

C608

R623 R620

Q608

Q607

R621

C613

R624

R622

R616

D342

R810

GND

C802

GND

Y715

D805 R811

Q001

Q803

Q002

Q805

R814

R807

Q801

R808

R809

R802

D001

D343

D344

L301

D345

CF702

R342 C341

Q341 Y303

C314

R319

Y006

Y005

R006

Y716

C302

C303

R309

R312

C305

C785

C304

3.3V_STB

R324

R325

R326

R327

GND

R823

D807

C806

C807

Y603

R790

LC701

Y702 Y703

R328

R322

R323

CN00C

D303

K102

K105

32V

L717

C308

C307

C306

R308

C110

R307

W-A

R310

Q305

Q306

X301

L302

IC301

J808 J807

Y302

L702

L701

L703

C702

C701

Y791

Q791

K301

12V

C777

R760

R761

CP650

Y705

Y706

J806

Q701

GND

Y008

BL_GND

K104

W-A1

Y708

Q704

R737

R738

Q705

Q308

IC302

Y709

Q706

GNDGND

R756

D602

R626 C601

C742

R627

R625

Y701

R769

D801

W-B1

R793

R795 Q707

Q708

R796 D707

A_VCC

A_GND

Y973

R794

C804

R815

C792

Y301

Y711

Y102

VDRA+

VDRB-

Y101

H_DRIVE

P_ON/OFF

HFB

ABL

PROTECT

K106

GNDGND

Y822

R822

Y824

Y103

Y104

Y105

D753

D751

Y718

Y720

D713

D808

R824

D809

R671

Q761

R672

R673

R629

Q762

R628

Y810Y809

C805

Y811

J809

R630

R674

R675

R632

C671

Y760

D815 D814

R792

R821 R820 R819 R818

C793

S801S802S803S804S805

D816

R975

C788

C787

C790 R786

K801

Y106

Y107

C662

R817

R724

R825

R725

R722

IC974

C965

C722

C983

CN00S

R753

Q101

L001

R105

R106

R104

R004

R108

C102

R102

R103

Q102

Q103

R798

C108

C103

C104

R110

C105

C740

C737

C006

C736

R755

R003

R109

C002

K103

R715

C723

R797

C728

L705

Y710

R710

C739

C738

C726

C729

C732

R741

R742

R744

R746

R747

R749

R751

R754

R771

R757

C703

C704

R736

C767

L712

C775

L715

C005

L704

C731

C734

C730

C733

L713

C769

C768

R745

R743

R758

L714

C773

C774

D714

C771

C772

D709

C776

R750

C770

C602

R785

C603C604

D604

R614

C784

C610

R007

R008

Y007

R711

C781

C782

R762

R763

R764

R765

R712

C735

R752

D703

D702

D704

L003

C982

K101

R311

R314

R313

R315

R316

R317

R772

R777

IC702

R748

R784

R739

C743

W-B

CF701

D711

D712

C744

C745

R740

R776

C783

C791

R768

Y707

R773

C741

LC805

C727

Q702

R723

.22

47/16

100/16

.0047

1.2K

47/16

220

470/16

.01

18p

27K

10/50

X*8

.22

10K

100

27K

560

560p

10/50

100

100 100

.22

100/16

.01

.22

.047

3.3K *3

12k6800p

2.2/50

100/16

10k

.22

3.3K

10/50

4.7K

.022

100/16

39k

100

.001

220

22k

.01

.001

100K

47/50

100/50

10K

12K

10K

10/50

470/16

3.3K

100K

33/16

27K

100/16

33K 10K

2.2K

10/50

68K

10K

390

10/50

*8 82K

100K

100

220

220/16

100/16

1.2K

.22

100

3.3K

10K

4.7K 3.3/50

10/50

56K

220

100

100K *1

0*3

2.2K

470/16

470

12K

15K

8.2K

270

10K

270

470 330 220 180

10/50

100

.001

10/16

1.2K

100

180

27K

.0047

6.8K

2.7K

10K

.0047

10/50

33/16

.01

1.2K

3.9K

10/50

390

470

10/50

2.2/50

220100

100

10k

100

220

4.7k

100

.22

.0022

10/50

.22

3.3k

2.2/50

22/50

.22

10/50

10K

100K

10/50

2.2K

1/16

220

4.7K

100

4.7/50

2.2K

100

2.7K

10K

.001

1.2K

100

4.7K

.0033

SDA1

SCL1

P_ON/OFF

VDRA+

VDRB-

SCL0

PROTECT

1.8V

SDA0

L_OUT

NECK

V_OUT

CONT

3.58/OTHER

CONT

OFF_MUTE

CVBS1

CVBS1_GND

PROT

CVBSO/PIP_GND

SDA1

CVBSO/PIP

VER_PROTECT

CVBS1_GND

STB1

12V

STB1

V1.8A

A_VCC

NECK

SDA1

SCL1

P_ON/OFF

4.5/OTHER

A_GND

12V

STB1

V_SHIFT

VDRB-

VDRA+

1.8V

NECK

SCL0

SDA0

H_DRIVE

ABL

HFB

L_AOUT

L_OUT

A_L

A_MUTE

PW_LED

REMOTE

TIMER

Y_GND

A_MUTE

3.58/OTHER

SDA1

SCL1

H_DRIVE

HFB

12V

PROTECT

STB_IN

CVBS1

V_OUT

P_ON/OFF

ECO_IN

ABL

V_SHIFT

ECO_IN

PROT

A_VCC

CVBSO/PIP

CVBSO/PIP_GND

OFF_MUTE

PW_LED

KEYIN

VER_PROTECT

1.8V

ABL

V1.8A

1.8V

4.5/OTHER

KEYIN

GND

A_GND

L_AOUT

TIMER

Y_GND

SVM

MAIN PWB ASS'Y (1/3)

SCW-1171A-H2

NOTE) 1.Refer to the part list for the part number of IC701 and IC702.

2.Refer to page 2-11 for voltages of this circuit diagram.

3.Refer to page 2-12 for waveforms of this circuit diagram.

MAIN MICRO COMPUTER

IF VIDEO RGB SYNC DEF. PROCESS

POWER LED

(RED)

SPEAKER

AUDIO AMP

MAIN PWB ASS'Y(3/3)

(CRT SOCKET)

CN10T

VIDEO-2

INPUT

VIDEO-1

INPUT

OUTPUT

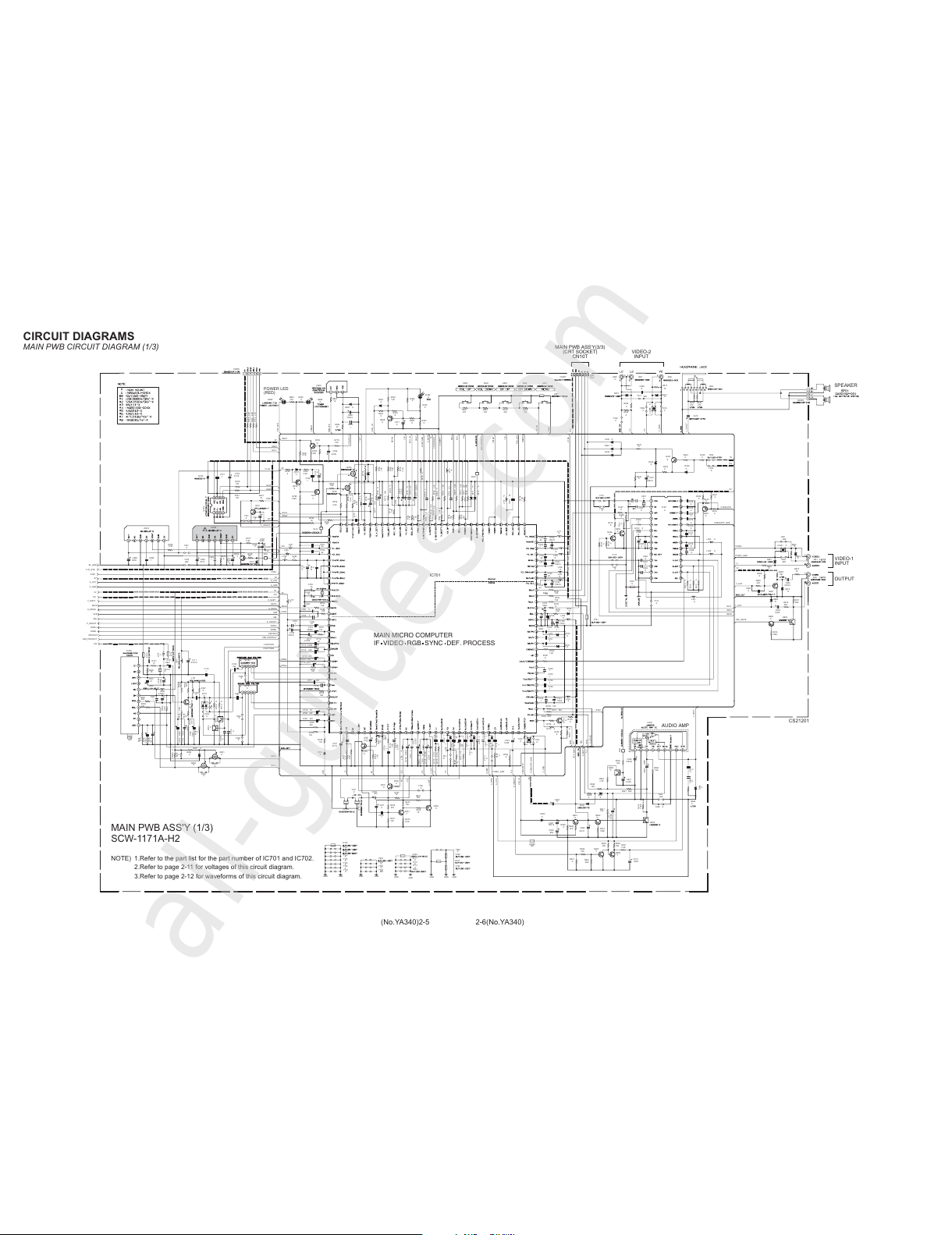

CIRCUIT DIAGRAMS

MAIN PWB CIRCUIT DIAGRAM (1/3)

All manuals and user guides at all-guides.com

all-guides.com

2-8(No.YA340)(No.YA340)2-7

CS21201

L951

R903

IC921

R474

C915

R902

R473

L551

Q592

C953

C426

D423

D971

C952

IC972

C581

C428

C979

IC975

R582

C924

C423

R402

R554

C403

C555

R405

K922

Q521

K957

C402

C401

C978

D422

L975

C421

L530

C521

C951

C522

R425 R424

CN0HV

R433 C425

R422

R421

D551

C980

L421

C981 CN00U

L973

LF902

L972

C989

D973

C430

C926

C963

R591

R440

R439

C435

R448

C928

C436

R434

R427

C901

Q471

R583

CP953

K953

D974

R965

R581

LF901

Y965

IC973

R412

R555

R411

D977

C902

R529

T522

R923

IC401

R981

D523

R527

C961

R976

R972

CN00X

R962

D962

C359

CN10U

C922

D927

D593

C593

R594

R921

R924

R595

D928

Q591

D922

R934

R596

C350

D554

Y972

R970

C931

D571

R932

R791

R901

R597

C903

C905

D791

C529

Y977

D594

R977

C573

C949

Y950

T921

Y913

D582

C572

R576

C984

Y581

Y582

C975 C977

C976

Y502

C910

D592

C591

VA901

S901

F901

CNDEG

Q571

R584

L525

R904

Y910

Y909

R991

R585

D583

R426

SG351 SG353

SG352

SG354

IC351

C358

SK351

D935 D934

R358

R360

R359

C993

D530

R573

T521

R471

D921

C471

D471

R428

C925

R430

C592

R593

D581

D591

L954

R592

C420

R429

Q402

C352

CN10T

R369 R370

K955

D955

R371

R372

R373

R377

R375

R431

D372

Q374

R376

Q522

C955

CP955

C960

C371

D371

C962

K355

D472

Y570

Y571

GND GND

Y914

R522

Q982

R528

C940

D520

Q981

R984

R982

C580

R986

Y915

R980

D933

D932

Y501

R571

Q572

R985

R983

C909

C988

C987

D981

R475

Y916

Y917

D420

GNDGND

TH901

Y971

R575

R530

C520

C964

R524

C523

R930

C904

K954

Y401

C906

C992

D421

R435

C956

D953

D926

R533

C958

D555

C582

R572

D901

C530

C556

R551

R574

C532

C571

C551

D975

D951

C527

R521

R520

C929

D952

CP952

C968

C957

C991

C967

K921

CN0PW

L522

R931

C427

NECK

C429

R523

R423

R432

Y908

Y905

Y906

R973

Y907

C526

HFB

ABL

C524

R472

H_DRIVE

Y904

Y902

R922

R929

D929

Y901

STB1

CN0E1

CN0E2

BL_GND

L952

12V

Y903

D970

R355

R356

R357

R351

R354

R353

P_ON/OFF

R352

R381

R933

R380

R420

V_SHIFT

C351

C353

D370

L351

D354

D355

D356

Q373

Q372

Q371

Q401

C422

FR901

PROTECT

D351

Y912

Y975

Y974

Y911

3.3V_STB

TP-E

A_GND

TP-47B

TP-47G

TP-47R

A_VCC

D931

D980

Q980

R350

D350

32V

R569

L357

L356

L355

VER_PROTECT

VDRB-

VDRA+

STB_IN

K952

R570

K951

220K

100K

100/35

100/25

27K

4.7/50

10K

1.8K

.1/50

3.3K

470/16

47/16

4.7/50

.0033

8200p

15K

3.3 2200/25

100/16

.001

470X

220p

6.8K

33K

1.8K

3.9K

1.8

10K

390

220

68K

5.6K

820

47/25

1000/10

100/10

10K

47/25

470/16 47/16

4700p

8.2M

.001

4.7/50

22/50

56K

1/50

10K

4.7/250

100K X

33K

12K

5.6K

2200/35

220/16

470

15k

10k

4.7K

18k

22/50

3.9K

100/35

47/35

.001

330/35

22K

10/250

100

47/16

1000/16

47/16

150K

1000/35

.001/50

12K

3.9

10K

82K

100

150

10K

1000p

A_VCC

VDRB-

NECK

VDRB-

H_DRIVE

VDRA+

HFB

P_ON/OFF

32V

12V

STB

VDRA+

ABL

PROTECT

3.3V_STB

32V

STB1

HFB

12V

STB1

STB

ABL

12V

V_SHIFT

PROTECT

HFB

3.3V_STB

NECK

H_DRIVE

VER_PROTECT

3.3V_STB

VER_PROTECT

P_ON/OFF

PROTECT

MAIN PWB ASS'Y (2/3)

SCW-1171A-H2

MAIN PWB ASS'Y(3/3)

(CRT SOCKET)

SCW-1171A-H2

NOTE) 1.Refer to page 2-11 for voltages of this circuit diagram.

2.Refer to page 2-12 for waveforms of this circuit diagram.

AC110V-AC240V

50Hz/60Hz

DEG COIL

V.OUT

DEF YOKE

ADJUSTMENT

CONNECTOR

MAIN PWB ASS'Y(1/3)

CN00T

MAIN PWB CIRCUIT DIAGRAM (2/3), (3/3)

All manuals and user guides at all-guides.com

2-12(No.YA340)

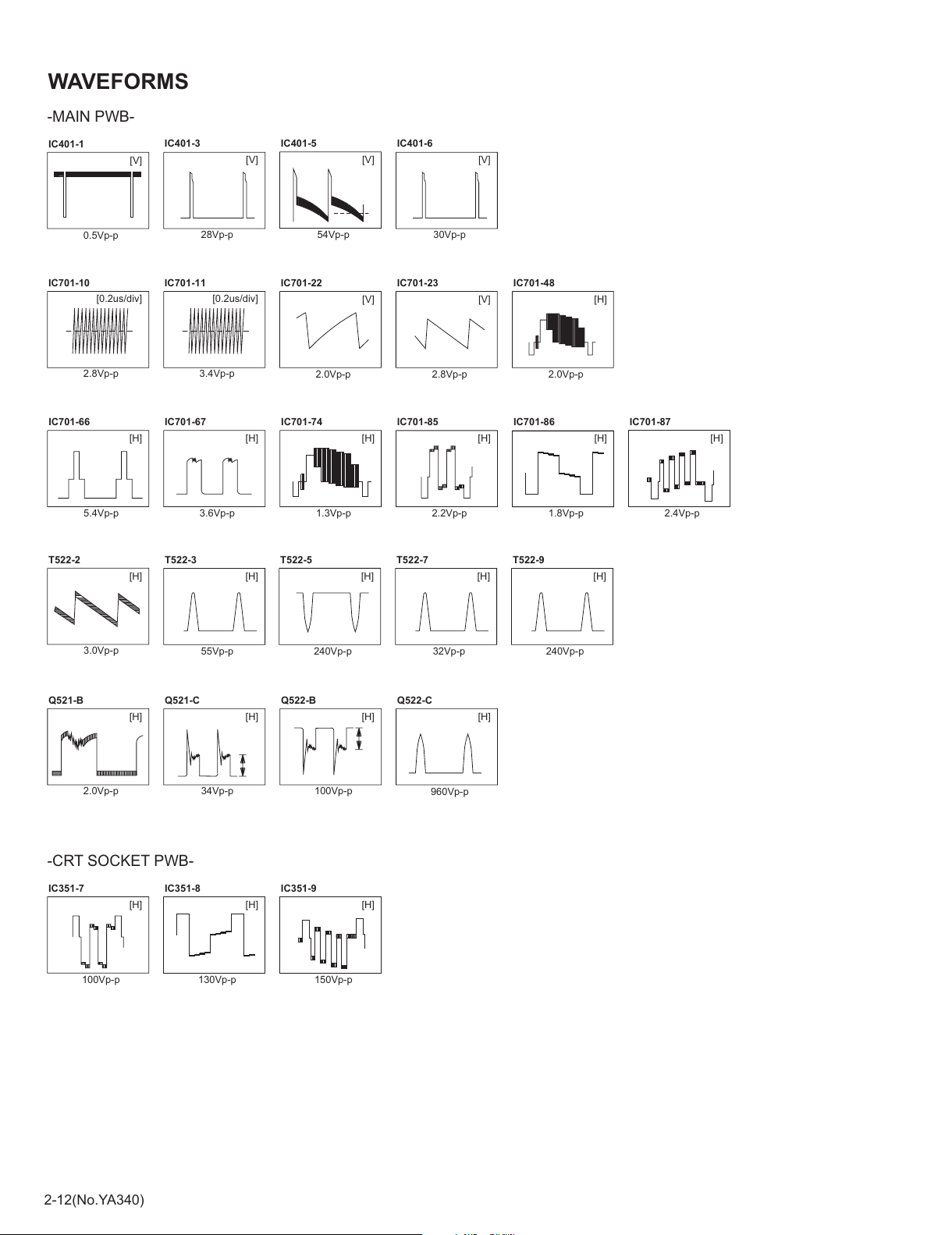

WAVEFORMS

-MAIN PWB-

-CRT SOCKET PWB-

IC401-1

0.5Vp-p

[V]

IC401-3

28Vp-p

[V]

IC401-5

54Vp-p

[V]

IC401-6

30Vp-p

[V]

IC701-10

2.8Vp-p

IC701-11

3.4Vp-p

IC701-22

2.0Vp-p

IC701-23

2.8Vp-p

[V][V]

IC701-67

3.6Vp-p

[H]

IC701-74

1.3Vp-p

[H]

IC701-66

5.4Vp-p

[H]

IC701-87

2.4Vp-p

[H]

IC701-48

2.0Vp-p

[H]

T522-2

240Vp-p

T522-3

32Vp-p

[H] [H]

240Vp-p

[H]

T522-5 T522-7

55Vp-p

[H]

T522-9

3.0Vp-p

[H]

Q522-C

960Vp-p

[H]

Q521-B

2.0Vp-p

Q521-C

34Vp-p

[H]

Q522-B

100Vp-p

[H][H]

IC351-7

100Vp-p

IC351-8

130Vp-p

IC351-9

150Vp-p

[H]

IC701-85

2.2Vp-p

IC701-86

1.8Vp-p

[H] [H]

[0.2us/div] [0.2us/div]

[H]

All manuals and user guides at all-guides.com

Table des matières

Autres manuels JVC TV

JVC

JVC AV-25PS Manuel utilisateur

JVC

JVC AV-29QS17B Manuel utilisateur

JVC

JVC InteriArt HV-32P37SUE Manuel utilisateur

JVC

JVC AV-36360 Manuel utilisateur

JVC

JVC LT-26AX5/S Manuel utilisateur

JVC

JVC AV-28RH4BU Manuel utilisateur

JVC

JVC AV-29QH4BU Manuel utilisateur

JVC

JVC AV-28GT1BJF, AV-28GT1SJF Manuel utilisateur

JVC

JVC AV-16N8 Manuel d'utilisation et d'entretien

JVC

JVC AV-21P4(BK) Manuel utilisateur

JVC

JVC AV29BA16, AV29MT16, AV29ST16, AV29VT16, AV21BA16, AV21MT16, AV21VT16, AV29BA16, AV29MT16, AV29ST16, AV29VT16, AV21BA16,... Manuel utilisateur

JVC

JVC AV28T25EK Manuel utilisateur

JVC

JVC AV-27WR25 Manuel utilisateur

JVC

JVC AV-20N33 Manuel utilisateur

JVC

JVC AV32T25EKS Manuel utilisateur

JVC

JVC AV-14KG11, AV-14KG21, AV-14UG1 Manuel utilisateur

JVC

JVC HV-L34PRO Manuel utilisateur

JVC

JVC AV-21VT15 Manuel utilisateur

JVC

JVC AV28BT7ENS Manuel utilisateur

JVC

JVC AV-29R8TEE Manuel utilisateur

JVC

JVC InteriArt AV28WH5EU Manuel utilisateur

JVC

JVC AV-21KT1BEF Manuel utilisateur

JVC

JVC AV-29JS25, AV-29MS25, AV-29MX7 Manuel utilisateur

JVC

JVC InteriArt AV32H20EUS Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
