DLA-HD750/DLA-HD350

Full HD D-ILA Home Theater Front Projector

Own it on Blu-ray and DVD 12/9/08

The remarkable performance of JVC’s D-ILA front projectors

transforms ordinary home cinema into an extraordinary experience!

The remarkable performance of JVC’s D-ILA front projectors

transforms ordinary home cinema into an extraordinary experience!

DLA-HD750/HD350

Full HD D-ILA Home Theater Front Projector

For those who demand the best and will accept no less than vivid, life-like

home cinema entertainment, JVC is proud to introduce two new D-ILA front

projectors. Promising exceptional contrast, immaculate color rendition, and

remarkably clear images, the DLA-HD750 and DLA-HD350 models look good

too — sporting a stylish yet highly functional, glossy black cabinet design.

Seeing is believing, so be the first to experience the breathtaking picture

quality that these new D-ILA front projectors have to offer and watch your

world of home cinema come alive.

and all related characters and

elements are trademarks of

and © DC Comics.

Own THE DARK KNIGHT on Blu-ray and DVD 12/9/08

◆The industry’s highest* native contrast ratio of 50,000:1!

Changing the structural design of the optical section from a conventional L-shape to a straight

configuration helped to reduce light leakage and by combining this new structure with a highly

efficient lamp, a brightness of 900 lumens** was realized. What’s more, integrating JVC’s

proprietary D-ILA device with the wire-grid optical engine provided very high contrast. And, by

equipping the newly developed lens with a fixed aperture to help eliminate unnecessary light that

reduces contrast levels, it was possible for the DLA-HD750 to achieve the industry’s highest

native contrast ratio of 50,000:1*.

Thanks to enhanced brightness created by the extended white peak as well as the wider dynamic

range for a deeper black, images are vivid and full of depth, making them perfectly suited for all

types of content, including movies, music video as well as live concert and sports programs.

* As of September 2008; native contrast of 50,000:1 for home theater projector class (JVC survey).

Native contrast ratio of 30,000:1 for the DLA-HD350.

** 1,000 lumens for the DLA-HD350.

◆Advanced video processor

Both projectors incorporate the HQV Reon-VX video processor

developed by Silicon Optix. To ensure excellent image reproduction,

this processor features precision I/P conversion and scaling with full

10-bit 4:4:4 signal processing as well as an HQV noise reduction

function to block mosquito noise.

◆High-performance 2x motorized zoom lens

The newly developed high-performance 2x zoom lens with

motorized focus features a large diameter, all-glass lens system

with 17 elements in 15 groups that includes 2 ED lenses to

project a full HD image with exceptional depth. And to display the

deepest black possible, this new high-precision lens is also

equipped with a 16-step* lens aperture that allows adjustment of

brightness according to user preferences and usage

environment. What’s more, the high-precision lens also reduces

chromatic aberration and color bleeding significantly.

* 3-step for the DLA-HD350.

Transmitted

polarized light (P)

Glass substrate

Reflected polarized light (S)

Aluminum ribs

Non-polarized light

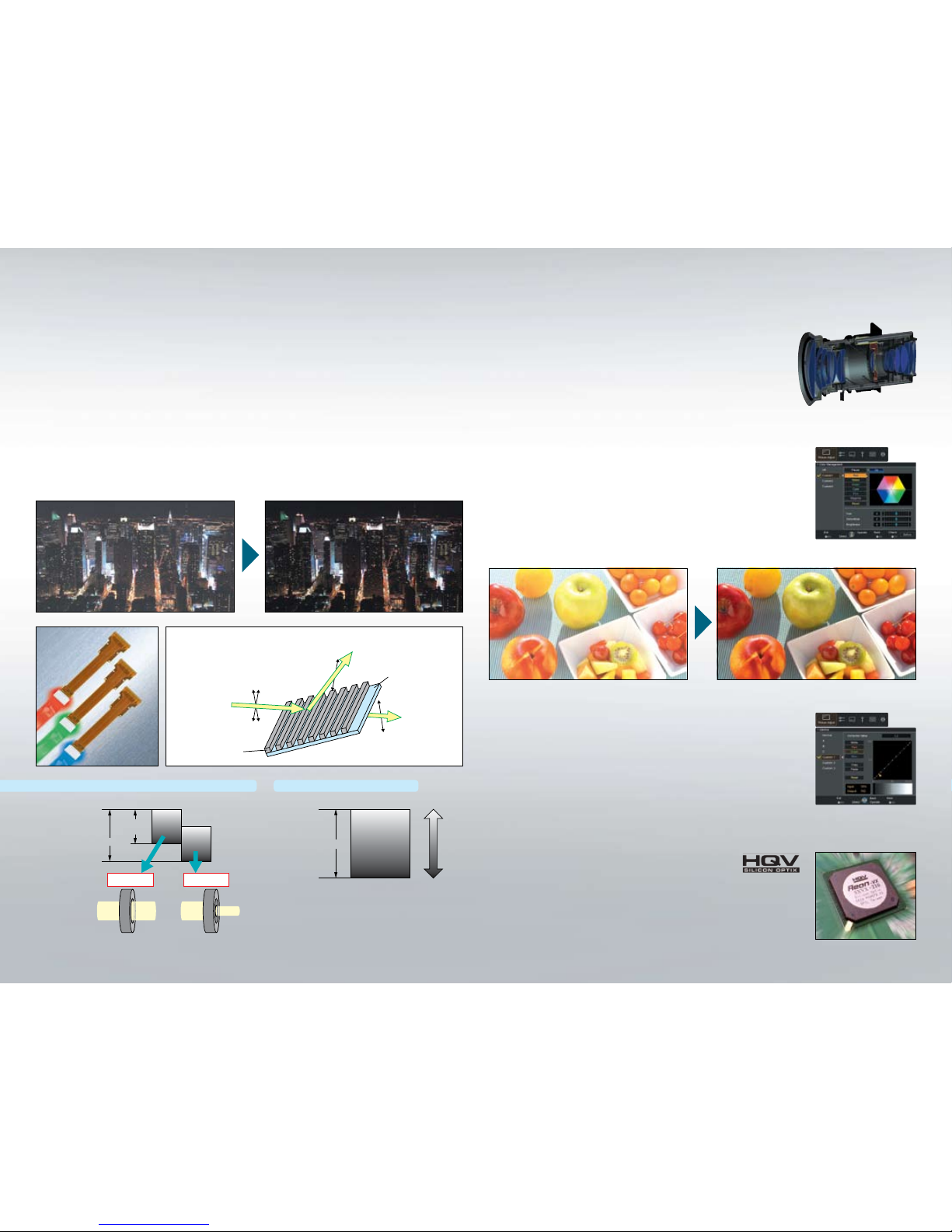

How the wire-grid polarizer works

The 0.7-inch full HD D-ILA device can display

peak whites and deep blacks within the same

frame. This provides extremely sharp

contrast for more vivid and natural color

reproduction.

50,000:1

3,000:1

~5,000:1

Iris off Iris on

Lamp

beam

Lamp

beam

50,000:1

White

Black

50,000:1 contrast ratio 50,000:1 native contrast ratio

Conventional projector with dynamic iris DLA-HD750

The dynamic iris is

opened for bright

scenes to make

peak values

brighter while at

the same time

making black level

lighter than it

should be.

Conventional projector DLA-HD750

The dynamic iris is

closed for dark

scenes to make

black level appear

darker while at the

same time making

peak values darker.

◆6 Point Custom Color Management (DLA-HD750)

The DLA-HD750 features Color Management that interpolates colors

individually by R, G, B, C, Y, or M, in three separate axes of color

phase, chroma saturation, and brightness. Up to three

customized color settings can be stored for future use.

◆Customized gamma control on-screen

Manual adjustment of gamma curve is possible via an on-screen

display, allowing the viewer to adjust projector luminance levels by

either increasing contrast in scenes that are too dark or dimming

washed-out scenes to ensure precise brightness levels suited to

individual preferences. Up to three settings can be adjusted and

stored for future use.

Custom color setup

performed via on-screen menu

Custom gamma setup performed

via on-screen menu

Before adjustment After adjustment

◆Flexible and easy set-up

Setting up is easier than ever before as the ±80% vertical and ±34% horizontal lens shift

function is now electrically operated, allowing the projected picture to be moved horizontally or

vertically effortlessly via the remote controller. What’s more, the 2x motorized zoom lens — with

throw distances of 9.8 feet (3.0 meters) to 20 feet (6.1 meters) for the 100-inch display —

makes tedious zoom or focus adjustment easy thanks to its high-performance motor.

◆THX Certified Display (DLA-HD750)

The DLA-HD750 is a THX Certified front projector. With a strict focus on image

quality and signal processing performance, THX certification promises that the HD750 is capable

of presenting a wide range of video content at maximum resolution with the correct color and

luminance levels. In addition, THX certification includes a battery of signal processing tests that

challenge the projector’s scaling, motion conversion and de-interlacing capabilities. This in-depth

analysis and testing ensures that the HD750 will provide exceptional high definition and standard

definition performance.

Also featured is a unique automatic lens cover that opens and closes with power on/off to

protect against dust. So, even if the projector is installed up on the ceiling, you’re assured of

easy, trouble-free operation via the remote control.

◆Terminal for trigger functions (DLA-HD750)

The DLA-HD750 features a terminal that can be used for two trigger

functions. Screen trigger will automatically move the screen up and

down with power on/off control while the Anamorphic Lens trigger will

automatically move the anamorphic lens to stretch the screen to the 2.35:1

aspect ratio with V-stretch mode on/off.

◆Illuminated remote control

All of the buttons on this full featured remote control light up, making it

easy to operate even in a dark room.

80%

50%

80%

Vertical shift range

Horizontal shift range

50% 34% 0% 34% 50%

Center of the screen

The projector

does not have

to be inverted

The projector

can be used

from a tabletop

The vertical and horizontal lens shift function cannot be set to the maximum values simultaneously.

±80% vertical and ±34% horizontal electric lens shift function

◆HDMI interface

Both projectors feature two HDMI (v.1.3) interfaces with

CEC compatibility.

◆Quiet operation

Thanks to the enhanced efficiency of the cooling system, fan noise has been reduced to

19dB*, enabling the viewer to better concentrate on what’s being shown on the screen

even in a very quiet room.

* When lamp mode set to standard mode.

Lens cover closed Lens cover open

A high-end model achieving the industry’s highest* 50,000:1 native contrast ratio for

“exceptional true black” reproduction

x2(v.1.3)

DLA-HD750

• Achieves industry’s highest 50,000:1 native

contrast ratio*

• Achieves a brightness of 900 lumens with

a highly efficient lamp

• THX Certified Display model, a certification of

excellence

• Color Management function to reproduce the color

scheme of choice

• User-adjustable gamma control allows customized

calibration for your room environment

• High-performance 2x zoom lens with motorized

focus featuring a large diameter all-glass lens

system with 17 elements in 15 groups including

2 ED lenses

• 16-step lens aperture for brightness adjustment

• Wide electronic lens shift function of ±80% vertical

and ±34% horizontal adjustments

• V-stretch mode, together with an optional

anamorphic lens (sold separately), allows for the

display of 2.35:1 formatted movies without top and

bottom black bars

• Digital Keystone enables easy adjustment of

distorted images

• A trigger terminal for activating one of two functions

* As of September 2008; Native contrast ratio of 50,000:1 for home theater projector class

(JVC internal survey).

A model boasting a native contrast ratio of 30,000:1 for high-resolution picture

DLA-HD350

• Amazing 30,000:1 native contrast ratio

• Achieves a brightness of 1,000 lumens that allows

vivid image reproduction even under indirect lighting

environment

• User-adjustable gamma control allows customized

calibration for your room environment

• High-performance 2x zoom lens with motorized

focus featuring a large diameter all-glass lens

system with 17 elements in 15 groups including

2 ED lenses

• 3-step lens aperture for brightness adjustment

• Wide electronic lens shift function of ±80% vertical

and ±34% horizontal adjustments

• V-stretch mode, together with an optional

anamorphic lens (sold separately), allows for the

display of 2.35:1 formatted movies without top and

bottom black bars

• Digital Keystone enables easy adjustment of

distorted images

x2(v.1.3)

Display size (16:9) Inches and (mm) Throw distance

Width Height Diagonal Feet – Inch Meters Feet – Inch Meters

52 1/429 3/8(747) 60 (1523) 5 – 10 1.78 12 – 0 3.66

60 33 3/4(857) 68 7/8(1749) 6 – 8 1/42.05 13 – 9 1/24.20

70 39 3/8(1000) 80 3/8(2040) 7 – 10 2.39 16 – 1 1/44.91

80 45 (1143) 91 3/4(2332) 8 – 11 3/42.74 18 – 5 5.61

90 50 5/8(1286) 103 1/4(2623) 10 – 1 1/23.08 20 – 8 3/46.32

100 56 1/4(1429) 114 3/4(2915) 11 – 3 1/43.43 23 – 1/27.02

110 61 7/8(1572) 126 1/4(3206) 12 – 5 3.78 25 – 4 1/47.73

120 67 1/2(1715) 137 3/4(3498) 13 – 6 3/44.13 27 – 8 1/48.44

130 73 1/8(1857) 149 1/8(3789) 14 – 8 1/24.49 30 – 1/49.15

140 78 3/4(2000) 160 5/8(4081) 15 – 10 1/24.84 32 – 4 9.86

150 84 3/8(2143) 172 1/8(4372) 17 – 1/25.19 34 – 8 10.57

160 90 (2286) 183 5/8(4663) 18 – 2 1/25.55 37 – 1/411.28

170 95 5/8(2429) 195 1/8(4955) 19 – 4 1/25.91 39 – 4 1/411.99

174 1/498 (2490) 200 (5079) 19 – 10 1/26.06 40 – 4 1/412.30

Projection Distance Chart

User-replaceable Lamp

BHL5010-S

Specifications

DLA-HD350 DLA-HD750

Device 0.7inch D-ILA x3

Resolution 1920 x 1080 pixels

Lens 2x motorized zoom & focus

f=21.4mm - 42.8mm

F=3.2 - 4

Lens shift ±80% Vertical / ±34% Horizontal (motorized)

Projection size 60 - 200 inches

Light source lamp 200W UHP

Brightness 1,000lm 900lm

Contrast ratio Native: 30,000:1 Native: 50,000:1

Terminals HDMI (v.1.3) x2 HDMI (v.1.3) x2

Component x1 (RCA) Component x1 (RCA)

S-Video x1 (mini DIN) S-Video x1 (mini DIN)

Composite x1 (RCA) Composite x1 (RCA)

RS-232C (D-sub 9-pin) PC x1 (D-Sub 15-pin)

Trigger x1 (mini jack)

RS-232C (D-sub 9-pin)

Video input signal 480i/p, 576i/p, 720p 60/50, 1080i 60/50, 1080p 60/50/24

PC input signal Digital VGA/SVGA/XGA/WXGA/WXGA+/SXGA/WSXGA+/WUXGA

Analog –VGA/SVGA/XGA/WXGA/WXGA+/

SXGA/SXGA+/WSXGA+

Noise level 19dB (Normal mode)

Power requirement AC 110V-240V, 50/60 Hz

Power consumption 280W (Stand-by mode:1W)

Dimensions (W x H x D) 14.37" x 6.58" x 18.82"

Weight 24.25 lbs.

*Projection distances are design specifications, so there is ±5% variation.

Terminals on the side (DLA-HD750)

Terminals on the side (DLA-HD350)

Optional Accessory

3.43 7.40

3.271.63

18.80

14.37

1.69

1.65

9.29

3.97 1.89

4.88

11.69

1.60

3.07

2.54

3.57

8.21

5.77

3.27

0.47

6.58

3.43 7.40

3.271.63

18.80

14.37

1.69

1.65

9.29

3.97 1.89

4.88

11.69

1.60

3.07

2.54

3.57

8.21

5.77

3.27

0.47

6.58

3.43 7.40

3.271.63

18.80

14.37

1.69

1.65

9.29

3.97 1.89

4.88

11.69

1.60

3.07

2.54

3.57

8.21

5.77

3.27

0.47

6.58

3.43 7.40

3.271.63

18.80

14.37

1.69

1.65

9.29

3.97 1.89

4.88

11.69

1.60

3.07

2.54

3.57

8.21

5.77

3.27

0.47

6.58

3.43 7.40

3.271.63

18.80

14.37

1.69

1.65

9.29

3.97 1.89

4.88

11.69

1.60

3.07

2.54

3.57

8.21

5.77

3.27

0.47

6.58

External dimensions

■ Top ■ Bottom

■ Front ■ Side (left)

■ Side (right) ■ Side (left)

(Unit: inches)

DLA-HD750

DLA-HD350

Minimum Maximum

DISTRIBUTED BY

Printed in the U.S.A.

www.jvc.com

●The projector is equipped with a high-pressure mercury lamp, which may break, emitting a loud noise.

●Please note that, depending on how the projector is used, there can be considerable difference between individual lamps regarding how many hours they will operate before requiring replacement.

●The projector lamp requires periodic replacement and is not covered by warranty (which is 2 years parts and labor, 90 days for the lamp).

●Please be aware that, because the D-ILA device is manufactured using highly advanced technologies, 0.01% or fewer of the pixels may be non-performing (always on or off).

Design and specifications are subject to change without notice. All pictures on this brochure are simulated. THX and the THX logo are trademarks of THX Ltd. which may be registered in some jurisdictions.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

All other brand or product names may be trademarks and/or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved.
