JVC GC-FM1 Manuel d'utilisation et d'entretien

HD MEMORY CAMERA

GC-FM1

1SM321404

Basic User Guide

For more details on the operations, refer

to the“Detailed User Guide”in the internal

memory. (p. 4)

ENGLISH

ESPAÑOL

FRANÇAIS

PORTUGUÊS

中文

Downloaded From VideoCamera-Manual.com Manuals

Safety Precautions

IMPORTANT:

In the event that any of the

following occur, make a request for

repair to the dealer.

•Smoke or abnormal odor is emitted

•Damage from being dropped

•Water or an object enters inside

If a malfunction occurs, stop using

the camcorder immediately and

contact www.jvc.com or by phone

at 1-800-252-5722

Caution on camcorder

The camcorder may present a

re or chemical burn hazard if

mistreated. Do not disassemble,

heat above 100 °C or incinerate.

•Dispose of used camcorder

promptly.

•Do not disassemble and do not

dispose of in re.

WARNING:

The camcorder shall not be

exposed to excessive heat such as

direct sunshine, re or the like.

If this symbol is shown,

it is only valid in the

European Union.

Downloaded From VideoCamera-Manual.com Manuals

(For owners in the U.S.A.)

Changes or modications not approved by JVC could

void the user’s authority to operate the equipment.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined

by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or

more of the following measures: Reorient or relocate

the receiving antenna. Increase the separation between

the equipment and receiver. Connect the equipment

into an outlet on a circuit dierent from that to which

the receiver is connected. Consult the dealer or an

experienced radio/TV technician for help.

FCC WARNING

(For owners in the U.S.A.)

This equipment may generate or use

radio frequency energy. Changes or

modications to this equipment may

cause harmful interference unless the

modications are expressly approved

in the instruction manual. The user

could lose the authority to operate this

equipment if an unauthorized change

or modication is made.

(For owners in the U.S.A.)

•

The supplied interface cable must be

used with the equipment in order to

comply with the limits for a digital

device pursuant to Subpart B of Part 15

of FCC Rules.

•

Use an HDMI cable with the HDMI logo.

Downloaded From VideoCamera-Manual.com Manuals

USB Cable

To Computer

<Button

USB Connector

Accessories

•USB Cable

(WUU102SCP001)

•AV Cable

(WPU122SCP001)

•Hand Strap

•Application software

The supplied software is pre-

installed in the camcorder.

Refer to the “Detailed User Guide”

on the right column for installing

software.

Viewing the“Detailed

Preparation:

•Charge the camcorder. (p. 8)

•Turn on the computer.

•Press the <button for more than

1 second to turn on the camcorder.

•Connect the camcorder to a

computer.

Downloaded From VideoCamera-Manual.com Manuals

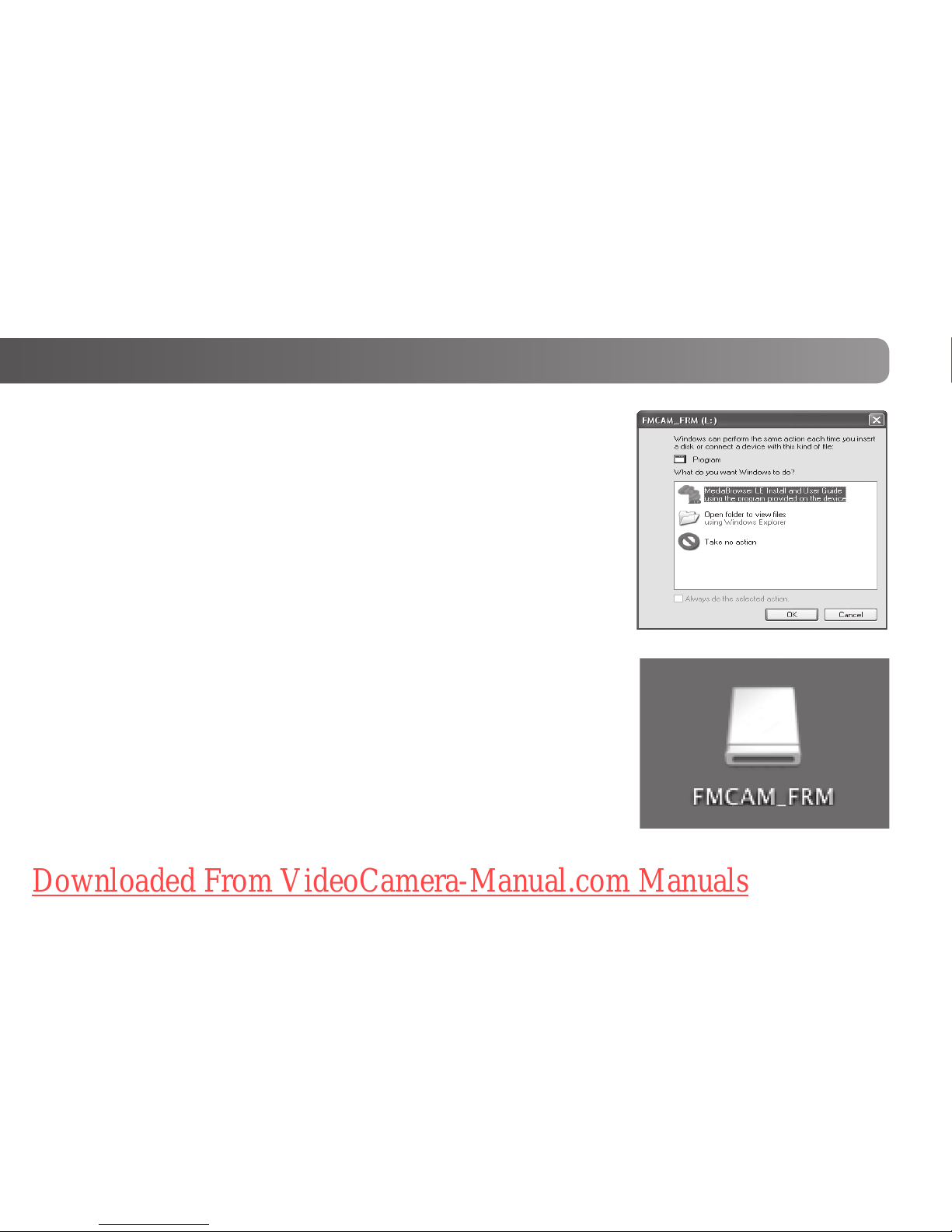

For Windows user

!The“FMCAM_FRM” window appears.

#Select [MediaBrowser LE Install and User Guide].

$Select [Detailed User Guide].

%Click a language.

For Mac user

!Double-click [FMCAM_FRM] on the desktop.

#Double-click [FM1_guide].

$Double-click [FM1_start.pdf].

%Click a language.

䡵

User Guide”in the internal memory

Downloaded From VideoCamera-Manual.com Manuals

Names of Components

Focus Switching Lever

Normal Recording [M]

Macro Recording [ ]

Power Button [<]

Power Lamp

Select Button [%]

Recording/Playback

Hand Strap

Attachment Area

Delete Button [$]

Charge Lamp

Status (Warning) Lamp

Recording Select Button

Video [!]

Still Image [#]

Index Button [7]

Reset Hole

•If the camcorder malfunctions,

push into the reset hole with a

pointed object such as a wire to

initialize the camcorder.

¡, ¢, £, ¤Buttons

Zoom Buttons

Volume Buttons

Recording Start/Stop Button

Shutter Button

Set Button

LCD Monitor

Downloaded From VideoCamera-Manual.com Manuals

Microphone

Speaker

AV Connector

HDMI Connector

USB Connector

Inserting an SD Card

Operations are conrmed on the

following SDHC cards (class 4 or higher)

with capacity 4 GB to 32 GB. Panasonic,

TOSHIBA, SanDisk, ATP.

To conserve power, the camcorder turns o

automatically if there is no operation for 3 minutes.

Tripod Mounting

Socket

Lens

SD Slot Cover

Downloaded From VideoCamera-Manual.com Manuals

Charge Lamp

USB Cable

To Computer

<Button

Power Lamp

USB Connector

1Press the <button to turn o

the camcorder.

The power lamp goes out.

2Connect the camcorder to a

computer.

Charge lamp turns on: Charging

goes out: Charging finished

Charging time approx. 180 minutes

Charging

NOTE

•Charging is not possible while the camcorder is turned on.

•Make sure that the computer is turned on during charging.

Charge the battery connecting to PC with the USB cable.

Downloaded From VideoCamera-Manual.com Manuals

Preparation:

Turn on the power and select the recording mode.

1While pressing the $button,

press the 7button.

2Select [Time setup], and then

press the set button.

3Set the date and time by selecting items with

¡, ¢and setting values with £, ¤.

4After completing the setting,

press the set button.

5Select [Exit] to quit the screen.

NOTE

•When you rst turn on the power after purchasing the camcorder, the [Time

setup] screen appears.

Setting Date and Time

Downloaded From VideoCamera-Manual.com Manuals

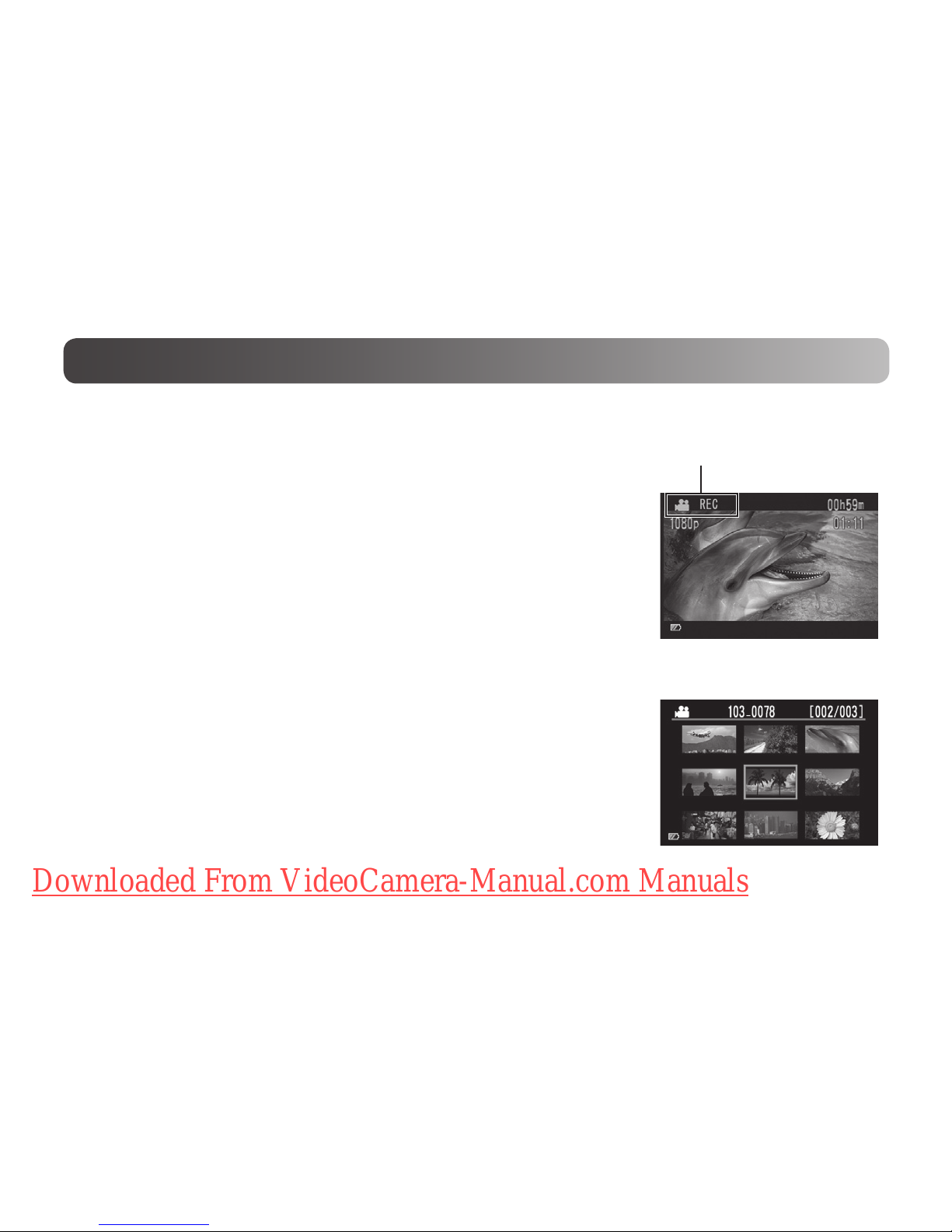

During recording, the screen

display changes to red

!: Video mode

Preparation:

Press the !/ #button to select !mode.

Video Recording

1Press the set button to start recording.

Press it again to stop the recording.

Video Playback

1Press the

%button to select the playback

mode.

2Press the

¡, ¢, £, ¤buttons to select a video.

3Press the set button to start playback.

Press it again to stop the playback. To return to the

index screen, press the 7button.

䡵

Video Recording/Playback
