JVC GR-D270US Guide de l'administrateur

2005/2

DIGITAL VIDEO CAMERA

YF07520052

GR-D270US, GR-D271US,

GR-D275US, GR-D290US,

GR-D295US

For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700(MECHANISM ASSEMBLY).

GR-D270US, GR-D271US, GR-D275US[M5D2S5]

GR-D290US, GR-D295US[M5D2S7]

No.YF075SCH

SCHEMATIC DIAGRAMS

CD-ROM No.SML200502

2-1(No.YF075)

CHARTS AND DIAGRAMS

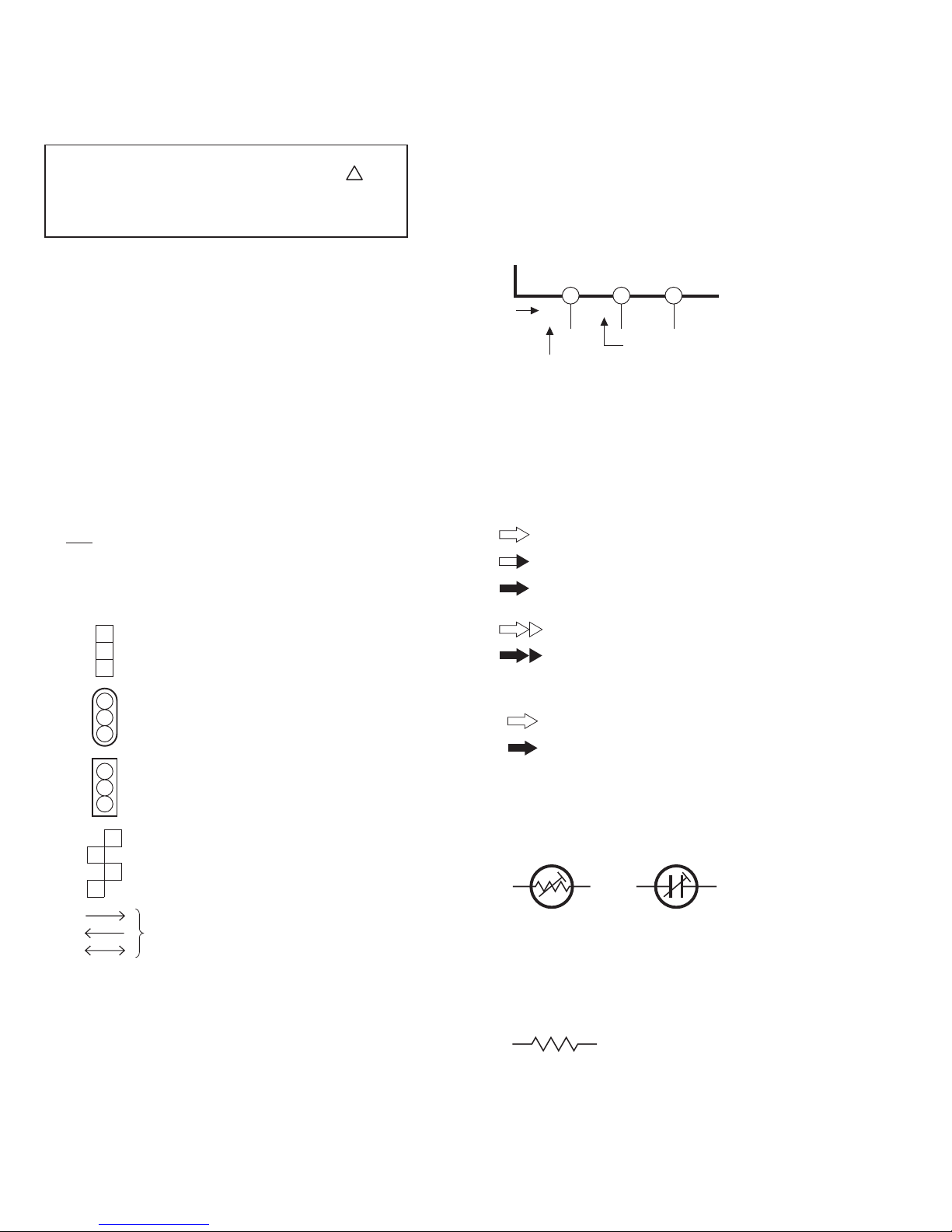

NOTES OF SCHEMATIC DIAGRAM

Safety precautions

The Components indentified by the symbol are

critical for safety. For continued safety, replace safety

critical components only with manufacturer's recom-

mended parts.

1. Units of components on the schematic diagram

Unless otherwise specified.

1) All resistance values are in ohm. 1/6 W, 1/8 W (refer to

parts list).

Chip resistors are 1/16 W.

K: KΩ(1000Ω), M: MΩ(1000KΩ)

2) All capacitance values are in µF, (P: PF).

3) All inductance values are in µH, (m: mH).

4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts

list).

2. Indications of control voltage

AUX : Active at high.

AUX or AUX(L) : Active at low.

3. Interpreting Connector indications

Note: If the voltages are not indicated on the schematic

diagram, refer to the voltage charts.

12 3

2.5

(5.0) 1.8

PB and REC modes

(Voltage of PB and REC modes

are the same)

PB mode

REC mode

4. Voltage measurement

1) Regulator (DC/DC CONV) circuits

REC : Colour bar signal.

PB : Alignment tape (Colour bar).

— : Unmeasurable or unnecessary to measure.

2) Indication on schematic diagram

Voltage indications for REC and PB mode on the sche-

matic diagram are as shown below.

5. Signal path Symbols

The arrows indicate the signal path as follows.

NOTE : The arrow is DVC unique object.

Playback signal path

Playback and recording signal path

Recording signal path

(including E-E signal path)

Capstan servo path

Drum servo path

(Example)

R-Y

Playback R-Y signal path

Recording Y signal path

6. Indication of the parts for adjustments

The parts for the adjustments are surrounded with the circle

as shown below.

7. Indication of the parts not mounted on the circuit board

“OPEN” is indicated by the parts not mounted on the circuit

board.

R216

OPEN

Removable connector

Wire soldered directly on board

Non-removable Board connector

Board to Board

Connected pattern on board

The arrows indicate signal path

Note: The Parts Number, value and rated voltage etc. in

the Schematic Diagram are for references only.

When replacing the parts, refer to the Parts List.

Note: For the destination of each signal and further line

connections that are cut off from the diagram,

refer to "BOARD INTERCONNECTIONS"

(No.YF075)2-2

CIRCUIT BOARD NOTES

1. Foil and Component sides

1) Foil side (B side) :

Parts on the foil side seen from foil face (pattern face)

are indicated.

2) Component side (A side) :

Parts on the component side seen from component face

(parts face) indicated.

2. Parts location guides

Parts location are indicated by guide scale on the circuit board.

rts location are indicated by guide scale on the circuit board.

Note: For general information in service manual, please

refer to the Service Manual of GENERAL INFORMA-

TION Edition 4 No. 82054D (January 1994).

LOCATION

REF No.

IC101 B C 6 A

IC Category : IC

Horizontal “A” zone

Vertical “6” zone

B : Foil side

(A : Component side)

C : Chip component

D : Discrete component)

2-3(No.YF075)

YTU94074-24

YTU94077-24

YTU94074-20

YTU94077-20

YTU94074-

YTU94077-

YTU94074-8

YTU94077-8

YTU94074-6

YTU94077-6

YTU94074-16

YTU94077-16

YTU94074-26

YTU94077-26

YTU94074-20

YTU94077-20

CN701

CN102

24 Z_LED

23 Z_VCC

22 Z_PTR_AD

21 DRIVE+

20 DRIVE-

19 NC

18 HGout-

17 HGVss-

16 HGout+

15 HGVcc+

14 NC

13 ZOOM01

12 ZOOM04

11 ZOOM03

10 ZOOM02

9 GND

8 OP_THRMO

7 F_PTR_AD

6 F_VCC

5 F_LED

4 FOCUS01

3 FOCUS04

2 FOCUS03

1 FOCUS02

CN104

CN101

1V1

2V2

3V3

4V4

5 CCD_CTL

6 CCD_-7.5V

7 CCD_-7.5V

8H2

9H1

10 SUB

11 RG

12 CCD_15V

13 CCD_15V

14 GND

15 GND

16 GND

17 CCD_OUT

18 GND

19 GND

20 GND

CN103

1EJT_SW

2LITHIUM

3MONI_SW

4LAMP_ON

5REG_4.8V

6REG_4.8V

7GND

8GND

9GND

10EM_GND

11EXT/R

12EXT/L

13EM_DET_L

14EM_GND

15IR_RMC

16REG_4.8V

17IR_OUT

CN401

7 REC_CTL

8 EVN_OUT

9 VREF_1.1

10 P/R_GND GND

11 AGC_OUT

12 P/R_GND GND

13 VRB_AGC

14 ATF_GAIN

15 VRB_ATF

16 P/R_GND GND

17 ATFI

18 P/R_GND GND

19 NOSIG_LV

20 REG_2.5V

21 REF_CLK

22 REC_ADJ

23 REC_DATA

24 P/R_GND GND

25 REC_CLK

26 REG_4.8V

27 REG_4.8V

28 REG_4.8V

29 REG_4.8V

30 REG_3.1V

31 REG_3.1V

32 REG_3.1V

33 MONI_CHG

34 P/R GND GND

35 P/R_GND GND

36 P/R_GND GND

37 CAM_SW_C

38 CAM_SW_B

39 CAM_SW_A

40 DEW_SENS

REG_12V

AL_3.1V

REG_3.1V

VFREG4.8

REG_2.5V

LIT_3V

REG_4.8V

REG_1.7V

REG_15V

MREG_4.8

REG-CCD

M_UNREG

SYS_RSTL

VF_CTL

REG_CS

REGRTC_CLK

REGRTC_OUT

CHRG_EVR

I_MTR

V_BATT

LITHIUM

IRIS_PS

LENS_LED

HGVcc+

VOI_OUT

CAM_OUT

FOCUSO4

T_F_V_RST

CAM_CLK

IRIS_MCK

ZOOM1

VD_F/Z

VOI_IN

ZOOM4

VDIRS

F/Z_CS

IR_OUT

ZOOM2

FOCUSO0

FOCUSO2

HDIRS

M_REG4.8

ZOOM3

ATF_GAIN

GND

REC_ADJ

REG_3.1V

FOCUSO3

DUMP_CTL

NOSIG_LV

F_VCC

VOI_CLK

M_VCOCTL

IRIS_CS

FSPLLCTL

HGOut+

HGOut-

DRIVE-

Z_LED

DRIVE+

HGVss-

PBVCOCTL

ASPECT

S_SHUT

A_MUTE

AUDIO_CS

L_MUTE

AU_LV_OUT

DODAT2

EXT/L

DOMCK2

SPK+

EM_DET_L

INT/L

EM_GND

AIDAT/AIDAT2

INT/R

GND

SHUT_ATT

REG_3.1V

DOLRCK2

REG_4.8V

SPK-

BUZZER

EXT/R

PD_L

DOBCK2

AU_LV_CLK

INT_GND

AILRCK

AIMCK

AIBCK

AODAT

AU_SIG/R

AU_SIG/L

VOI_CLK

TVSEL

VIF_CS

CAM_CLK

BLKB

SHUT_ATT

EM_DET_L

CAM_OUT

EJT_SW

DSC_DT_IN

PD_L

CCD_CTL

VC0

AU_LV_CLK

MONI_SW

DSC_CS

GND

AUDIO_CS

CAPT_REQ

REG_3.1V

VC1

AU_LV_OUT

BUZZER

DSC_DT_OUT

FLSH_RST

P_MEDIA

L MUTE

DSC_CLK

LAMP_ON

VC2

A_MUTE

BLKC

MXDT_OUT

DSC_WKUP

VOI_IN

T_F_V_RST

DSC_RST

IR_RMC

OSD_HD

IR_OUT

MMC_CD

VOI_OUT

VC3

CN114

1INT/R

2INT_GND

3INT_GND

4INT/L

CN112

1SPK+

2SPK-

CN110

GND

M_RVS

HRP

MON_B

MON_R

MON_G

HDCVF

VDCVF

AU_LV_CLK

LCD_CS

AU_LV_OUT

REG_4.8V

LCD_CTL

REG_3.1V

REG_4.8V

GND

MENU_SW

KEY_C

GND

KEY_A

LENS_LED

OP_THRMO

F/Z_CS

Z_PTR_AD

DCO0

OUTV

VC1

REG_3.1V

ANA_IN_H

INH

BLKC

VDCVF

REG_4.8V

VC3

LCD_R

VOI_CLK

PSCTL

HRP

LCD_B

S_IN_L

BLKA

VOI_OUT

HDCVF

CLK27B

CLK27A

OSD_HD

BLKB

REG_2.5V

LCD_G

INV

VOI_IN

VIF_CS

S2_DET

VC2

GND

DYO2

T_F_V_RST

DOT_CLK

OUTH

HRP2

VC0

DYO3

DCO1

OSD_VD

DYO1

REG_1.7V

DCO3

DCO2

REG_12V

VF_CS

VST

VF_9V

HST

RGB_CTL

AU_LV_CLK

REG_4.8V

GND

VCK

AU_LV_OUT

MON_R

LCD_B

MON_G

MON_B

HDCVF

REG_3.1V

LCD_R

VDCVF

LCD_G

CVF_G

HCK2

CVF_R

CVF_B

HCK1

CAP_PWR

GND

DRUM_ERR

BATT_CHK

CAP_ERR

ADP_DC

DRUM_PWR

F/Z_MCK

VDIN

ADIN5

ADIN7

ADIN1

ADIN4

HDIN

ADIN6

ADIN3

CPOB

AODAT

ADIN9

CN109

7 DIAL OFF

8 DIAL_PB

9 PHOTO_F

10 ZOOM_SW

11 GND

12 REG_3.1V

PBLK

ADIN8

CLKI

S_SHUT

ADIN0

ADIN2

NOSIG_LV

VREF_1.1

REC_CTL

P/R_GND

RECH

REC_ADJ

HID3

REG_2.5V

ATF_GAIN

REG_3.1V

DUMP_CTL

HID1

ENV_OUT

AGC_OUT

ATFI

MONI_CHG

REG_4.8V

PBH

VRB_AGC

REC_DATA

REF_CLK

VRB_ATF

REC_CLK

CN402

P/R_GND

CN404

D COIL W

COIL_COM

D_PG-

GND

CN407

CAM_SW_A

CAM_SW_B

CAM_SW_C

P/R_GND

CN403

1DEW_SENS

2P/R_GND

3LOAD_FWD

4LOAD_FWD

5LOAD_REV

6LOAD_REV

CN301

CN7601

CN7602

1VCOMH

2VCOML

3VCL

4C41N

5C41P

6VGH

7C31N

8C31P

9VGL

10C23N

11C23P

12C22N

13C22P

14C21N

15C21P

16VDDA

17VFB

18DRV

19VSS

20ND

21VDD

22VDD1

23NC

24VSS1

25VCOIN

26PDO

27VA[R]

28VA[G]

29VA[B]

30DE

31HS

32VS

33POL

34VDD

35NPC

36VSSD

37HWRESETZ

38GCL

39GDA

40GCS

CN7002

1VSS

2VDD

SLEEP

4EN

5VST

6VCK

7DWN

8VREF

9HST

10HCK2

11HCK1

12VIDB

13VIDG

14VIDR

15VCOM

CN108

1CVF_R

2CVF_G

3CVF_B

4HCK1

5HCK2

6HST

7VCK

8VST

9EN

10VF_SLEEP

11VF_9V

12VFREG4.8

13GND

14GND

15GND

16VF_SW

CN302

1REG_3.1V

2REG_3.1V

3REG_4.8V

4REG_4.8V

5LCD_CTL

6REG_4.8V

AU_LV_OUT

8LCD_CS

9AU_LV_CLK

10VDCVF

11HDCVF

12MON_G

13MON_R

MON_B

15HRP

M_RVS

GND

18GND

GND

20GND

F_PTR_AD

DOBCK2

DSCIO0

D15

CAPT_REQ

DSC_DT_IN

DSCIO3

DODAT2

DSYIO7

DSCIO6

DSYIO6

DOLRCK2

A13

DSCIO4

VDDSC

DSC_DT_OUT

DSCIO7

A16

DOMCK2

DSCIO1

D14

DSCIO5

HDDSC

FLDDSC

DSCIO2

DSC_CS

DSC_CLK

CLKDSC

DSC_STS

A15

DSC_RST

A14

MXDT_OUT

FLSH_RST

DSC_WKUP

CPOB

CAM_OUT

ADIN6

ADIN3

HDIN

CCD_15V

ADIN8

ADIN5

ADIN0

VDIN

ADIN7

ADIN1

PBLK

ADIN9

CAM_CLK

ADIN2

CLKI H1

SUB

T_F_V_RST

CCD_-7.5V

ADIN4

CCD_OUT

ASPECT

IRIS_CS

IRIS_PS

HRP2

REG_15V

CN7001

V_OUT

Y_OUT

C_OUT

BLKA

BATT_+

GND

REG_3.1V

DSC_STS

VF_SLEEP

VF_SW

D_GAIN

TG_CS

REG_4.8V

CDS_CS

REG-CCD

REG_4.8V

REG

OP DRV

AUDIO

VIDEO

MONI/VF

PRE/REC

OPE

60 MONITOR

LCD(C-VF) PANEL

08VF

LCD(MONITOR) PANEL

CDS/TG

FRONT

CCD

10 MAIN MAIN IF

ZOOM U

SPEAKER

INT MIC

W_Sens

RCU Light_LED

EJECT

MONI SW

EXT_MIC IN

DECK OPE

SUB

OP BLOCK

VDD

RG GND

TEST

Vout

GND

LITHIUM

BATTERY

ROTARY

ENCODER HEAD LOADING

MOTOR DR

(Page2-15)

(Page2-17)

(Page2-27)

(Page2-9)

(Page2-37)

(Page2-35)

(Page2-39)

(Page2-13)

(Page2-21)

(Page2-5)

(Page2-33 )

(Page2-28)

(Page2-19)

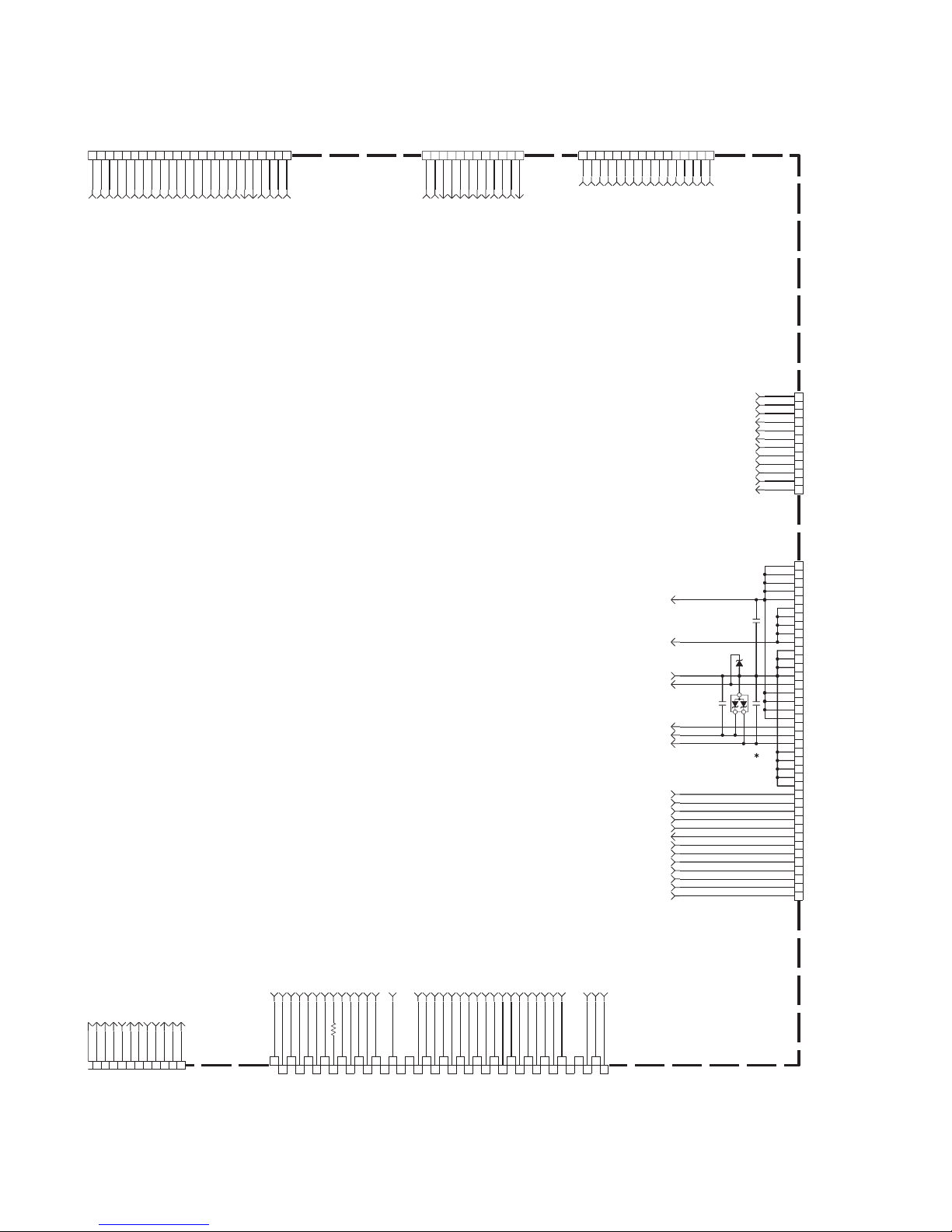

BOARD INTERCONNECTION

NOTE: The number of patch cords ( ) are indicated by interconnected.

(No.YF075)2-4

YTU94074-12

YTU94077-12

YTU94074-12

YTU94077-12

YTU94105-40

YTU94077-40

YTU94105-40

YTU94077-40

YTU94105-40

YTU94077-40

YTU94074-16

YTU94077-16

YTU94074-18

YTU94077-18

YTU94074-11

YTU94077-11

YTU94074-6

YTU94077-6

CN408

1 REEL_VCC

2 T_REEL

3 S_REEL

4 CAS_SW

5 TAPE_LED

6 E_SENS

7 S_SENS

8 REC_SAFE

9 MIC1

10 MIC2

11 MIC3

12 DRUM_PG

13 DRUM_FG

14 DRUM_REF

15 L_FRB

16 LO_ON

17 MDA_PS

18 C_FRB

19 CAP_FG

20 CAP_REF

21 GND

22 GND

23 CAP_ERR

24 CAP_PWR

25 CAP_PWR

26 CAP_PWR

27 DRUM_PWR

28 DRUM_PWR

29 DRUM_PWR

30 DRUM_ERR

31 GND

32 GND

33 GND

34 GND

35 REG_3.1V

36 REG_3.1V

37 M_UNREG

38 M_REG4.8

39 M_REG4.8

40 M_REG4.8

1 P/R_GND GND

2 DUMP_CTL

3 HID3

4 HID1 HID

5 PBH

6 RECH

7 REC_CTL

8 EVN_OUT

9 VREF_1.1

10 P/R_GND GND

11 AGC_OUT

12 P/R_GND GND

13 VRB_AGC

14 ATF_GAIN

OMT

PBH

TSR

D_GAIN

TRIG_SW

TG_CS

CDRE

RGB_CTL

FRP

USBDOWN

MONI_CHG

ADDT11

DRUM_REF

PHOTO_F

KENTO

CAS_SW

T_REEL

BLKB

SHUT_ATT

L_FRB

KEY_A

CLK27SEL

I_MTR

MVD

PD_L

CPU_WAIT

DRUM_PG

MENU_SW

JLIP_TX

ADDT02

CHRG_EVR

ADDT13

VC0

SPA

S_SENS

REG_CS

ADDT08

DOT_CLK

CDWE

AUDIO_CS

ZOOM_SW

ADDT05

V_BATT

HID

VC1

OUTV

BUZZER

C_FRB

ADDT15

CAM_SW_B

ADDT06

AL_3.1V

DIAL_AUTO

L_MUTE

ADDT09

RECH

EXMOD_1

CAM_SW_C

ANA_IN_H

LIT_3V

VC2

MDA_PS

A_MUTE

ADDT12

DSP_RST

ADDT03

BLKC

S2_DET

ADDT07

DIAL_MANU

KEY_C

REC_SAFE

REGRTC_CLK

PWR_LED

OSD_VD

VF_CS

DIAL_OFF

TAPE_LED

LD_ON

CDAS

CAP_REF

ADDT10

S_IN_L

ADDT14

S_REEL

REGRTC_OUT

LCD_CS

ADDT04

PSCTL

OSD_HD

ADDT00

REEL_VCC

DRUM_FG

VF_CTL

JLIP_RX

E_SENS

MMC_CD

ADDT01

CAP_FG

DIAL_PB

CDS_CS

XINT

LCD_CTL

IF_TX

MIC1

MIC3

MIC2

SYS_TCK

SYS_TMS

SYS_TDI

SYS_TDO

SYS_TRSTL

SYS_RSTIL

CN111

1 P_MEDIA

2 GND

3 REG_3.1V

4 MMC_CS

5 MMC_DIN

6 MMC_CLK

7 MMC_CD

8 MMC_DOUT

9 SD_WP

10 GND

11 GND

12 GND

CN107

1 TPA+

2 TPA-

3 TPB+

4 TPB-

5 GND

6 AU_SIG/L

7 AU_SIG/R

8 P_DET

9 V_OUT

10 C_OUT

11 GND

12 Y_OUT

13 GND

14 GND

15 GND

16 GND

17 GND

18 GND

19 D_BATT

20 T_BATT

21 BATT_CHK

22 BATT_+

23 BATT_+

24 BATT_+

25 BATT_+

26 ADP_L

27 GND

28 GND

29 GND

30 GND

31 ADP_DC

32 ADP_DC

33 ADP_DC

34 ADP_DC

35 ADP_DC

36 BATT_+

37 BATT_+

38 BATT_+

39 BATT_+

40 BATT_+

DSYO4

DSYO1

HID

EXTFRP

ADDT05

VRB_AGC

REG_4.8V

DSCO3

AIMCK

DSCIO5

ADDT00

DSCO2

TSR

VDIN

DSCIO3

AIBCK

XINT

VRB_ATF

CLK240

MFLD

EXTACCES

TPA+

DSCIO0

CDWE

DSCIO1

EXTDATA4

ADIN5

EXTREQ

VREF_1.1

OSD_VD

DSCIO2

DSP_RST

ADDT08

DSCO1

FS_PLL

DSCO6

ADDT07

MAIN_VCO

TPA-

ADIN7

MVD

REG_1.7V

EXTDATA2

DSYIO4

CLKDSC

ADIN1

VDIRS

VD_F/Z

SPA

FLDDSC

ADIN4

DSYO2

DSYO7

OUTV

FRP

ADDT12

HDIN

AILRCK

ADIN6

EXTDATA3

CLK27SEL

DSCIO6

ADIN3

ADDT01

EXTDATA1

CPOB

REC_CLK

ADDT14

AODAT

VDDSC

DSCO5

ADIN9

HDIRS

DSYIO2

ADDT06

REC_CTL

DSYO5

AIDAT/AIDAT2

ATFI

DSYO0

ADDT15

DSYIO6

EXTDATA0

TPB+

DSP_CS

DSCIO7

DSCO4

REF_CLK

EXTCLK

ADDT11

CPU_WAIT

AGC_OUT

CN109

1 TRIG_SW

2 GND

3 PWR_LED

4 GND

5 DIAL_MANU

6 DIAL_AUTO

7 DIAL_OFF

8 DIAL_PB

9 PHOTO_F

10 ZOOM_SW

11 GND

12 REG_3.1V

DISCRI

EXTDATA5

EXTDATA6

M_VCOCTL

DSYO3

ADDT10

CLK27B

PBLK

HDDSC

DSCO0

DSYIO5

GND

OMT

CDRE

CDAS

ADIN8

CLKI

FSPLLCTL

REG_3.1V

DSYIO3

DSCIO4

DSYIO7

CN113

1 EXMOD_1

21 SYS_TMS

2 SYS_TCK

22 SYS_TDI

3 SYS_TRSTL

23 SYS_TDO

4 SYS_RSTL

24 AL_3VSYS

5 IF_TX

25 JLIP_TX

6 JLIP_RX

26 TXD2

7 RXD2

27 NC

8 I_MTR

28 NC

9NC

29 ENV_OUT

10 MAIN_VCO

30 ATFI

11 HID

31 DISCRI

12 FS_PLL

32 HST

13 MON_B

33 MON_R

14 MON_B

34 GND

15 GND

35 V_OUT

16 HRP

36 CVF_B

17 CVF_R

37 CVF_G

18 GND

38 NC

19 NC

39 DSC_DBG

20 KENTO

40 MVD

ADDT13

ADDT03

EXTDATA7

S_SHUT

ADDT04

ADIN0

DSYIO0

DSYIO1

DSYO6

F/Z_MCK

IRIS_MCK

ADIN2

TPB-

ADDT02

DSCO7

ADDT09

REC_DATA

REG_2.5V

PBVCOCTL

HID3

HID1

MONI_CHG

PBH

M_REG4.8

DRUM_REF

GND

P/R_GND

CAP_ERR

C_FRB

DRUM_PWR

DRUM_ERR

M_UNREG

CAP_PWR

CAP_REF

M_REG3.1

LD_ON

MDA_PS

DRUM_PG

L_FRB

CAP_FG

DRUM_FG

CN404

D_PFG+

D_FG-

D_COIL_U

D_COIL_V

D_COIL_W

COIL_COM

D_PG-

GND

CN405

HG_U-

HG_V-

HG_W-

HG_BS-

HG_BS+

HG_W+

HG_V+

HG_U+

C_COIL_V

C_COIL_U

C_COIL_W

MDA_2.9V

C_FG-

GND

C_FG+

CN406

GND

S_SENS

MDA_2.9V

MIC3

MIC2

REC_SAFE

MIC1

E_SENS

CAS_SW

S_RL-

TAPE_LED

S_RL+

REEL_VCC

T_RL-

GND

T_RL+

T_REEL

S_REEL

HG_W-

D_COIL_W

D_COIL_V

T_RL+

C_FG-

C_COIL_U

C_COIL_V

HG_U+

S_RL+

LOAD_FWD

C_FG+

D_COIL_U

LOAD_REV

HG_W+

COIL_COM

D_PFG+

D_FG-

T_RL-

HG_V+

HG_BS-

MDA_2.9V

HG_U-

C_COIL_W

S_RL-

HG_V-

HG_BS+

D_PG-

1DEW

SENS

DSYIO1

DSCO3

DSYIO3

DSCO0

USB_RST

EM_OE

CLK27B

DSCIO0

MMC_CD

D15

USB_INT

TXD2

USB_WKUP

AIDAT/AIDAT2

EM_WE

DSYIO0

USB_CS

DSCO5

D11

USBDOWN

DSYO2

DSCIO3

DSYO0

DSYIO7

DSC_DBG

DSYO6

DSYIO6

SD_WP

MMC_DIN

DSYO4

DSCO7

RXD2

CLK240

A13

DSYO1

DSCIO4

MMC_CS

D12

DSYO7

REG_3.1V

A16

DSYIO5

USB_DN

DSCIO1

D14

D13

DSCIO5

DSCO6

DSCO1

DSCIO2

D10

MMC_CLK

DSCO4

DSYIO4

REG_4.8V

MMC_DOUT

A15

DSYO3

DSCO2

DSYO5

GND

A14

DSYIO2

USB_DP

CN902

CN901

BLKA

DCO1

OUTH

CLK27A

DYO1

DYO2

INV

DCO3

INH

DCO0

DYO3

DYO0

DCO2

HID3

DEW_SENS

CAM_SW_A

DSP_CS

MFLD

AL_3VSYS

A16

USBDOWN

USB_RST

EM_OE

EXTDATA5

EXTCLK

USB_INT

D12

USB_CS

D10

D15

D13

A13

EXTDATA7

REG_4.8V

A14

GND

USB_DN

REG_1.7V

EXTDATA1

EXTDATA2

EXTDATA0

D11

EXTACCES

EM_WE

EXTDATA4

EXTDATA6

USB_DP

USB_WKUP

D14

EXTREQ

A15

EXTDATA3

EXTFRP

CN105

ADP_L

M_RVS

T_BATT

P_DET

D_BATT

TVSEL

PRE/MDA

PRE/MDA IF

CPU

PARAGON

MDA

DSC

USB

REAR

ZOOM UNIT

UNIT

JIG CONNECTOR

MULTIDC JACK

Victor

CU-MMC04

8MB

MultiMediaCard

BATT_TERM.

USB

DRUM MOTOR CAPSTAN MOTOR SENSOR [Z27]

MECHA

(Page2-40)

(Page2-7)

(Page2-23)

(Page2-11)

(Page2-40)

(Page2-25 )

) (Page2-31)

(Page2-29)

y10496001a_rev0.1

2-5(No.YF075)

TO PRE/MDA(PRE)

(CN401)

TO PRE/MDA(MDA)

(CN408)

TO FRONT

(CN701)

EXT/L

EXT/R

EM_DET_L

LITHIUM

EJT_SW

LAMP_ON

REG_4.8V

GND

EM_GND

IR_RMC

REG_4.8V

IR_OUT

CN104

QGF0528F1-40X

CN105

QGF0528F1-40X

DEW_SENS

CAM_SW_A

CAM_SW_B

CAM_SW_C

MONI_CHG

VRB_ATF

VRB_AGC

GND

AGC_OUT

VREF_1.1

ENV_OUT

GND

DUMP_CTL

HID3

HID

PBH

REC_CTL

RECH

GND

ATFI

ATF_GAIN

GND

NOSIG_LV

REG_2.5V

REF_CLK

REC_ADJ

REC_DATA

GND

REC_CLK

REG_4.8V

GND

REG_3.1V

REG_4.8V

M_REG4.8

M_UNREG

REG_3.1V

GND

DRUM_PWR

CAP_PWR

GND

CAP_REF

LD_ON

L_FRB

DRUM_REF

REC_SAFE

TAPE_LED

E_SENS

S_SENS

MIC1

MIC2

MIC3

DRUM_PG

DRUM_FG

C_FRB

CAP_FG

CAP_ERR

DRUM_ERR

MDA_PS

MONI_SW

KEY_A

KEY_C

MENU_SW

GND

REG_4.8V

REG_3.1V

CN110

QGF0545F1-26X

CN103

QGF0545F1-17X

GND

REG 3 1V

EM_GND

MAIN(MAIN IF)

MAIN(MAIN IF) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

(No.YF075)2-6

TO SD(CN901)

TO OPE(CN301)

TO JIG CONNECTOR

TO REAR UNIT

TO ZOOM UNIT TO VF(CN7001)

REC_SAFE

TAPE_LED

CAS_SW

REEL_VCC

T_REEL

S_REEL

E_SENS

S_SENS

MIC1

MIC2

MIC3

DRUM

BATT_CHK

T_BATT

ADP_DC

ADP_L

CN111

QGF0543F1-12X

P_MEDIA

SD_WP

MMC_DOUT

MMC_CD

GND

MMC_CLK

MMC_DIN

MMC_CS

REG_3.1V

GND

PWR_LED

GND

REG_3.1V

ZOOM_SW

PHOTO_F

TRIG_SW

DIAL_PB

DIAL_OFF

DIAL_AUTO

DIAL_MANU

M_RVS

KEY_C

MENU_SW

GND

REG_4.8V

REG_3.1V

LCD_CTL

REG_4.8V

AU_LV_OUT

LCD_CS

AU_LV_CLK

VDCVF

HDCVF

MON_G

MON_R

MON_B

GND

TPA+

TPB-

GND

Y_OUT

TPA-

C_OUT

V_OUT

AU_SIG/L

AU_SIG/R

P_DET

TPB+

5F1-26X

HRP

D_BATT

GND

SYS_TMS

SYS_RSTL

AL_3VSYS

SYS_TDO

CVF_B

JLIP_TX

SYS_TRSTL

ENV_OUT

EXMOD_1

JLIP_RX

IF_TX

CVF_R

KENTO

HID

MON_G

SYS_TCK

GND

CN113

QGB0512L1-40X

MAIN_VCO

V_OUT

ATFI

HRP

CVF_G

MVD

MON_B

I_MTR

GND

SYS_TDI

MON_R

FS_PLL

DISCRI

CN107

QGF0528F1-40X

GND

D102

MA8068-X

GND

BATT_+

GND

D101

EMZ6.8N-X

C102

C101

0.1

CN109

QGF0545F1-12X

R101 0Ω

REG_3.1V

CN108

QGF0543F1-16X

CVF_R

CVF_G

CVF_B

HCK1

HCK2

HST

VCK

VST

VF_SLEEP

VF_9V

VFREG4.8

GND

VF_SW

HST

TXD2

RXD2

DSC_DBG

C103

0.1

y10497001a_rev0

ONS".

2-7(No.YF075)

IC1001

MN103S97NJA

AL_3.1V

REG_3.1V

USBDOWN

EEP_CS

CAPT_REQ

D_BATT

CCD_CTL

MENU_SW

C_FRB2

OP_THRMO

IF__TX

CHRG_EVR

EEP_CLK

HID

CDS_CS

IF_RX

MIC_CTL

TRIG_SW

KEY_A

T_F_V_RST

MONI_SW

DSC_DT_OUT

DIAL_AUTO

EEP_CS

RTC_CS

AU_LV_CLK

CAS_SW

VF_SW

EEP_OUT

AU_LV_OUT

V_BATT

FRP

DSC_DT_IN

OMT

REG_CS

DIAL_OFF

RTC_IN

CHRG_LON

DRUM_PG

IF_RX

OSD_CS

EEP_CLK

IF_RX

AUDIO_CS

EEP_IN

IR_DET

OUTV

TSR

DIAL_PB

P_MEDIA

CAS_SW

ZOOM_SW

KEY_C

TG_CS CAP_PWM

A_MUTE

LCD_CS

DSC_CS

FLSH_RST

OUTV

DIAL_MANU

REGRTC_CLK

SPA

P_MEDIA

CHG_WKUP

F_PTR_LV

CDS_CS

L_FRB L_FRB

DIAL_AUTO

DSC_WKUP

MDA_PS

PHOTO_F

VF_CTL

S_IN_L

REGRTC_OUT

MFLD

MMOD0

RTC_IN

D_GAIN

LCD_CS

MMC_CD

CAM_OUT

CAP_FG

LCD_CTL

DRUM_FG

SYS__RSTL

DIAL OFF

MONI_SW

LENS_LED

S_REEL

VF_SW

MIC3

DRUM_FG

RTC_CS

BZ_FREQ

CAM_CLK

VF_SLEEP

REGRTC_OUT

MXDT_OUT

DRUM_PWM

LAMP_ONH

FRP

PD_L

DRUM_PG

DSC_RST

CAM_SW_B

SPA

MIC2

TG_CS

REGRTC_CLK

CAP_FG

F/Z_CS

CAM_SW_C

T_REEL

EJT_SW

TSR

DSP_RST

MMOD1

L_FRB2

L_FRB

EXMOD0 EXMOD0

IF__TX

L_FRB2

EJT_SW

DSC_STS

M_RVS

MVD

DSC_CLK

F/Z_CS

MENU_SW

CAP_PWM

CAM_SW_A

DIAL_MANU

DRUM_PWM

XINT

EXMOD1 EXMOD1

REMOTE

BZ_ENV

EEP_IN

L_MUTE

C_FRB C_FRB

LD_ON

EEP_OUT

VF_CS

Z_PTR_LV

TVSEL

RGB_CTL

R1030

100K

IC1007

S-80823CNNB-G-W

OUT

DET

VSS

C1011

0.01

R1092 1K

R1036 1K

VF_SW

R1120 100K

R1031

100K

R1097 1K

R1053 150K

R1008

2.2K

R1090 1K

DIAL_MANU

R1003

100K

REG_3.1V

TRIG_SW

R1096 1K

R1068 10K

R1057 8.2K

DRUM_PG

R1048

100K

R1040

OPEN

R1060

47K

R1075 3.3K

C1008

22/6.3

KEY_C

AL_3VSYS

R1044

47K

LCD_CTL

CAP_REF

M_RVS

Z_PTR_AD

TL1004

V_BATT

R1110 10K

C1017

C1007

0.1

C1010

0.01

EXMOD_1

R1112 10K

F_PTR_AD

T_F_V_RST

TL1023

R1056

47K C1055 1

TL1024

R1007

100K

R1070

10K

C1009

0.01

R1147

330K

Q1005

UMC3N-W

123

LCD_CS

MONI_SW

R1034

100K

R1054 2.7K

C1003

10P

LON

158

NMIRQL

105

L_FRB2

150

L_FRB1

CAM_SW_C

CAM_SW_B

CAM_SW_A

MENU_SW

225

OSD_CS

120

DSC_CLK

DSC_OUT

121

DSC_IN

VF_SW

MONI_SW

EJECT_SW

199

CAS_SW

141

DIAL_MANU

123

DIAL_AUTO

171

DSP_RST

103

IRIS_O/C

163

S_IN_L

190

HP_DET

REG_RTC_CLK

165

REG_RTC_OUT

REG_RTC_IN

184

LCD_CS

148

IRIS_MCK

128

USB_STS

FLD

205

FRMREF

134

TRKREF

174

SRVTRK

133

SPA

DRUM_PG

PD_L

132

S_REEL

T_REEL

147

ROM_CS

183

VF_CS

CAP_FG

DRUM_FG

196

ASPECT1

160

ASPECT2

L_MUTE

124

A_MUTE

220

RGB_CTL

222

XINT

194

JLIP_INT

193

CHG_WKUP

223

DSC_CS

OMT

130

OUTV

P_MEDIA

TVSEL

214

CHRG_EVR

CAP_PWM

DRUM_PWM

EEP_CLK

197

EEP_OUT

224

EEP_IN

TRIG_OUT

198

TXD

164

RXD

122

AU_LV_CLK

AU_LV_OUT

AUDIO_CS

144

MIC_SCL

100

MIC_SDA

138

MIC_CTL

VSS

117

VSS

139

TALLY

129

MXDT_OUT

MMC_L

USBDOWN

DSC_STS

170

CAPT_REQ

FLSH_RST

169

DSC_WKUP

DSC_RST

LENS_LED

EEP_CS

177

REG_CS

186

FZ_CS

104

CDS_CS

149

TG_CS

204

RTC_CS

OUTV

R1073 3.3K

RA1003

100K

C1053

0.022

TL1001

IR_OUT

C1054

0.022

DIAL_PB

R1046

15K

C1052

0.022

R1148

220K

CAS_SW

MDA_PS

R1077

100K

R1045

C1019

TL1005

DIAL_OFF

JLIP_TX

C1006

0.1

Q1009

DTC143XE-X

C1005

0.1

VF_CTL

Q1008

DTC144EE-X

X1002

NAX0564-001X

D1002

1SS376-X

CDS_CS

R1117

R1066

100K

R1049

100K

LAMP_ON

R1002

100K

R1069 10K

R1050

100K

C1012

0.01

R1051

4.7K

VF_SLEEP

R1055

18K

CAP_FG

R1010

10K

C1015

CAM_CLK

P_MEDIA

IC1009

SN74AHC1G08DC-X

123

C1014

0.01

R1047

10K

R1091 1K

TG_CS

C1047

OPEN

R1035 1K

GND

R1082

47K

D1001

DA221-x

R1080 100K

ZOOM_SW

C1021

R1122 100K

R1081

47K

LD_ON

C1004

22/6.3

C1013

0.01

BUZZER

HID

R1088

EJT_SW

FRP

MENU_SW

C1016

R1115

L_FRB

D_GAIN

R1072 3.3K

R1093 1K

R1078 100K

R1067 100K

R1118 100K

D_BATT

C1051

0.022

DIAL_AUTO

PHOTO_F

IR_RMC

153

NC(TRCCLK)

155

NC(TRCST)

108

NC(TRCD0)

219

NC(TRCD1)

NC(TRCD2)

110

NC(TRCD3)

152

NC(EXTRG0)

191

NC(EXTRG1)

226

VSS

237

VSS

238

VSS

239

VSS

240

VSS

241

VSS

242

VSS

246

VSS

247

VSS

248

VSS

249

VSS

114

FRQS0

FRQS1

NC(VREFH)

AVDD

VDDH

VDDB

116

(PULLUP)

156

NC(PULLUP)

159

NC(PULLUP)

162

NC(VDDH)

221

NC(PULLUP)

227

VDDB

228

VDDB

229

VDDB

245

VDDH

250

VDDH

254

VDDH

255

VDDH

NC(OPEN)

243

VDD

244

VDD

251

VOUT(1.8V)

252

VDD

253

VDD

R1087

KEY_A

AL_3.1V

R1071

10K

R1116

TSR

TL1019

Q1006

2SC4617/QR/-X

R1043

4.7K

CAM_OUT

SPA

R1094 1K

R1146

R1064 100K

R1063

22K

R1074 3.3K

R1041

560

R1119 100K

TL1002

TL1009

R1052

10K

C1050

OPEN

R1033

100K

R1089 100K

IC1006

RS5C314-X

VDD

XIN

XOUT

INTR

VSS

SIO

CLK

F/Z_CS

R1076

100K

L1002 10µ

R1032

100K

R1059 12K

R1121 100K

TL1022

Q1007

DTC124EE-X

TL1003

OP_THRMO

CCD_CTL

JLIP_RX

R1095 1K

LIT_3V

TO REG

L1001 10µ

PWR_LED

DRUM_REF

IF_TX

TL1020

DRUM_FG

C_FRB

TL1021

VF_CS

C1048

OPEN

R1061

39K

RGB_CTL

TO REG

TO PARAGON,VIDEO

TO PARAGON

TO PARAGON,USB

TO PARAGON

TO MAIN IF(CN107)

TO MAIN IF(CN113)

TO MAIN IF(CN103)

TO MAIN IF(CN109)

TO MONI/VF

TO MAIN IF(CN113)

TO MAIN IF(CN101)

TO REG

TO MAIN IF(CN110)

TO MAIN IF(CN108)

TO MAIN IF(CN110)

TO AUDIO

TO MONI/VF

TO OP DRV,

MAIN IF(CN103)

TO VIDEO,CDS/TG,OP DRV

TO CDS/TG

TO MAIN IF(CN103)

TO CDS/TG,OP DRV

TO MAIN IF(CN102)

TO OP DRV

TO MAIN IF(CN109)

TO MAIN IF(CN103)

TO MAIN IF(CN105)

TO MAIN IF(CN103)

TO MAIN IF(CN108)

TO MAIN IF(CN111)

TO MAIN IF(CN109)

TO MAIN IF(CN110)

TO REG

TO MAIN IF(CN105)

TO MAIN IF(CN110)

TO MAIN IF(CN109)

MAIN(CPU)

MAIN(CPU) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

(No.YF075)2-8

IC1001

MN103S97NJA

REG_3.1V

EEP_CS

ADDT09

ADDT06

MONI_CHG

T_BATT

AU_LV_OUT

ZOOM_SW

EM_DET_L

ADDT00

ADDT10

SYS__RSTL

CAM_SW_B

MIC1

ADDT01

ADP_H

ADDT13

DSP_CS

ANA_IN_H

DSC_CLK

MMOD0

ADDT01

DSC_DT_OUT

ADDT15

DIAL_AUTO

CDAS

BZ_ENV

PD_L

ADDT11

I_MTR

VF_SW

LD_ON

RECH

OP_THRMO

REC_SAFE

E_SENS

PSCTL

EEP_OUT

ADDT02

ADP_L

CLK27SEL

MIC3

VIF_CS

DSC_WKUP

ADDT09

DSC_DT_IN

LCD_CTL

IRIS_CS

RTC_IN

REEL_ON

DEW_SENS

S2_DET

CCD_CTL

CHRG_EVR

ADDT03

EEP_CLK

P_DET

LAMP_ONH

SHUT_ATT

CAM_SW_C

REGRTC_CLK

EEP_IN DSC_DT_OUT

CHRG_LON

KEY_AKEY_A

ADDT12

MDA_PS

MXDT_OUT

SYS__TCK

MVD

ADDT08

BZ_FREQ

CAS_SW

IRIS_PS

SYS__TDO

EXMOD0

ADDT07

ADDT00

L_MUTE

CAM_SW_A

DIAL_MANU

ADDT12

USBDOWN

T_REEL

T_F_V_RST

IRIS_CS

DIAL_PB

S_IN_L

I_MTR

IRIS_PS

VOI_CLK

REG_CS

ADDT02

MMOD1

CPU_WAIT

VOI_IN

XINT

REEL_ON

CDWE

SYS__TDI

ADDT04

MIC1

S_IN_L

SYS__TMS

SYS__RSTL

PHOTO_F

ADDT05

P_DET

ADDT14

ADDT11

MIC2

SYS__TCK

D_BATT

CAPT_REQ

LCD_CS

VF_SLEEP

DSC_CS

MIC_CTL

MONI_CHG

SYS__TRSTL

T_BATTT_BATT

ADDT03

VIF_CS

BATT_H

DSP_CS

OSD_CS

DIAL_OFF

V_BATT

ADDT08

MONI_SW

PBH

CAM_OUT

DSC_STS

CAM_CLK

BATT_H

CLK27SEL

CDAS

KENTO

ADP_L

VF_CTL

ANA_IN_H

E_SENS

Z_PTR_LV

OMT

ADDT13

HID

HID3

ADDT05

S2_DET

CHG_WKUP

A_MUTE

MIC2

CPU_WAIT

REGRTC_OUT

SYS__TRSTL

D_GAIN

RECH

DEW_SENS

ADDT06

ADDT15

ADDT10

T_F_V_RST

DSC_DT_IN

C_FRB

PSCTL

REGRTC_CLK

KENTO

VOI_OUT

T_BATT

SYS__TMS

EJT_SW

S_SENS

DSP_RST

CDRE

EM_DET_L

HID3

SHUT_ATT

ADDT04

MFLD

EXMOD1

M_RVS

AU_LV_CLK

TRIG_SW

REMOTE

C_FRB2

TLED_ON

PBH

VOI_CLK

S_SENS

CDWE

MMC_CD

KEY_CKEY_C

FLSH_RST

DSC

CLK

S_REEL

DSC_RST

IR_DET

SYS__TDO

REC_SAFE

ADDT14

CDRE

TLED_ON

F_PTR_LV

REGRTC_OUT

DSP_RST

VOI_OUT

VOI_CLK

VOI_OUT

AUDIO_CS

MIC3

SYS__TDI

ADDT07

LENS_LED

ADP_H

VOI_IN

TVSEL

ADDT11

C1032 0.1

TL1028

R1104 1K

SHUT_ATT

R1092 1K

OSD_VD

VOI_CLK

CAM_SW_B

C1041 0.1

C1036 0.1

ADDT06

MFLD

Q1002

UMC3N-W45

123

DSC_DT_IN

DSC_CLK

CAM_SW_A

CAM_SW_C

R1015

100K

R1097 1K

L_MUTE

R1022 3.3K

R1106 100K

C1027

ADP_L

R1023 3.3K

REEL_VCC

A_MUTE

TL1013

REG_CS

TL1026

R1096 1K

R1099 1K

CDWE

ANA_IN_H

R1100 1K

E_SENS

ADDT03

TL1006

DSC_STS

R1029

1.5K

RECH

R1021 330K

C1002

10P

ADDT05

IC1003

SN74AHC1G00DC-X

123

VSS

VDD

MONI_CHG

T_BATT

MXDT_OUT

DSC_WKUP

R1103 1K

VC1

C1038 0.1

CDAS

Q1011

DTC144EE-X

TL1011

AU_LV_CLK

ADDT08

C1018

1µ

ADDT07

C1020

KENTO

OMT

S_SENS

OSD_HD

DSC_CS

120

DSC_CLK

DSC_OUT

121

DSC_IN

VF_SW

MONI_SW

EJECT_SW

199

CAS_SW

141

DIAL_MANU

123

DIAL_AUTO

126

DIAL_OFF

DIAL_PB

MDA_PS

217

LAMP_ONH

C_FRB1

C_FRB2

LD_ON

TAPE_LED

119

PSCTL

215

D_GAIN

168

MONI_CHG

135

CLK27SEL

151

PBH

RECH

127

HID3

BZ_ENV

109

BZ_FREQ

OSCI

OSCO

107

115

MMOD1

157

MMOD0

112

RSTL

113

EXMOD1

EXMOD0

CKSEL

ADM15

ADM14

173

ADM13

ADM12

ADM11

175

ADM10

172

ADM9

ADM8

ADM7

206

ADM6

ADM5

ADM4

137

ADM3

207

ADM2

176

ADM1

230

ADM0

CDAS

CPU_WAIT

136

CDRE

178

KENTO1

200

KENTO2

231

CDWE

232

DSP_CS

101

IRIS_CS

SHUT_ATT

EM_DET_L

125

TRIG_SW

MENU_SET

179

PHOTO_H

167

PHOTO_F

106

233

S2_DET

ZOOM_SW2

234

I_MTR

210

T_BATT

KEY_C

180

KEY_B

140

KEY_A

ZOOM_SW

212

IR_DET

OP_THRMO

211

F_PTR_AD

Z_PTR_AD

213

HALL_AD

235

V_BATT

142

MIC1

182

MIC2

181

MIC3

DEW_SENS

143

E_SENS

S_SENS

REEL_ON

185

CAM_CLK

CAM_OUT

187

REC_SAFE

154

TD0

TCK

111

TMS

TDI

TRSTL

218

S_DET

192

P_DET

188

ADP_H

203

BATT_H

189

CHRG_LED

131

202

MENU_P_B

201

MENU_P_A

ANA_IN_H

166

REMOTE

D_BATT

145

VF_SLEEP/M_CS

EXTM_H

LCD_CTL

236

VF_CTL

146

M_RVS

VIF_CS

195

VENC_OSD_IRIS_CLK

161

VENC_OSD_IRIS_OUT

118

VENC_OSD_IRIS_IN

208

USB_CS

TG_FZ_VID_RST

CCD_CTL

216

HID

102

IRIS_PS

209

REG_ERR

171

DSP_RST

103

IRIS_O/C

163

S_IN_L

190

HP_DET

REG_RTC_CLK

165

REG_RTC_OUT

REG_RTC_IN

184

LCD_CS

148

IRIS_MCK

MIC1

R1017

C1035 0.1

USBDOWN

C1045

0.01

C1019

R1020

75K

XINT

TL1007

AUDIO_CS

MVD

IC1004

NJU7108F3-X

[-]

VSS

[+]

OUT

VDD

REGRTC_CLK

TL1034

C1024 0.0068

R1001

VC3

C1029 0.1

R1024 3.3K

R1105 1K

T_REEL

C1042 0.1

ADDT13

C1044 0.01

R1123 0R0

R1018

100K

TAPE_LED

DSP_CS

PBH

TL1017

R1083 1K

R1019

100K

DSC_RST

REGRTC_OUT

IC1005

M95320-WDW6-X

VCC

HOLD

SCK

VSS

ADDT02

R1005

R1012

82K

R1010

10K

TL1012

S2_DET

LENS_LED

P_DET

SYS_TRSTL

R1091 1K

VIF_CS

R1126 0R0

CDRE

I_MTR

Q1001

DTA114EE-X

SYS_TDO

BLKC

ADDT04

C1040 0.1

C1039 0.1

R1014

10K

R1127 0R0

FLSH_RST

R1026 47K

IRIS_CS

DSC_DT_OUT

S_IN_L

MMC_CD

TL1037

ADDT14

R1125 0R0

R1088

TL1035

R1025 47K

TL1015

REC_SAFE

PSCTL

R1098 1K

TL1016

IC1002

BU3095-0FFV-X

VC0

VC1

VC2

BLKA

VC3

BLKB

TST0

BLKC

VSS

TEST

EXD

SDR

VDD

RST

DATA

SCLK

CPU_WAIT

EM_DET_L

HID3

VC2

VOI_IN

DOT_CLK

IRIS_PS

C1001

R1093 1K

ADDT09

C1046

0.01

X1001

NAX0692-001X

C1033 0.1

SYS_TCK

SYS_TMS

R1132 1K

TL1036

ADDT10

Q1003

UMC3N-W

123

CLK27SEL

BLKB

R1004

VOI_OUT

C1023 0.0068

CHRG_EVR

R1087

SYS_TDI

C1025 0.01

MIC3

TL1038

ADDT12

C1058

DEW_SENS

TL1018

ADDT15

R1085

R1016

100K

C1034 0.1

R1094 1K

S_REEL

RA1004

100K

C1031 0.1

ADDT00

PD_L

TL1014

R1086 1K

BLKA

TL1039

R1013

62K

VC0

R1124 0R0

DSP_RST

SYS_RSTL

CAPT_REQ

R1128 0R0

R1095 1K

MIC2

ADDT01

RA1001

47K

TL1010

C1026

C1028

TVSEL

TO VIDEO

TO DSC,USB

TO MAIN IF(CN111)

DSC

TO MAIN IF(CN110)

AUDIO,MONI/VF

TO MAIN IF(CN107)

TO VIDEO

TO MAIN IF(CN113),REG

TO MAIN IF(CN103),

AUDIO

TO MAIN IF(CN113)

TO PARAGON

TO MAIN IF(CN113),

PARAGON

TO MAIN IF(CN107)

TO MAIN IF(CN104)

TO REG

TO VIDEO

TO VIDEO,OP DRV

TO AUDIO

TO OP DRV

TO DSC

TO PARAGON,VIDEO

TO AUDIO

TO MAIN IF(CN105)

TO MAIN IF(CN104)

TO MAIN IF(CN105)

y10505001a_rev0.1

ONS".

2-9(No.YF075)

R2202

560k

C2609

C2606 0.0047

L2601

NQR0269-013X

R2608

2.2k

C2613

C223

OPE

R2618

6.8k

CN114

QGA1001F1-04X

1INT/R

2INT_GND

3INT_GND

4INT/L

C2653

OPEN

EXT/L

R2609

22k

C2204 1

C2605 0.0047

C2655

0.047

C2224

0.1

C2601

OPEN

L2652

C2217

0.1

R2602

2.2k

IC2201

AK4660VQ

SPK+

MUTE

SPK-

PDN

SVDD

SGND

BCLK1

AGND

AVDD

VCOM

MOUT

MIN

BEEP2

BEEP1

37 PREOR

38 PRENR

39 EXTR

40 INTR

41 MGND

42 MVDD

43 MPWR

44 MRF

45 INTL

46 EXTL

47 PRENL

48 PREOL

C2201

0.1

C2610

C2623

10p

C2654

OPEN

C2604

0.022

R2619

6.8k

R2204

150k

R2610

22k

C2202 1

R2601

2.2k

R2401

4.7k

C2651

OPEN

R2607 2.2k

C2656

0.047

C2602

OPEN

D2651

OPEN

C2203

L2651

C2603

0.022

L2602

NQR0269-013X

R2231

C2401

10/6.3

L2653

R2408

OPEN

C2218

0.1

R2212

2.7

C2405

0.1

CN112

QGA1001F1-02X

C2403

10/6.3

EM_GND

Q2201

DTC144EE-X

R2213

2.7

L24

C2611

C2223

0.1

Q2401

2SC4617/RS/-X

EM_DET_L

C2652

OPEN

L2603

NQR0269-013X

C2235

OPEN

C2612

C2624

10p

R2201

220k

EXT/R

R2203

39k

TO MAIN IF(CN103)

TO INT MIC

TO SPEAKER

MAIN(AUDIO)

MAIN(AUDIO) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

Autres manuels pour GR-D270US

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC caméscope

JVC

JVC GY-DV5000 Instructions d'installation et d'utilisation

JVC

JVC GR-X5AC Manuel utilisateur

JVC

JVC GR-D22 Manuel utilisateur

JVC

JVC GR-D250 Manuel utilisateur

JVC

JVC GZMC100 - Everio 2MP 4 GB Microdrive... Manuel utilisateur

JVC

JVC GR-D50 Manuel utilisateur

JVC

JVC GR-DVL9000U Manuel utilisateur

JVC

JVC TK-C750 Manuel utilisateur

JVC

JVC Everio R GZ-RX605BE Manuel d'utilisation et d'entretien

JVC

JVC GY-HM710 Manuel utilisateur

JVC

JVC EVERIO GZ-RX115BE Manuel d'utilisation et d'entretien

JVC

JVC GY-HD250U - 3-ccd Prohd Camcorder Manuel utilisateur

JVC

JVC GR-DVX2LTDEG Manuel utilisateur

JVC

JVC GZ-VX715 Manuel d'utilisation et d'entretien

JVC

JVC GR-SXM38U Manuel utilisateur

JVC

JVC DVL820 Manuel utilisateur

JVC

JVC GR-D252 Manuel utilisateur

JVC

JVC EVERIO GZ-HM550 Manuel utilisateur

JVC

JVC GR-DVM55EG Manuel utilisateur

JVC

JVC Everio GZ-MG750 Manuel utilisateur

JVC

JVC TK-WD310 Manuel utilisateur

JVC

JVC GR-SXM920 Manuel utilisateur

JVC

JVC GZ-MG27USM Manuel utilisateur

JVC

JVC GR-DVP7U Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
