For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700(MECHANISM ASSEMBLY).

GR-D250US[M5D2S3]

SCHEMATIC DIAGRAMS

CD-ROM No.SML200502

2-1(No.YF076)

CHARTS AND DIAGRAMS

NOTES OF SCHEMATIC DIAGRAM

Safety precautions

The Components indentified by the symbol are

critical for safety. For continued safety, replace safety

critical components only with manufacturer's recom-

mended parts.

1. Units of components on the schematic diagram

Unless otherwise specified.

1) All resistance values are in ohm. 1/6 W, 1/8 W (refer to

parts list).

Chip resistors are 1/16 W.

K: KΩ(1000Ω), M: MΩ(1000KΩ)

2) All capacitance values are in µF, (P: PF).

3) All inductance values are in µH, (m: mH).

4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts

list).

2. Indications of control voltage

AUX : Active at high.

AUX or AUX(L) : Active at low.

3. Interpreting Connector indications

Note: If the voltages are not indicated on the schematic

diagram, refer to the voltage charts.

12 3

2.5

(5.0) 1.8

PB and REC modes

(Voltage of PB and REC modes

are the same)

PB mode

REC mode

4. Voltage measurement

1) Regulator (DC/DC CONV) circuits

REC : Colour bar signal.

PB : Alignment tape (Colour bar).

— : Unmeasurable or unnecessary to measure.

2) Indication on schematic diagram

Voltage indications for REC and PB mode on the sche-

matic diagram are as shown below.

5. Signal path Symbols

The arrows indicate the signal path as follows.

NOTE : The arrow is DVC unique object.

Playback signal path

Playback and recording signal path

Recording signal path

(including E-E signal path)

Capstan servo path

Drum servo path

(Example)

R-Y

Playback R-Y signal path

Recording Y signal path

6. Indication of the parts for adjustments

The parts for the adjustments are surrounded with the circle

as shown below.

7. Indication of the parts not mounted on the circuit board

“OPEN” is indicated by the parts not mounted on the circuit

board.

R216

OPEN

Removable connector

Wire soldered directly on board

Non-removable Board connector

Board to Board

Connected pattern on board

The arrows indicate signal path

Note: The Parts Number, value and rated voltage etc. in

the Schematic Diagram are for references only.

When replacing the parts, refer to the Parts List.

Note: For the destination of each signal and further line

connections that are cut off from the diagram,

refer to "BOARD INTERCONNECTIONS"

(No.YF076)2-2

CIRCUIT BOARD NOTES

1. Foil and Component sides

1) Foil side (B side) :

Parts on the foil side seen from foil face (pattern face)

are indicated.

2) Component side (A side) :

Parts on the component side seen from component face

(parts face) indicated.

2. Parts location guides

Parts location are indicated by guide scale on the circuit board.

rts location are indicated by guide scale on the circuit board.

Note: For general information in service manual, please

refer to the Service Manual of GENERAL INFORMA-

TION Edition 4 No. 82054D (January 1994).

LOCATION

REF No.

IC101 B C 6 A

IC Category : IC

Horizontal “A” zone

Vertical “6” zone

B : Foil side

(A : Component side)

C : Chip component

D : Discrete component)

2-3(No.YF076)

YTU94074-24

YTU94077-24

YTU94074-20

YTU94077-20

YTU94074-

YTU94077-

YTU94074-8

YTU94077-8

YTU94074-6

YTU94077-6

YTU94074-16

YTU94077-16

YTU94074-26

YTU94077-26

YTU94074-20

YTU94077-20

CN701

CN102

24 Z_LED

23 Z_VCC

22 Z_PTR_AD

21 DRIVE+

20 DRIVE-

19 NC

18 HGout-

17 HGVss-

16 HGout+

15 HGVcc+

14 NC

13 ZOOM01

12 ZOOM04

11 ZOOM03

10 ZOOM02

9 GND

8 OP_THRMO

7 F_PTR_AD

6 F_VCC

5 F_LED

4 FOCUS01

3 FOCUS04

2 FOCUS03

1 FOCUS02

CN104

CN101

1V1

2V2

3V3

4V4

5 CCD_CTL

6 CCD_-7.5V

7 CCD_-7.5V

8H2

9H1

10 SUB

11 RG

12 CCD_15V

13 CCD_15V

14 GND

15 GND

16 GND

17 CCD_OUT

18 GND

19 GND

20 GND

CN103

1EJT_SW

2LITHIUM

3MONI_SW

4LAMP_ON

5REG_4.8V

6REG_4.8V

7GND

8GND

9GND

10EM_GND

11EXT/R

12EXT/L

13EM_DET_L

14EM_GND

15IR_RMC

16REG_4.8V

17IR_OUT

CN401

7 REC_CTL

8 EVN_OUT

9 VREF_1.1

10 P/R_GND GND

11 AGC_OUT

12 P/R_GND GND

13 VRB_AGC

14 ATF_GAIN

15 VRB_ATF

16 P/R_GND GND

17 ATFI

18 P/R_GND GND

19 NOSIG_LV

20 REG_2.5V

21 REF_CLK

22 REC_ADJ

23 REC_DATA

24 P/R_GND GND

25 REC_CLK

26 REG_4.8V

27 REG_4.8V

28 REG_4.8V

29 REG_4.8V

30 REG_3.1V

31 REG_3.1V

32 REG_3.1V

33 MONI_CHG

34 P/R GND GND

35 P/R_GND GND

36 P/R_GND GND

37 CAM_SW_C

38 CAM_SW_B

39 CAM_SW_A

40 DEW_SENS

REG_12V

AL_3.1V

REG_3.1V

VFREG4.8

REG_2.5V

LIT_3V

REG_4.8V

REG_1.7V

REG_15V

MREG_4.8

REG-CCD

M_UNREG

SYS_RSTL

VF_CTL

REG_CS

REGRTC_CLK

REGRTC_OUT

CHRG_EVR

I_MTR

V_BATT

LITHIUM

IRIS_PS

LENS_LED

HGVcc+

VOI_OUT

CAM_OUT

FOCUSO4

T_F_V_RST

CAM_CLK

IRIS_MCK

ZOOM1

VD_F/Z

VOI_IN

ZOOM4

VDIRS

F/Z_CS

IR_OUT

ZOOM2

FOCUSO0

FOCUSO2

HDIRS

M_REG4.8

ZOOM3

ATF_GAIN

GND

REC_ADJ

REG_3.1V

FOCUSO3

DUMP_CTL

NOSIG_LV

F_VCC

VOI_CLK

M_VCOCTL

IRIS_CS

FSPLLCTL

HGOut+

HGOut-

DRIVE-

Z_LED

DRIVE+

HGVss-

PBVCOCTL

ASPECT

S_SHUT

A_MUTE

AUDIO_CS

L_MUTE

AU_LV_OUT

DODAT2

EXT/L

DOMCK2

SPK+

EM_DET_L

INT/L

EM_GND

AIDAT/AIDAT2

INT/R

GND

SHUT_ATT

REG_3.1V

DOLRCK2

REG_4.8V

SPK-

BUZZER

EXT/R

PD_L

DOBCK2

AU_LV_CLK

INT_GND

AILRCK

AIMCK

AIBCK

AODAT

AU_SIG/R

AU_SIG/L

VOI_CLK

TVSEL

VIF_CS

CAM_CLK

BLKB

SHUT_ATT

EM_DET_L

CAM_OUT

EJT_SW

DSC_DT_IN

PD_L

CCD_CTL

VC0

AU_LV_CLK

MONI_SW

DSC_CS

GND

AUDIO_CS

CAPT_REQ

REG_3.1V

VC1

AU_LV_OUT

BUZZER

DSC_DT_OUT

FLSH_RST

P_MEDIA

L MUTE

DSC_CLK

LAMP_ON

VC2

A_MUTE

BLKC

MXDT_OUT

DSC_WKUP

VOI_IN

T_F_V_RST

DSC_RST

IR_RMC

OSD_HD

IR_OUT

MMC_CD

VOI_OUT

VC3

CN114

1INT/R

2INT_GND

3INT_GND

4INT/L

CN112

1SPK+

2SPK-

CN110

GND

M_RVS

HRP

MON_B

MON_R

MON_G

HDCVF

VDCVF

AU_LV_CLK

LCD_CS

AU_LV_OUT

REG_4.8V

LCD_CTL

REG_3.1V

REG_4.8V

GND

MENU_SW

KEY_C

GND

KEY_A

LENS_LED

OP_THRMO

F/Z_CS

Z_PTR_AD

DCO0

OUTV

VC1

REG_3.1V

ANA_IN_H

INH

BLKC

VDCVF

REG_4.8V

VC3

LCD_R

VOI_CLK

PSCTL

HRP

LCD_B

S_IN_L

BLKA

VOI_OUT

HDCVF

CLK27B

CLK27A

OSD_HD

BLKB

REG_2.5V

LCD_G

INV

VOI_IN

VIF_CS

S2_DET

VC2

GND

DYO2

T_F_V_RST

DOT_CLK

OUTH

HRP2

VC0

DYO3

DCO1

OSD_VD

DYO1

REG_1.7V

DCO3

DCO2

REG_12V

VF_CS

VST

VF_9V

HST

RGB_CTL

AU_LV_CLK

REG_4.8V

GND

VCK

AU_LV_OUT

MON_R

LCD_B

MON_G

MON_B

HDCVF

REG_3.1V

LCD_R

VDCVF

LCD_G

CVF_G

HCK2

CVF_R

CVF_B

HCK1

CAP_PWR

GND

DRUM_ERR

BATT_CHK

CAP_ERR

ADP_DC

DRUM_PWR

F/Z_MCK

VDIN

ADIN5

ADIN7

ADIN1

ADIN4

HDIN

ADIN6

ADIN3

CPOB

AODAT

ADIN9

CN109

7 DIAL OFF

8 DIAL_PB

9 PHOTO_F

10 ZOOM_SW

11 GND

12 REG_3.1V

PBLK

ADIN8

CLKI

S_SHUT

ADIN0

ADIN2

NOSIG_LV

VREF_1.1

REC_CTL

P/R_GND

RECH

REC_ADJ

HID3

REG_2.5V

ATF_GAIN

REG_3.1V

DUMP_CTL

HID1

ENV_OUT

AGC_OUT

ATFI

MONI_CHG

REG_4.8V

PBH

VRB_AGC

REC_DATA

REF_CLK

VRB_ATF

REC_CLK

CN402

P/R_GND

CN404

D COIL W

COIL_COM

D_PG-

GND

CN407

CAM_SW_A

CAM_SW_B

CAM_SW_C

P/R_GND

CN403

1DEW_SENS

2P/R_GND

3LOAD_FWD

4LOAD_FWD

5LOAD_REV

6LOAD_REV

CN301

CN7601

CN7602

1VCOMH

2VCOML

3VCL

4C41N

5C41P

6VGH

7C31N

8C31P

9VGL

10C23N

11C23P

12C22N

13C22P

14C21N

15C21P

16VDDA

17VFB

18DRV

19VSS

20ND

21VDD

22VDD1

23NC

24VSS1

25VCOIN

26PDO

27VA[R]

28VA[G]

29VA[B]

30DE

31HS

32VS

33POL

34VDD

35NPC

36VSSD

37HWRESETZ

38GCL

39GDA

40GCS

CN7002

1VSS

2VDD

SLEEP

4EN

5VST

6VCK

7DWN

8VREF

9HST

10HCK2

11HCK1

12VIDB

13VIDG

14VIDR

15VCOM

CN108

1CVF_R

2CVF_G

3CVF_B

4HCK1

5HCK2

6HST

7VCK

8VST

9EN

10VF_SLEEP

11VF_9V

12VFREG4.8

13GND

14GND

15GND

16VF_SW

CN302

1REG_3.1V

2REG_3.1V

3REG_4.8V

4REG_4.8V

5LCD_CTL

6REG_4.8V

AU_LV_OUT

8LCD_CS

9AU_LV_CLK

10VDCVF

11HDCVF

12MON_G

13MON_R

MON_B

15HRP

M_RVS

GND

18GND

GND

20GND

F_PTR_AD

DOBCK2

DSCIO0

D15

CAPT_REQ

DSC_DT_IN

DSCIO3

DODAT2

DSYIO7

DSCIO6

DSYIO6

DOLRCK2

A13

DSCIO4

VDDSC

DSC_DT_OUT

DSCIO7

A16

DOMCK2

DSCIO1

D14

DSCIO5

HDDSC

FLDDSC

DSCIO2

DSC_CS

DSC_CLK

CLKDSC

DSC_STS

A15

DSC_RST

A14

MXDT_OUT

FLSH_RST

DSC_WKUP

CPOB

CAM_OUT

ADIN6

ADIN3

HDIN

CCD_15V

ADIN8

ADIN5

ADIN0

VDIN

ADIN7

ADIN1

PBLK

ADIN9

CAM_CLK

ADIN2

CLKI H1

SUB

T_F_V_RST

CCD_-7.5V

ADIN4

CCD_OUT

ASPECT

IRIS_CS

IRIS_PS

HRP2

REG_15V

CN7001

V_OUT

Y_OUT

C_OUT

BLKA

BATT_+

GND

REG_3.1V

DSC_STS

VF_SLEEP

VF_SW

D_GAIN

TG_CS

REG_4.8V

CDS_CS

REG-CCD

REG_4.8V

REG

OP DRV

AUDIO

VIDEO

MONI/VF

PRE/REC

OPE

60 MONITOR

LCD(C-VF) PANEL

08VF

LCD(MONITOR) PANEL

CDS/TG

FRONT

CCD

10 MAIN MAIN IF

ZOOM U

SPEAKER

INT MIC

W_Sens

RCU Light_LED

EJECT

MONI SW

EXT_MIC IN

DECK OPE

SUB

OP BLOCK

VDD

RG GND

TEST

Vout

GND

LITHIUM

BATTERY

ROTARY

ENCODER HEAD LOADING

MOTOR DR

(Page2-15)

(Page2-17)

(Page2-23)

(Page2-9)

(Page2-33)

(Page2-31)

(Page2-35)

(Page2-13)

(Page2-21)

(Page2-5)

(Page2-29)

(Page2-24)

(Page2-19)

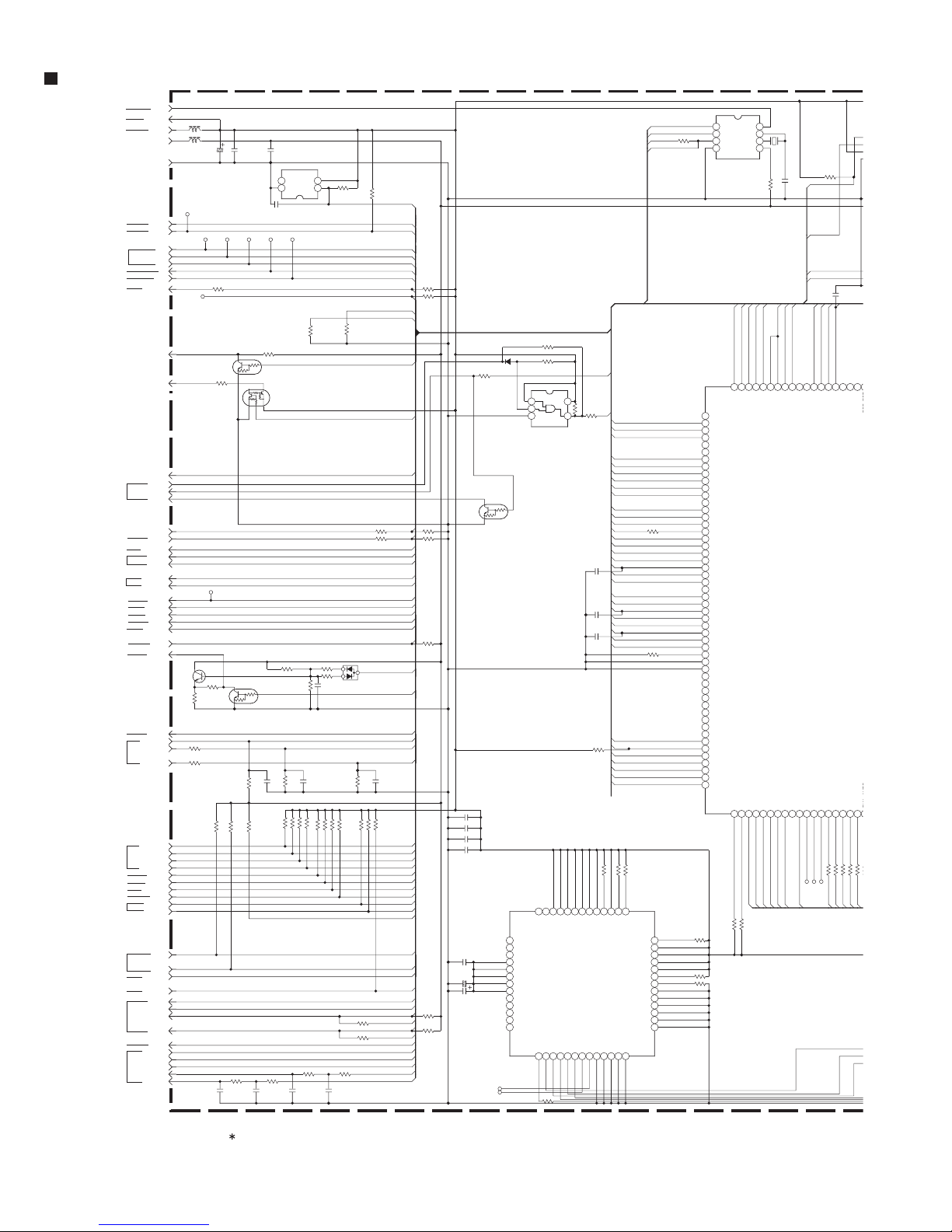

BOARD INTERCONNECTION

NOTE: The number of patch cords ( ) are indicated by interconnected.

(No.YF076)2-4

YTU94074-12

YTU94077-12

YTU94074-12

YTU94077-12

YTU94105-40

YTU94077-40

YTU94105-40

YTU94077-40

YTU94105-40

YTU94077-40

YTU94074-16

YTU94077-16

YTU94074-18

YTU94077-18

YTU94074-11

YTU94077-11

YTU94074-6

YTU94077-6

CN408

1 REEL_VCC

2 T_REEL

3 S_REEL

4 CAS_SW

5 TAPE_LED

6 E_SENS

7 S_SENS

8 REC_SAFE

9 MIC1

10 MIC2

11 MIC3

12 DRUM_PG

13 DRUM_FG

14 DRUM_REF

15 L_FRB

16 LO_ON

17 MDA_PS

18 C_FRB

19 CAP_FG

20 CAP_REF

21 GND

22 GND

23 CAP_ERR

24 CAP_PWR

25 CAP_PWR

26 CAP_PWR

27 DRUM_PWR

28 DRUM_PWR

29 DRUM_PWR

30 DRUM_ERR

31 GND

32 GND

33 GND

34 GND

35 REG_3.1V

36 REG_3.1V

37 M_UNREG

38 M_REG4.8

39 M_REG4.8

40 M_REG4.8

1 P/R_GND GND

2 DUMP_CTL

3 HID3

4 HID1 HID

5 PBH

6 RECH

7 REC_CTL

8 EVN_OUT

9 VREF_1.1

10 P/R_GND GND

11 AGC_OUT

12 P/R_GND GND

13 VRB_AGC

14 ATF_GAIN

OMT

PBH

TSR

D_GAIN

TRIG_SW

TG_CS

CDRE

RGB_CTL

FRP

USBDOWN

MONI_CHG

ADDT11

DRUM_REF

PHOTO_F

KENTO

CAS_SW

T_REEL

BLKB

SHUT_ATT

L_FRB

KEY_A

CLK27SEL

I_MTR

MVD

PD_L

CPU_WAIT

DRUM_PG

MENU_SW

JLIP_TX

ADDT02

CHRG_EVR

ADDT13

VC0

SPA

S_SENS

REG_CS

ADDT08

DOT_CLK

CDWE

AUDIO_CS

ZOOM_SW

ADDT05

V_BATT

HID

VC1

OUTV

BUZZER

C_FRB

ADDT15

CAM_SW_B

ADDT06

AL_3.1V

DIAL_AUTO

L_MUTE

ADDT09

RECH

EXMOD_1

CAM_SW_C

ANA_IN_H

LIT_3V

VC2

MDA_PS

A_MUTE

ADDT12

DSP_RST

ADDT03

BLKC

S2_DET

ADDT07

DIAL_MANU

KEY_C

REC_SAFE

REGRTC_CLK

PWR_LED

OSD_VD

VF_CS

DIAL_OFF

TAPE_LED

LD_ON

CDAS

CAP_REF

ADDT10

S_IN_L

ADDT14

S_REEL

REGRTC_OUT

LCD_CS

ADDT04

PSCTL

OSD_HD

ADDT00

REEL_VCC

DRUM_FG

VF_CTL

JLIP_RX

E_SENS

MMC_CD

ADDT01

CAP_FG

DIAL_PB

CDS_CS

XINT

LCD_CTL

IF_TX

MIC1

MIC3

MIC2

SYS_TCK

SYS_TMS

SYS_TDI

SYS_TDO

SYS_TRSTL

SYS_RSTIL

CN111

1 P_MEDIA

2 GND

3 REG_3.1V

4 MMC_CS

5 MMC_DIN

6 MMC_CLK

7 MMC_CD

8 MMC_DOUT

9 SD_WP

10 GND

11 GND

12 GND

CN107

1 TPA+

2 TPA-

3 TPB+

4 TPB-

5 GND

6 AU_SIG/L

7 AU_SIG/R

8 P_DET

9 V_OUT

10 C_OUT

11 GND

12 Y_OUT

13 GND

14 GND

15 GND

16 GND

17 GND

18 GND

19 D_BATT

20 T_BATT

21 BATT_CHK

22 BATT_+

23 BATT_+

24 BATT_+

25 BATT_+

26 ADP_L

27 GND

28 GND

29 GND

30 GND

31 ADP_DC

32 ADP_DC

33 ADP_DC

34 ADP_DC

35 ADP_DC

36 BATT_+

37 BATT_+

38 BATT_+

39 BATT_+

40 BATT_+

DSYO4

DSYO1

HID

EXTFRP

ADDT05

VRB_AGC

REG_4.8V

DSCO3

AIMCK

DSCIO5

ADDT00

DSCO2

TSR

VDIN

DSCIO3

AIBCK

XINT

VRB_ATF

CLK240

MFLD

EXTACCES

TPA+

DSCIO0

CDWE

DSCIO1

EXTDATA4

ADIN5

EXTREQ

VREF_1.1

OSD_VD

DSCIO2

DSP_RST

ADDT08

DSCO1

FS_PLL

DSCO6

ADDT07

MAIN_VCO

TPA-

ADIN7

MVD

REG_1.7V

EXTDATA2

DSYIO4

CLKDSC

ADIN1

VDIRS

VD_F/Z

SPA

FLDDSC

ADIN4

DSYO2

DSYO7

OUTV

FRP

ADDT12

HDIN

AILRCK

ADIN6

EXTDATA3

CLK27SEL

DSCIO6

ADIN3

ADDT01

EXTDATA1

CPOB

REC_CLK

ADDT14

AODAT

VDDSC

DSCO5

ADIN9

HDIRS

DSYIO2

ADDT06

REC_CTL

DSYO5

AIDAT/AIDAT2

ATFI

DSYO0

ADDT15

DSYIO6

EXTDATA0

TPB+

DSP_CS

DSCIO7

DSCO4

REF_CLK

EXTCLK

ADDT11

CPU_WAIT

AGC_OUT

CN109

1 TRIG_SW

2 GND

3 PWR_LED

4 GND

5 DIAL_MANU

6 DIAL_AUTO

7 DIAL_OFF

8 DIAL_PB

9 PHOTO_F

10 ZOOM_SW

11 GND

12 REG_3.1V

DISCRI

EXTDATA5

EXTDATA6

M_VCOCTL

DSYO3

ADDT10

CLK27B

PBLK

HDDSC

DSCO0

DSYIO5

GND

OMT

CDRE

CDAS

ADIN8

CLKI

FSPLLCTL

REG_3.1V

DSYIO3

DSCIO4

DSYIO7

CN113

1 EXMOD_1

21 SYS_TMS

2 SYS_TCK

22 SYS_TDI

3 SYS_TRSTL

23 SYS_TDO

4 SYS_RSTL

24 AL_3VSYS

5 IF_TX

25 JLIP_TX

6 JLIP_RX

26 TXD2

7 RXD2

27 NC

8 I_MTR

28 NC

9NC

29 ENV_OUT

10 MAIN_VCO

30 ATFI

11 HID

31 DISCRI

12 FS_PLL

32 HST

13 MON_B

33 MON_R

14 MON_B

34 GND

15 GND

35 V_OUT

16 HRP

36 CVF_B

17 CVF_R

37 CVF_G

18 GND

38 NC

19 NC

39 DSC_DBG

20 KENTO

40 MVD

ADDT13

ADDT03

EXTDATA7

S_SHUT

ADDT04

ADIN0

DSYIO0

DSYIO1

DSYO6

F/Z_MCK

IRIS_MCK

ADIN2

TPB-

ADDT02

DSCO7

ADDT09

REC_DATA

REG_2.5V

PBVCOCTL

HID3

HID1

MONI_CHG

PBH

M_REG4.8

DRUM_REF

GND

P/R_GND

CAP_ERR

C_FRB

DRUM_PWR

DRUM_ERR

M_UNREG

CAP_PWR

CAP_REF

M_REG3.1

LD_ON

MDA_PS

DRUM_PG

L_FRB

CAP_FG

DRUM_FG

CN404

D_PFG+

D_FG-

D_COIL_U

D_COIL_V

D_COIL_W

COIL_COM

D_PG-

GND

CN405

HG_U-

HG_V-

HG_W-

HG_BS-

HG_BS+

HG_W+

HG_V+

HG_U+

C_COIL_V

C_COIL_U

C_COIL_W

MDA_2.9V

C_FG-

GND

C_FG+

CN406

GND

S_SENS

MDA_2.9V

MIC3

MIC2

REC_SAFE

MIC1

E_SENS

CAS_SW

S_RL-

TAPE_LED

S_RL+

REEL_VCC

T_RL-

GND

T_RL+

T_REEL

S_REEL

HG_W-

D_COIL_W

D_COIL_V

T_RL+

C_FG-

C_COIL_U

C_COIL_V

HG_U+

S_RL+

LOAD_FWD

C_FG+

D_COIL_U

LOAD_REV

HG_W+

COIL_COM

D_PFG+

D_FG-

T_RL-

HG_V+

HG_BS-

MDA_2.9V

HG_U-

C_COIL_W

S_RL-

HG_V-

HG_BS+

D_PG-

1DEW

SENS

DSYIO1

DSCO3

DSYIO3

DSCO0

USB_RST

EM_OE

CLK27B

DSCIO0

MMC_CD

D15

USB_INT

TXD2

USB_WKUP

AIDAT/AIDAT2

EM_WE

DSYIO0

USB_CS

DSCO5

D11

USBDOWN

DSYO2

DSCIO3

DSYO0

DSYIO7

DSC_DBG

DSYO6

DSYIO6

SD_WP

MMC_DIN

DSYO4

DSCO7

RXD2

CLK240

A13

DSYO1

DSCIO4

MMC_CS

D12

DSYO7

REG_3.1V

A16

DSYIO5

USB_DN

DSCIO1

D14

D13

DSCIO5

DSCO6

DSCO1

DSCIO2

D10

MMC_CLK

DSCO4

DSYIO4

REG_4.8V

MMC_DOUT

A15

DSYO3

DSCO2

DSYO5

GND

A14

DSYIO2

USB_DP

CN902

CN901

BLKA

DCO1

OUTH

CLK27A

DYO1

DYO2

INV

DCO3

INH

DCO0

DYO3

DYO0

DCO2

HID3

DEW_SENS

CAM_SW_A

DSP_CS

MFLD

AL_3VSYS

A16

USBDOWN

USB_RST

EM_OE

EXTDATA5

EXTCLK

USB_INT

D12

USB_CS

D10

D15

D13

A13

EXTDATA7

REG_4.8V

A14

GND

USB_DN

REG_1.7V

EXTDATA1

EXTDATA2

EXTDATA0

D11

EXTACCES

EM_WE

EXTDATA4

EXTDATA6

USB_DP

USB_WKUP

D14

EXTREQ

A15

EXTDATA3

EXTFRP

CN105

ADP_L

M_RVS

T_BATT

P_DET

D_BATT

TVSEL

PRE/MDA

PRE/MDA IF

CPU

PARAGON

MDA

DSC

USB

REAR

ZOOM UNIT

UNIT

JIG CONNECTOR

MULTIDC JACK

Victor

CU-MMC04

8MB

MultiMediaCard

BATT_TERM.

USB

DRUM MOTOR CAPSTAN MOTOR SENSOR [Z27]

MECHA

(NOT USE)

(Page2-7)

(NOT USE)

(Page2-11)

(Page2-36)

(NOT USE)

)(Page2-27)

(Page2-25)

y10496001a_rev0.1

2-5(No.YF076)

TO PRE/MDA(PRE/REC)

(CN401)

TO PRE/MDA(MDA)

(CN408)

TO FRONT

(CN701)

EXT/L

EXT/R

EM_DET_L

LITHIUM

EJT_SW

LAMP_ON

REG_4.8V

GND

EM_GND

IR_RMC

REG_4.8V

IR_OUT

CN104

QGF0528F1-40X

CN105

QGF0528F1-40X

DEW_SENS

CAM_SW_A

CAM_SW_B

CAM_SW_C

MONI_CHG

VRB_ATF

VRB_AGC

GND

AGC_OUT

VREF_1.1

ENV_OUT

GND

DUMP_CTL

HID3

HID

PBH

REC_CTL

RECH

GND

ATFI

ATF_GAIN

GND

NOSIG_LV

REG_2.5V

REF_CLK

REC_ADJ

REC_DATA

GND

REC_CLK

REG_4.8V

GND

REG_3.1V

REG_4.8V

M_REG4.8

M_UNREG

REG_3.1V

GND

DRUM_PWR

CAP_PWR

GND

CAP_REF

LD_ON

L_FRB

DRUM_REF

REC_SAFE

TAPE_LED

E_SENS

S_SENS

MIC1

MIC2

MIC3

DRUM_PG

DRUM_FG

C_FRB

CAP_FG

CAP_ERR

DRUM_ERR

MDA_PS

MONI_SW

KEY_A

KEY_C

MENU_SW

GND

REG_4.8V

REG_3.1V

CN110

QGF0545F1-26X

CN103

QGF0545F1-17X

GND

REG 3 1V

EM_GND

MAIN(MAIN IF)

MAIN(MAIN IF) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

(No.YF076)2-6

TO OPE(CN301)

TO JIG CONNECTOR

TO REAR UNIT

TO ZOOM UNIT TO VF(CN7001)

REC_SAFE

TAPE_LED

CAS_SW

REEL_VCC

T_REEL

S_REEL

E_SENS

S_SENS

MIC1

MIC2

MIC3

DRUM

BATT_CHK

T_BATT

ADP_DC

ADP_L

GND

PWR_LED

GND

REG_3.1V

ZOOM_SW

PHOTO_F

TRIG_SW

DIAL_PB

DIAL_OFF

DIAL_AUTO

DIAL_MANU

M_RVS

KEY_C

MENU_SW

GND

REG_4.8V

REG_3.1V

LCD_CTL

REG_4.8V

AU_LV_OUT

LCD_CS

AU_LV_CLK

VDCVF

HDCVF

MON_G

MON_R

MON_B

GND

TPA+

TPB-

GND

Y_OUT

TPA-

C_OUT

V_OUT

AU_SIG/L

AU_SIG/R

P_DET

TPB+

45F1-26X

HRP

D_BATT

GND

SYS_TMS

SYS_RSTL

AL_3VSYS

SYS_TDO

CVF_B

JLIP_TX

SYS_TRSTL

ENV_OUT

EXMOD_1

JLIP_RX

IF_TX

CVF_R

KENTO

HID

MON_G

SYS_TCK

GND

CN113

QGB0512L1-40X

MAIN_VCO

V_OUT

ATFI

HRP

CVF_G

MVD

MON_B

I_MTR

GND

SYS_TDI

MON_R

FS_PLL

DISCRI

CN107

QGF0528F1-40X

GND

D102

MA8068-X

GND

BATT_+

GND

D101

EMZ6.8N-X

C102

C101

0.1

CN109

QGF0545F1-12X

R101 0ǡ

REG_3.1V

CN108

QGF0543F1-16X

CVF_R

CVF_G

CVF_B

HCK1

HCK2

HST

VCK

VST

VF_SLEEP

VF_9V

VFREG4.8

GND

VF_SW

HST

C103

0.1

y10498001a_rev0.1

ONS".

2-7(No.YF076)

EEP_CS

EXMOD0 EXMOD0

KEY_C

OP_THRMO

EJT_SW

LCD_CS

AU_LV_OUT

TSR

CAM_OUT

MDA_PS

A_MUTE

REMOTE

CHG_WKUP

PHOTO_F

LAMP_ONH

AU_LV_CLK

DIAL_MANU

M_RVS

TG_CS

F/Z_CS

REG_CS

L_FRB2

ZOOM_SW

MIC_CTL

VF_SW

DIAL_AUTO

REGRTC_CLK

LCD_CTL

VF_SW

SPA

EEP_CLK

DIAL_PB

T_REEL

TSR

IR_DET

DIAL AUTO

CHRG_LON

DSP RST

MVD

HID

OUTV

VF_SLEEP

EEP_OUT

VF_CTL

IF_RX

TG_CS

CAP_FG

IF__TX

MIC3

L_FRB2

EEP_IN

RTC_CS

CAP_FG

EEP_OUT

D_BATT

REGRTC_CLK

CDS_CS

FRP

DRUM_FG

EEP_IN

DIAL_MANU

CAP_PWM

MFLD

DIAL_OFF

P_MEDIA

OSD_CS

EEP_CS

SPA

CAM_SW_B

FRP

OUTV

T_F_V_RST

IF__TX

CAS_SW

DRUM_PG

CAM_CLK

DRUM_FG

MIC2

MONI_SW

CAM_SW_C

KEY_A

S_REEL

EJT_SW

TRIG_SW

L_FRB L_FRB

CAS_SW

C_FRB2

P_MEDIA

CAM_SW_A

EEP_CLK

D_GAIN

IF_RX

RTC_IN

DRUM_PG

LCD_CS

C_FRB C_FRB

REGRTC_OUT

F_PTR_LV

CHRG_EVR

F/Z_CS

BZ_ENV

MENU_SW

DRUM_PWM

IF_RX

XINT

RTC_IN

RTC_CS

LENS_LED

OMT

MMOD0

LD_ON

MONI_SW

MENU_SW

AUDIO_CS

EXMOD1 EXMOD1

PD_L

CDS_CS

MMOD1

DRUM_PWM

Z_PTR_LV

L_MUTE

BZ_FREQ

L_FRB

CAP_PWM

V_BATT

REGRTC_OUT

VF_CS

TVSEL

RGB_CTL

SYS__RSTL

TL1005

R1078 100K

FRP

R1089 100K

IR_RMC

R1082

47K

C1055 1

C1019

OPEN

C1010

0.01

PWR_LED

DRUM_REF

VF_SLEEP

R1031

100K

R1061

39K

Q1006

2SC4617/QR/-X

VF_CTL

R1055

18K

F/Z_CS

R1007

100K

LCD_CTL

DIAL_PB

R1122 100K

L_FRB

R1112 10K

AL_3VSYS

OP_THRMO

R1034

100K

TL1027

D_GAIN

LON

158

NMIRQL

105

L_FRB2

150

L_FRB1

CAM_SW_C

CAM_SW_B

CAM_SW_A

MENU_SW

225

OSD_CS

120

DSC_CLK

DSC_OUT

121

DSC_IN

VF_SW

MONI_SW

EJECT_SW

199

CAS_SW

141

DIAL_MANU

DIAL AUTO

DSP RST

103

IRIS_O/C

163

S_IN_L

190

HP_DET

REG_RTC_CLK

165

REG_RTC_OUT

REG_RTC_IN

184

LCD_CS

148

IRIS_MCK

128

USB_STS

FLD

205

FRMREF

134

TRKREF

174

SRVTRK

133

SPA

DRUM_PG

PD_L

132

S_REEL

T_REEL

147

ROM_CS

183

VF_CS

CAP_FG

DRUM_FG

196

ASPECT1

160

ASPECT2

L_MUTE

124

A_MUTE

220

RGB_CTL

222

XINT

194

JLIP_INT

193

CHG_WKUP

223

DSC_CS

OMT

130

OUTV

P_MEDIA

TVSEL

214

CHRG_EVR

CAP_PWM

DRUM_PWM

EEP_CLK

197

EEP_OUT

224

EEP_IN

TRIG_OUT

198

TXD

164

RXD

122

AU_LV_CLK

AU_LV_OUT

AUDIO_CS

144

MIC_SCL

100

MIC_SDA

138

MIC_CTL

VSS

117

VSS

139

TALLY

129

MXDT_OUT

MMC_L

USBDOWN

DSC_STS

170

CAPT_REQ

FLSH_RST

169

DSC_WKUP

DSC_RST

LENS_LED

EEP_CS

177

REG_CS

186

FZ_CS

104

CDS_CS

149

TG_CS

204

RTC_CS

R1074 3.3K

C1012

0.01

R1072 3.3K

AL_3.1V

CDS_CS

SPA

R1080 100K

BUZZER

TL1001

TG_CS

TL1004

R1059

12K

R1048

100K

R1067 100K

M_RVS

R1077

100K

KEY_C

R1093 1K

R1110 10K

JLIP_TX

R1116

OPEN

C1008

22/6.3

R1041

560

Q1005

UMC3N-W

123

C1015

OPEN

R1148220K

DIAL_MANU

IR_OUT

C1048

OPEN

C1007

V_BATT

TL1023

L1002 10µ

C1003

10P

KEY_A

CAS_SW

R1068 10K

R1036

47K

CAM_CLK

LIT_3V

R1064 100K

R1095 1K

Q1007

DTC124EE-X

MENU_SW

MDA_PS

Z_PTR_AD

Q1008

DTC144EE-X

TL1019

153

NC(TRCCLK)

155

NC(TRCST)

108

NC(TRCD0)

219

NC(TRCD1)

NC(TRCD2)

110

NC(TRCD3)

152

NC(EXTRG0)

191

NC(EXTRG1)

226

VSS

237

VSS

238

VSS

239

VSS

240

VSS

241

VSS

242

VSS

246

VSS

247

VSS

248

VSS

249

VSS

114

FRQS0

FRQS1

NC(VREFH)

AVDD

VDDH

VDDB

116

(PULLUP)

156

NC(PULLUP)

159

NC(PULLUP)

162

NC(VDDH)

221

NC(PULLUP)

227

VDDB

228

VDDB

229

VDDB

245

VDDH

250

VDDH

254

VDDH

255

VDDH

NC(OPEN)

243

VDD

244

VDD

251

VOUT(1.8V)

252

VDD

253

VDD

C1054

0.022

EJT_SW

LD_ON

R1053 150K

R1033

100K

R1050

100K

R1090 1K

R1035

TL1089

R1094 1K

DIAL_AUTO

R1146

R1096 1K

C1014

0.01

R1054 2.7K

R1069 10K

R1121 100K

DIAL_OFF

Q1009

DTC143XE-X

R1070

10K

C1004

22/6.3

TSR

C1047

OPEN

LCD_CS

HID

R1008 2.2K

TL1021

TL1020

R1071

10K

C1051

0.022

R1057

8.2K

F_PTR_AD

R1060

47K

C1011

0.01

TL1002

R1066

100K

C1052

0.022

R1032

100K

CAM_OUT

R1046 15K

C1006

0.1

VF_SW

C_FRB

R1073 3.3K

R1045

DRUM_FG

R1049

100K

R1040

OPEN

R1003

100K

R1052

10K

R104710K

C1053

0.022

IC1009

SN74AHC1G08DC-X

123

R1010

10K

TL1003

DRUM_PG

R1075 3.3K

MONI_SW

T_F_V_RST

IC1007

S-80823CNNB-G-W

OUT

DET

VSS

D_BATT

R1043

4.7K

R1076

100K

R1091 1K

R1147

330K

ZOOM_SW

L1001 10µ

CAP_FG

R1118 100K

CAP_REF

C1050

OPEN

LAMP_ON

R1120 100K

C1013

0.01

C1005

0.1

IC1006

RS5C314-X

VDD

XIN

XOUT

INTR

VSS

SIO

CLK

TL1029

REG_3.1V

R1119 100K

EXMOD_1

GND

TRIG_SW

C1016

OPEN

R1115

OPEN

X1002

NAX0564-001X

R1051

4.7K

R1117 33

R1030

27K

PHOTO_F

IF_TX

C1017

OPEN

D1001

DA221-x

D1002

1SS376-X

R1002

JLIP_RX

TL1024

R1063

22K

R1092 1K

C1009

0.01

OUTV

R1056

47K

VF_CS

RGB_CTL

R1149 100K

R1150 100K

R1151 100K

R1152 100K

IC1001

MN103S97NJA

AL_3.1V

REG_3.1V

AL_3.1V

REG_3.1V

TO REG

TO PARAGON

VIDEO

TO PARAGON

TO MAIN IF(CN107)

TO PARAGON

MAIN IF(CN104,113)

TO MAIN IF(CN113)

TO MAIN IF(CN103)

TO MAIN IF(CN109)

TO MONI/VF

TO MAIN IF

(CN113)

TO REG

TO MAIN IF(CN110)

TO MAIN IF(CN108)

TO MAIN IF(CN110)

TO AUDIO

TO MONI/VF

TO MAIN IF(CN103),OP DRV

TO VIDEO,CDS/TG

OP DRV

TO CDS/TG

TO MAIN IF(CN103)

TO CDS/TG

OP DRV

TO MAIN IF

(CN102)

TO OP DRV

TO MAIN IF

(CN109)

TO MAIN IF(CN103)

TO MAIN IF(CN105)

TO MAIN IF(CN103)

TO MAIN IF(CN108)

TO MAIN IF

(CN109)

TO MAIN IF

(CN110)

TO REG

TO MAIN IF

(CN105)

TO MAIN IF

(CN105)

TO MAIN IF

(CN110)

TO MAIN IF

(CN109)

MAIN(CPU) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

(No.YF076)2-8

ADDT10

SYS__TDI

SYS__TDO

ADDT06

EEP_CS

EM_DET_L

ADDT09

DIAL_OFF

CAM_OUT

VF_CTL

CAM_CLK

REGRTC_OUT

E_SENS

ADDT00

CLK27SEL

BZ_FREQ

LENS_LED

HID

VIF_CS

VOI_OUT

OMT

EXMOD1

CDAS

TLED_ON

KEY_CKEY_C

MVD

CHRG_EVR

REC_SAFE

D_BATT

ADDT15

OSD_CS

L_MUTE

ADDT10

RECH

REG_CS

AUDIO_CS

VF_SW

BZ_ENV

T_BATT

PSCTL

ADDT07

SYS__TRSTL

ZOOM_SW

ANA_IN_H

IRIS_CS

PBH

S2_DET

S_SENS

S2_DET

SYS__RSTL

CPU_WAIT

I_MTR

PD_L

VF_SLEEP

MONI_CHG

EM_DET_L

T_F_V_RST

VOI_OUT

LAMP_ONH

DIAL_AUTO

SYS__TDI

DSP_RST

MFLD

HID3

ADDT03

EEP_OUT

ADDT08

F_PTR_LV

SYS__TCK

IR_DET

ADDT04

CDRE

E_SENS

MIC1

MMOD0

CDAS

ADDT13

DSP_RST

ADDT02

BATT_H

DEW_SENS

ADP_H

ADDT07

SHUT_ATT

VOI_IN

ADDT09

S_REEL

ADDT01

VOI_OUT

REGRTC_CLK

VOI_CLK

T_BATT

MONI_CHG

EEP_IN

DIAL_MANU

P_DET

ADDT12

HID3

ADDT11

T_REEL

REGRTC_CLK

ADP_H

KEY_AKEY_A

ADDT04

OP_THRMO

CAM_SW_C

AU_LV_OUT

CAS_SW

SYS__TCK

C_FRB

ADDT05

SYS__TDO

DSP_CS

KENTO

ADDT08

PHOTO_F

VOI_CLK

MIC2

EJT_SW

AU_LV_CLK

D_GAIN M_RVS

MIC3

IRIS_CS

MDA_PS

SYS__TMS

ADP_L

ADDT02

TRIG_SW

DSP_CS

EEP_CLK

A_MUTE

ADDT14

SYS__TRSTL

CLK27SEL

ADDT15

ADDT14

DIAL_PB

LD_ON

CDWE

T_BATTT_BATT

LCD_CS

KENTO

MIC3

S_SENS

TLED_ON

VOI_IN

VIF_CS

ADDT11

CAM_SW_A

C_FRB2

Z_PTR_LV

REEL_ON

ADP_L

ADDT06

MIC1

CDWE

CDRE

PBH

MIC_CTL

DEW_SENS

REMOTE

REEL_ON

RTC_IN

ADDT05

CHRG_LON

CAM_SW_B

ADDT03

ADDT00

ANA_IN_H

ADDT12

ADDT01

XINT

LCD_CTL

MONI_SW

V_BATT

SYS__TMS

SYS__RSTL

CPU_WAIT

EXMOD0

BATT_H

PSCTL

MIC2

CHG_WKUP

SHUT_ATT

T_F_V_RST

I_MTR

MMOD1

P_DET

RECH

REC_SAFE

ADDT13

REGRTC_OUT

VOI_CLK

TVSEL

IRIS_PS

CDWE

XINT

AU_LV_OUT

MIC3

R1018

100K

C1038 0.1

C1019

OPEN

R1001

MIC2

C1027

OPEN

VC1

SYS_TMS

R1124 0R0

IC1003

SN74AHC1G00DC-X

123

VSS

VDD

P_DET

VC3

R1085 1K

ADDT12

C1001

T_BATT

ADDT07

HID3

REEL_VCC

DSP_RST

C1024 0.0068

TL1027

OSD

120

DSC_CLK

DSC_OUT

121

DSC_IN

VF_SW

MONI_SW

EJECT_SW

199

CAS_SW

141

DIAL_MANU

123

DIAL_AUTO

126

DIAL_OFF

DIAL_PB

MDA_PS

217

LAMP_ONH

C_FRB1

C_FRB2

LD_ON

TAPE_LED

119

PSCTL

215

D_GAIN

168

MONI_CHG

135

CLK27SEL

151

BINAURAL_H

PBH

RECH

127

HID3

BZ_ENV

109

BZ_FREQ

OSCI

OSCO

107

115

MMOD1

157

MMOD0

112

RSTL

113

EXMOD1

EXMOD0

CKSEL

ADM15

ADM14

173

ADM13

ADM12

ADM11

175

ADM10

172

ADM9

ADM8

ADM7

206

ADM6

ADM5

ADM4

137

ADM3

207

ADM2

176

ADM1

230

ADM0

CDAS

CPU_WAIT

136

CDRE

178

KENTO1

200

KENTO2

231

CDWE

232

DSP_CS

101

IRIS_CS

SHUT_ATT

EM_DET_L

125

TRIG_SW

MENU_SET

179

PHOTO_H

167

PHOTO_F

106

233

S2_DET

ZOOM_SW2

234

I_MTR

210

T_BATT

KEY_C

180

KEY_B

140

KEY_A

ZOOM_SW

212

IR_DET

OP_THRMO

211

F_PTR_AD

Z_PTR_AD

213

HALL_AD

235

V_BATT

142

MIC1

182

MIC2

181

MIC3

DEW_SENS

143

E_SENS

S_SENS

REEL_ON

185

CAM_CLK

CAM_OUT

187

REC_SAFE

154

TD0

TCK

111

TMS

TDI

TRSTL

218

S_DET

192

P_DET

188

ADP_H

203

BATT_H

189

CHRG_LED

131

202

MENU_P_B

201

MENU_P_A

ANA_IN_H

166

REMOTE

D_BATT

145

VF_SLEEP/M_CS

EXTM_H

LCD_CTL

236

VF_CTL

146

M_RVS

VIF_CS

195

VENC_OSD_IRIS_CLK

161

VENC_OSD_IRIS_OUT

118

VENC_OSD_IRIS_IN

208

USB_CS

TG_FZ_VID_RST

CCD_CTL

216

HID

102

IRIS_PS

209

REG_ERR

171

DSP_RST

103

IRIS_O/C

163

S_IN_L

190

HP_DET

REG_RTC_CLK

165

REG_RTC_OUT

REG_RTC_IN

184

LCD_CS

148

IRIS_MCK

USB

STS

I_MTR

C1042 0.1

TL1035

R1025

47K

TL1028

R1021 330K

R1097 1K

BLKA

BLKC

BLKB

TL1006

REGRTC_CLK

R1105 1K

R1024 3.3K

Q1003

UMC3N-W

123

RA1001

47K

VOI_IN

S_REEL

SYS_TDO

R1093 1K

ANA_IN_H

R1004

ADDT08

R1098 1K

OSD_HD

OSD_VD

C1039 0.1

TL1014

VOI_CLK

R1005

OPEN

X1001

NAX0692-001X

MFLD

C1002

C1035 0.1

CDAS

CLK27SEL

LENS_LED

CPU_WAIT

C1034 0.1

R1029

1.5K

ADDT14

R1022 3.3K

Q1001

DTA114EE-X

CDRE

R1086 1K

R1013

62K

A_MUTE

C1041 0.1

R1026

47K

R1104 1K

DEW_SENS

REG_CS

OMT

SYS_RSTL

R1095 1K

S_SENS

C1044 0.01

C1025 0.01

C1031 0.1

TL1015

TL1007

C1033 0.1

IC1004

NJU7108F3-X

[-]

VSS

[+]

OUT

VDD

C1028

OPEN

R1083 1K

R1101 1K

C1018

1µ

EM_DET_L

ADDT15

C1023 0.0068

ADDT04

R1100 1K

ADDT02

KENTO

PD_L

Q1011

DTC144EE-X

R1017

C1032 0.1

TL1089

R1094 1K

R1096 1K

ADDT00

Q1002

UMC3N-W

123

MVD

ADDT06

VC0

C1040 0.1

ADDT03

RA1004

100K

ADP_L

TL1026

MONI_CHG

C1046

0.01

VC2

R1126 0R0

R1127 0R0

R1123 0R0

C1020

OPEN

R1099 1K

VIF_CS

CAM_SW_B

VOI_OUT

R1012

82K

DOT_CLK

R1020

75K

S2_DET

ADDT05

AUDIO_CS

CHRG_EVR

TL1036

R1014

10K

E_SENS

L_MUTE

TL1034

R1010

10K

TL1038

AU_LV_CLK

IC1002

BU3095-0FFV-X

VC0

VC1

VC2

BLKA

VC3

BLKB

TST0

BLKC

VSS

TEST

EXD

SDR

VDD

RST

DATA

SCLK

R1019

100K

ADDT09

MIC1

ADDT13

TAPE_LED

CAM_SW_A

T_REEL

ADDT10

SHUT_ATT

CAM_SW_C

REC_SAFE

IC1005

M95320-WDW6-X

VCC

HOLD

SCK

VSS

SYS_TCK

PBH

R1091 1K

SYS_TRSTL

TL1016

TL1037

RECH

TL1029

C1058

OPEN

REGRTC_OUT

C1026

OPEN

TL1039

C1029 0.1

R1106 1K

ADDT11

SYS_TDI

R1103 1K

C1045

0.01

IRIS_CS

ADDT01

PSCTL

DSP_CS

R1015

100K

R1023 3.3K

R1016

100K

R1128 0R0

C1036 0.1

R1092 1K

R1125 0R0

TVSEL

IRIS_PS

IC1001

MN103S97NJA

REG_3.1V

TO VIDEO

TO AUDIO

MONI/VF

MAIN IF(CN110)

TO MAIN IF(CN107)

TO MAIN IF(CN113)

REG

TO MAIN IF(CN103)

AUDIO

TO MAIN IF

(CN113)

TO PARAGON

MAIN IF(CN113)

TO MAIN IF(CN107)

TO MAIN IF

(CN104)

TO REG

TO VIDEO

OP DRV

TO AUDIO

TO OP DRV

TO PARAGON,

VIDEO

TO AUDIO

TO MAIN IF

(CN105)

TO MAIN IF

(CN104)

TO MAIN IF

(CN105)

MAIN(CPU)

y10506001a_rev0.1

ONS".

2-9(No.YF076)

R2607

2.2k

C2613

C2606 0.0047

C2604

0.022

C2609

C2653

OPEN

R2408

OPEN

R2602

2.2k

R2401

4.7k

L2652

IC220

AK4660

SPK+

MUTE

SPK-

PDN

SVDD

SGND

BCLK1

AGND

AVDD

VCOM

MOUT

MIN

BEEP2

BEEP1

37 PREOR

38 PRENR

39 EXTR

40 INTR

41 MGND

42 MVDD

43 MPWR

44 MRF

45 INTL

46 EXTL

47 PRENL

48 PREOL

R2601

2.2k

Q2401

2SC4617/RS/-X

CN114

QGA1001F1-04X

1INT/R

2INT_GND

3INT_GND

4INT/L

R2610

22k

R2203

39k

C2203

R2202

560k

R2608

2.2k

C2201

0.1

C2603

0.022

L2602

NQR0269-013X

C2224

0.1

R2201

220k

C2655

0.047

C2223

0.1

C2605 0.0047

C2403

10/6.3

R2231

C2654

OPEN

C2217

0.1 C2218

0.1

C2405

0.1

C2602

OPEN

R2212

2.7

L2651

C2202

C2601

OPEN

L2653

R2213

2.7

L2603

NQR0269-013X

L2601

NQR0269-013X

C2612

Q2201

DTC144EE-X

C2401

10/6.3

R2609

22k

C2610

R2204

150k

C2611

C2656

0.047

C2623

10p

C2624

10p

C2235

OPEN

EXT/R

EXT/L

EM_DET_L

EM_GND

CN112

QGA1001F1-02X

R2618

6.8k

R2619

6.8k

C2652

OPEN

C2651

OPEN

D2651

OPEN

TO MAIN IF(CN103)

L2651

L2652

L2653

OPEN

NQR0269-013

C2609

C2610 0Ω

0.0033µ

SYMBOL JP/US PAL

OPEN

0Ω

NQR0269-013 2200 R

LAST VACANT NO MOUNT

5,14~16,18~30,32

6~8,11,12,15,16,19~22,30~32

2400

2600

2650

4~6

29,33~35

3~6,11~17

7,8,14~22

53,54

(MAIN)

(REG)

(INT MIC)

(EXT MIC)

SYMBOL LIST

1,2

NQR0022-004

MAIN(AUDIO)

TO INT MIC

TO SPEAKER

MAIN(AUDIO) SCHEMATIC DIAGRAM

NOTES: 1. For the destination of each signal and further line connections that are cut off from this diagram, refer to "BOARD INTERCONNECTIONS".

2. The parts with marked ( ) is not used.

Table des matières

Autres manuels JVC caméscope

JVC

JVC Everio R GZ-RX605BE Manuel d'utilisation et d'entretien

JVC

JVC VN-S200U/S100U Manuel utilisateur

JVC

JVC GR-AX940 Manuel utilisateur

JVC

JVC Everio GZ-HM430U Manuel d'utilisation et d'entretien

JVC

JVC GR-DV500 Manuel utilisateur

JVC

JVC GR-DVX507 Manuel utilisateur

JVC

JVC GR-D239 Manuel utilisateur

JVC

JVC GR-DVL320 Manuel utilisateur

JVC

JVC GR-D770UC Manuel utilisateur

JVC

JVC GR-D750UC Manuel utilisateur

JVC

JVC JY-HM70 Manuel d'utilisation et d'entretien

JVC

JVC GY-HM600U Manuel utilisateur

JVC

JVC JY-VS200 Manuel utilisateur

JVC

JVC GR-D370UC Guide de l'administrateur

JVC

JVC GY-HM660E Manuel utilisateur

JVC

JVC Everio GZ-HM655 Manuel utilisateur

JVC

JVC Everio GZ-HM448AH Manuel d'utilisation et d'entretien

JVC

JVC EverioR GZ-R495 Manuel d'utilisation et d'entretien

JVC

JVC GZ MG37 - Everio Camcorder - 32 x Optical... Guide de démarrage rapide

JVC

JVC GR-D340EK Manuel utilisateur

JVC

JVC DZ-VCA1SE Manuel utilisateur

JVC

JVC GC-FM1A - PICSIO HD Camcorder Manuel d'utilisation et d'entretien

JVC

JVC GZ-VX855 Manuel d'utilisation et d'entretien

JVC

JVC GR-DVX8EG Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
