JVC GR-AX760 Manuel utilisateur

GR-AX760

COMPACT VHS CAMCORDER

INSTRUCTIONS

YU30052-583-1

Compact VHS



PAL

ENGLISH

The Logical Choice

PAL

The only compact video

cassettes that can be

used with your VHS VCR*

with Cassette Adapter

MAJOR FEATURES

nProgram AE with Special Effects

(Zpgs. 22, 23)

nDigital Wipes and Fades (Zpgs. 24, 25)

nBuilt-In Auto Light (Zpg.15)

nMulti Function Control (Zpg. 18 – 31)

nDigital Hyper Zoom (Zpg. 13)

nDigital Image Stabilizer (Zpg. 18)

nRandom Assemble Editing (Zpg. 36 – 39)

Downloaded from: https://www.usersmanualguide.com/

Dear Customer,

Thank you for purchasing the JVC Compact VHS

camcorder. Before use, please read the safety

information and precautions contained in the

following pages to ensure safe use of your new

camcorder.

Using This Instruction Manual

• All major sections and subsections are listed in the

Table Of Contents (Zpg. 3).

• Notes appear after most subsections. Be sure to

read these as well.

• Basic and advanced features/operation are

separated for easier reference.

It is recommended that you . . .

.... refer to the Index (Zpgs. 42 – 44) and

familiarize yourself with button locations, etc.

before use.

.... read thoroughly the Safety Precautions that

follow and cautions (Zpgs. 45, 46). They

contain extremely important information

regarding the safe use of your new camcorder.

SAFETY

PRECAUTIONS

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

CAUTIONS:

nTo prevent shock, do not open the cabinet.

No user serviceable parts inside. Refer

servicing to qualified personnel.

nWhen you are not using the AC Power

Adapter/Battery charger for a long period of

time, it is recommended that you disconnect

the power cord from AC outlet.

nCamcorder is designed exclusively for the

VHS-C video cassette. Only cassettes marked

VHS-C can be used with this unit.

nHQ VHS is compatible with existing VHS

equipment.

Warning on lithium battery

The battery used in this device may present a

fire or chemical burn hazard if mistreated. Do

not recharge, disassemble, heat above 100°C or

incinerate.

Replace battery with Panasonic (Matsushita

Electric), Sanyo or Maxell CR2025; use of

another battery may present a risk of fire or

explosion.

nDispose of used battery promptly.

nKeep away from children.

nDo not disassemble and do not dispose of in

fire.

This camcorder is designed to be used with

PAL-type colour television signals. It cannot be

used for playback with a television of a different

standard. However, live recording is possible

anywhere. Use the BN-V12U/V22U/V25U

battery packs and, to recharge them, the

provided multi-voltage AC Power Adapter/

Charger. (An appropriate conversion adapter

may be necessary to accommodate different

designs of AC outlets in different countries.)

NOTES:

●

The rating plate (serial number plate) and

safety caution are on the bottom and/or the

back of the main unit.

●

The rating plate (serial number plate) of the

AC Power Adapter/Charger is on its bottom.

This unit is produced to comply with Standard

IEC Publ. 65.

PAL

2EN

Downloaded from: https://www.usersmanualguide.com/

nProgram AE with Special Effects

(Zpgs. 22, 23)

• Cinema • Sepia • Twilight • Sports

• High Speed (1/2000 sec.) Shutter

nDigital Wipes and Fades

(Zpgs. 24, 25)

• Black Fader • Blue Fader

• Mosaic Fader • Shutter Wipe

• Slide Wipe

nBuilt-In Auto Light (Zpg.15)

nMulti Function Control

(Zpg. 18 – 31)

nDigital Hyper Zoom (Zpg. 13)

nDigital Image Stabilizer

(Zpg. 18)

nRandom Assemble Editing

(Zpg. 36 – 39)

PROVIDED ACCESSORIES

•Lithium Battery

CR2025 x2

•Cassette Adapter C-P7U

•Battery Pack

BN-V12U

•Shoulder Strap

• Remote Control

Unit RM-V704U

• Editing cable

•AUDIO/VIDEO

(A/V) cable

• AC Power Adapter/

Charger AA-V11EG

•Cable adapter

CONTENTSMAJOR FEATURES

EN 3

GETTING STARTED 4

Power .................................................. 4

Clock (Lithium) Battery Removal/Insertion ....... 6

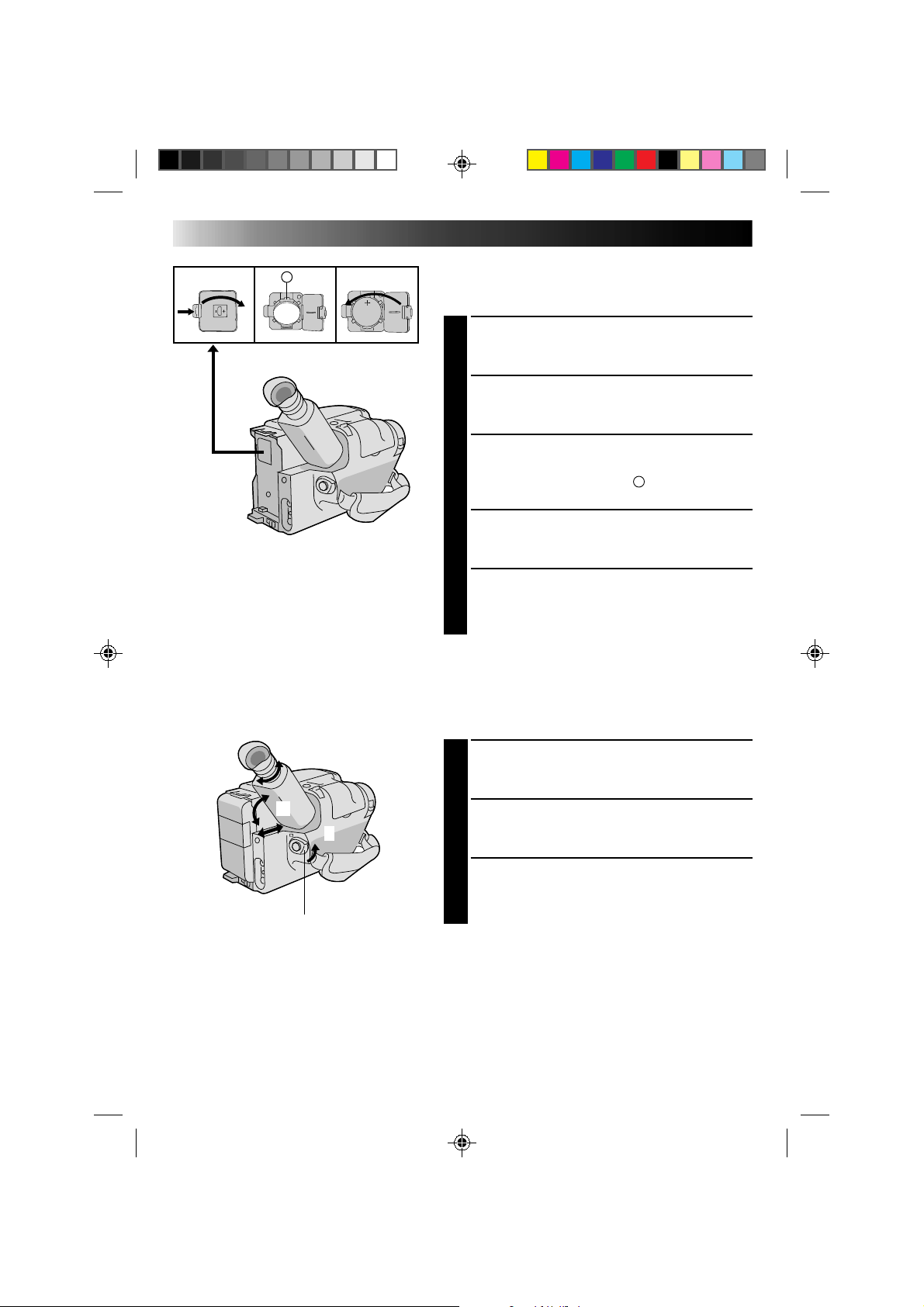

Viewfinder Adjustment .............................. 6

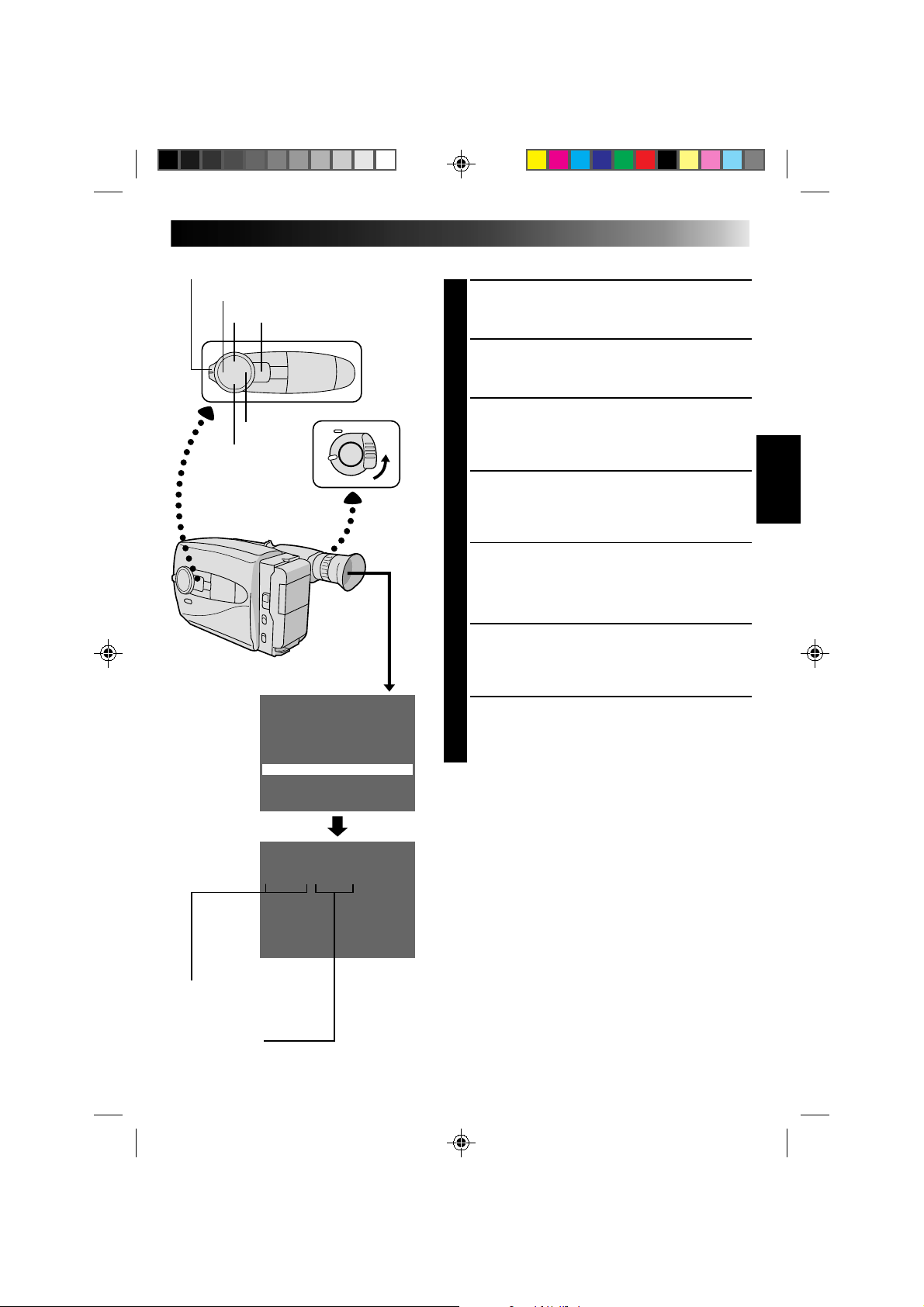

Date/Time Setting .................................... 7

Tape Length Setting .................................. 8

Recording Mode Setting ............................. 9

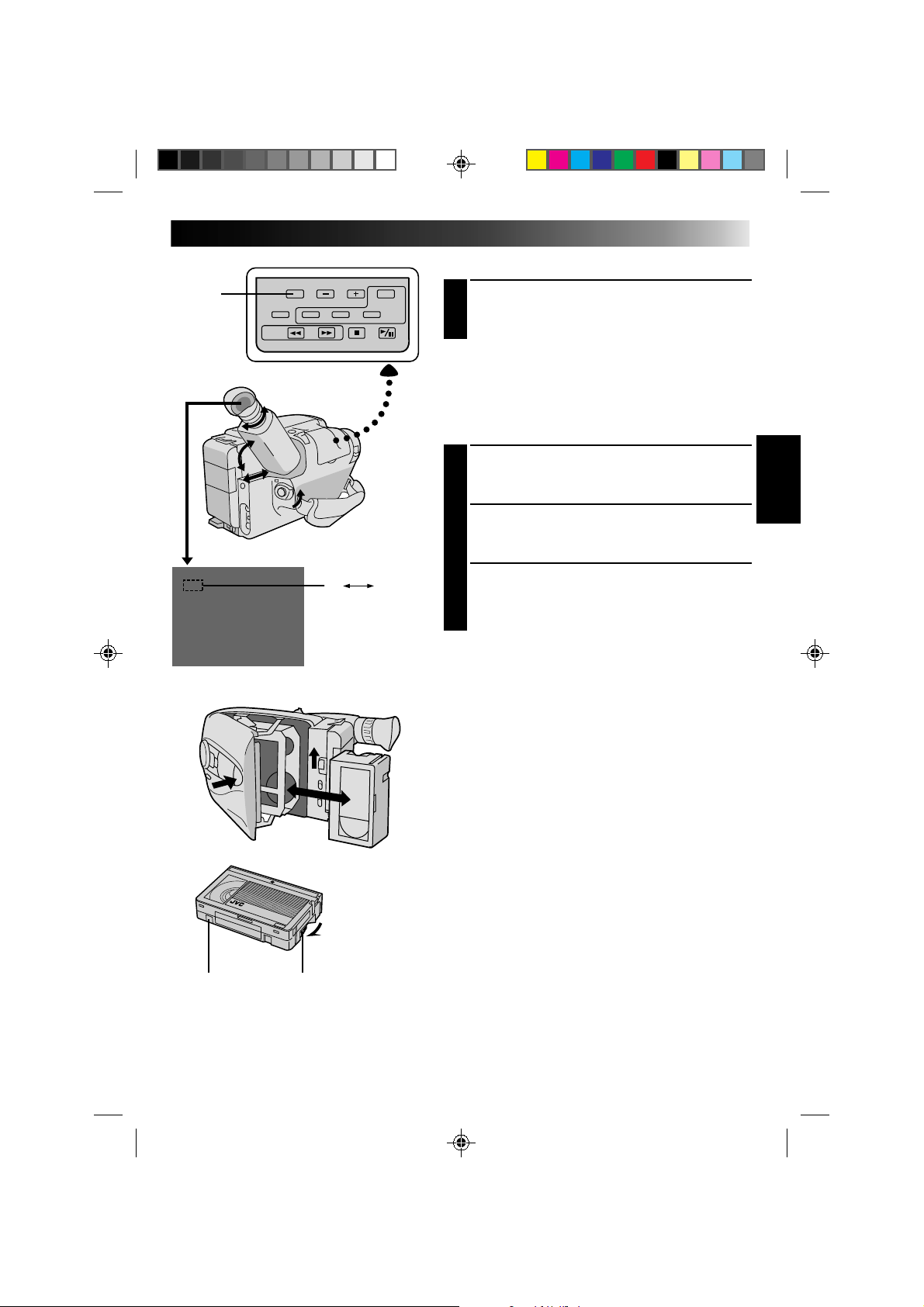

Loading/Unloading A Cassette ..................... 9

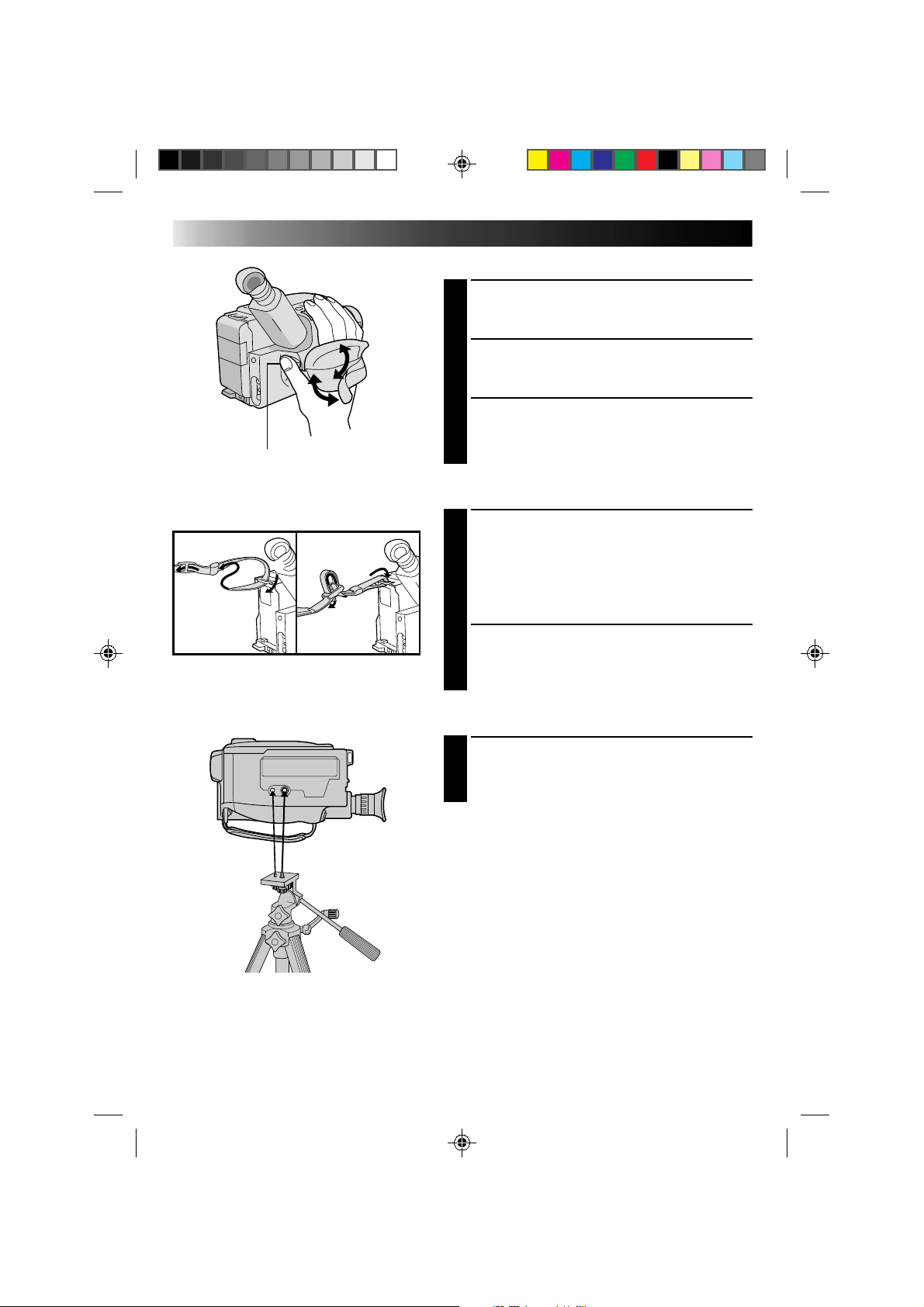

Grip Adjustment .................................... 10

Shoulder Strap Attachment ........................ 10

Tripod Mounting ..................................... 10

The RM-V704U Remote Control Unit ............ 11

RECORDING 12

Basic Recording ..................................... 12

Basic Features ....................................... 13

Video Light .......................................... 15

Advanced Features ................................. 16

Date/Time Insert .................................... 16

Quick Rec. ............................................. 17

Digital Image Stabilizer (D.I.S.) ............... 18

Exposure Control .................................... 18

White Balance Adjustment ...................... 19

Focusing ................................................ 20

Program AE With Special Effects .............. 22

Fade/Wipe ............................................. 24

Using Menu For Detailed Adjustment. ...... 26

Instant Titles .......................................... 28

Self-Timer .............................................. 30

Animation .............................................. 31

Time Lapse ............................................. 31

PLAYBACK 32

Using The Cassette Adapter ....................... 32

Basic Connections ................................... 33

Basic Playback ...................................... 34

Features .............................................. 35

EDITING 36

Tape Dubbing ........................................ 36

Random Assemble Editing [R.A.Edit] ............. 36

Insert Editing ........................................ 40

Audio Dubbing ....................................... 41

INDEX 42

Controls .............................................. 42

Connectors ........................................... 43

Indicators ............................................ 43

Other Parts .......................................... 43

Viewfinder ........................................... 44

CAUTIONS 45

TROUBLESHOOTING 47

SPECIFICATIONS 49

•DC Cord

Downloaded from: https://www.usersmanualguide.com/

4EN

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you

choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other equipment.

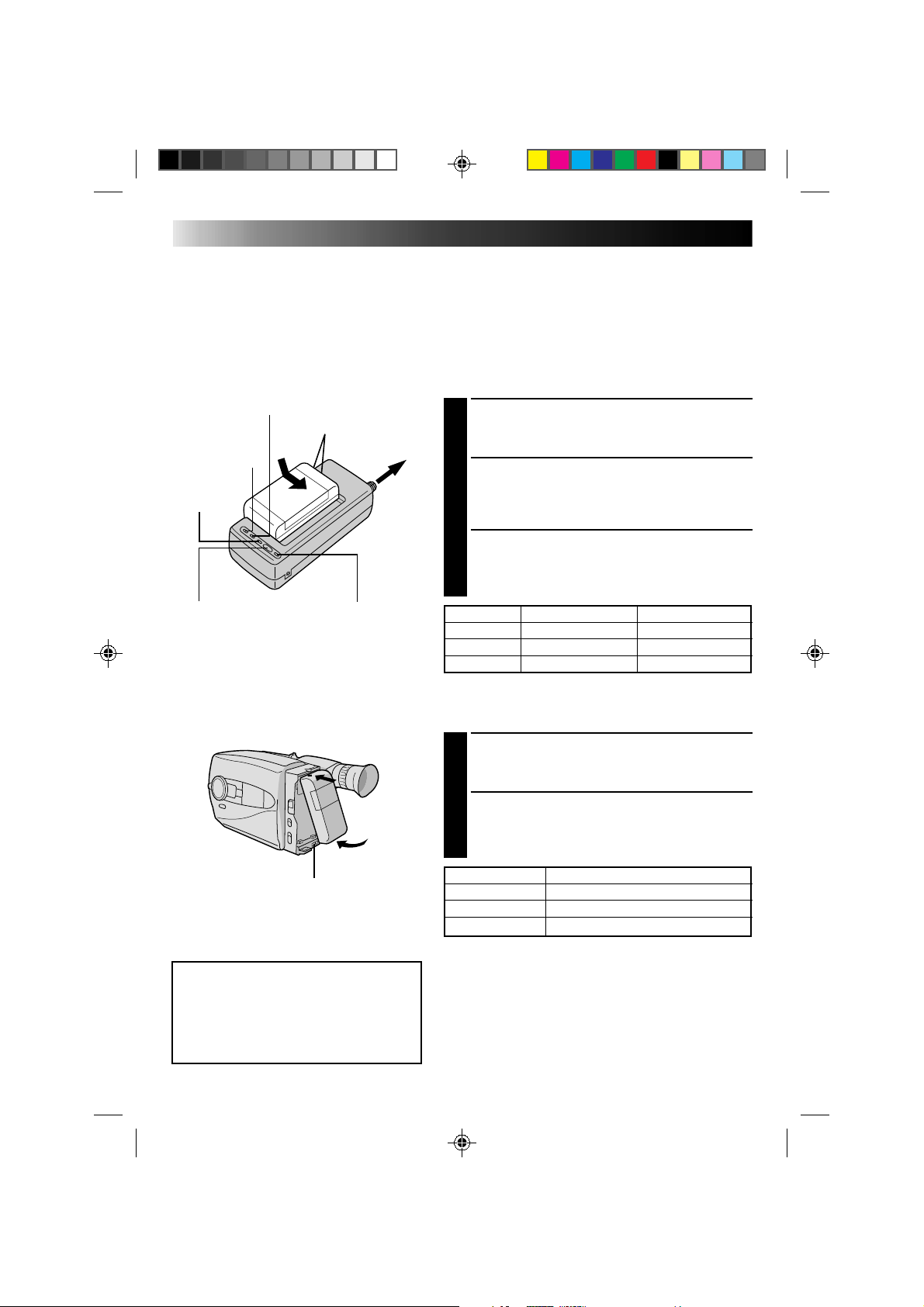

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

outlet. The power indicator lights.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place.

The CHG. indicator lights.

DETACH BATTERY PACK

When charging is completed, the END indicator

lights. Slide the battery pack opposite the direction

of the arrow.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

( ): When the Video Light is on

**REFRESH

The AC power adapter features a REFRESH function that allows

you to fully discharge the battery pack before recharging.

To discharge the battery . . .

..... attach the battery pack to the adapter as shown in the

illustration to the left. Then push REFRESH. The REFRESH

indicator lights when discharging starts, and goes out when

discharging is complete.

BATT. PACK RECORDING TIME

BN-V12U approx. 1 hr. 5min. (40 min.)

BN-V22U approx. 2 hrs. 15 min. (1 hr. 25 min.)

BN-V25U approx. 3 hrs. (1 hr. 50 min.)

BATT. PACK CHARGE DISCHARGE

BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min.

BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs.

BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

REFRESH indicatorREFRESH switch

CHG. (charge) indicator

To AC outlet

Marks

END

indicator

POWER

indicator

ATTENTION:

Before detaching the power source,

make sure that the camcorder’s power

is turned off. Failure to do so can result

in a camcorder malfunction.

Push in.

BATT. RELEASE

Hook on.

Downloaded from: https://www.usersmanualguide.com/

EN 5

**CHARGE MARKER

A charge marker is provided on the battery pack to

help you remember whether it has been charged or

not. Two colors are provided (red and black)—you

choose which one means charged and which

means discharged.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record/Standby mode and

the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 4 are for fully discharged battey pack, and discharging times are for fully

charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery

pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from

your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t

allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before

unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to

continue.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored

for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.

indicator should light during recharging. If not, contact your nearest JVC dealer.

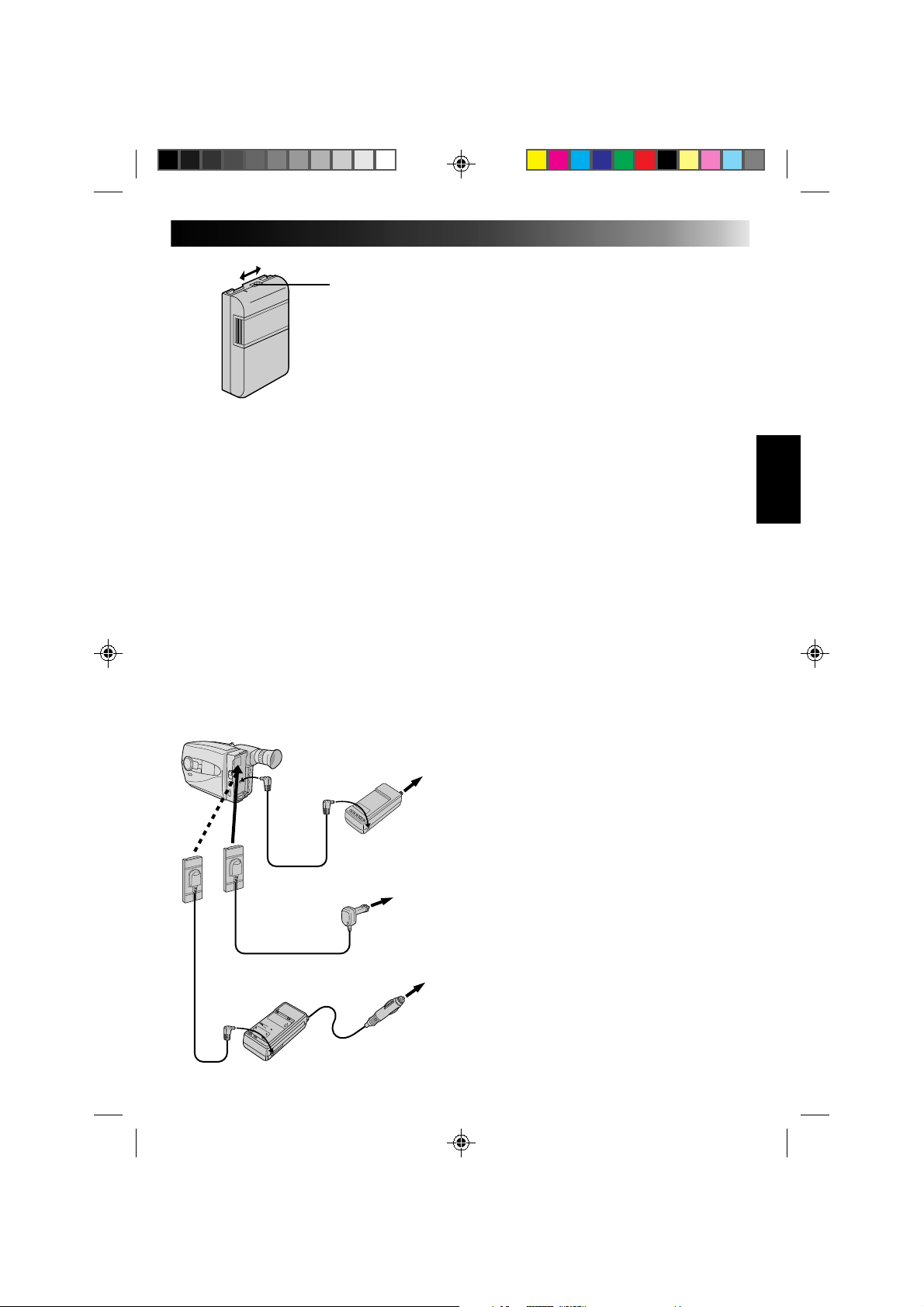

USING A CAR BATTERY

Use the optional Car Battery Cord or Car Battery

Charger/Adapter (connect as shown in the

illustration to the left).

NOTES:

●

When using the car battery, leave the engine

idling.

●

The optional Car Battery Charger (BH-V3E) can

also be used to charge the battery pack.

●

When using the optional Car Battery Charger or

Car Battery Cord (AP-V7E), refer to the respective

instruction booklet.

USING AC POWER

Use the AC Power Adapter (connect as shown in

the illustration to the left).

NOTE:

The supplied AC Power Adapter/Charger features

automatic voltage selection in the AC range from

110 V to 240 V.

Charge marker

AC Power

Adapter/Charger

AA-V11EG

(provided)

To car's

cigarette

lighter

socket

Car Battery Charger/Adapter

BH-V3E (optional)

DC cord

Car Battery Cord

AP-V7E (optional)

DC IN

Jack

To AC outlet

DC OUT

terminal

Downloaded from: https://www.usersmanualguide.com/

6EN

GETTING STARTED (cont.)

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to

perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

supply unit.

OPEN COVER

Open the clock battery compartment cover while

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

battery and the compartment ( A) and pull the

battery out.

INSERT BATTERY

Ensuring the plus (+) side is up, insert the CR2025

lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

NOTE:

See “SAFETY PRECAUTIONS”(

pg. 2) for information

on safe handling of lithium batteries.

Viewfinder Adjustment

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability

(see illustration at left).

SELECT MODE

Set the power switch to CAMERA.

ADJUST DIOPTER

Turn the diopter adjustment control until the

indications in the viewfinder are clearly focused.

Set POWER to “CAMERA”.

Downloaded from: https://www.usersmanualguide.com/

EN 7

1.1.00 10:45

Set

Cancel



Tele Macro OFF

Gain Up AGC

Color Filter NOR.

Tape Length T45

Title

Sub Menu

Date/Time

–

FAR

NEAR

Main Menu

Screen

Set Time and

Date Screen

Date/Time Setting

SELECT MODE

Set the Power switch to “CAMERA”, and the

Shooting Mode selector to “PRESET”.

ACCESS MAIN MENU SCREEN

Press MENU.

SELECT FUNCTION

Press –to move the highlight bar down to “Date/

Time”, then press NEAR. The Set Date And Time

screen appears.

SET DATE/TIME

Press FAR or NEAR until the item you want to set

begins blinking, then press +or –to until the correct

setting appears.

•If you decide you want to return the date and time

to the previous settings, press FAR or NEAR to

move the highlight bar to “Cancel”, then press

MENU.

•If you’re satisfied with the settings, go on to step 5.

START CLOCK OPERATION

Once you’ve set the day, month, year and time,

press FAR or NEAR until “Set” begins to blink, then

press MENU. The Main Menu screen reappears.

CLOSE MAIN MENU

Press MENU.

NOTES:

●

To display the date and time in the viewfinder and on a

connected TV, see “Date/Time Insert” (

pg. 16).

●

If, in step 4, you input an invalid date (30. 2., 31. 6.,

etc.) and perform step 5, “Input Error” appears blinking

at the bottom of the screen. Press +, –, FAR or NEAR to

input the correct number.

Time

24-hour indication

Date

Day/Month/Year

Shooting mode selector

Downloaded from: https://www.usersmanualguide.com/

8EN

GETTING STARTED (cont.)

T30T45

T60

Tele Macro OFF

Gain Up AGC

Color Filter NOR.

Title

Sub Menu

Date/Time

Tape Length T45

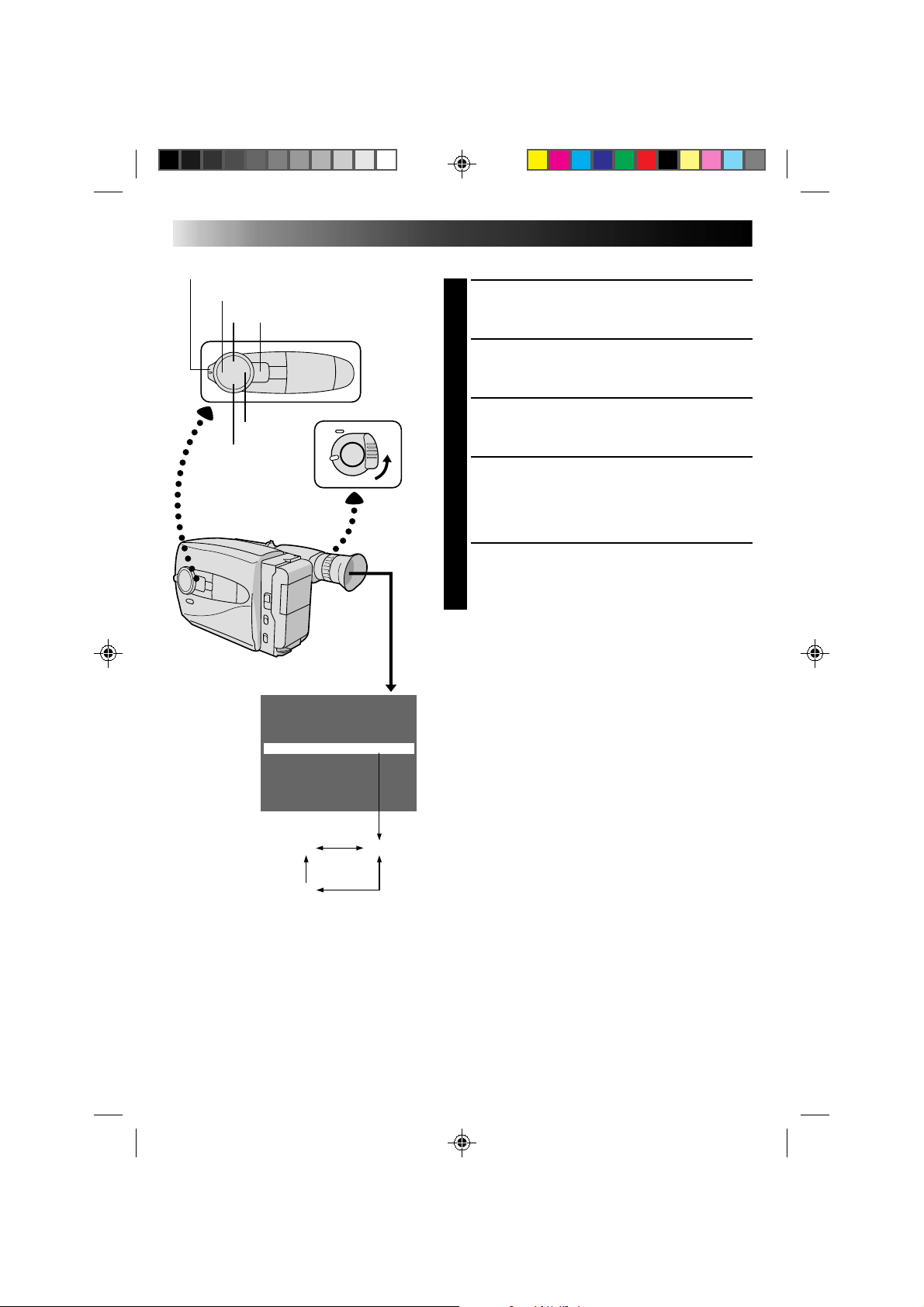

Tape Length Setting

SELECT MODE

Set the Power switch to “CAMERA”, and the

Shooting Mode selector to “PRESET”.

ACCESS MAIN MENU SCREEN

Press MENU.

SELECT FUNCTION

Press + or – to move the highlight bar to “Tape

Length”.

SET TAPE LENGTH

Press FAR or NEAR to cycle through until the correct

setting appears (depending on the tape used). T30 =

30 minutes of recording time, T45 = 45 min. and

T60 = 60 min.

CLOSE MAIN MENU

Press MENU.

NOTES:

●

The tape remaining time (

pg. 12) displayed in the

viewfinder is correct only if the correct tape length has

been selected.

●

When using a 60–minute tape, the tape remaining time

displayd will not be accurate.

–

FAR

NEAR

Main Menu

Screen

Shooting mode selector

Downloaded from: https://www.usersmanualguide.com/

EN 9

SP LP SP

Gear

Turn to take up

slack.

Erase Protection

SP/LP

Recording Mode Setting

Pressing SP/LP alternates the setting between SP

(standard play-provides higher picture and sound

quality, better for dubbing) and LP (Long Play-more

economical, recording at 1/2 the speed of SP).

NOTE:

If the recording mode is switched during recording, the

playback picture will be blurred at the switching point.

Loading/Unloading A Cassette

OPEN CASSETTE HOLDER

Slide EJECT until the holder opens. Do not use force

to open.

INSERT/REMOVE CASSETTE

Make sure the label is facing outward.

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and

locked.

NOTES:

●

A cassette holder can’t be opened unless a power

supply is attached.

●

Make sure that the tape is not slack when loading the

cassette. If there is any slack, turn the gear on the

cassette in the direction of the arrow to take up the

slack.

●

Make sure the Erase Protection tab is present. If not,

cover the hole with adhesive tape. (Some cassettes

have sliding tabs – in this case, check the tab’s

position.)

Downloaded from: https://www.usersmanualguide.com/

10 EN

GETTING STARTED (cont.)

Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

INSERT HAND

Pass your right hand through the loop and grasp the

grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate

the Recording Start/Stop button and Power Zoom

lever. Refasten the Velcro strip.

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap

through the top of the eyelet 1, then fold it back

and thread it through the keeper 2, and then

through the buckle 3. Repeat the procedure to

attach the other end of the strap to the other eyelet,

making sure the strap isn’t twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left 1, then

slide both keepers snug against the eyelets to

prevent slipping 2.

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud

hole. Then tighten the screw.

Recording Start/Stop button

Downloaded from: https://www.usersmanualguide.com/

Autres manuels pour GR-AX760

Table des matières

Autres manuels JVC caméscope

JVC

JVC 1001MKV*UN*SN Manuel utilisateur

JVC

JVC GR-DVL725U Manuel utilisateur

JVC

JVC GR-SXM267UA Manuel utilisateur

JVC

JVC Everio GZ-HD30 Manuel

JVC

JVC GR-D30UB Manuel utilisateur

JVC

JVC Everio GZ-V500BUA Manuel utilisateur

JVC

JVC GR-DX107 Manuel utilisateur

JVC

JVC GR-D790U Manuel utilisateur

JVC

JVC GR-SX950 Manuel utilisateur

JVC

JVC GZ-EX210 Everio Manuel d'utilisation et d'entretien

JVC

JVC EVERIO GS-TD1BEK Manuel d'utilisation et d'entretien

JVC

JVC GR-AXM287UM Manuel utilisateur

JVC

JVC GR-HD1 Manuel du propriétaire

JVC

JVC GC-FM2 Manuel d'utilisation et d'entretien

JVC

JVC LYT0242-001A Manuel utilisateur

JVC

JVC GZ-E300 Manuel d'utilisation et d'entretien

JVC

JVC GZMG27US - Everio Camcorder - 680 KP Manuel utilisateur

JVC

JVC GZ-MIG670 Manuel utilisateur

JVC

JVC GR-DX300 Manuel utilisateur

JVC

JVC GZ-MG150US Guide de l'administrateur

JVC

JVC GZMG27US - Everio Camcorder - 680 KP Guide de l'administrateur

JVC

JVC GZ-EX210 Everio Manuel utilisateur

JVC

JVC LYT1037-001A Instructions de montage

JVC

JVC GR-SXM58 Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sony

Sony Handycam HDR-CX580V Manuel utilisateur
