Juniper FIELD PC Manuel utilisateur
ActiveSync, Excel, Hotmail, Internet Explorer, Microso, MSN,
Outlook, PowerPoint, Visual Studio, Windows, Windows
Media, Windows Mobile, Windows Mobile Device Center,
Windows Vista, and the Windows logo are trademarks or
registered trademarks of Microso Corporation in the United
States and/or other countries.
The Bluetooth®word mark is owned by the Bluetooth SIG, Inc.
and any use of such marks by Juniper Systems, Inc. is under
license.
Acrobat and Reader are registered trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
The names of actual companies and products mentioned herein
may be the trademarks of their respective owners.
© Copyright 06-2008 Juniper Systems, Inc. All rights reserved.
P/N 20020-02
WARNING! Text set o in this manner indicates that
failure to follow directions could result in serious injury.
CAUTION: Text set o in this manner indicates that failure to
follow directions could result in damage to equipment or loss
of information.
!!
!!
Contents
1 Getting Started
The Anatomy of the Field PC 6
Getting Started 7
2 Battery and Power
Battery Settings Screen 12
Charging the Battery Pack 14
USB/Power Dock 16
Using Vehicle Power 18
3 Communicating with a
Desktop Computer
Communicating with a Desktop Computer 20
4 Using the Hardware
Using the Hardware 24
Powering Off, Suspending, Resetting, and
Restoring Factory Defaults 26
Using the stylus 28
Using the Touchscreen 29
PC Card Installation 30
Micro SD Card Installation 30
5 Programs and Settings
Understanding the Today Screen 34
Entering Information 35
Recognizing Status Icons 37
Recognizing Soft Keys 38
Performing Common tasks on the Field PC 40
Contents iii
iv Field PC Owner’s Manual
Using On-Device Help 43
Backing Up Data 44
Connecting to a Desktop Computer 48
Information for Software Developers 48
6 Bluetooth® Wireless Communications
Bluetooth®Drivers and Profiles 50
Supported Bluetooth® Profiles 56
7 Wi-Fi Connections
Wi-Fi Connections 64
8 Care and Maintenance
Caring for Your Field PC 68
Disposing of the Field PC and Battery Pack 73
9 Service Information
Repairing the Field PC 76
Preparing for a Service Center Call 76
A Product Specifications and Warnings
Product Specifications 78
Battery Warnings 79
Equipment Warnings 80
B Certifications and
Regulatory Information
Regulatory Information 82
Limited Product Warranty 85
Index
1
Getting Started
6 The Anatomy of the Field PC
7 Getting Started
6Field PC Owner’s Manual
The Field PC is a rugged handheld computer designed for
data collection from multiple environments. Equipped with
Windows Mobile 6 it features a wide variety of applications
soware and accessories.
The Anatomy of the Field PC
The picture below shows some of the important features of the
Field PC.
8
1
2
3
4
5
7
9
10
11
CAUTION: Tampering
with the jack screws will
break the waterproof
seal of the unit.
!!
6
USB client (mini B)
Touchscreen/display
Top lanyard cleats
Battery door latches
Power button
Bottom lanyard cleats
7
8
9
10
USB host (full size A)
12V DC jack
Stylus
9-pin serial port
1
2
3
4
5
6
11
Back compartment door
Getting Started
Install the Battery Pack
When you receive the Field PC, you must install and charge
the NiMH baery pack before using. To do this, complete the
following steps:
1. Push up on the sliding latches on the sides of the Field PC
to open the baery compartment door.
2. Place the NiMH baery pack in the le side of the baery
compartment, push down, and slide it all the way to the
right. There is a small arrow on the boom right corner of
the baery pack, make sure the arrow is pointing to the
right when it is placed in the Field PC.
Ch 1 Getting Started 7
8Field PC Owner’s Manual
3. Push the baery door closed until the slide latches click
into place. If the latches are not securely in place the unit is
no longer water tight.
Note: Do not turn on the Field PC yet.
4. Plug the AC wall charger that came with the Field PC into
the wall socket.
5. Remove the rubber protector from the Field PC’s external
power input jack.
6. Plug the wall charger into the Field PC power jack located
at the top of the case. The Charge Seings screen opens
requesting you set the charge percentage. Select Enter
percentage and capacity, set the baery charge to 10%, and
leave the baery capacity at 4000.
7. Charge the baery pack at room temperature for at least
6 hours.
Ch 1 Getting Started 9
10 Field PC Owner’s Manual
Autres manuels pour FIELD PC
1
Table des matières
Autres manuels Juniper portable
Juniper

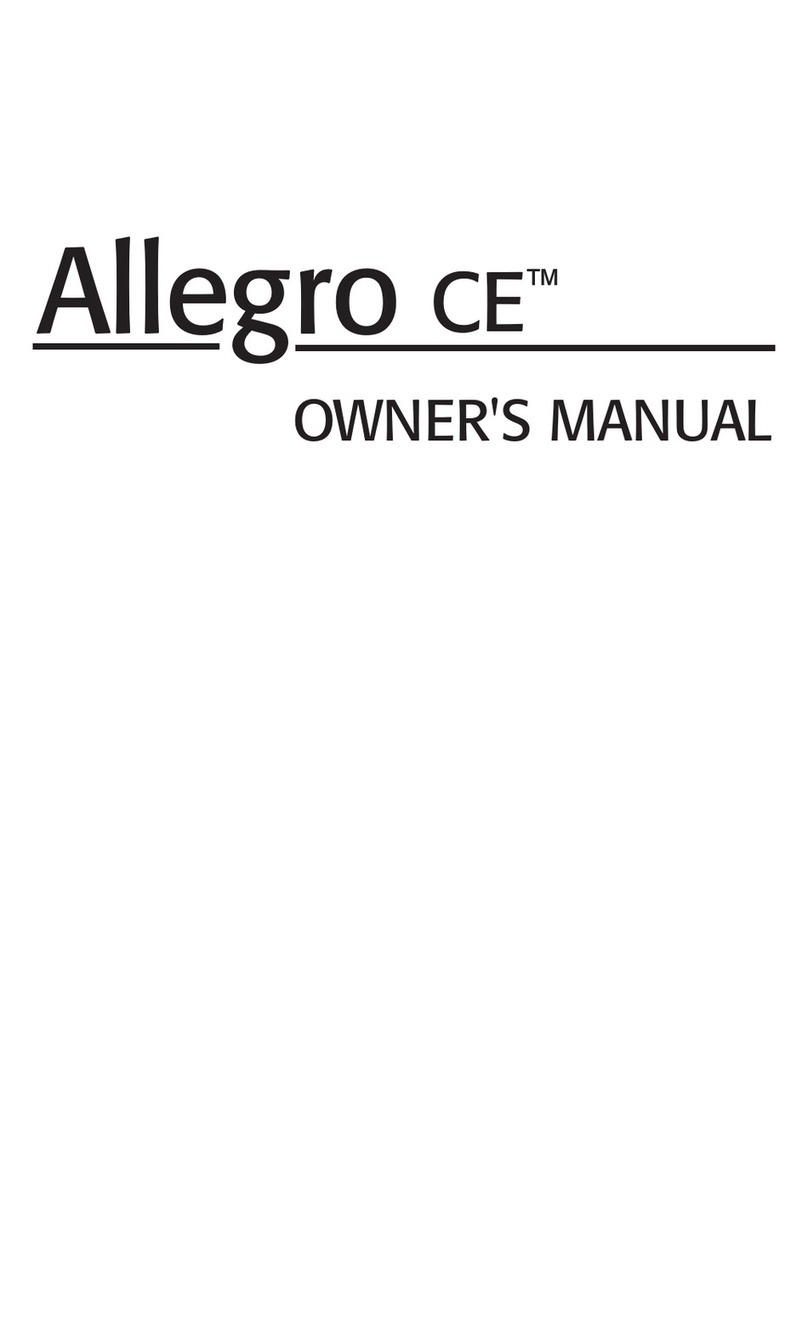

Juniper Allegro CE Manuel utilisateur
