Jonsered LT2113 Mode d’emploi

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

IPL, LT2113, 96011026604, 2010-03

LT2113

ILLUSTRATED PARTS LIST

MFG ID NO. 96011026604

CUSTOMER CATALOG NO. LT2113

PRODUCT NO. 960 11 02-66

532 43 49-43

WHEELS & TIRES

KEY PART

NO. NO. DESCRIPTION

1 532 19 68-41 Decal, Warning Engine Symbols

2 532 14 50-05 Decal, Bat Dan/Poi P/L Symbols

3 532 41 90-19 Decal, RPL.

4 532 19 63-57 Decal, Deflector Warning Symbols

5 532 42 26-39 Decal, Hood

6 532 42 29-42 Decal, SDPNL

7 532 14 08-37 Decal, Saddle Brake Parking

8 532 18 39-30 Decal, Cover/Belt GRD

9 532 40 03-89 Decal, Warning Sym. CE

10 532 15 97-36 Decal, Chassis Hot Muffler

11 532 18 21-66 Decal, Mower Cut finger Symbol

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 12 41-57 Tire F Ts 15 x 6 - 6 Service

4 532 05 99-04 Tube Front (Service Item Only)

5 532 13 83-36 Rim Asm 6" Front Service

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 13 83-37 Rim Asm 8" Rear Service

9 532 12 39-69 Tire R Ts 18 x 8.5-8 C. Service

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 17 50-39 Cap Axle Blk 1 50 x 1 00

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

15,8

4,10

3,9

12 532 18 04-32 Decal, 100 Dba

14 532 41 79-26 Decal, Eng. HP

15 532 15 97-37 Decal, Brake/Clutch

19 532 19 43-02 Decal, V-Belt Sch

- - 532 16 25-98 Decal, Drawbar Load Limit

- - 532 13 83-11 Decal, Lift Handle (Lift Handle)

- - 532 43 51-81 Manual Operator’s Euro

- - 532 43 51-82 Manual Operator’s Scan

- - 532 43 51-83 Manual Operator’s Ebloc

- - 532 43 51-84 Manual Operator’s Baltic

TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66

DECALS

BATTERY

FUSE

AMMETER

(OPTIONAL)

RED RED

RED

WHITE

BLACK

BLUE

BLACK

BLACK/WHITE

BLACK

BLUE

BROWN

BLACK

GRAY

BLACK

DIONELOS

STARTER

CLUTCH / BRAKE

(PEDAL UP)

SEAT SWITCH

(NOT OCCUPIED)

IGNITION

UNIT

HOUR

METER

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

HEADLIGHTS

GA1

REVERSE SWITCH

SPARK PLUGS

GAP

(2 PLUGS

ON TWIN CYL. ENGINES)

(OPTIONAL)

NOT IN REVERSE

LIGHT SWITCH

SHORTING CONNECTOR

ATTACHMENT CLUTCH

(CLUTCH OFF)

REMOVABLE

CONNECTIONS

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS

WERE REMOVED FOR SERVICING OF

UNIT, THEY SHOULD BE RE-INSTALLED

TO PROPERLY SECURE YOUR WIRING.

IGNITION SWITCH

CIRCUITPOSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

NON-REMOVABLE

CONNECTIONS

SCH03

ORANGE

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

STATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66

SCHEMATIC

L02

33 34

79 21

TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66

ELECTRICAL

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 17 66-89 Box Battery Fender

16 532 17 61-38 Switch Interlock

21 532 18 37-59 Harness Headlight

22 532 00 41-52 Bulb.

24 532 42 12-97 Cable Battery 8 Ga w/44 wire Red

25 532 42 12-99 Cable Battery 6 Ga 11" Red

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 42 12-98 Cable Ground 6 Ga 12" black

29 532 19 27-49 Switch Seat

30 532 19 33-50 Switch Ignition

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 19 74-28 Harness Ignition

41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

79 532 17 52-42 Socket Asm. Bulb Twistlock

90 532 18 04-49 Cover Terminal Battery

92 532 19 66-15 Harness Pigtail Console ROS

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66

ELECTRICAL

TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66

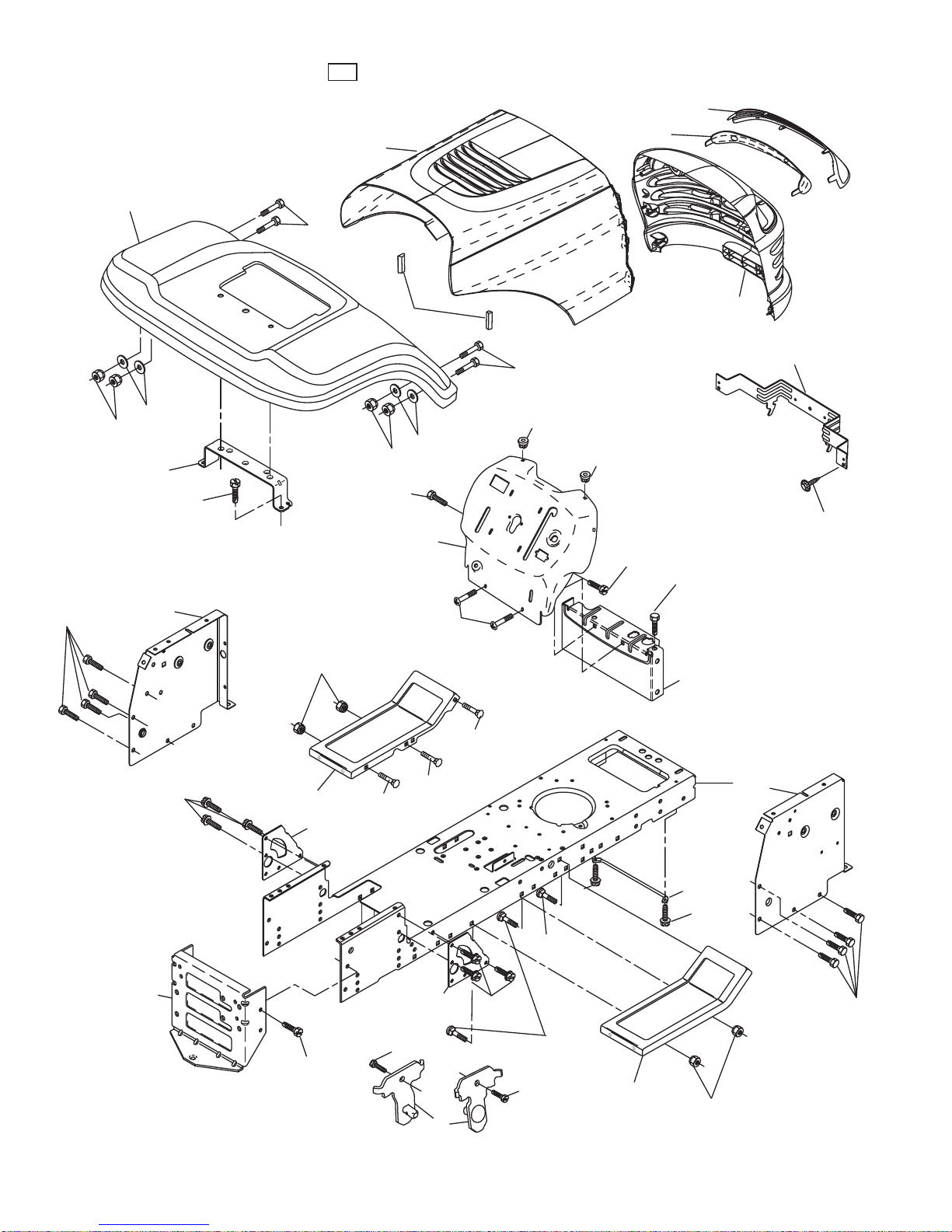

CHASSIS AND ENCLOSURES

26 25

208

208 11

209

208

209

207

209

142

209

142

145

209

26 25

209

33 10

205

278

212

chassis-stlt_elite value_3

1 532 17 46-19 Chassis

2 532 17 65-54 Drawbar

5 532 15 52-72 BumperHood/Dash

9 532 19 48-22 Dash

10 872 14 06-08 Bolt, Carriage 3/8-16 x 1

11 532 17 49-96 Dashboard, Panel LH

13 532 18 69-52 Dashboard, Panel RH

17 532 18 67-07 Hood Pnt

18 532 18 49-21 BumperHood

24 874 78 06-16 Bolt, Hex Head, Fin. 3/8-16 x 1 Gr. 5

25 819 13 13-12 Washer 13/32 x 13/16 x12 Ga.

26 873 80 06-00 Nut Lock Hex w/Ins. 3/8-16 unc

28 532 18 57-06 Grille

29 532 18 58-46 Lens

30 532 19 57-70 Fender

31 532 13 66-19 Fender Bracket

33 532 18 11-93 Footrest, LH

34 532 18 11-94 Footrest, RH

35 872 11 06-06 Bolt 3/8-16 X 3/4

37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

38 532 17 57-10 Bracket Asm. Pivot Mower Rear

39 532 40 78-07 Bracket Pivot Laser/Elite

64 532 15 47-98 Dash Lower

142 532 17 57-02 Plate Reinforcement

145 532 40 91-67 Rod Pivot Chassis/Hood

205 817 49 06-08 Screw Thdrol 3/8-16 x 1/2

207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2

208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2

209 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4

212 532 18 35-50 Insert Lens Reflective

278 532 41 63-58 Screw #10 x 0.750

- - 532 00 54-79 Button Plug

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66

CHASSIS AND ENCLOSURES

































  









 



























 

  













































 

 































DRIVESTLT?0EERLESS?FENDER??R





































TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66

DRIVE

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 - - - - - - - Transaxle Peerless 206-545C

2 532 14 66-82 Spring, Brake Return

3 532 12 36-66 Pulley, Transaxle

4 812 00 00-28 Ring, Retainer

5 532 12 15-20 Strap, Torque

6 817 06 05-12 Screw, 5/16-18 x 3/4 SMGML

8 532 19 27-06 Rod, Shifter

10 876 02 04-16 Pin, Cotter 1/8 x 1

11 532 10 57-01 Washer, Shift Plate

13 874 55 04-12 Bolt 1/4-28 UNF Gr. 8 w/Patch

14 810 04 04-00 Washer Lock

15 874 49 05-44 Bolt, Hex Flghd 5/16-18 Gr. 5

16 873 80 05-00 Nut Lock 5/16-18 unc

18 874 78 06-16 Bolt, Fin Hex 3/8-16 Unc x 1 Gr. 5

19 873 80 06-00 Locknut 3/8-16

21 532 10 69-33 Knob

22 532 13 08-04 Rod, Brake

24 873 35 06-00 Nut, Hex Jam 3/8-16

25 532 10 68-88 Spring, Rod, Brake

26 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

27 876 02 04-12 Pin, Cotter 1/8 x 3/4

28 532 17 57-65 Rod, Brake, Park

29 532 07 16-73 Cap, Plunger

30 532 17 49-73 Bracket, Transaxle, L.H.

32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4

34 532 17 55-78 Shaft, Foot Pedal

35 532 12 01-83 Bearing Nylon

36 819 21 16-16 Washer 21/32 x 1 x 16 Ga.

37 532 12 49-63 Pin,Roll 3/16 x 1

38 532 17 91-14 Pulley Idler

39 872 11 06-22 Bolt 3/8-16 unc x 2-3/4 Gr. 5

41 532 17 55-56 Keeper, Belt

47 532 12 77-83 Pulley, Idler

48 532 15 44-07 Bellcrank Asm Clutch

49 532 12 32-05 Retainer, Belt

50 872 11 06-12 Bolt, Carr. Sh 3/8-16 x 1-1/2 Gr. 5

51 873 68 06-00 Nut, Crownlock 3/8-16

52 873 68 05-00 Nut, Crownlock 5/16-18

53 532 19 96-52 Link, Clutch

55 532 10 57-09 Spring, Return, Clutch

56 817 06 06-20 Screw 3/8-16 x 1-1/4

57 532 13 82-55 V-Belt, Drive

62 532 12 48-72 Cover, Foot Pedal

63 532 17 54-10 Pulley, Engine

64 532 17 39-37 Bolt, Hex 7/16-20 x 4 Gr. 5

65 810 04 07-00 Washer, Lock Hvy Hlcl Spr 7/16

66 532 15 47-78 Keeper, Belt Engine F-Proof

69 532 14 24-32 Screw Hex Wsh Hi-Lo

70 532 13 46-83 Guide Belt Mower Drive RH

74 532 13 70-57 Spacer Axle

75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

76 812 00 00-01 E-Ring

77 532 12 35-83 Key Square

78 5321217-48 Washer 25/32 x 1-5/8 x 16 Ga.

79 532 12 50-96 Key Woodruff #9 3/16 x 3/4

80 532 13 14-86 Arm Shift

81 532 16 55-94 Shaft Asm. Cross Taper

82 532 16 57-11 Spring Torsion Shift

83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.

84 532 16 62-28 Link Trans.

85 532 15 03-60 Nut Lock Center 1/4-28

89 532 19 49-71 Console Shift

96 532 12 47-88 Retainer Spring 1" Ziinc/Cad

112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

113 532 12 72-85 Strap Torque L.H. Lt

116 872 14 06-08 Bolt RDHD SQNK 3/8-16 unc x 1

120 873 90 06-00 Nut Lock Flg. 3/8-16 unc

150 532 17 54-56 SpacerRetainer

151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.

156 532 16 60-02 Washer 5/16 ID x 10 x .125

158 532 16 55-89 Bracket Shift Mound

159 532 18 39-00 Hub Shift

161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

162 873 68 04-00 Nut Crownlock 1/4-20 unc

163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

165 532 16 56-23 Bracket Pivot Lever

166 817 49 05-10 Screw 5/16-18 x 5/8

168 532 16 54-92 Bolt Shoulder 5/16-18 x .561

169 532 16 55-80 Plate Fastening

170 532 18 74-14 Keeper, Belt, Transaxle

197 532 16 96-13 Nyliner Snap-In 5/8 ID

198 532 16 95-93 Washer Nylon

202 872 11 06-14 Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5

263 817 00 06-12 Screw, 3/8-16 x 3/4 SMGML

268 532 18 24-02 Guard Muffler

275 819 13 16-14 Washer 13/32 x 1 x 14 Ga.

TRACTOR - - MODEL NO. LT2113 (96011026604), PRODUCT NO. 960 11 02-66

DRIVE

Autres manuels pour LT2113

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Jonsered Tondeuse à gazon

Jonsered

Jonsered LT2316CMA2 Manuel utilisateur

Jonsered

Jonsered LT2218A2 Manuel utilisateur

Jonsered

Jonsered LT 2313 Manuel utilisateur

Jonsered

Jonsered FR 2213 MA Manuel utilisateur

Jonsered

Jonsered LT16A Manuel utilisateur

Jonsered

Jonsered LT2223CMA2 Manuel utilisateur

Jonsered

Jonsered LM 2146 CMDA Manuel utilisateur

Jonsered

Jonsered LM 2147 CM Manuel utilisateur

Jonsered

Jonsered LT2323 CMA2 Manuel utilisateur

Jonsered

Jonsered YT48 Manuel utilisateur

Jonsered

Jonsered LM2153CMDAE Manuel utilisateur

Jonsered

Jonsered LM 2146 CMD Manuel utilisateur

Jonsered

Jonsered LGT54 Manuel utilisateur

Jonsered

Jonsered LT2217CMA Manuel utilisateur

Jonsered

Jonsered LM 2152CMDAE Manuel utilisateur

Jonsered

Jonsered LT2114CM Manuel utilisateur

Jonsered

Jonsered LM2150 Manuel utilisateur

Jonsered

Jonsered 2754GTHi Manuel utilisateur

Jonsered

Jonsered Front Rider FR13 Manuel utilisateur

Jonsered

Jonsered FR 2216 MA Manuel utilisateur

Jonsered

Jonsered LT2116 Manuel utilisateur

Jonsered

Jonsered LT2119A Manuel utilisateur

Jonsered

Jonsered LM 2146 CMD Manuel utilisateur

Jonsered

Jonsered LT2120A2 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
