Jonsered LT2216A2 Mode d’emploi

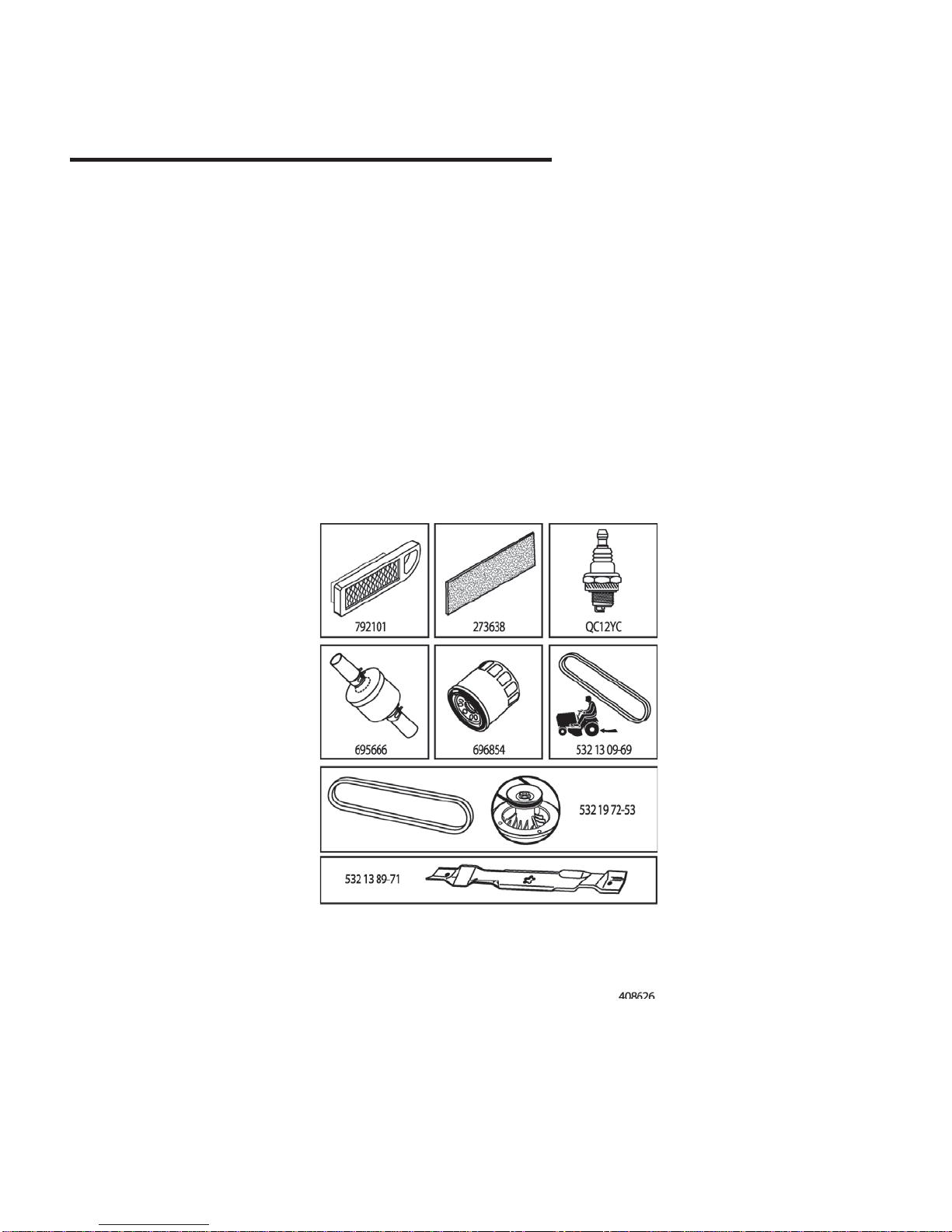

SERVICE

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

I0700042

IPL, LT2216 A2, 2007-03, 504 11 16-06

LT2216A2

504 11 16-06

96041003700

408737 Rev. 4

ILLUSTRATED PARTS LIST

MODEL NO. 96041003700

CUSTOMER CATALOG NO. LT2216A2

PRODUCT NO. 960 41 00-37

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

410

598

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Asm 6" Front Service

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire F T 15 x 6 0 - 6 Service

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 12 20-82 Tire R T 20 x 10-8 Service

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm 8" Rear Service

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 40 03-89 Decal, Operators

2 532 18 95-53 Decal, Hood

3 532 19 68-41 Decal, Warning Eng. Symbols

4 532 40 93-70 Decal, Hood Panel

5 532 15 97-36 Decal, Chassis Hot Muffler

6 532 18 04-32 Decal, Fender 100 DB/CE

7 532 18 21-66 Decal, Cutfinger CE

8 532 40 86-26 Decal, Rpl

9 532 14 50-05 Decal, Battery Dnge/Poi

10 532 14 08-37 Decal, Saddle Brake Parking

11 532 19 63-57 Decal, Warning

12 532 16 03-96 Decal, Mower V-Belt Schematic

13 532 15 97-37 Decal, Brake/Clutch Symbol

14 532 40 94-61 Decal, Eng. HP

16 532 18 57-73 Decal, Steering

17 532 18 39-30 Decal, Cover Belt

18 532 40 93-71 Decal, Fender

- - 532 40 95-05 Pad, Footrest, LH

- - 532 41 12-73 Pad, Footrest, RH

- - 532 16 25-98 Decal, Drawbar Load Limit

- - 532 16 69-60 Decal, Bypass

- - 532 40 87-30 Manual Oper. Euro

- - 532 40 87-32 Manual Oper. Scand

- - 532 40 87-33 Manual Oper. E-Bloc

- - 532 40 87-34 Manual Oper. Baltic

TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37

DECALS

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH10

IGNITION SWITCH

CIRCUITPOSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

03107

ATTACHMENT CLUTCH

(CLUTCH OFF)

REGULATOR STATOR

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16 AMP DC @ 3600 RPM

RED

BLACK

BLACK /WHITE

ORANGE

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

DER

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37

SCHEMATIC

30 33

79 21

100

227

43 27

With 12V Outlet Option

103

With Service Minder Option

4646

T01S

TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 14 49-27 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 18 64-91 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 18 37-59 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

24 532 40 02-53 Cable Battery

25 532 40 16-62 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable,Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 14 04-01 Key, Ignition

34 532 11 07-12 Switch Light/Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

46 532 40 17-63 Hourmeter

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

71 532 19 42-76 Harness Chassis

79 532 17 52-42 Socket Asm. Bulb Twistlock

87 532 19 78-02 Switch Interlock Clutch Cable

90 532 40 07-24 Cover Terminal

91 532 19 02-70 Strap Battery Mount Front

92 532 19 66-15 Harness Pigtail Reverse Switch

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

99 817 67 04-12 Screw 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37

ELECTRICAL













 

CHASSISTEX?GTHUSQ?R









































































165

TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37

CHASSIS AND ENCLOSURES

5 532 41 20-69 Dash

14 532 42 69-83 Hood

15 532 18 97-54 Lens LH

18 532 19 29-15 Grille

25 532 18 97-55 Lens RH

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 44 12-66 Fender

52 873 68 05-00 Nut Crown Lock 5/16

68 817 49 05-08 Screw THDROL 5/16-18 x 1/2

130 532 19 16-11 Screw

137 532 18 49-21 Bumper Dash

138 532 40 97-30 Cupholder

150 532 18 43-22 Air Duct

151 532 40 78-07 Bracket Pivot

152 532 19 95-35 Shield Browning

161 532 41 20-72 Window Fuel

162 532 14 24-32 Screw 1/4 x 1/2

165 532 19 68-26 Support Tank Rear

175 532 19 32-43 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-28 Bushing Steering

180 532 19 54-57 Chassis

181 532 40 47-96 Bushing Mtg. Fender Crgo

182 532 19 30-57 Dash Lower

183 874 78 05-20 Bolt 5/16-18 unc x 1-1/4

186 532 18 97-53 Insert Grille

189 817 00 05-12 Screw 5/16-18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 40 97-28 Console Asm. Deck Lift

207 532 18 38-33 Bezel RH

208 532 18 38-32 Bezel LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

217 532 15 65-24 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

222 532 13 77-29 Screw 1/4-20 x 5/8

228 532 19 51-61 Stud Fastener

230 532 17 01-65 Bolt Shoulder 5/16-18

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37

CHASSIS AND ENCLOSURES





























 







DRIVETEX?(USQª4UFF4ORQ?R































ª

 



























ª





























TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37

DRIVE

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 532 40 82-14 Transaxle, TUFFTORQ K46

(Internal parts not available)

2 532 12 35-83 Key

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring Brake

22 532 19 76-60 Rod Shift

23 532 13 05-64 Knob

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 77-22 Rod Brake Park

42 532 12 48-72 Cover Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 13 09-69 V-Belt Drive

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 41 13-29 Console

73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5

74 532 14 24-32 Screw 1/4 x 1/2

80 532 40 44-83 Strap Torque

99 532 40 59-03 Rod Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 19 54-03 Spring Return Clutch

166 532 19 72-90 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 19 43-22 Keeper Belt Centerspan

171 872 11 06-16 Bolt RDHD SQNK 3/8-16 unc x 2

174 532 19 72-89 Nut Push

175 532 40 62-08 Shaft Asm Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 13 70-57 Spacer Split

184 532 41 12-89 Handle Parking Brake

185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

205 532 12 17-48 Washer

211 532 19 62-12 Bushing Brake Shaft

216 532 19 61-31 Bracket Pulley Idler

221 532 40 31-87 Retainer Spring Clip Handle

225 532 40 33-19 Keeper Belt Trans.

226 532 40 15-64 Bracket Mount Touque

230 532 18 89-67 Washer Hardened

233 532 40 52-96 Washer Serrated

276 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5

279 532 40 62-07 Link Shift

TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37

DRIVE
