GB Welcome to Joie™
Congratulations on becoming part of the Joie family. We are so excited
to be part of your journey with your little one. While traveling with the
Joie i-Level™ enhanced child restraint you are using a high quality, fully
certified safety i-Size enhanced child restraint. Please carefully read this
manual and follow each step to ensure a comfortable ride and best pro-
tection for your child.
To use this Joie enhanced child restraint with the i-Size ISOFIX connec-
tions according to the ECE R129/01 Regulation, your child must meet
the following requirements.
Child height 40cm-85cm/ Child weight 13kg; (approximately 1.5 years
old or under).
Base
These instructions show the use of the infant carrier and the base.
Please read all the instructions in this manual before installing and using
the product.
IMPORTANT: KEEP FOR FUTURE REFERENCE.
PLEASE READ CAREFULLY.
Please keep the instruction manual at the
bottom of the soft goods.
Please make sure there are no missing parts. Please contact the
retailer if anything is missing.
2
3
5
6
7
8
9
11 12
1

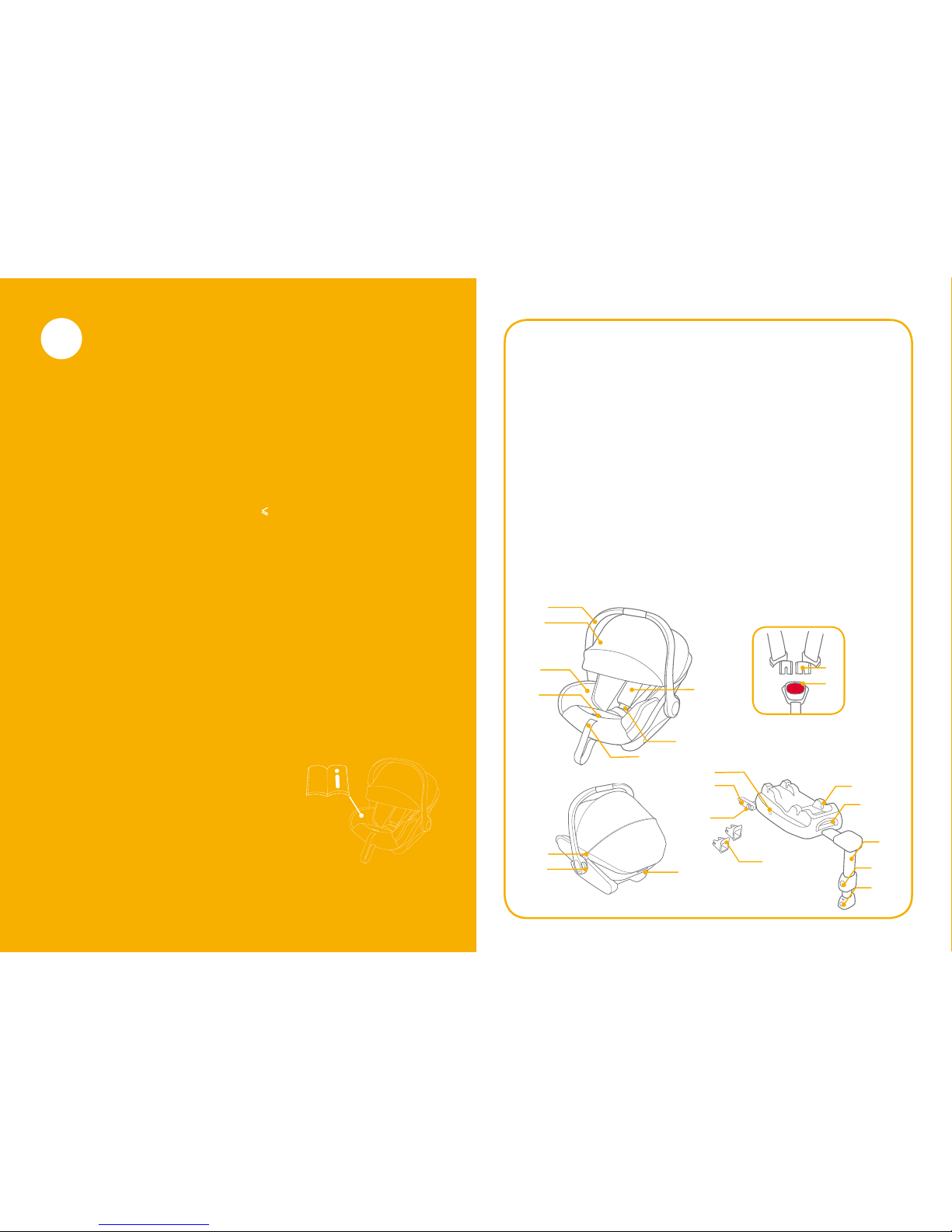

1 Handle
2 Hood
3 Soft Goods
4 Harness Adjustment
Button
5 Webbing Adjuster
6 Buckle
7 Shoulder Harness
8 Harness Connectors
9 Harness Buckle
10 Stroller Fix Release Button
11 Handle Adjuster Button
12 Backrest Adjustment
Button
Parts List
13 Shell Indicator
14 ISOFIX Connector
15 ISOFIX Releasing
Button
16 ISOFIX Guides
17 Load Leg Adjustment
Button A
18 Load Leg Adjustment
Button B
19 Load Leg
20 Attachment Releasing
Handle
21 Attachment Hook
4
13
14
15
16 18
17
19
20
21
10
1 2
WARNING
!To use this enhanced child restraint with the ISOFIX connections
according to the ECE R129/01 Regulation, your child must meet the
following requirements.
Child height 40cm-85cm/ Child weight≤13kg (approximately 1.5
years old or under).
!Any straps holding the enhanced child restraint to the vehicle should
be tight, that any straps restraining the child should be adjusted to
the child’s body, and that straps should not be twisted.
!After your child is placed in this Enhanced child restraint, the safety
belt must be used correctly, and ensure that any lap strap is worn
low down, so that the pelvis is firmly engaged.
!This Enhanced child restraint or base should be changed when they
have been subject to violent stresses in an accident. An accident
can cause damage to them that you cannot see.
!Concern the danger of making any alterations or additions to the
device without the approval of the Type Approval Authority, and a
danger of not following closely the installation instructions provided
by the child restraint manufacturer.
!Please keep this enhanced child restraint away from sunlight, be-
cause it may be too hot for child’s skin. Always touch the enhanced
child restraint before placing child in it.
!Child is not left in the enhanced child restraint system unattended.
!Any luggage or other objects liable to cause injuries in the event of a
collision shall be properly secured.
!The Enhanced child restraint shall not be used without the soft
goods.
!The soft goods should not be replaced with any other than the one
recommended by the manufacturer, because the soft goods consti-
tutes an integral part of the restraint performance.
!DO NOT use any load bearing contact points other than those
described in the instructions and marked on the enhanced child
restraint.
!Please check before you purchase this enhanced child restraint to
make sure it can be installed properly in your vehicle.
!NO enhanced child restraint can guarantee full protection from injury
in an accident. However, proper use of this enhanced child restraint
will reduce the risk of serious injury or death to your child.
WARNING
!DO NOT install this enhanced child restraint without following the
instructions in this manual or you may put your child at serious risk
of injury or death.
!DO NOT use this enhanced child restraint if it has damaged or miss-
ing parts.
!DO NOT have your child in large/oversized clothes because this may
prevent your child from being properly and securely fastened by the
shoulder harness straps and the crotch strap between the legs.
!DO NOT leave this enhanced child restraint or other items unbelted
or unsecured in your vehicle because an unsecured enhanced child
restraint can be thrown around and may injure occupants in a sharp
turn, sudden stop, or collision.
!Do not place this enhanced child restraint in seating positions where
an active frontal airbag is installed. Death or serious injury may oc-
cur. Please reference vehicle owner’s manual for more information.
!NEVER use a second-hand enhanced child restraint or an enhanced
child restraint whose history you do not know because it may have
structural damage that compromises your child’s safety.
!NEVER use ropes or any other substitutes to secure enhanced child
restraint in vehicle or to secure child into enhanced child restraint.
!DO NOT put anything other than the recommended inner cushions in
this enhanced child restraint.
!Be sure that the enhanced child restraint is installed in such a way
that no part of it interferes with movable seats or in the operation of
vehicle doors.
!Remove this infant carrier and base from the vehicle seat when it is
not in regular use.
!Consult the distributor for issues concerning maintenance, repair
and part replacement.
!To avoid the risk of falling out, always secure the child using the
child harness when the child is placed in infant carrier, even when
the enhanced child restraint is not in the vehicle.
!Before carrying the infant carrier by hand, ensure that the child is
fastened with the child harness, and that the handle is correctly
locked in a vertical position.
3 4
!To avoid serious injury or death, NEVER place infant carrier on
elevated surface seat with child in it.
!The parts of this enhanced child restraint should not be lubricated in
any way.
!Always secure child in enhanced child restraint, even on short trips,
as this is when most accidents occur.
!DO NOT use this enhanced child restraint for more than 5 years after
the purchase date as parts may degrade over time, or from exposure
to sunlight, and may not perform adequately in a crash.
!Frequently check the ISOFIX guides for dirt and clean them if neces-
sary. Reliability can be effected by ingress of dirt, dust, food particles
etc.
!DO NOT place any objects in the load leg area in front of your base.
Emergency
In case of emergency or accidents, it is most important to have your
child taken care of with first aid and medical treatment immediately.
Product Information
" i-Size" (Integral Universal ISOFIX Enhanced Child Restraint Systems)
is a category of Enhanced child restraint System for use in all i-Size
seating position of a vehicle.
WARNING 1. According to the ECE R129/01 Regulation, the infant carrier with
Base is a Universal ISOFIX Class C, D enhanced child restraint and
should be fitted using the ISOFIX connections.
2. This is an “i-Size” enhanced child restraint System. It is approved to
Regulation ECE R129/01, for use in, “i-Size compatible” vehicle
seating positions as indicated by vehicle manufacturers in the
vehicle users’ manual.
3. If in doubt, please consult the enhanced child restraint manufacturer
or the retailer. This is an i-Size ISOFIX ENHANCED CHILD
RESTRAINT SYSTEM.
It is approved to ECE R129/01 series of amendments, not all vehicle
manufacture's handbooks list i-Size compatibility yet. This seat and
base is also approved for use in ISOFIX compatible vehicles. Please
refer to the vehicle manufacturer's website or consult your dealer.
It will fit vehicles with positions approved as i-Size ISOFIX positions (as
detailed in the vehicle handbook), depending on the category of the
enhanced child restraint and of the fixture.
Materials Plastics, metal, fabrics
Patent No. Patents pending
5 6
!This infant carrier is suitable for vehicle seats with i-Size ISOFIX
anchor points with the Base. 1

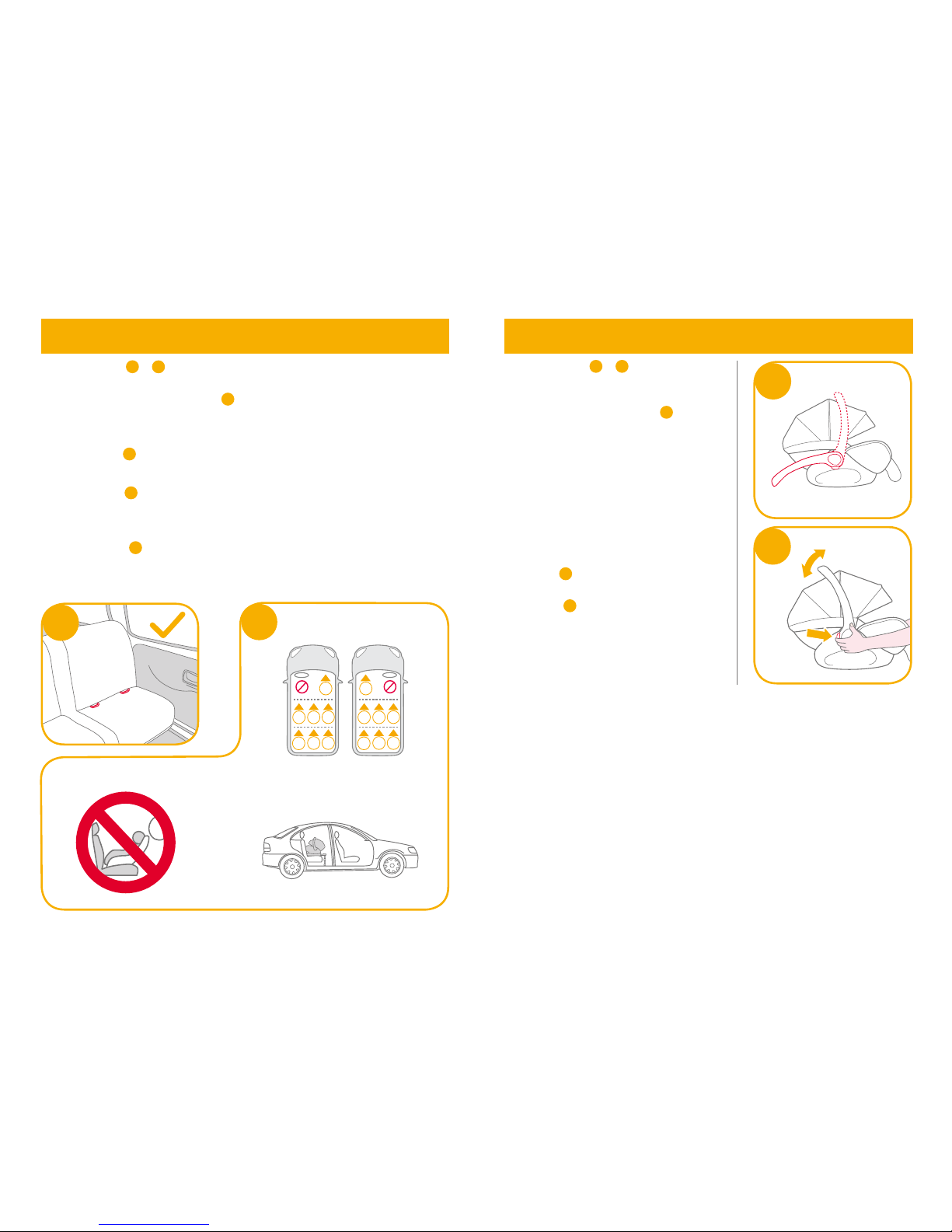

!DO NOT install this enhanced child restraint on vehicle seats that
face sideways or rearward with respect to the moving direction of
the vehicle. 2-1
!DO NOT place rear-facing enhanced child restraint on front seat
with air bag 2-2, because death or serious injury may occur.
Please reference vehicle owner’s manual for more information.
!It is recommended to install this enhanced child restraint on the rear
vehicle seat. 2-3
!DO NOT install this enhanced child restraint on vehicle seats
movable during installation.
Concerns on Installation
1
3
1
24
3
57
6
1
24
3
57
6
2
2
A
I
R
B
A
G
1
see images 1- 23
2
1
The handle of the infant carrier can
be adjusted to 2 positions. 3
Position 1 Position for car, hand or
stroller transportation.
Position 2 Baby chair position.
To adjust the handle, squeeze the
handle buttons on both sides to
release it 4-1, and then rotate the
handle until it clicks into any of the 2
positions. 4-2
4
1
2
Handle Adjustment
see images 3- 4
7 8
1. Fit the ISOFIX guides with the
ISOFIX anchor points. 5
The ISOFIX guides can protect the
surface of the vehicle seat from
being torn. They can also guide the
ISOFIX connectors.
2. Unfold the load leg from storage
compartment. 6
3. Line up the ISOFIX connectors with
the ISOFIX guides, and then
click both ISOFIX connectors into
the ISOFIX anchor points. 7
!Make sure that both ISOFIX
connectors are securely attached
to their ISOFIX anchor points.
There should be two audible
clicks and the colors of the
indicators on the both ISOFIX
connectors should be completely
green. 7-1
!Check to make sure the base is
securely installed by pulling on
the both ISOFIX connectors.
Installation with base
6
5
see images 5- 14
7
1
4. After placing the base on the vehicle seat, extend the load leg to
floor
8, When the load leg indicator shows green means it is
installed correctly, red means it is installed incorrectly. 8-3
!The load leg has 24 positions. When the load leg indicator shows
red this means the load leg is in the wrong position.
!Make sure the load leg is in full contact with the vehicle floor pan.
!Squeeze the load leg releasing button, then shorten the
load leg upwards.
83
1
2
9
12
5. The completely assembled base is
shown as 9
!The ISOFIX connectors must be
attached and locked onto the
ISOFIX anchor points. 9-1
!The load leg must be installed
correctly with green indicator.
9-2
910
10

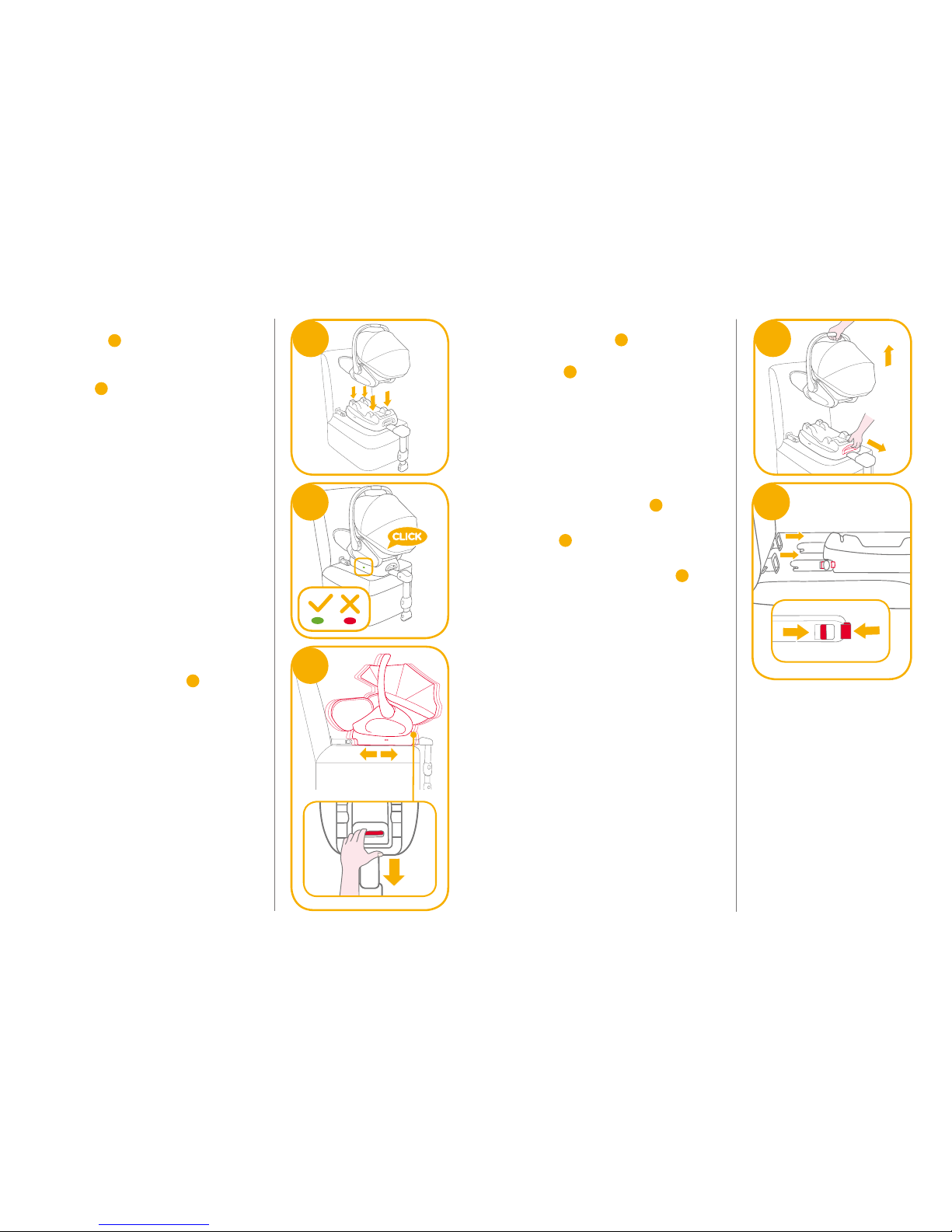

6. Push the infant carrier down into
the base 10 , if the enhanced child
restraint is secure, the enhanced
child restraint indicator shows
green. 11
!Pull up on the infant carrier to be
sure it is securely latched into the
base.
7. Press the base release button and
push the base back against the
vehicle seat until tight. 12 12
1
2
14
21
13
1
2
8. To release the infant carrier, pull
the infant carrier 13 -2 up while pull
out the attachment releasing
handle. 13 -1
9. To remove the base, press the
secondary lock button 14 -1
first and then the ISOFIX releasing
button 14 -2 on the ISOFIX
connectors before removing the
base from the vehicle seat. 14
11
11 12
15
16
Height Adjustment
for Head Support and Shoulder Harnesses
see images 15 - 18
Check that shoulder harness straps
are set at the proper height. please
choose the proper pair of shoulder
harness slots according to the child’s
height.
!The bottom of headrest must be
level with the highest point of
child’s shoulder, it is shown as 15 ,
but not above the shoulder line. 16
!If the shoulder harness straps are
not at proper height, the child
might be ejected from the
enhanced child restraint if there is
a crash.
17
Squeeze the head support
adjustment lever 17 , meanwhile pull
up or push down the head support
until it snaps into one of the 7
positions. The head support positions
are shown as 18
18
Adjust Backrest
see images 19 - 20
19
There are 3 angles for the backrest.
Please press backrest adjustment
button to heighten or lower the
backrest.
20
13 14
After the child is placed in the seat, check if the shoulder
harnesses are set to the correct height.
Note
We recommend
using the full infant
insert while the
baby is under
60cm or until they
outgrow the insert.
Securing Child
in the Enhanced child restraint
see images 21 - 25
1. While pressing the harness
adjustment button, pull completely
the two shoulder harnesses of the
infant carrier. 21
2. Unlock the buckle of the harnesses
by pressing the red button.
22
21
22
25
2824
23
3. Place child into the infant carrier
and lock the buckle. 23 & 24
4. Tighten the shoulder harnesses by
pulling adjustment webbing. 25
15 16

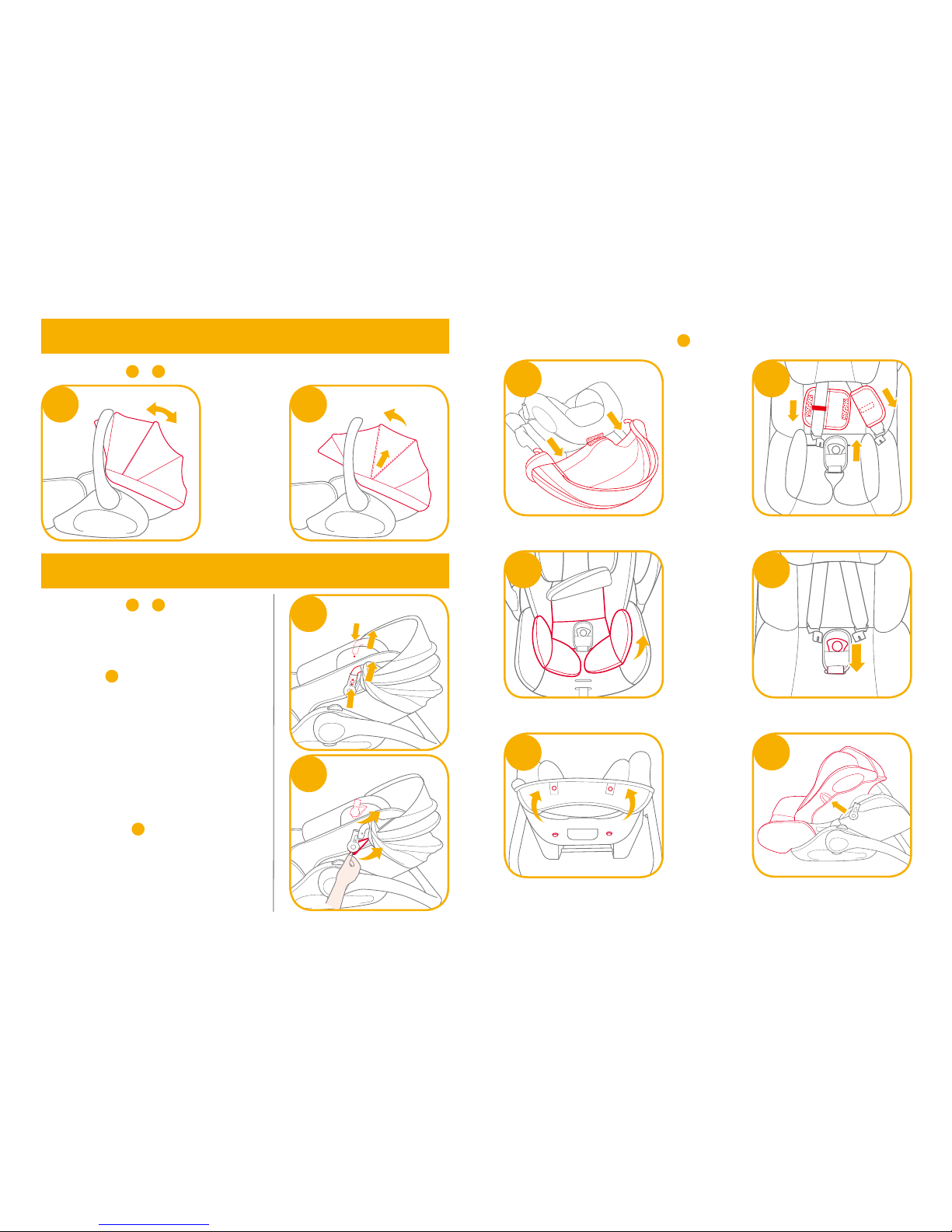

Detaching Hood and Seat Pad
1. To detach the hood,
simultaneously press the button in
the hood mount to pull the hood
bow out 28
2. Detach the elastic bands on the
hood mount. 29
see images 28 - 39 28
1
1
2
2
29
30
34 35
33
3. Then detach the hook and loop fasteners on the head support soft
goods to remove the hood. 30
Use Canopy
see images 26 - 27
26 27
1
2
31
32
Table des matières
Langues :
Autres manuels Joie Accessoires automobiles
Joie
Joie i-Snug Manuel utilisateur
Joie
Joie i-Venture R Manuel utilisateur
Joie
Joie i-Gemm 2 Manuel utilisateur
Joie
Joie verso Manuel utilisateur
Joie
Joie every stage Manuel utilisateur
Joie
Joie stages C0925 Manuel utilisateur
Joie
Joie i-Spin 360 Manuel utilisateur
Joie
Joie i-Anchor Advance Manuel utilisateur
Joie
Joie arc 360 Manuel utilisateur
Joie
Joie gemm Manuel utilisateur
