TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat

Controller Installation Instructions 1

Applications

The TEC Series Wireless Thermostat Controller

System provides wireless networked control of

Heating, Ventilating, and Air Conditioning (HVAC)

equipment on a Building Automation System (BAS)

that enables remotemonitoring and programming. This

TEC Series System integrates into a supervisory

controller that uses BACnet® Internet Protocol (IP) or

BACnet Master-Slave/Token-Passing (MS/TP)

communications.

TEC20 Coordinators allow the supervisory controller to

communicate with multiple TEC Wireless Thermostat

Controllers. TEC200x-4 Series Wireless Thermostat

Controllers provide networked control of a variety of

staged equipment. TEC2004-4 and TEC2004-4+PIR

Multi-Stage Economizer Wireless Thermostat

Controllers control economizer operation for single-

and multi-stage unitary rooftop equipment.

The TEC2004-4+PIR Thermostat Controller provides

advanced active occupancy logic that automatically

switches occupancy from Occupied to Unoccupied as

required by the presence of local activity. See the

Occupancy Sensor Operation – TEC2004-4+PIR

Thermostat Controller section for more information.

The wireless mesh network uses ZigBee™ technology

to enable remote monitoring and programming and to

enhance reliability by providing redundant transmission

paths through other TEC Wireless Thermostat

Controllers, creating a resilient, self-healing mesh

network.

North American Emissions Compliance

United States

IMPORTANT: The TEC2004-4 and

TEC2004-4+PIR Wireless Thermostat Controllers

are intended to provide an input to equipment under

normal operating conditions. Where failure or

malfunction of the thermostat controller could lead to

personal injury or property damage to the controlled

equipment or other property, additional precautions

must be designed into the control system.

Incorporate and maintain other devices, such as

supervisory or alarm systems or safety or limit

controls, intended to warn of or protect against

failure or malfunction of the thermostat controller.

This equipment has been tested and found to

comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when this equipment is

operated in a commercial environment. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is

likely to cause harmful interference, in which case

the user will be required to correct the interference

at his/her own expense.

RF Transmitters: Compliance Statement

(Part 15.19)

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference,

and

2. This device must accept any interference

received, including interference that may cause

undesired operation.

Warning (Part 15.21)

Changes or modifications not expressly approved by

the party responsible for compliance could void the

user’s authority to operate the equipment.

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer

Wireless Thermostat Controller

Installation Instructions

TEC2004-4 and TEC2004-4+PIR

Part No. 24-9890-1168, Rev. B

Issued July 13, 2010

Supersedes May 17, 2010

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller

Installation Instructions

Canada

Installation

Location Considerations

Locate a thermostat controller:

• on a partitioning wall, approximately 1.5 m (5 ft)

above the floor in a location of average

temperature

• away from direct sunlight, radiant heat, outside

walls, outside doors, air discharge grills, or

stairwells, or from behind doors

• away from steam or water pipes, warm air stacks,

unconditioned areas (not heated or cooled), or

sources of electrical interference

For integrated Passive Infrared (PIR) models, make

sure the thermostat controller is located centrally,

where occupant movement is frequent.

Note: Allow for vertical air circulation to the thermostat

controller.

Wireless Signal Transmission Range

Line-of-sight transmission ranges between a

TEC20 Coordinator and a TEC Wireless Thermostat

Controller (or between TEC Wireless Thermostat

Controllers) can be less than the recommended

distances shown in Table 1. The effective transmission

range for indoor applications varies because of Radio

Frequency (RF) signal absorption and reflection due to

metal obstructions, walls (or floors), and furniture found

in typical building interiors.

For detailed information on locating devices for

optimum signal strength, refer to the Wireless Metasys

System Location Guide (LIT-12011294).

Installing the Thermostat Controller

Follow these steps to install the thermostat controller:

1. Use a Phillips-head screwdriver to remove the

security screw if it is installed on the bottom of the

thermostat controller cover.

Note: Normally, the security screw is packaged

separately in a plastic bag with the thermostat

controller. Skip this step if the screw is not installed

on the bottom of the cover.

2. Pull the bottom edge of the cover and open the

thermostat controller as illustrated in Figure 1.

Note: PIR Models have a wiring connection

between the cover and the Printed Circuit Board

(PCB). This connection allows for proper wiring of

the occupancy sensor. Carefully remove the wiring

connection from the PCB by pulling up on the

connector block. Do not attempt to remove the

connector block by pulling on the wires.

This Class (A) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte

toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

RF Transmitters: Industry Canada Statement

The term IC before the certification/registration

number only signifies that the Industry Canada

technical specifications were met.

Le terme « IC » précédant le numéro d'accréditation/

inscription signifie simplement que le produit est

conforme aux spécifications techniques d'Industrie

Canada.

Table 1: Recommended Transmission Ranges

Type Distance

Through Walls 10 m (32.8 ft)

Open Space 30 m (98.4 ft)

Figure 1: Removing the Thermostat Controller

Cover (TEC2004-4+PIR Model Shown)

FIG:cvr_rmvl

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller

Installation Instructions 3

3. Carefully pull the locking tabs on the right side of

the mounting base and unlock the PCB. Open the

PCB to the left as illustrated in Figure 2.

4. Pull approximately 152 mm (6 in.) of wire from the

wall and insert the wire through the hole in the

mounting base.

5. Align the mounting base on the wall and use the

base as a template to mark the two mounting hole

locations.

6. Position the mounting base so that the arrow on

the base points upward to indicate the top of the

thermostat controller.

Note: If you need to install the thermostat on an

electrical junction box, use 2-1/2 x 4 in.

(63 x 101 mm) square boxes with mud ring covers,

and avoid smaller 1-1/2 x 4 in. (38 x 101 mm)

square or 3 x 2 in. (76 x 51 mm) boxes. This

procedure ensures you have enough space for

cabling and end-of-line devices, if needed.

Note: For surface-mount applications, use

durable mounting hardware, such as Molly bolt

anchors, that cannot be easily pulled out of the

mounting surface.

7. Secure the mounting base to the wall surface using

two mounting screws as illustrated in Figure 3.

Note: Be careful not to overtighten the mounting

screws.

8. Swing the PCB back to the right and carefully snap

it into the locking tabs on the mounting base.

9. Remove the screw terminal blocks that are

attached to a disposable adhesive. Figure 4

illustrates the locations of the screw terminal

blocks on the thermostat controller.

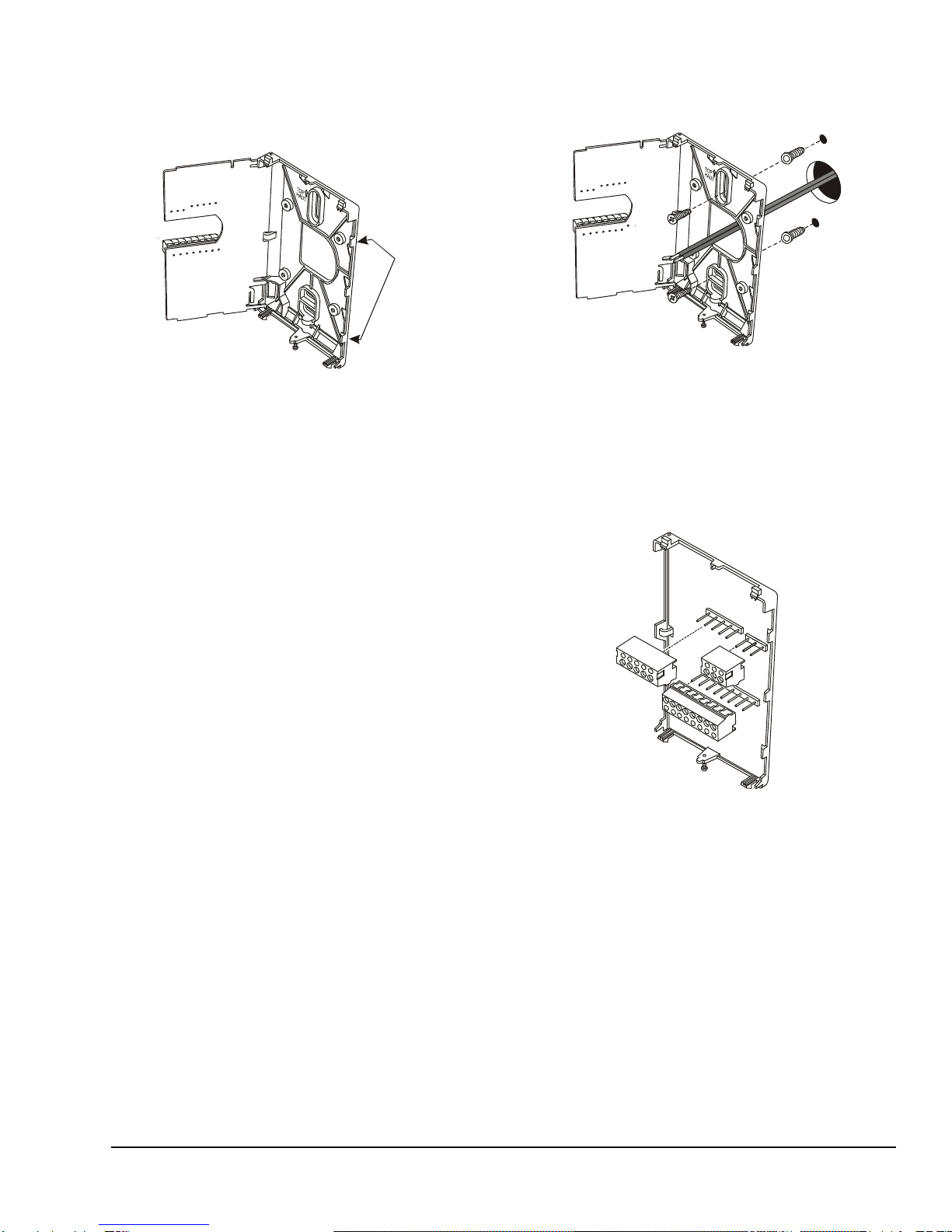

Figure 2: Opening the PCB

PCB

Locking

Tabs

FIG

:prntd_crct_brd

Figure 3: Securing the Mounting Base to the Wall

FIG:mntng_bs

Figure 4: Removing the Screw Terminal Blocks

FIG:trmnl_blcks

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller

Installation Instructions

Wiring

When replacing an existing thermostat controller,

remove and label the wires to identify the terminal

functions. When replacing a thermostat controllerof the

same model, simply remove the old screw terminal

blocks and reinsert them onto the PCB of the

replacement thermostat controller.

To wire the thermostat controller:

1. Strip the ends of each wire 6 mm (1/4 in.) and

connect them to the appropriate screw terminals as

indicated in Figure 5.

Note: If multiple wires are inserted into the screw

terminals, be sure to properly twist the wires

together prior to inserting them into the screw

terminals.

2. Carefully push any excess wire back into the wall.

Note: Seal the hole in the wall with fireproof

material to prevent drafts from affecting the

ambient temperature readings.

3. Reinsert the screw terminal blocks onto the PCB.

4. Reattach the cover to the mounting base (top side

first).

5. Use a Phillips-head screwdriver to reinstall the

security screw on the bottom of the cover.

See Figure 5 for information on wiring the thermostat

controllers.

CAUTION: Risk of Electric Shock.

Disconnect power supply before making

electrical connections to avoid electric

shock.

CAUTION: Risk of Property Damage.

Do not apply power to the system before

checking all wiring connections. Short

circuited or improperly connected wires

may result in permanent damage to the

equipment.

IMPORTANT: Make all wiring connections in

accordance with local, national, and regional

regulations. Do not exceed the electrical ratings of

the thermostat controller.

24 VAC

Thermostat Power

Y2 Y1 RC C

If using the same power source

for the thermostat and heating loads,

install a jumper across RC and RH.

Heat 1 Heat 2

RH W1 W2

Aux

Cool 1

Energizes on a Call for First-Stage Cooling

Energizes on a Call for Second-Stage Cooling

Energizes Fan in Accordance with the Selected Fan Mode

24 VAC from Equipment Transformer

24 VAC (Common) from Equipment Transformer

24 VAC for Heating Stages

Energizes on a Call for First-Stage Heating

Energizes on a Call for Second-Stage Heating

Auxiliary Output

Configurable Digital Input 1

Configurable Digital Input 2

Remote Room Sensor

Sensor Common

Auxiliary/OutdoorAir Sensor

Remote Monitoring Supply Temperature Sensor

0 to 10 VDC Economizer Actuator Output

Function

Aux

DI1

DI2

Scom

Terminal

DI2

Scom

DI1

Aux Contact (High Side Common)

• Lighting

• On/Off Actuation

• Exhaust Fan

Auxiliary/

Outdoor

Air Sensor

0 to 10

VDC

24 VAC

Common

Remote

Monitoring

Supply

Temperature

Sensor

Cool 2

FIG:wrng_2004-4

RH W1 W2

DI1 DI2

Scom

Five-Pole

Left Top Connector

Three-Pole

Right Top

Connector

Eight-Pole Bottom Connector

Aux

Fan

Remote

Room

Sensor

Figure 5: Wiring the TEC2004-4 or TEC2004-4+PIR Thermostat Controller

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller

Installation Instructions 5

Setup and Adjustments

Thermostat Controller User Interface Keys

The user interface consists of keys on the front cover

(Figure 6). The function of each key is as follows:

•UsetheYES key to:

- confirm menu selections and to advance to the

next menu item

- stop the Status Display Menu from scrolling

and to manually scroll to the next parameteron

the menu

Note: When the thermostat controller is left

unattended for 45 seconds, the display resumes

scrolling.

•UsetheNO key to decline a parameter change and

advance to the next menu item.

•UsetheMENU key to:

- access the Main User Menu or to exit the menu

(See the Main User Menu section.)

- access the Installer Configuration Menu or to

exit the menu (See the Configuring the

Thermostat Controller section.)

•UsetheUP/DOWN arrow keys change the

configuration parameters and activate a setpoint

adjustment.

Light-Emitting Diodes (LEDs)

Three LEDs are included to indicate the fan status, call

for heat, or call for cooling:

• The fan LED is on when the fan is on.

• The heat LED is on when heating is on.

• The cool LED is on when cooling is on.

The Status LED, located beneath the cover, flashes at

5-second intervals to provide indication of the network

status of the thermostat controller. See Table 2.

Backlit Liquid Crystal Display (LCD)

The thermostat controller includes a 2-line, 8-character

backlit display. Low-level backlighting is present during

normal operation and brightens when any user

interface key is pressed. The backlight returns to low

level when the thermostat controller is left unattended

for 45 seconds.

Figure 6: Front Cover of Thermostat Controller (TEC2004-4+PIR Model Shown)

FIG:TEC2004-4_frnt

70.0ºF

Room Temp

Backlit, plain text

Liquid Crystal Display (LCD)

is easy to read in any condition.

Five keys on the thermostat controller

make operation easy and intuitive.

Light-Emitting Diodes (LEDs)

indicate system activity.

Status LED beneath cover

indicates network status.

PIR motion detector

saves energy using

standby setpoints.

Table 2: Status LED

Flashes per

5-Second

Interval

Condition Indicated

1Power On

2Power On, Communicating

3Power On, Communicating, Found

Wireless Network

4Power On, Communicating, Found

Wireless Network, Communicating with

TEC20 Coordinator

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller

Installation Instructions

Integrated PIR Sensor –

TEC2004-4+PIR Thermostat Controller

The integrated PIR sensor allows for automatic

switching between fully adjustable Occupied and

Unoccupied temperature setpoints without user

interaction. This feature generates incremental energy

savings during scheduled occupied periods while the

space is unoccupied.

Programming Overview

Three menus are used to view, program, and configure

the TEC2004-4 and TEC2004-4+PIR Thermostat

Controllers: the Status Display Menu, the Main User

Menu, and the Installer Configuration Menu.

Status Display Menu

The Status Display Menu displays during normal

operation. This menu scrolls through several

parameters:

• Room Temperature

• System Mode

• Schedule Status (Occupied/Unoccupied/Override)

• Outdoor Temperature – An outdoor air temperature

sensor must be connected.

• Applicable Alarms – The backlight lights up as an

alarm condition is displayed.

Note: Press the YES key to temporarily stop this

menu from scrolling.

Note: An option is available within the Installer

Configuration Menu to lock out the scrolling display and

show only the Room Temperature parameter.

Main User Menu

Use the Main User Menu to access and change the

basic operating parameters of the thermostat controller.

Access the menu by pressing the MENU key during

normal thermostat controller operation.

Installer Configuration Menu

Use the Installer Configuration Menu to set up the

thermostat controller for application-specific operation.

To access the menu, press and hold the MENU key for

approximately 8 seconds.

Occupancy Sensor Operation –

TEC2004-4+PIR Thermostat Controller

A TEC2004-4+PIR Thermostat Controller (or a

TEC2004-4 Thermostat Controller equipped with a PIR

accessory cover) provides advanced occupancy logic.

Note: The PIR strategy is an occupied strategy. If the

thermostat controller is programmed to be Unoccupied,

the PIR function does not have an effect on the

occupancy strategy.

The thermostat controller automatically switches the

occupancy level between Occupied and Unoccupiedas

required, when local movement is sensed. In the

Occupied mode, if no movement is detected beyond

the Unocc TM parameter setting, the mode changes to

Unoccupied. Once movement is detected, the mode

changes back to Occupied.

Occupancy sensing is enabled only if a PIR cover is

installed. The PIR cover is auto detected when

installed.

PIR Diagnostic LEDs

The diagnostic LEDs inside the PIR lens brighten when

movement is detected within the first 30 minutes after

powerup. The LEDs do not light up or brighten after the

initial 30-minute period.

Setpoints

The installer must be certain that the difference

between the Occupied and Unoccupied setpoints can

be recovered within a timely fashion to ensure

occupancy comfort. In addition, the difference between

the two setpoints must be large enough to warrant

maximum energy savings.

These setpoints and Unoccupied time are adjustable to

allow for customization, as dictated by the individual

space requirements. See Figure 7 for an example of

increasing room temperature setpoints.

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller

Installation Instructions 7

Configuring the Thermostat Controller

The thermostat controller ships from the factory with

default settings for all configurable parameters. The

default settings are shown in Table 3. To reconfigure

the parameters via the thermostat controller, follow the

steps in this section.

1. To access the Installer Configuration Menu, press

and hold the MENU key for approximately

8 seconds.

Note: If the Password parameter is configured,

Password 0 appears on the thermostat controller

display indicating that the configured password is

required to proceed. Use the UP/DOWN arrow

keys to indicate the configured password, then

press the MENU key to proceed through the

Installer Configuration Menu parameters.

2. Once the Installer Configuration Menu begins,

release and press the NO key to scroll through the

parameters listed in Table 3.

3. When the desired parameter is displayed, use the

YES key to choose the desired selection option.

4. Press the YES key and then the NO key to

continue scrolling through the parameters.

When the thermostat controller is in the Installer

Configuration Menu and left unattended for

approximately 8 seconds, the thermostat controller

reverts to the Status Display Menu.

Configuring the Wireless Mesh Network

Settings

Use the following process to configure the wireless

mesh network settings.

1. Select a PAN ID and Channel. Use these same

values for every TEC Wireless Thermostat

Controller (and the associated coordinator) on the

same wireless mesh network.

2. Select a Com Address for each TEC Wireless

Thermostat Controller (1 to 254). This address

must be unique to each thermostat controller on

the same wireless network (that is, unique to the

PAN ID and Channel combination).

After configuring the wireless mesh network settings,

refer to the TEC20xx-4 and TEC20xx-4+PIR Series

Wireless Thermostat Controller System Technical

Bulletin (LIT-12011596) for directions on integrating the

TEC20xx-4 and TEC20xx-4+PIR Series Wireless

Thermostat Controllers and TEC20 Coordinator with a

supervisory controller.

Configuring Inputs DI1 and DI2

When DI1 and DI2 are configured for an alarm

condition, an alarm condition is displayed locally when

the input is closed. An alarm message is included on

the scrolling Status Display Menu and when the

message is displayed, the backlight momentarily

lights up.

Both inputs can be configured to the Selection Options

included in Table 3.

Figure 7: Increasing Room Temperature Setpoints

Occ Heat

= 72°F Occ Cool

= 75°F

Unocc Heat

= 65°F

Room Temperature

FIG:rm_tmp

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller

Installation Instructions

Table 3: Installer Configuration Menu (Part 1 of 5)

Parameter

Appearing

on Display

Description and Default Selection Options

Pswrd Sets the protective access

password to prevent unauthorized

access to the Installer Configuration

Menu.

Default: 0

Note: The default setting does not

lock out access to the Installer

Configuration Menu.

Range: 0to 1,000

Com addr Wireless address at the thermostat

controller; Default: 254 Range: 000 to 254

Addresses of each item on the wireless bus must be uniquely

numbered, increasing from 1.

Note: Setting this parameter to 0 disables the function.

PAN ID Sets the Personal Area Network

Identification (PAN ID) of the

wireless network. All devices on a

network must have the same

PAN ID setting to communicate with

each other. Default: 0

Range: 0to 500

Note: Setting this parameter to 0 disables the function.

Channel Sets the mesh network channel the

device uses for communication.

Only devices using the same mesh

network channel can communicate

with each other. Default: 10

Range: 11 to 26

Note: Setting this parameter to 10 disables the function.

GET FROM Parameter not available at this time. N/A

DI1 Configuration of Digital Input 1.

Default: None (None): No function is associated with an input.

(RemNSB): Remote Night Setback (NSB) via a time clock input, an

occupancy sensor, or from a voltage-free contact.

Contact open = Occupied; contact closed = Unoccupied.

(RemOVR): Temporary occupancy request via a remote input. This

override function is controlled by a manual remote occupancy

override. When enabled, this condition disables the override

capability of the thermostat controller.

(Filter): A Filter alarm is displayed. This alarm can be connected to

a differential pressure switch that monitors a filter.

(Service): A Service alarm is displayed on the thermostat controller

when the input is energized. Tie this input into the air conditioning

unit control card, which provides an alarm if a malfunction occurs.

(Fan lock): A backlit flashing Fan lock alarm is displayed on the

thermostat controller when the input is not energized. This alarm is

used in conjunction with a local airflow sensor connected to the

input. The thermostat controller heating or cooling action is locked

out if no airflow is detected 10 seconds after the fan (Terminal G) is

energized. Contact open = no airflow; contact closed = airflow

present.

TEC2004-4 and TEC2004-4+PIR Multi-Stage Economizer Wireless Thermostat Controller

Installation Instructions 9

DI2 Configuration of Digital Input 2.
