Tyco Radar Detection SR-Series Sensor Quick Start and Installation Guide

Revision A0

April 2020

The trademarks, logos, and service marks displayed on this document are registered in the United States [or

other countries]. Any misuse of the trademarks is strictly prohibited and Johnson Controls - Tyco Radar

Detection (ODM) Systems will aggressively enforce its intellectual property rights to the fullest extent of the law,

including pursuit of criminal prosecution wherever necessary. All trademarks not owned by Johnson Controls -

Tyco Radar Detection are the property of their respective owners, and are used with permission or allowed under

applicable laws.

Product offerings and specifications are subject to change without notice. Actual products may vary from photos.

Not all products include all features. Availability varies by region; contact your regional sales manager.

Revision Number: A0

Release Date: April 2020

Document Title: SR-Series Sensor Quick Start and Installation Guide

This manual is proprietary information of Johnson Controls. Unauthorized reproduction of any portion of this

manual is prohibited. The material in this manual is for information purposes only. It is subject to change

without notice. Johnson Controls assumes no responsibility for incorrect information this manual may contain.

Table of Contents

Preface 4

Conventions 5

Chapter 1 - Introduction 6

Introduction 7

Chapter 2 - Software Installation and Configuration 8

Software Installation and Configuration 9

Visually Inspect the Contents of the Package 9

Connect the Cable to the Sensor 9

Connect the Sensor to a PC 10

Download Software from Partner’s Portal 12

Assign IP to the Sensor 13

Tyco Radar Detection - Area Surveillance Software Installation 13

Support: Tyco Radar Detection - Area Surveillance Software 14

Chapter 3 - Physical Installation Guidelines 15

Physical Installation Guidelines 16

Introduction 16

Line of Sight 16

Installation Height 18

Tangent and Radial Movement 19

Avoid - Clutter Sources 20

Metal Objects 21

Chapter 4 - Site Survey Checklist 23

Site Survey Checklist 24

Preface

The SR Series User Manual is for new and experienced SR Series users who want to learn to use this product for the

Tyco Radar Detection.

In this preface

Conventions 5

Preface 4

Conventions

This manual uses the following text formats and symbols.

Convention Meaning

Bold This font indicates screen elements, and also indicates when you should take a direct action in a procedure.

Bold font describes one of the following items:

• A command or character to type, or

• A button or option on the screen to press, or

• A key on the keyboard to press

• A screen element or name

blue color text Indicates a hyperlink to a URL, or a cross-reference to a figure, table, or section in this guide.

Regular italic font Indicates a new term.

<text> Indicates a variable.

The following items are used to indicate important information.

NOTE Indicates a note. Notes call attention to any item of information that may be of special importance.

TIP Indicates an alternate method of performing a task.

Indicates a caution. A caution contains information essential to avoid damage to the system. A

caution can pertain to hardware or software.

Indicates a warning. A warning contains information that advises users that failure to avoid a

specific action could result in physical harm to the user or to the hardware.

5Preface

Chapter 1 - Introduction

This chapter assists the user to connect and operate the SR-series radar sensor.

In this chapter:

Introduction 7

Chapter 1 6

Introduction

This guide is designed to assist first-time users to connect and operate the SR-series radar sensor. It is strongly

recommended to carefully read and review the entire SR-series User Manual as well as the Tyco Radar Detection -

Area Surveillance Software User Guide (if purchased) for safe and proper operation of the sensor.

Note: This product line is a Magos Systems offering.

7Chapter 1

Chapter 2 - Software Installation and Configuration

This chapter provides the instructions for setup and installation of the SR sensor for Tyco Radar Detection product

line.

In this chapter

Software Installation and Configuration 9

Chapter 2 8

Software Installation and Configuration

This section provides information on the setup and installation of the SR - Series Sensor for Tyco Radar Detection.

The manual provides information on visual inspection, connection of cable and PC, software download, assigning

IP, and support system for SR - Series Sensor for Tyco Radar Detection product line. Please read the entire document

prior to the installation and or use of the product.

Visually Inspect the Contents of the Package

Ensure that the package contents matches your order and that no physical damage has occurred to any of the

supplied products during transportation. Refer to Figure 1 on Page 9.

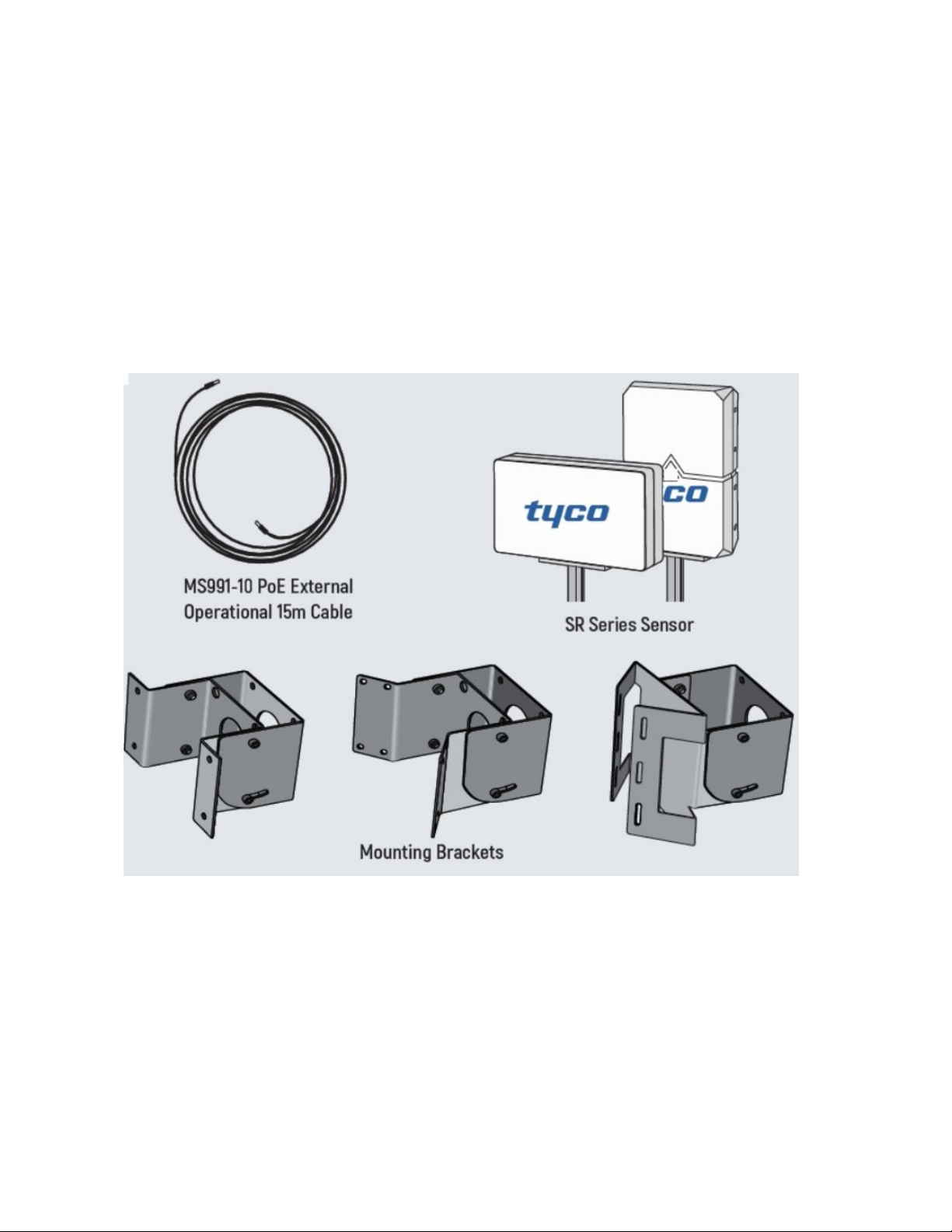

Figure 1:Contents of the Package

Connect the Cable to the Sensor

Refer to Figure 2 on Page 10, and follow the mating guide key on both the sides to connect the cable to the sensor.

9Chapter 2

Software Installation and Configuration

Figure 2:Cable Connection

Warranty does not cover water damage caused to the connector. In order to avoid such damage, the

cap must be attached to the cable if it is not plugged in.

NOTE Ensure that the cable or the cap is securely connected by twisting until they are firmly locked.

Connect the Sensor to a PC

Use a PC or Laptop running Windows 7 OS or higher. Review minimum system requirement at

https://partners.magosys.com/portal/downloads under the documentation tab.

Following are the 3 available options:

nUsing a PoE injector connect the radar directly to a PC. Refer to Figure 3 on Page 11.

nUsing a PoE injector connect the radar to a switch (connected to the same LAN as the PC). Refer to Figure 4 on

Page 12.

nUsing a PoE switch connect the radar directly to the switch (connected to the same LAN as the PC). Refer to

Figure 5 on Page 12.

Chapter 2 10
