Johnson Controls PG9350SL Manuel utilisateur

User manual

PG9350SL

Wireless photoelectric beam detector

Detector features

•PowerG wireless photoelectric beam detector

•Battery life for transmitter is approximately four years, battery life for receiver is approximately five

years when using LSH20 (3.6V, 13Ah) batteries manufactured by SAFT

•Battery saving function

•Intermittent output function

•Quad high-power beams

•Smart design with slim body

•Vivid interior colour for optical alignment

•IP65 waterproof structure

•4-channel beam frequency selector

•Viewfinder with 2X magnification

•Beam interruption adjustment function

•D.Q. circuit (environmental disqualification)

•Tamper function

•LED indicator for an easy alignment

•Outdoor detection range of 350 ft

Introduction

The PG9350SL is a PowerG wireless photoelectric beam detector that provides protection for outdoor

perimeters.

Warning: Failure to follow the instructions provided with this device or improper handling may cause

death or serious injury.

Caution: Failure to follow the instructions provided with this device or improper handling may cause

injury and/or property damage.

Safety information

Warnings

•Do not use the product for purposes other than the detection of moving objects such as people

and vehicles.

•Do not use the product to activate a shutter, etc., which may cause an accident.

•Do not touch the unit base or power terminals of the product with wet hands. It may cause electric

shock.

•Do not touch when the product is wet. It may cause electric shock.

•Never attempt to disassemble or repair the product. It may cause fire or damage to the devices.

•Do not use batteries that have different levels of power remaining, that is, new and used batteries.

Not observing these guidelines may result in an explosion, leakage of electrolyte, emission of

toxic gases, or other outcomes that may be harmful to people and property.

•When handling batteries, do not recharge, short circuit, crush, disassemble, exceed heat above

100°C (212°F), incinerate, or expose contents to water. Do not solder directly to the cell. Not

observing these guidelines may result in fire, explosion, or severe burn hazard.

Cautions

•Do not solder directly to the cell.

•Do not pour water over the product with a bucket, hose, or similar. The water may enter, which

may cause damage to the devices.

•Clean and check the product periodically for safe use. If any problem is found, do not attempt to

use the product as it is and have the product repaired by a professional engineer or electrician.

Installation advice

Do not install the unit on an unstable surface

Do not install the pole in location where it is not stable.

Do not install the unit near trees or other objects that may block the beam.

The pole size should be 34 - 48 mm (1.34" - 1.89").

Do not install the receiver in a location that is exposed to direct sunlight.

Install the unit at a height where an object can be detected without fail

Install the unit at least 1 m (3.3 ft.) away from a wall or fence that is parallel to the beam.

Do not install the unit where the infrared beam from a different model can reach the

receiver

Caution Install the chassis, waterproof packing, and back box together. Not doing this may

compromise IP rate of this product.

Box contents

Transmitter and receiver modules

Installation Manual

Hardware Pack

Parts identification

Accessories

Ordering detector batteries

Specified batteries: Four LSH20 batteries manufactured by SAFT, two for the transmitter and

two for the transceiver.

For information about batteries, visit the following website and contact your local SAFT

sales representative. See http://www.saftbatteries.com/battery-search/ls-lsh/.

Enrolment

The device is compatible with the following panels:

•PowerSeries NEO (v1.37 and higher)

•PowerSeries Pro (v1.31 and higher)

•IQ2 (v2.6 and higher)

•IQ3 (v3.0 and higher)

•IQ4 (v4.0 and higher)

•PowerSeries NEO2 / Lucy Hybrid v1.0

The device transmitter and receiver enrol separately onto the control panel. The modules can enrol

onto the panel in any order.

Enrolling the device

The device begins the enrolment process when the OPTEX RF module is powered on. The OPTEX

RF module is a card in the detector.

1. Install batteries in the detector.

2. Turn the RF module power switch located on the interface board to the ON position.

Refer to the control panel installation manual for the complete set of enrolment instructions and

testing procedures. The enrolment procedure should begin automatically if the panel is already in

enrolment mode. If the automatic enrolment procedure fails, refer to the control panel instructions and

attempt manual enrolment of the device.

Installation

Separating the unit

1. Loosen the cover lock screw with a screwdriver.

2. Place a coin in the recess and twist slightly to remove the cover.

3. Pull the cover from the back of the unit.

4. To remove the main unit from the chassis, turn the optical unit 90° and remove the screws

from both sides.

5. Pull the upper part of the main unit forward and up to remove it.

Caution: Do not place the main unit where it is exposed to direct sunlight. Doing so may

cause damage to the product.

6. Remove the chassis from the back box.

Note: The screws to secure the back box cannot be removed from the chassis.

Caution: When the waterproof packing is detached, attach it to the back of the chassis before

mounting. Not doing so may compromise the IP rate of this product.

Notes:

Avoid installing the transmitter and receiver facing each other through the corner of the cover.

While doing this installation, the maximum detection range must be half of the original

detection range to compensate the attenuation of beam by the corner of the cover.

Mounting on a wall

1. Using a screwdriver or similar tool, break the six knockouts in the back box.

Note: The knockout positions are marked WALL.

2. Mount the back box to the wall. If two detectors are installed, the distance between the upper

and lower detector should be at least 20 mm. If mounting in a corner location, ensure the

distance from the side wall is at least 1 m. Use a pitch of 83.5 mm when connecting to a gang

electric box.

3. Insert the batteries into the back box.

Note: Use of batteries other than recommended may shorten the battery life.

Caution: Remove all batteries prior to replacing with new ones. If this is not followed, the low

battery indicator LED will not reset and continue to blink.

4. Pull the cable through the chassis and tighten the screws.

Caution: Tighten the screws completely by torque of 1.0 - 1.5 N·m. Not doing so may cause

malfunction of the wall tamper.

Avoid cables from being caught between chassis. When the waterproof packing is detached,

be sure to attach it on the back of the chassis before mounting. Not doing so may

compromise IP rate of this product.

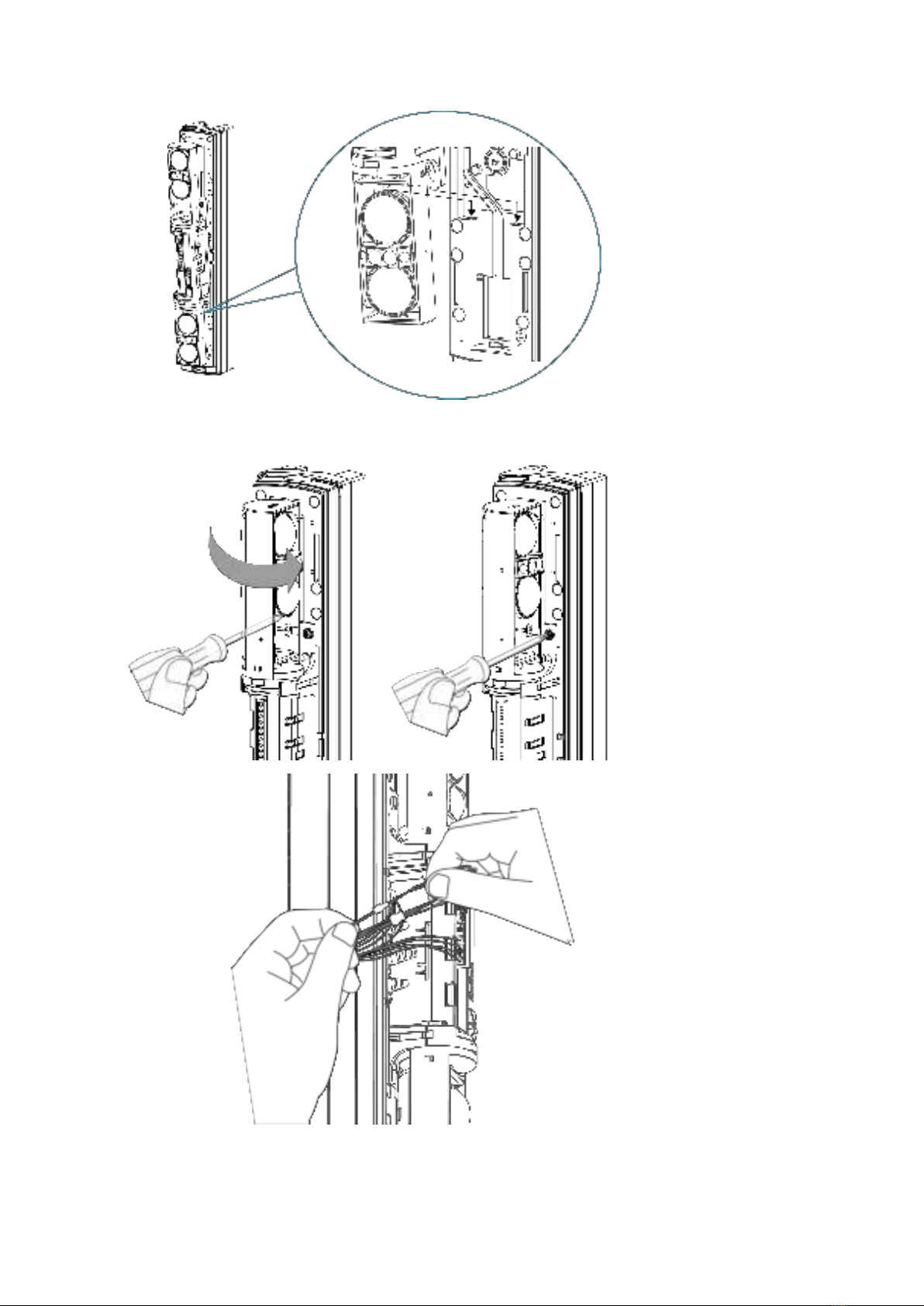

5. To fix the main unit onto the chassis, insert the lower part, and then push the upper part onto

the chassis.

6. Turn the optical unit 90 degrees and tighten the screws on both sides.

7. Connect the cables and complete the setting and alignment

8. To close the cover, hook on the upper part of the chassis and push the lower part of the cover

until it clicks into position. Caution: Do not contact with the optical unit when mounting the

cover. Otherwise malfunction may occur due to the shift of the optical axis, resulting in the

need of readjustment.

9. Fasten the cover lock screw.

Notes: Ensure the cables do not get caught between the main unit and the cover.

Push the middle part of the cover to hide the orange label completely when in operation.

Mounting on a pole

1. Using a screwdriver or similar tool, break the four knockouts marked POLE on the back box.

Note: When mounting the single set of detectors to the pole, use a pair of the inside

knockouts. The knockout positions are marked POLE(1).

Caution: If you accidentally open an unnecessary knockout, be sure to fill the knockout. Not

doing so may result in waterproof failure and malfunction of the product.

2. Fix the back box on the pole. If two detectors are installed, the distance between the upper

and lower detector should be at least 20 mm. If mounting in a corner location, ensure the

distance from the side wall is at least 1m.

3. Temporarily attach the pole mounting bracket to the back of the back box with double-sided

tape. This makes it easier to mount the unit with the combinations of the brackets.

4. Insert the batteries into the back box.

Note: Use of batteries other than recommended may shorten the battery life.

Caution: Remove all batteries prior to replacing with new ones. If this is not followed, the low

battery indicator LED will not reset and continue to blink.

5. Run the cables so that they are not pinched between the chassis and back box.

6. Pass the cables through the wiring hole of the chassis and mount the chassis to the back box.

7. Tighten the screws.

Caution: Tighten the screws completely by torque of 1.0 - 1.5 N·m. Not doing so may cause

malfunction of the wall tamper.

Avoid cables from being caught between chassis. When the waterproof packing is detached,

be sure to attach it on the back of the chassis before mounting. Not doing so may

compromise IP rate of this product.

8. To fix the main unit onto the chassis, insert the lower part, and then push the upper part onto

the chassis.

9. Turn the optical unit 90 degrees and tighten the screws on both sides.

10. Connect the cables and complete setting and alignment (see Wiring).

11. To close the cover, hook on the upper part of the chassis and push the lower part of the cover

until it clicks into position. Caution: Do not contact with the optical unit when mounting the

cover. Otherwise malfunction may occur due to the shift of the optical axis, resulting in the

need of readjustment.

12. Fasten the cover lock screw.

Notes: Ensure the cables do not get caught between the main unit and the cover.

Push the middle part of the cover to hide the orange label completely when in operation.

Installing two detectors in opposing directions

1. Using a screwdriver or similar tool, break the four knockouts on the back box.

Note: Choose a different pair of knockouts. Pairs of the knockout positions are marked

POLE(1) and POLE(2).

2. Fix the back box on the pole. Double-sided tapes attached to the pole mounting brackets

make it easier to mount the unit with the combinations of the brackets.

3. Perform the wall mounting procedure steps 4 to 9.
