INSTALLATION MANUAL

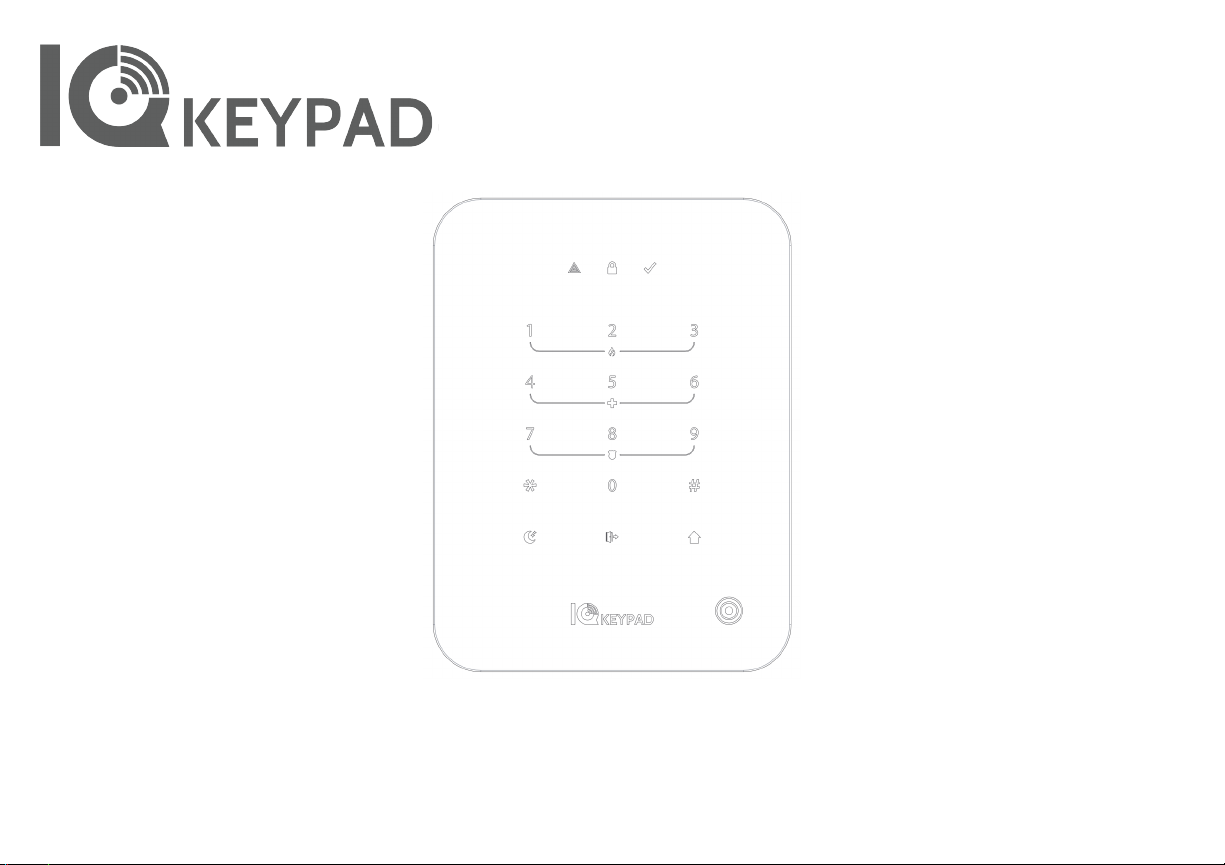

IQ Keypad-PG

IQ Keypad Prox-PG

IQ Keypad is a battery powered, capacitive touch keypad for use with compatible IQ4 NS, IQ4 Hub & IQ Panel 4

platforms via the PowerG protocol. It provides an easy and intuitive interface to control basic features of the system.

This manual covers both IQ Keypad-PG and IQ Keypad Prox-PG models.

INTRODUCTION

ABOUT THIS GUIDE

QOLSYS CONFIDENTIAL AND PROPRIETARY

PAGE OF227

QUESTIONS?

[email protected]

INCLUDED IN BOX

SUPPORT

IQ Keypad

This document outlines the basic hardware specifications and software directions to install

and customize the IQ Keypad. Note that the information presented is not comprehensive,

but is specifically dedicated to those menus, features, and systems accessible solely to those

with the proper installation code. Features accessible to users and installers alike are outlined

in the IQ Keypad User Guide. The information contained is confidential and proprietary, and

is solely owned by Qolsys Inc. Any reproduction, modification or distribution without

permission is strictly prohibited. Reference to IQ Keypad throughout this manual covers both

models IQ Keypad-PG and IQ Keypad Prox-PG unless stated differently.

4 x AA

Batteries

Warning: This Product should be installed in accordance with the National Fire Alarm Code, ANSI/NFPA 72, (National Fire Protection Association,

Batterymarch Park,Quincy, MA 02269) and with National Electric Code, ANSI/NFPA 70. Printed information describing proper installation, operation,

testing, maintenance, evacuation planning, and repair service is to be provided with this Product. In Canada the product shall be installed in accordance with

the Standard for the Installation of Residential Fire Warning Systems, CAN/ULC-S540.

Warning: For Canadian installations this Product and all sensors associated with it (collectively, the “System”) should be tested once a week. The test shall be

performed also with primary DC power de-energized. For recommended smoke detectors maintenance instructions refer to user manual associated with

compatible Qolsys model QS5110-P840 smoke detector.

IQ KEYPAD

OVERVIEW

IQ KEYPAD OVERVIEW

EXTERIOR FRONT

QOLSYS CONFIDENTIAL AND PROPRIETARY

PAGE OF427

Prox Tag Reader

(IQ Keypad Prox-PG only)

Arm Stay

Arm Away

Arm Night

Trouble

LED

Armed Status LED

Disarmed Status

LED

Fire Emergency

(1+3)

Hold for 2 sec

Police Emergency

(7+9)

Hold for 2 sec

Aux Emergency

(4+6)

Hold for 2 sec

IQ KEYPAD OVERVIEW

EXTERIOR BACK

Retaining Screw

4 x AA Batteries

behind Back Plate

For UL2610 applications

this screw shall be used

for tamper protection

against mounting removal

Mounting

Holes

QOLSYS CONFIDENTIAL AND PROPRIETARY

PAGE OF527

INSTALLING

IQ KEYPAD

INSTALLING THE IQ KEYPAD

1. Mount the bracket to the

wall using appropriate

hardware ensuring it is level.

2. A screw shall be used in

this hole for UL2610

installations

WALL MOUNT

Note: For UL/ULC Commercial Burg installations (UL2610/ULC-S304 Security Level II compliant) use only wall mount option.

This product when installed as per these instructions does not present the risk of fire, electric shock, or injury to persons.

4. Slide the keypad down onto

the wall mount and secure with

the bottom screw so that it can

not be removed.

3. Insert the 4 x AA batteries in to the battery slots.

Be sure to observe correct polarity.

Use only Energizer AA 1.5V ALKALINE BATTERY

INSTALLING THE IQ KEYPAD

1. On the primary panel, start the “Auto Learn” process as indicated in the primary

panel manual (Settings/Advanced Settings/Installation/Devices/Security

Sensors/Auto Learn Sensor).

2. On the IQ Keypad press and hold [*] for 3 seconds to initiate pairing.

3. The IQ Keypad will be recognized by the primary panel. Configure options

accordingly then touch “Add New”.

QOLSYS CONFIDENTIAL AND PROPRIETARY

PAGE OF827

ENROLLING THE IQ KEYPAD

The IQ Keypad can be paired to either an IQ4 NS, IQ4 Hub or IQ Panel 4 running software version 4.4.0 or higher using the

PowerG protocol. Panels that do not have the PowerG daughter card installed will not support the IQ Keypad. Follow the

instructions below to pair an IQ Keypad to the primary panel:

NOTE: The IQ Keypad may also be manually paired to a panel by using the sensor ID printed on the

device beginning with 372-XXXX. If manual learn is used instead of Auto Learn, you must network the

device after pairing is complete by pressing and holding [*] for 3 seconds.

USER

INTERFACE

USER INTERFACE

QOLSYS CONFIDENTIAL AND PROPRIETARY

PAGE OF10 27

STATUS LIGHTS

KEYPAD STATUS LIGHTS:

Status lights help you understand the state of the system at a glance.

Status Lights

LED

Description

OFF

Not ready to Arm.

Ready to Arm.

FLASHING

Ready to Arm, bypass-able zones are open.

OFF

Disarmed

Armed

FLASHING

Alarm occurred

RAPID FLASHING

Bell silenced for Fire Alarms

OFF

No Trouble

System Trouble

FLASHING

Keypad Low Battery
