Tilther XT

Assembly, Use & Maintenance

955 Benton Ave., Winslow, ME 04901 •Phone: 1-877-564-6697 •Fax: 1-800-738-6314

Email: servic[email protected] •Web Site: Johnnyseeds.com

8360

Tilther XT

Assembly, Use & Maintenance

955 Benton Ave., Winslow, ME 04901 •Phone: 1-877-564-6697 •Fax: 1-800-738-6314

Email: servic[email protected] •Web Site: Johnnyseeds.com

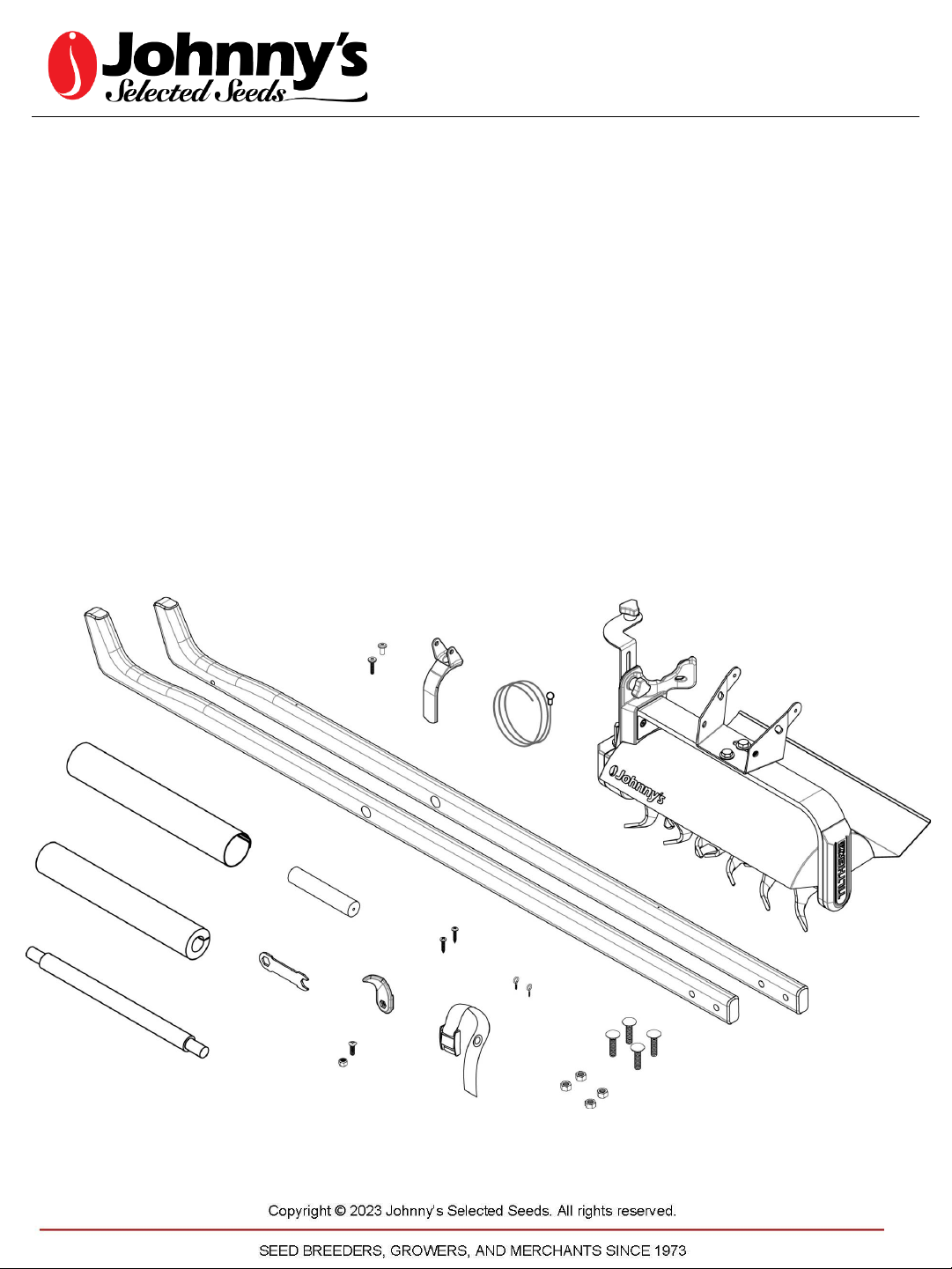

Parts list:

A. (1) Tilther XT Head

B. (1) Cable with Ball End

C. (1) Trigger

D. (1) #10-24 Binding Post

E. (1) #10-24 Binding Screw

F. (1) Main Handle Body (Right)

G. (1) Main Handle Body (Left)

H. (1) Crossbar Cover

I. (1) Crossbar Pad

J. (1) Wooden Crossbar

K. (1) Grab Handle

L. (1) Adjustment Wrench (pre-installed)

M. (1) ¼”-20 Locknut

N. (1) ¼”-20 Oval Head Screw

O. (1) Cable Guide (pre-installed)

P. (2) #10 Phillips Head Wood Screw

Q. (2) 114 ¼” ID Eyebolt

R. (1) Drill Restraint Strap (pre-installed)

S. (4) 3/8”- 16 Hex Nut

T. (4) 3/8” -16 Carriage Bolt

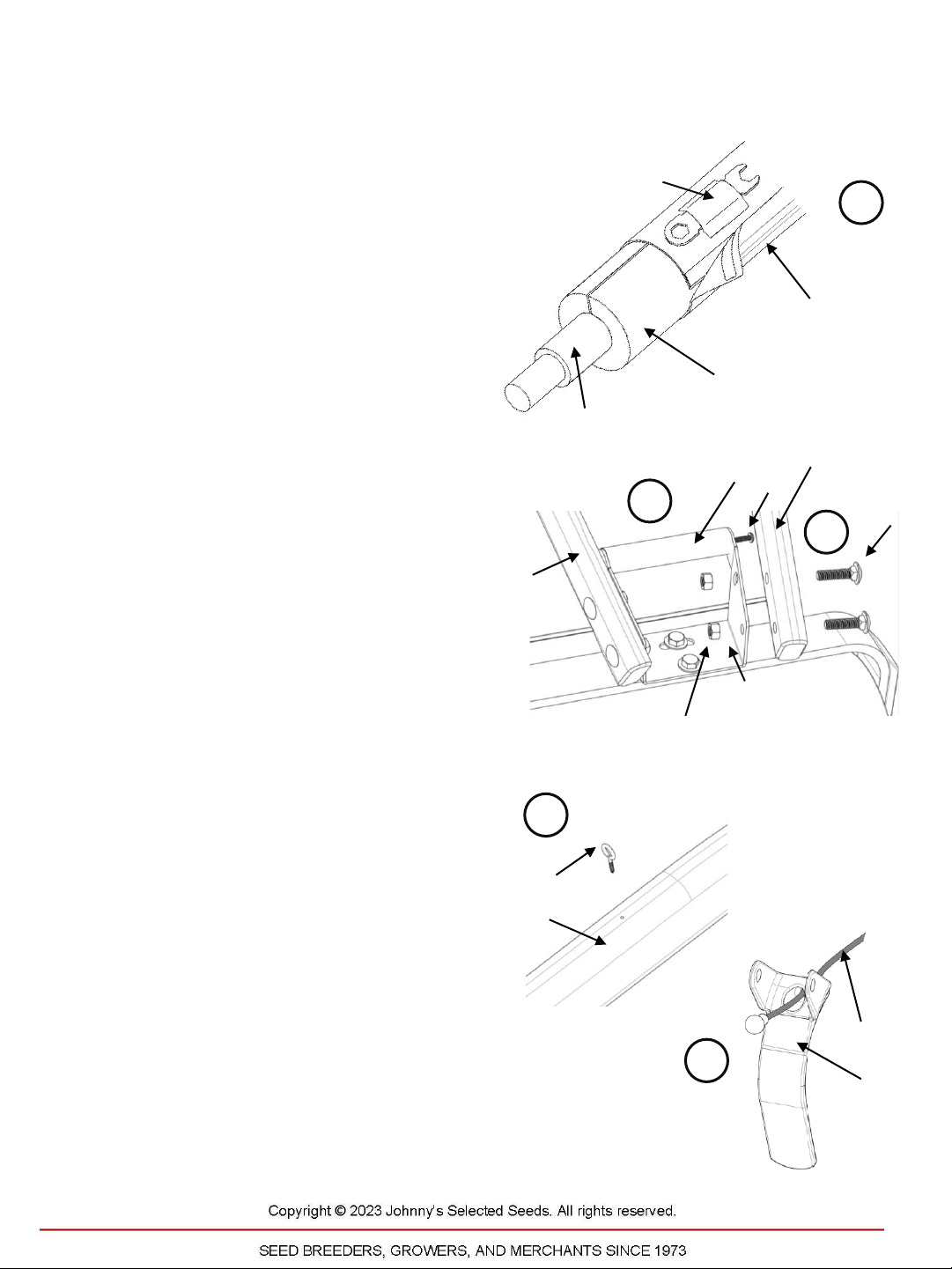

1. Slide the Crossbar Pad (I) and

Crossbar Cover (H) over the

Wooden Crossbar (J).

Adjustment Wrench (L) may be

stored on the crossbar cover in

the provided loop.

2. Slot the dowel ends of the

Wooden Crossbar (J) into the

corresponding holes in the Main

Handle bodies (F and G).

3. Using (2) #10 Wood Screws (P),

attach the Grab Handle (K) to the

handle mounting bracket.

4. Use (4) 3/8” -16 Carriage Bolts

(T) with corresponding Hex Nuts

(S) to attach the Main Handle

bodies (F and G) to the handle

mounting bracket. Handle Body

Right (F) will have a hole for the

trigger near the hand grip.

5. Install Eyebolts (Q) into provided

pilot holes in the Main Handle

Body Right (F).

6. Thread Cable (B) through the

Trigger (C) making sure to seat

the ball end in the recessed area.

ASSEMBLY:

Wrench

Storage

Handle

mounting

bracket

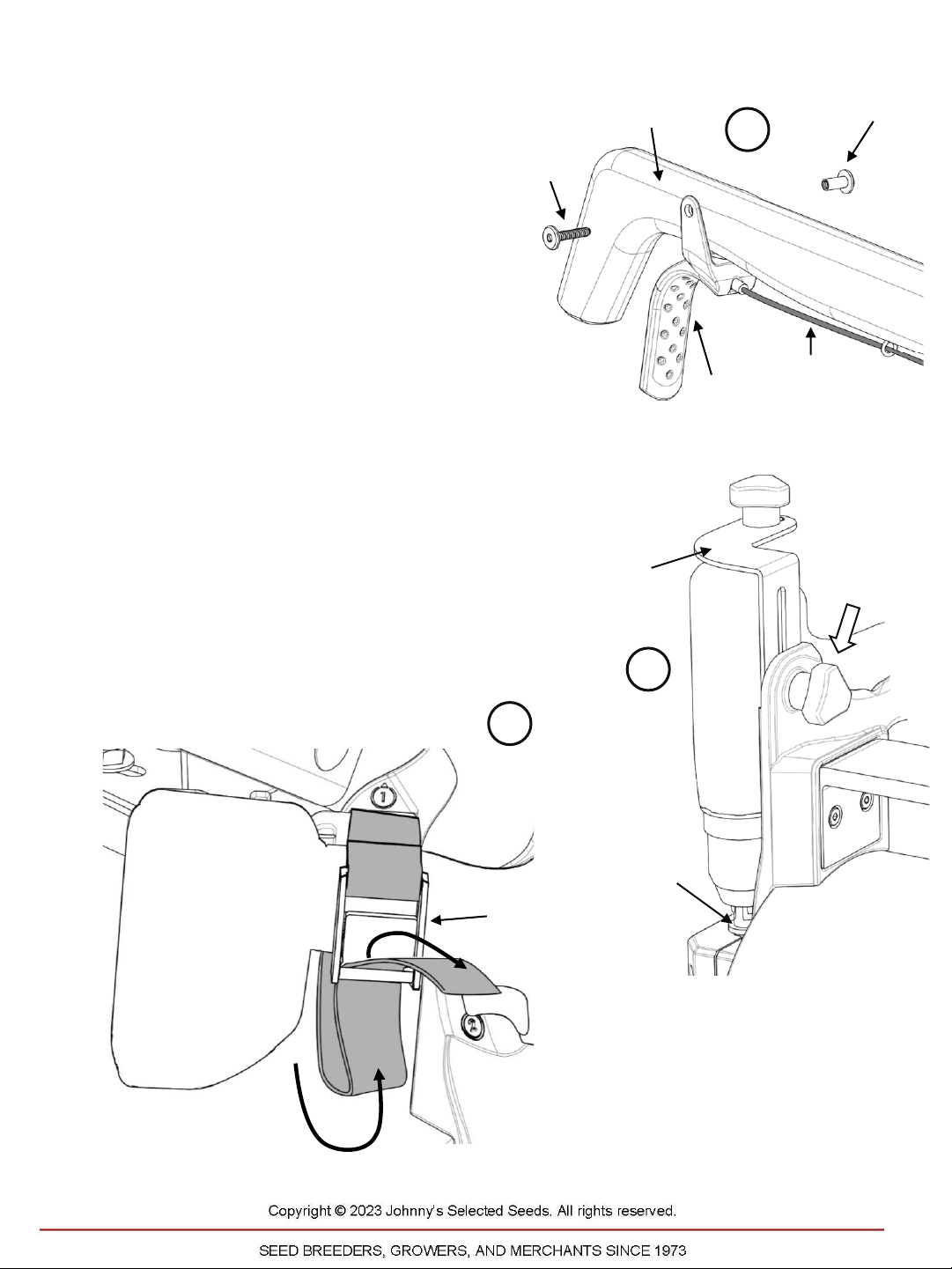

7. Attach Trigger (C) to Main Handle

Body Right (F) using the Binding

Screw (E) with Binding Post (D).

Thread Cable (B) through the

Eyebolts (Q) along Main Handle

Body Right (F).

8. Attach drill (not included) to the

drive shaft. Lower the cable

mount bracket so that it rests on

the back side of the drill. Tighten

thumb screw to secure.

9. Wrap the Drill Restraint Strap (R)

around the drill handle and feed it

through the cam latch. The strap

should be just tight enough to

take up any slack.

Drive

Shaft

Cable

mount

bracket

tighten to

secure

Drill

Battery

pack

Cam

latch

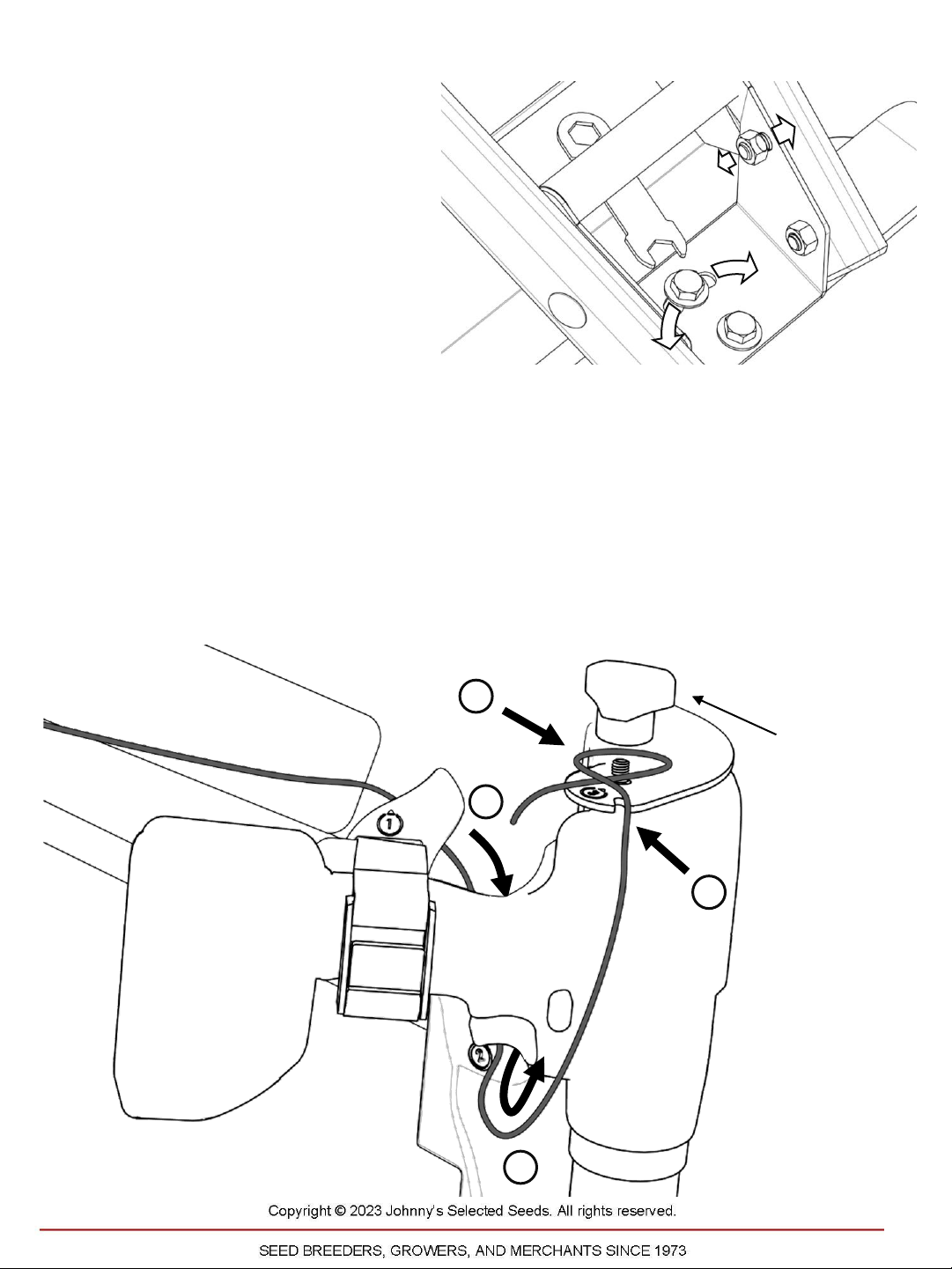

1. After feeding through

the last Eyebolt (Q),

pass the Cable (B)

behind the marked spot

on the cable guide.

Guide the cable down

to the notch in the drill

support housing.

2. Pass the cable down

between the drill and

the drill support,

looping the cable

under the trigger. The

cable will route from

behind the drill grip

near the marked spot.

3. Seat the cable into the notch on

the cable mounting bracket and

secure the cable in place as

pictured below.

ROUTING THE CABLE:

*Hand

tighten

thumb screw

as firmly as

possible to

prevent

slippage.

4. Wind the cable clockwise making

sure the cable crosses underneath

itself under anchoring thumb nut.*

Handle offset distance and height can be

adjusted through the hardware in the

handle mounting bracket. Always double-

check cable tension after making any

adjustments to the handle position.

ADJUSTING THE HANDLE

POSITION:

•WARNING: To avoid bodily harm, ALWAYS disconnect the

battery from the drill before clearing debris from the tines or

making any adjustments.

•This tool is NOT for initial tillage of native ground and should be used

only on previously worked soils without heavy debris and crop

residues.

•The Tilther XT should be used with the drill set on the lowest gear and

on the highest torque setting, which is often indicated with a drill

symbol.

•Be certain the rotation direction of the drill is forward, not backward.

Note: Please reference the owner’s manual for your drill for

information about settings.

•To operate, gently pull the Tilther XT trigger. The movement of the

tines will pull the Tilther XT forward. Restrain this movement while

walking forward at whatever pace is needed to prepare the soil to

your desired depth. The Tilther XT works best at its highest speed on

the lowest torque setting.

•The Tilther’s stainless-steel housing includes a skirt that levels the

soil as you go, resulting in a smooth seeding surface. Fine tune the

angle adjustment for handles to find a position that achieves your

desired result.

OPERATION AND USE:

TIPS FOR BEST PERFORMANCE:

•Leave a small gap between the cable and the trigger

when tensioning the trigger cable.

•Always store your Tilther XT clean and dry.

•Make sure to keep debris clear of the tines.

•Handles may be re-oiled each year to extend their life.

•Excess trigger cable length may be trimmed off.
