INSTALLATION GUIDE

for the

SB-M-3-SPD/10W3v3

SKU# 94378/ 94379

20007+ Mazda 3/ Mazda Speed 3

Thank you for choosing a JL Audio Stealthbox®for your automotive sound system. With proper

installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox®installed by your authorized JL Audio

dealer. The installation professionals employed by your dealer have the necessary tools and experience

to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation,

please read this installation guide completely

before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox®be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

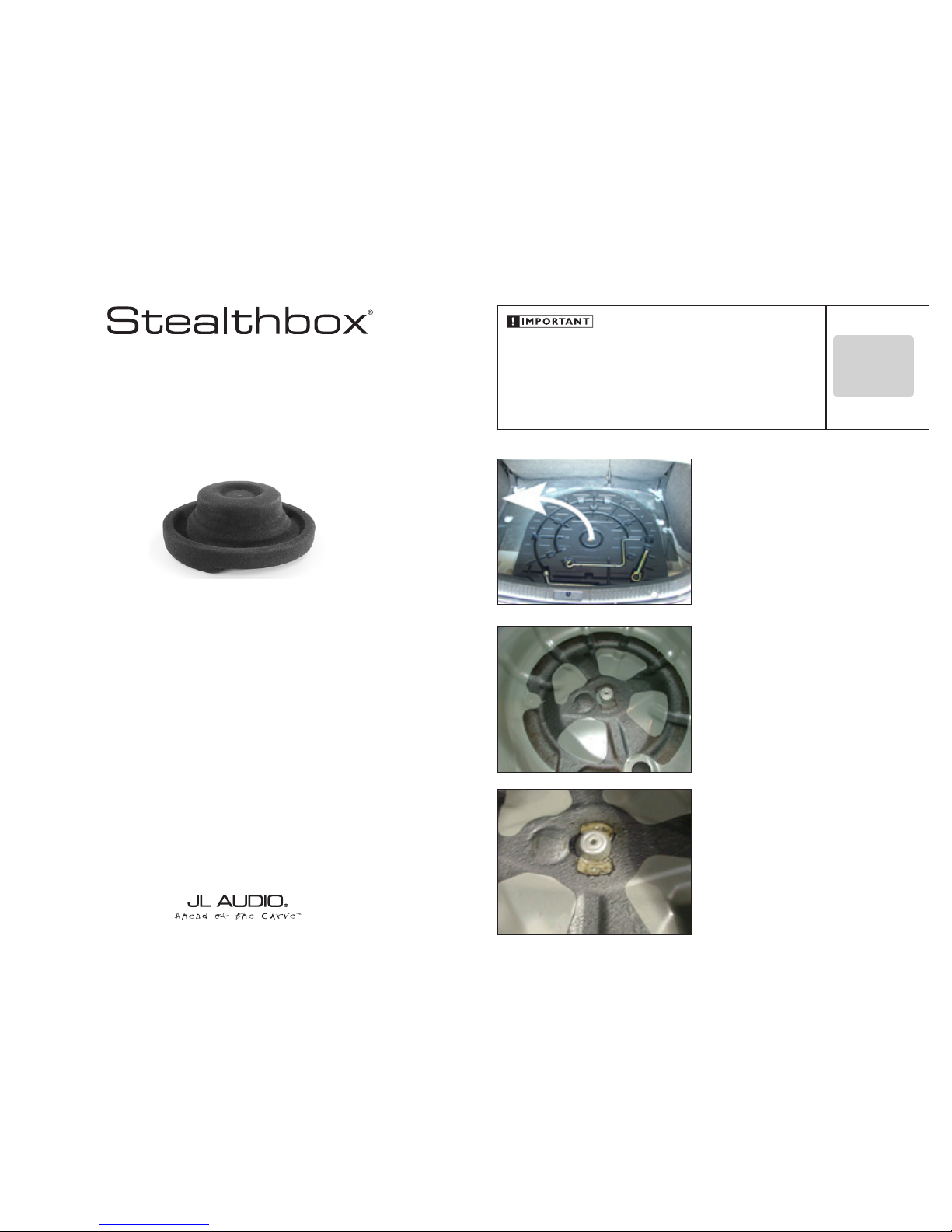

S T E P 1

In the Mazda3, remove carpeted floor panel by unsnapping

at rear-most edge then remove tool panel.

In the Speed3, remove the foam floor riser.

Continued on Next Page

S T E P 2

Remove bolt securing spare tire with lug wrench provided in

tool panel then remove spare tire.

S T E P 3

Remove sealant material from around mounting boss at

center of spare tire well.

SB-M-3-SPD/10W3v3 INSTR_SKU# 011255

INSTALLATION

D I F F I C U LT Y :

OUT

ESTIMATED TIME:

23 HOURS

Continued on Next Page

SB-M-3-SPD/10W3v3 INSTR_SKU# 011255

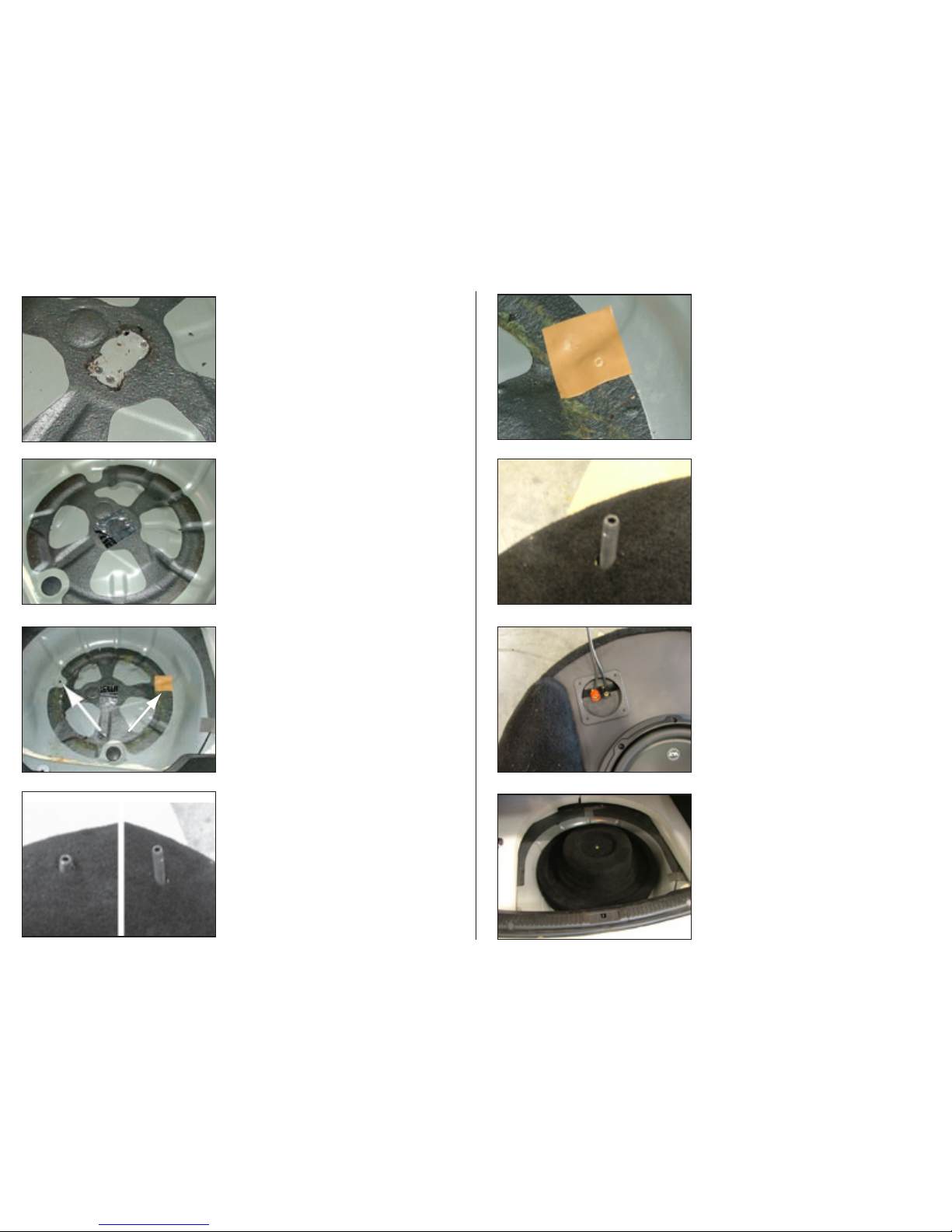

S T E P 7

Remove Stealthbox® from packaging and install 3/8 X 2.25

mounting studs into threaded inserts at bottom of enclosure.

Thread driver’s side stud in, leaving about 1 1/2-inches

extended. Thread passenger side stud in, leaving only about

1/2-inch extended.

S T E P 6

Locate rivet in floor of spare tire well at approximately 10

o’clock position. Drill out rivet with 1/4-inch drill bit, then

enlarge to 1/2-inch (may need to be drilled from under the

car). Place wax square provided onto floor of spare tire well in

approximately 2 o’clock position as shown in illustration.

S T E P 5

Place sealant sheet provided over modified area as shown

S T E P 4

Carefully drill out spot welds using appropriately sized drill bit

and pry mounting boss from spare tire well floor. Install (4)

#8-32 x 1 screws, nuts, washers to seal holes left by removed

spot welds.

Page 2 • JL Audio, Inc 2008

S T E P 9

Extend the mounting stud on passenger side of enclosure to

1 1/2-inches.

STEP 11

Place enclosure back into mounting position with both

mounting studs extended through holes drilled in floor.

STEP 10

Route woofer wiring to Stealthbox® enclosure location and

connect to terminal cup at bottom of enclosure. If the rest

of the system is completed, test the Stealthbox® to ensure

it’s working.

S T E P 8

Place the enclosure into the mounting location with driver’s

side stud extended through hole previously drilled in spare

tire well floor. Press down on the enclosure to make an

impression in the wax square. Remove the enclosure to

reveal the impression in the wax square. Drill 1/2-inch hole in

location indicated by impression in wax square.

Continued on Next Page

SB-M-3-SPD/10W3v3 INSTR_SKU# 011255

S T E P 1 4

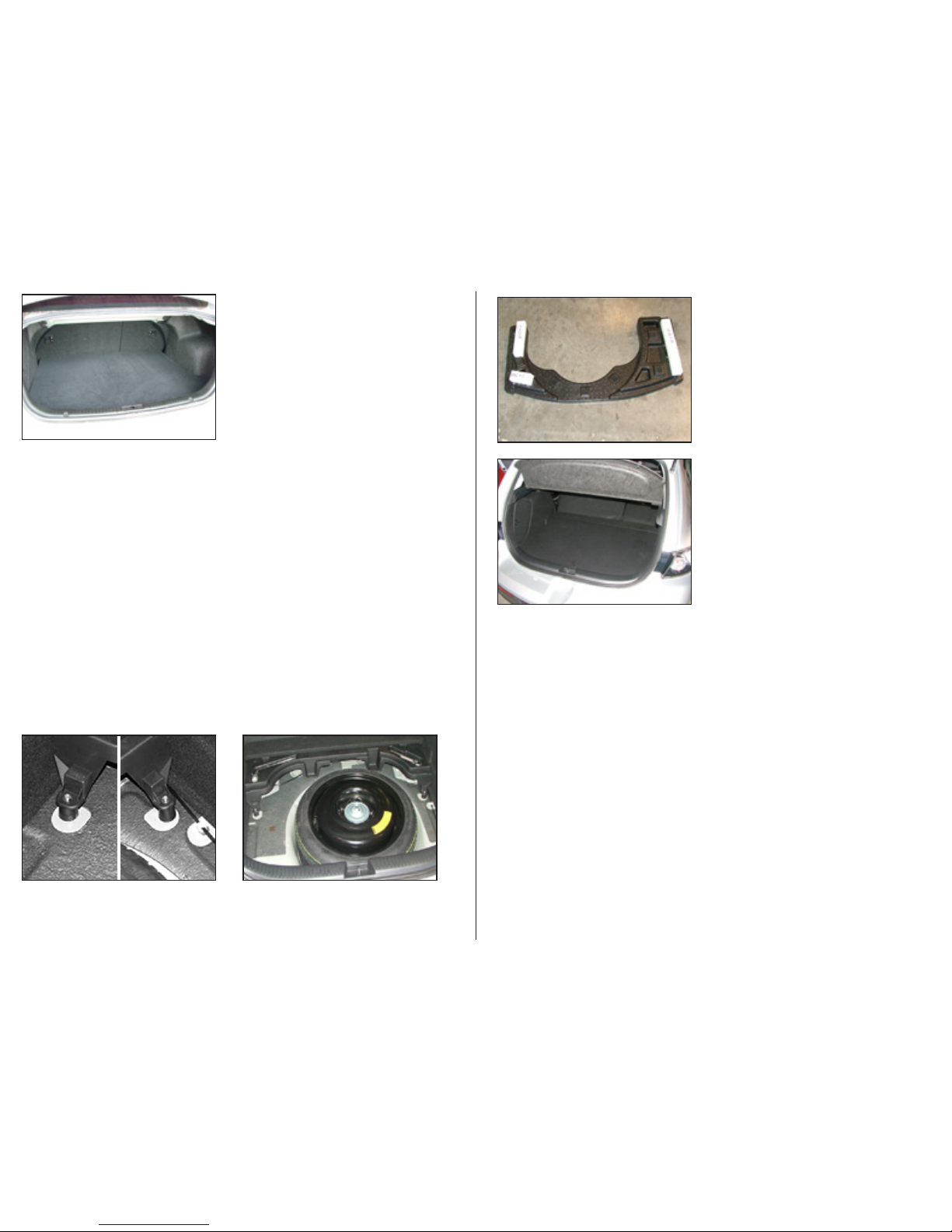

Place foam floor supports into cargo area as shown.

Note that the foam supports have been

changed since this photograph was taken

to multiple square blocks.

If you are installing this Stealthbox® enclosure into a

MazdaSpeed3, please skip to step number 20.

Steps 14-19 Apply ONLY to the Mazda 3

S T E P 1 3

Place spare tire on top of enclosure and secure with 3/8 X 1

bolt, flat washer, and original spare tire flange.

S T E P 1 2

From under vehicle, install fender washers, lock washers, and

3/8x16 nuts to mounting studs. Put some silicone sealent

between the vehicle body and, fender washer, tighten

securely.

Page 3 • JL Audio, Inc 2008

STEP 16

Identify 10-inch long Velcro® strip provided. Cut (2) 3-inch

long sections and (4) one inch sections. Remove backing

from “hook”3-inch sections and attach to tool panel as

shown.

STEP 18

Remove backing from 1-inch sections that were placed

above. Set provided passenger side cargo floor panel into

place over Velcro® strips and press downward to engage

Velcro® and adhere to panel back. Place remaining 1-inch

“loop side” Velcro strips onto the LEFT ends of attached

3-inch “hook” strips as shown and, remove adhesive backing.

STEP 17

Place two 1-inch sections of the “loop side” of the Velcro

on RIGHT hand end of each 3-inch section as shown (white

squares). Press down to lock sections together.

STEP 15

Put tool panel into place as shown.

Note that the foam supports have been

changed since this photograph was taken

to multiple square blocks.

Continued on Next Page

SB-M-3-SPD/10W3v3 INSTR_SKU# 011255

S T E P 2 0

Remove screws securing rearmost edge of plastic floor sup-

port panel located across front of cargo area. install 7/8 inch

spacers with #8 x 2.25 screws to lift rear edge of panel as

shown

S T E P 1 9

Place driver’s side cargo floor panel into place and press

down over Velcro to engage and adhere strips to floor panel

bottom.

Page 4 • JL Audio, Inc 2008

STEP 22

Replace OEM carpeted cargo floor panel

CONGRATULATIONS!

You have completed the installation for this model!

Enjoy your new Stealthbox®!

Please refer to the Power Recommendation for an amplifier

recommendation and basic set-up help.

STEP 21

Attach foam spacers to bottom of OEM foam cargo floor

support as shown. Place foam cargo floor support back into

original location.

CONGRATULATIONS!

You have completed the Stealthbox® installation for the Mazda3

Enjoy your new Stealthbox®!

Please refer to the Power Recommendation section for an amplifier recommendation and basic set-up help.

The following steps apply ONLY if you are installing this

Stealthbox® enclosure into a MazdaSpeed3.

(continued from step 13)

SB-M-3-SPD/10W3v3 INSTR_SKU# 011255

Page 5• JL Audio, Inc 2008

All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered

trademarks of JL Audio, Inc.“Ahead of the Curve”and its respective logo is a trademark of JL Audio, Inc.

#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 OtherU.S. & Foreignpatentspending.

For more detailed information please visit us online at www.jlaudio.com.

(954) 443-1100

www.jlaudio.com

1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A

I N C L U D E D H A R D W A R E

(2) wax squares (4) #8-32x1 Button Head Phillips Screws

(2) 3/8-16 X 2-1/4” Set Screw Stud (4) #8-32 nuts

(2) 3/8 X 1-1/4” Fender Washer (4) #8 washers

(2) 3/8 X 2” Fender Washer (2) 3/8 Split lock Washer

(2) 3/8-16 Hex Nut (Multiple) Foam spacer blocks

(1) 10” length Velcro® (2) Replacement floor panels*

(1) 3/8x1 bolt (1) 3/8 flat washer

(1) self adhesive sealent sheet (2) 7/8” spacers (used only for MAZDA SPEED3)

*  M A Z D A 3 O N L Y N O T I N C L U D E D W I T H M A Z D A S P E E D 3 

S P E C I F I C A T I O N S

Enclosure Type: Acoustic Suspension (sealed)

Driver Type: 10W3v3-4

Nominal Impedance: 4 ohms mono

Continuous Power Handling: 500 Watts

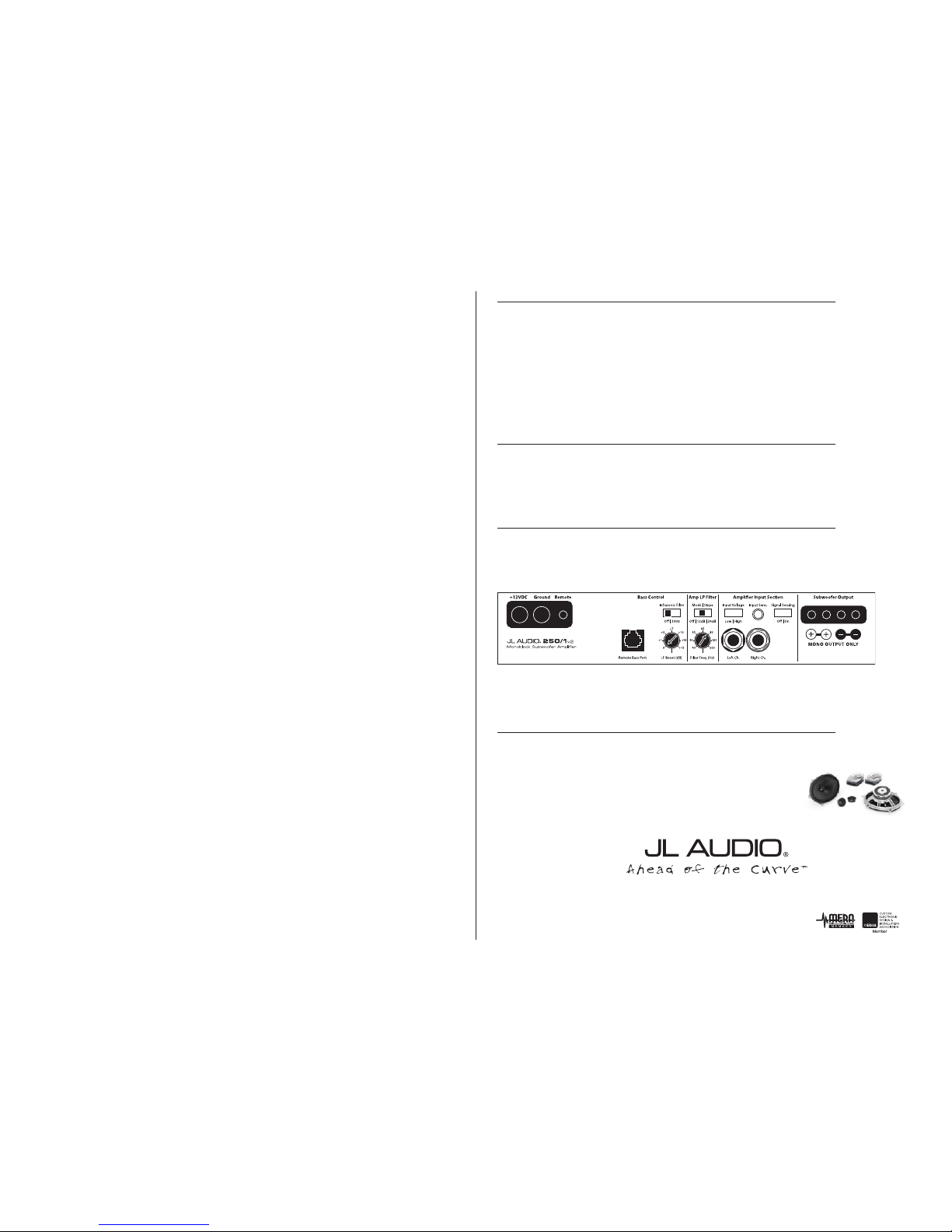

P O W E R R E C O M M E N D A T I O N

JL Audio recommends using a high quality amplifier such as the JL Audio 250/1v2.

The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 250/1v2

when being used to power your Stealthbox®.

The JL Audio 250/1v2 is a very versatile audio component. Please consult the owner’s manual for even more

detailed information about installing and tuning this amplifier.

M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T

A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.

Front Speaker Size / Location: 5”x 7” / 6”x 8”- Front Doors

Fits JL Audio Models: TR570-CXi, C5-570, C5-570x & ZR570-CSi

Rear Speaker Size / Location: 5”x 7” / 6”x 8”- Rear Door

Fits JL Audio Models: TR570-CXi, C5-570x
