INSTALLATION GUIDE

for the

SB-B-5SER/12W6v3

SKU# 94281

2004 - Up 5-Series

Thank you for choosing a JL Audio Stealthbox®for your automotive sound system. With proper installation, your new vehicle-

specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox®installed by your authorized JL Audio dealer. The installation

professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle

properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your

authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely

before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox®be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

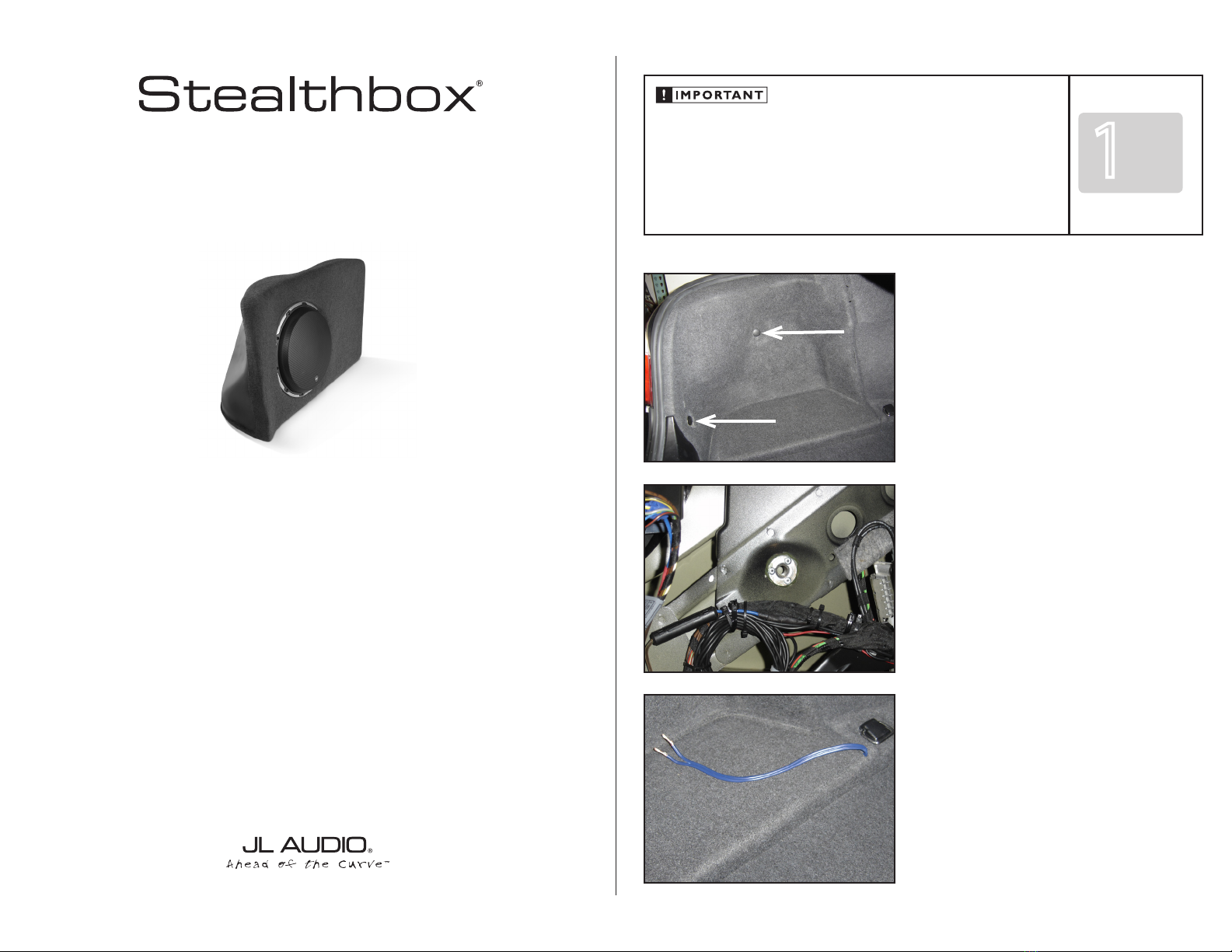

STEP 1

Remove all contents from the trunk.

Remove the two plastic clips from the driver’s side of the

trunk that are indicated by the arrows in the picture.

Remove this side panel from the trunk.

Continued on Next Page

STEP 2

Place the supplied Weld Nut into the same mounting hole as

the side position factory clip that was removed

in STEP 1.

Mark the three holes from the flange of the weld nut onto

the factory metal pane. Remove the weld nut.

With a 1/8-inch drill bit and drill. Drill out the metal panel at

the marked locations. You are close the outside sheet metal,

use care when drilling through the metal.

Secure the threaded insert with the three supplied rivets.

STEP 3

Run speaker cable from the amplifier location to the

Stealthbox® location.

SB-B-5SER/12W6v3_INSTR_SKU#011233

INSTALLATION

DIFFICULTY:

OUT

ESTIMATED TIME:

1 HOUR

Side Clip

Rear Clip

Continued on Next Page

SB-B-5SER/12W6v3_INSTR_SKU#011233

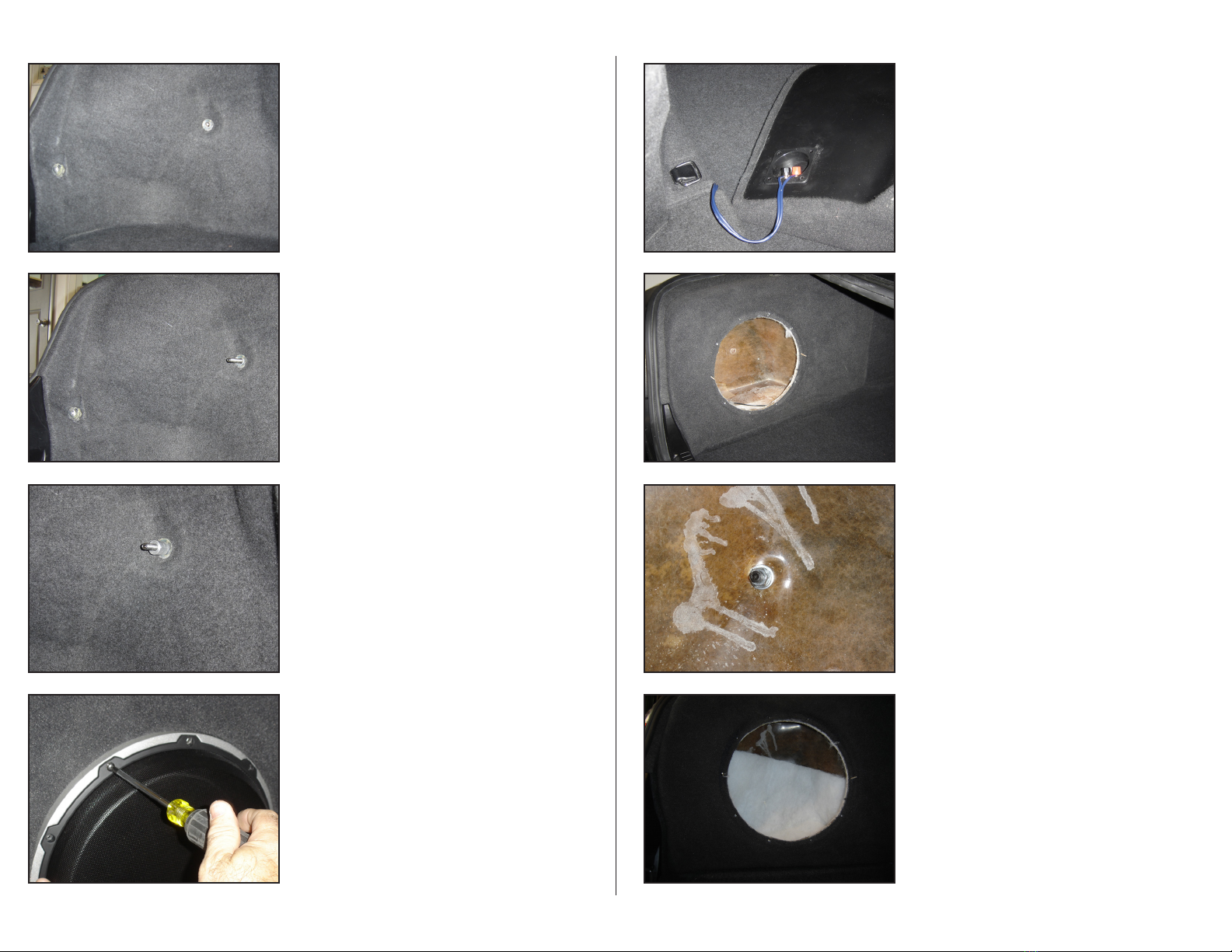

STEP 7

Remove the Phillips head screws that hold in the woofer, and

remove the woofer. Remove the fill from the Stealthbox®.

STEP 6

Place the supplied spacer onto the Set Screw Stud.

STEP 5

Place the rear factory clip back into place.

Thread the supplied Set Screw Stud into the Weld Nut,

leaving approximately 1-1/2-inch exposed.

STEP 4

Place the side panel back into the trunk.

Page 2 • JL Audio, Inc 2016

STEP 9

Place the Stealthbox into position.

Carefully guide the threaded stud through the hole on the

back side of the Stealthbox®.

STEP 11

Place the fill back into the Stealthbox®.

STEP 10

From inside the Stealthbox®, place the supplied Flat Washer,

Split Lock Washer and Hex Nut onto the set Set Screw Stud.

Using a 9/16-inch deep socket, secure tightly.

Do not over tighten.

STEP 8

Attach the speaker cable to the terminal on the Stealthbox®.

SB-B-5SER/12W6v3_INSTR_SKU#011233

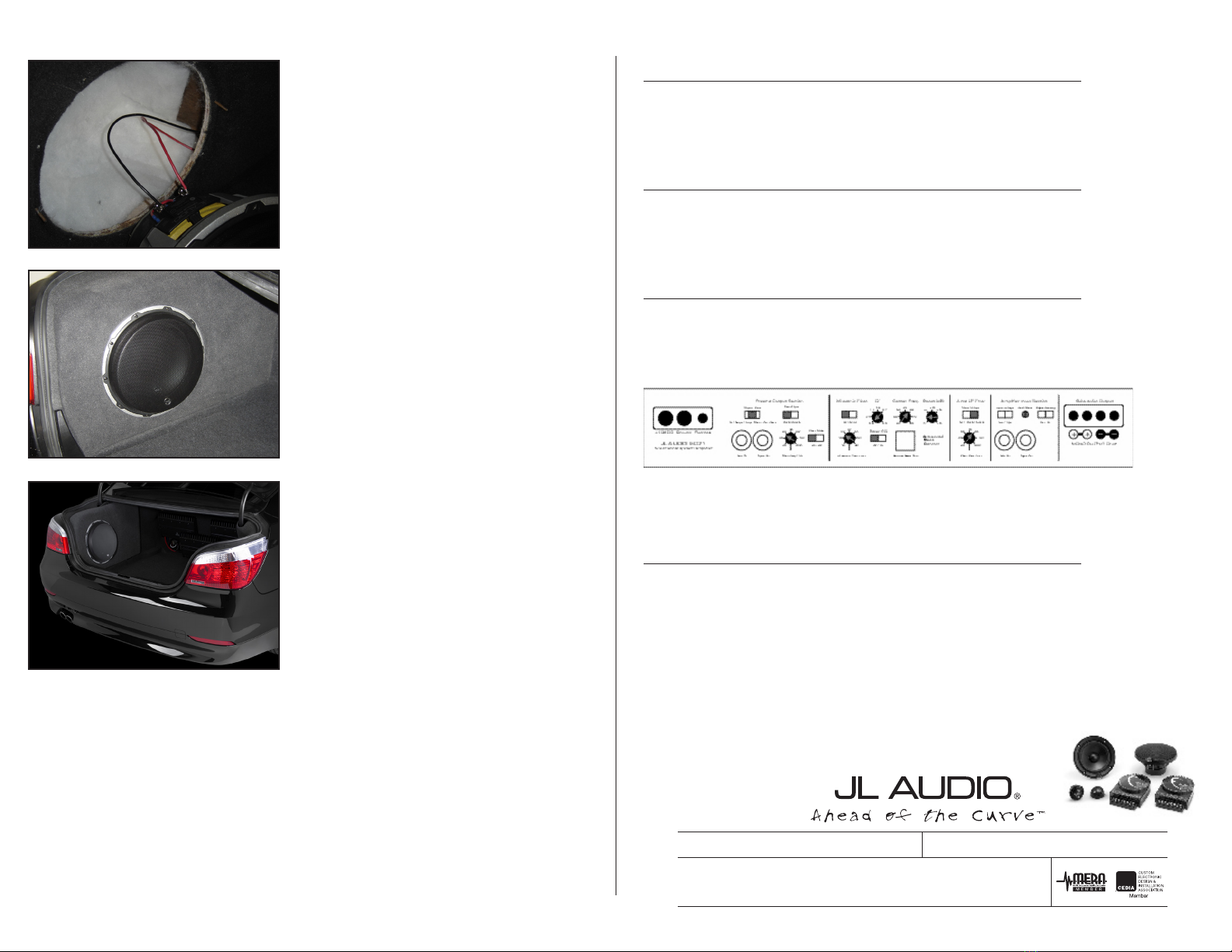

STEP 14

CONGRATULATIONS

You have completed the installation for this model!

Please refer to the Power Recommendation section for an

amplifier recommendation and basic set-up help.

STEP 13

Reinstall the woofer.

STEP 12

Attach the proper speaker cable to the woofer’s terminal.

Page 3 • JL Audio, Inc 2016

All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered

trademarks of JL Audio, Inc.“Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.

For more detailed information please visit us online at www.jlaudio.com.

(954) 443-1100

www.jlaudio.com

10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA

INCLUDED HARDWARE

(1) 7/8-inch(L) x 3/4-inch(OD) x 3/8-inch(ID) Spacer (1) 3/8-inch -16 x 3” Set Screw Stud

(1) 3/8-inch -16 x 5/8-inch Weld Nut (1) 3/8-inch -16 Hex Nut

(1) 3/8-inch Split Lock Washer (3) Button Head Rivet

(1) 3/8-inch Flat Washer

SPECIFICATIONS

Enclosure Type: Acoustic Suspension (sealed)

Driver Type: 12W6v3-D4

Nominal Impedance: 2 ohms mono

Continuous Power Handling: 600 Watts

POWER RECOMMENDATION

JL Audio recommends using a high quality amplifier such as the JL Audio 600/1v3.

The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 600/1v3

when being used to power your Stealthbox®.

The JL Audio 600/1v3 is a very versatile audio component. Please consult the owner’s manual for even more

detailed information about installing and tuning this amplifier.

MID/HIGH FREQUENCY DRIVER FITMENT

A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.

Front Speaker Size / Location: 4.0-inch / Front Doors

Fits JL Audio Models: TR400-CXi, C2-400x

Rear Speaker Size / Location: 4.0-inch / Rear Door

Fits JL Audio Models: TR400-CXi, C2-400x
