INSTALLATION GUIDE

for the

SB-F-EXPL3/10W3v3

SKU# 94520

2011

Thank you for choosing a JL Audio Stealthbox®for your automotive sound system. With proper installation, your new

vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox®installed by your authorized JL Audio dealer. The

installation professionals employed by your dealer have the necessary tools and experience to disassemble and

reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is

installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read

this installation guide completely

before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox®be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

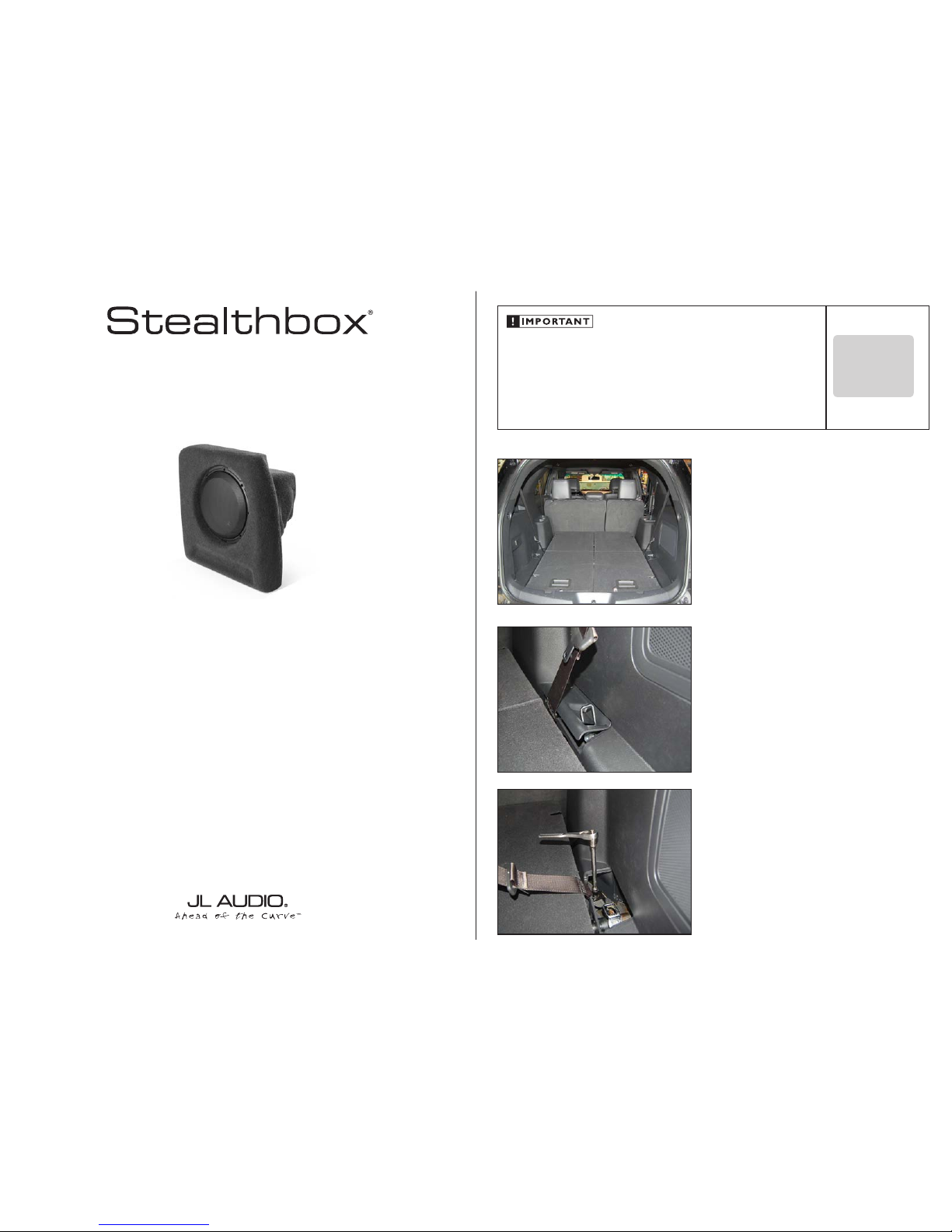

STEP 1

Empty out the cargo area so that you have a clean area to

work in.

Continued on Next Page

STEP 2

With the third row seats folded down, unclip the small trim

panel near the seat belt.

STEP 3

Remove the bolt holding the seat belt in place.

SB-F-EXPL3/10W3v3 INSTR_SKU# 011325

INSTALLATION

DIFFICULTY:

OUT

ESTIMATED TIME:

2 HOUR

Continued on Next Page

SB-F-EXPL3/10W3v3 INSTR_SKU# 011325

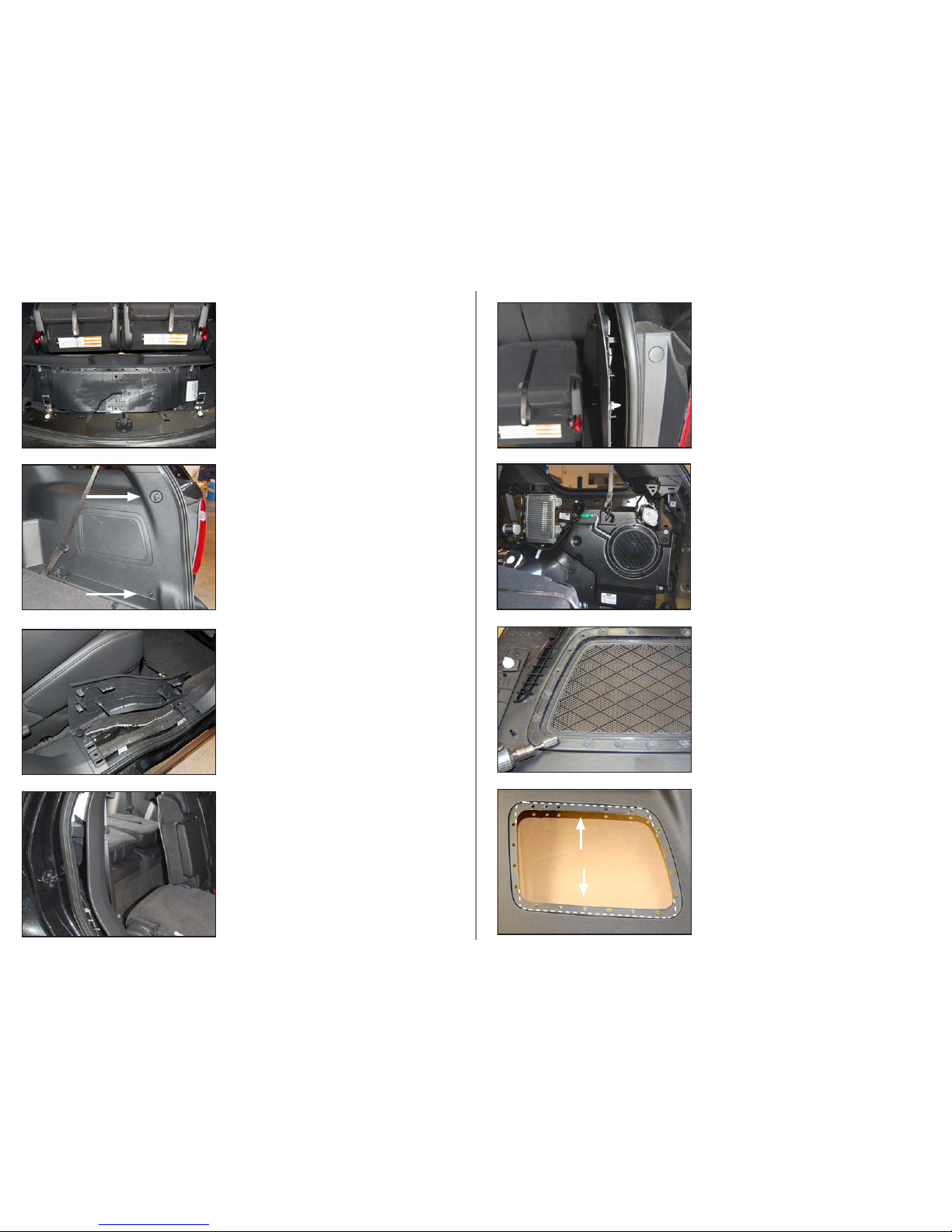

STEP 7

Begin unclippng the side panel, as shown.

STEP 6

Open the rear door on the passenger side. Carefully pull up

on the sill panel to release the clips, and remove the panel.

Remove the clip holding the side panel to the floor.

STEP 5

Unscrew the two hooks on the side panel.

STEP 4

Fold the seats back up, as shown. Carefully pull up on the

rear sill panel to release the clips. Unplug the harness, and

remove the panel.

Page 2 • JL Audio, Inc 2011

STEP 9

Pictured is the factory subwoofer enclosure with the side

panel removed. Unplug the subwoofer harness. Locate and

remove the three bolts holding in the enclosure, and remove

the enclosure from the vehicle.

STEP 11

Enlarge the grille opening on the side panel by cutting on

the indicated dotted lines. The top and bottom portions of

the grille opening need to be removed, but the sides will

remain.

STEP 10

Carefully grind through the plastic welds on the back of the

side panel to remove the grille from the panel.

STEP 8

Continue toward the rear of the vehicle, carefully releasing

the remaining side panel clips, and remove the panel.

Continued on Next Page

SB-F-EXPL3/10W3v3 INSTR_SKU# 011325

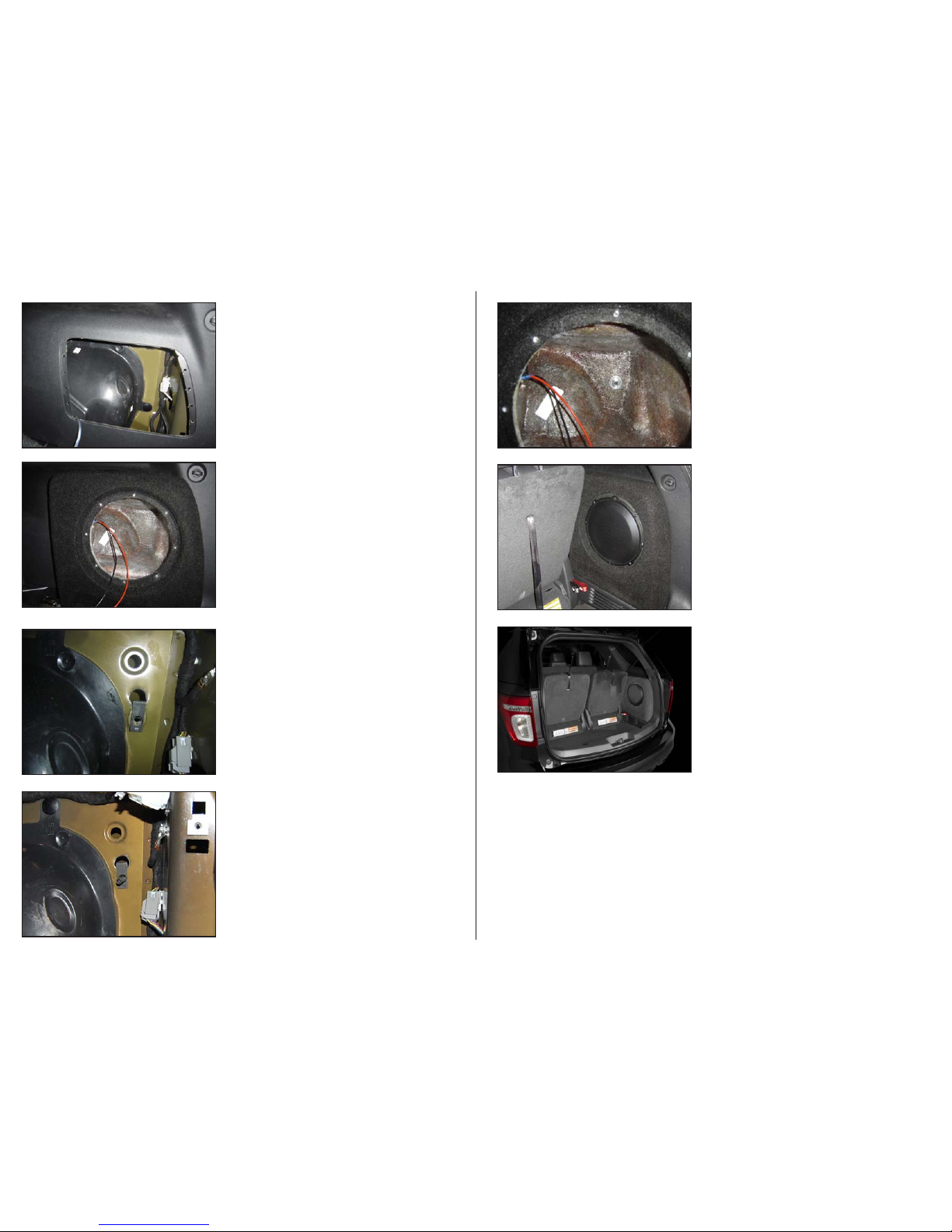

STEP 15

Thread the supplied 3/8 - 16 x 2-1/4” Set Screw into the

U-Nut, as shown.

STEP 14

Remove the Stealthbox® from the vehicle. Measure 1-1/8” up

from the center of the hole drilled in Step 13, and drill a 1”

hole. Slide the U-Nut through the 1” hole and align with the

smaller hole, as shown.

Before drilling, always make sure that you are not

going to be drilling into any gas lines, brake lines,

tires, transmission lines, electrical wiring, exhaust

systems or anything else that might cause a

reduction in your weekly pay.

Always wear eye protection when drilling!

STEP 13

Remove the subwoofer from the Stealthbox®, and place the

enclosure into position. Locate the hole in the back of the

enclosure. Using a 1/2” drill bit, drill through the hole and

into the metal panel behind the enclsoure.

Before drilling, always make sure that you are not

going to be drilling into any gas lines, brake lines,

tires, transmission lines, electrical wiring, exhaust

systems or anything else that might cause a

reduction in your weekly pay.

Always wear eye protection when drilling!

STEP 12

Route speaker cable to the Stealthbox® location, and reinstall

the side panel back into the vehicle. Pictured is the panel in

place after it has been cut as indicated in Step 11.

Page 3 • JL Audio, Inc 2011

STEP 17

Reinstall the upper hook, the two sill panels, the seat belt

bolt, and the small trim panel.

CONGRATULATIONS!

You have completed the installation for this model!

Enjoy your new Stealthbox®!

Please refer to the Power Recommendation section for an

amplifier recommendation and basic set-up help.

STEP 16

Attach the speaker cable to the Stealthbox®, and place the

enclosure back into position allowing the 3/8 - 16 x 2-1/4” Set

Screw to slide through the hole in the back of the enclosure.

Place a 3/8” x 1-1/4” Fender Washer, a 3/8” Lock Washer, and

a 3/8” - 16 Hex Nut over the 3/8 - 16 x 2-1/4” Set Screw, and

firmly tighten. Reinstall the suboofer.

SB-F-EXPL3/10W3v3 INSTR_SKU# 011325

Page 4• JL Audio, Inc 2011

All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered

trademarks of JL Audio, Inc.“Ahead of the Curve”and its respective logo is a trademark of JL Audio, Inc.

#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.

For more detailed information please visit us online at www.jlaudio.com.

(954) 443-1100

www.jlaudio.com

10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA

INCLUDED HARDWARE

(1) U-Nut (1) 3/8” Split Lock Washer

(1) 3/8-16 x 2-1/4” Set Screw (1) 3/8” -16 Hex Nut

(1) 3/8” x 1-1/4” Fender Washer

SPECIFICATIONS

Enclosure Type: Acoustic Suspension (sealed)

Driver Type: 10W3v3

Nominal Impedance: 2 ohm

Continuous Power Handling: 500 watts

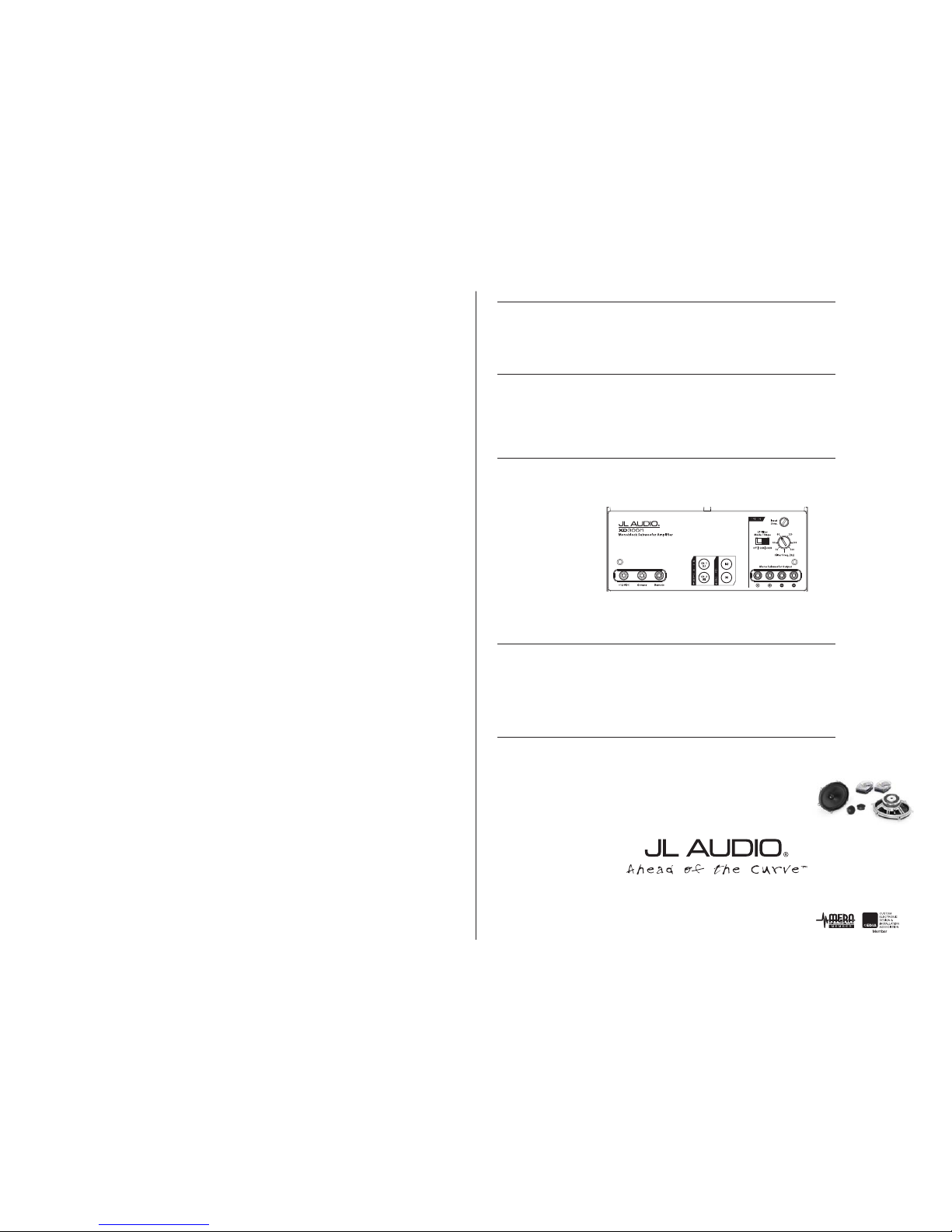

POWER RECOMMENDATION

JL Audio recommends high quality amplifiers such as the JL Audio XD700/5 or XD300/1. The diagram below

shows the recommended crossover settings for the XD300/1 . If another amplifier is being used, please reference

this illustration and use similar settings on that amplifier.

All JL Audio amplifiers are very versatile audio components. Please consult the owner’s manual for even more

detailed information about installing and tuning your amplifier.

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®.

JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplifier. Other

kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium Audio

Interconnect Cables should be used to provide signal for both channels of the amplifier. JL Audio reccommends

using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.

MID/HIGH FREQUENCY DRIVER FITMENT

A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.

Front Speaker Size / Location: 5”x 7” / 6”x 8”- Front Doors

Fits JL Audio Models: TR570-CXi, C2-570x, C3-570, C5-570, C5-570x & ZR570-CSi

Rear Speaker Size / Location: 5”x 7” / 6”x 8”- Rear Door

Fits JL Audio Models: TR570-CXi, C2-570x, C3-570, C5-570, C5-570x & ZR570-CSi
