OWNER’S MANUAL

Thank you for purchasing a JL Audio Marine Coaxial Speaker System.

With proper installation, your new speakers will deliver

years of listening pleasure.

We strongly recommend that you have your new marine speakers

installed by your authorized JL Audio dealer.

The installation professionals employed by your dealer have

the necessary tools and experience to properly install your new speakers.

If you prefer to perform your own installation,

please read this instruction manual completely before

beginning the process.

Cockpit Coaxial Speaker Systems

with Blue LED Illumination

MX650-CCX-SG (LED)

2 | JL Audio - MX650-CCX-SG (LED) Owner’s Manual

B F

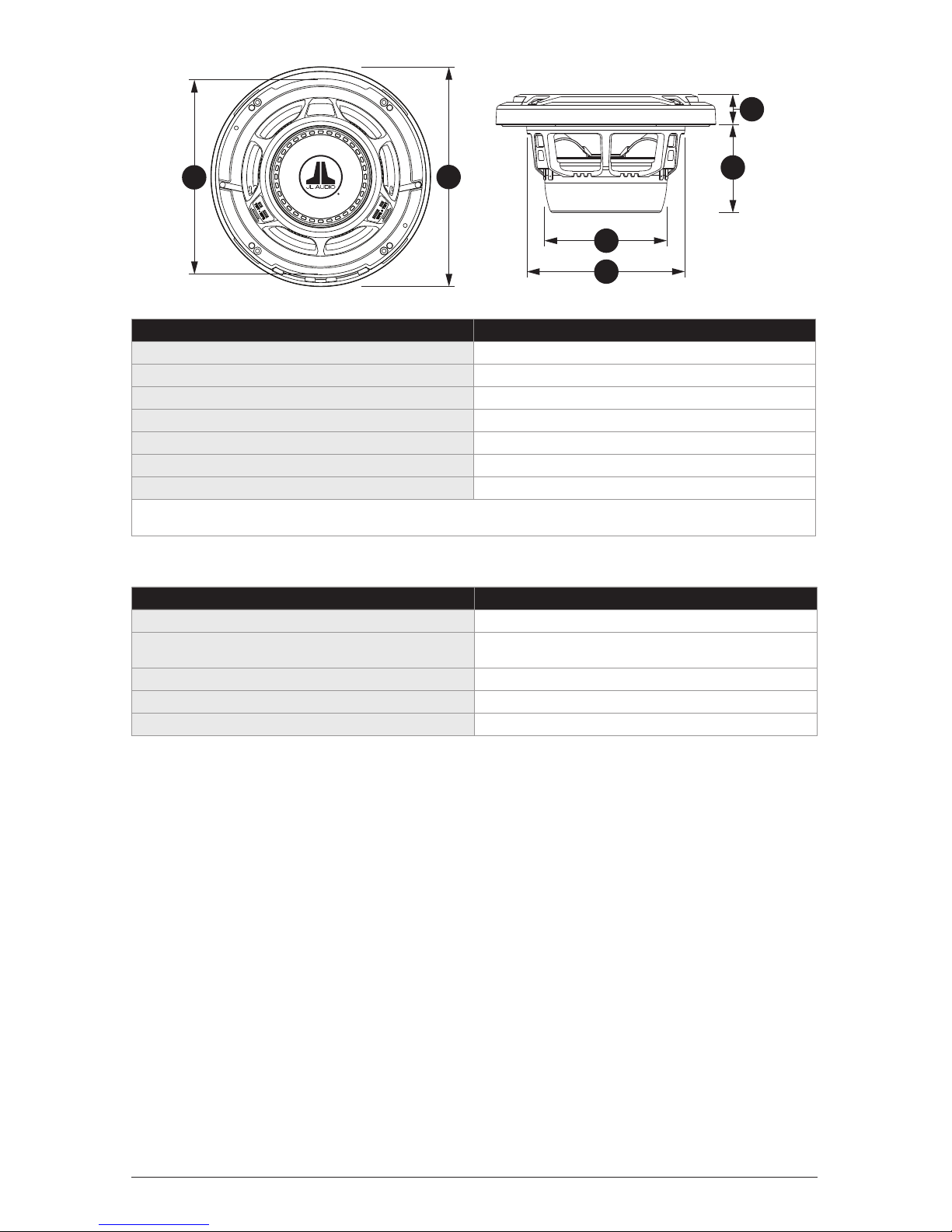

Physical Specifications MX650-CCX-SG (LED)

Nominal Diameter 6.5 in. / 165 mm

Grille Outer Diameter (A) 6.90 in. / 175 mm

Bolt Hole Circle (B) 6.125 in. / 156 mm

Motor Overmold Outer Diameter (C) 3.85 in. / 98 mm

Frontal Grille Protrusion* (D) 0.97 in. / 25 mm

Mounting Hole Diameter (E) 5.00 - 5.25 in. / 127-133 mm

Mounting Depth (F) 2.74 in. / 70 mm

Notes: *Frontal grille protrusion measured from mounting surface

Specifications MX650-CCX-SG (LED)

Mounting Application Cockpit (Infinite Baffle)

Continuous Power Handling

(RMS Method) 60 Watts / channel

Frequency Response 55 Hz - 25 KHz (± 3 dB)

Efficiency @ 1W/1m 89.0 dB

Nominal Impedance 4 ohms

MARINE SPEAKER SPECIFICATIONS

Woofers: Injection-molded, mica-filled polypropylene

cone bodies with UV inhibitors, 1.00-inch (25 mm) voice

coils, low-profile/ progressive-roll spiders and synthetic

rubber surrounds. DMA-optimized, long excursion design

for enhanced output and bass response. UV-resistant

polymer baskets and grilles

Tweeters: 0.75-inch (19 mm) treated silk dome tweeter,

neodymium magnet, ferrofluid cooled and damped.

Crossover Networks: Natural woofer roll-off

with 2nd order high-pass circuits. Polyswitch

solid-state tweeter protection

Due to ongoing product development, all specifications are subject to change without notice.

Included Components and Parts:

• Two Coaxial Speaker Systems

• Two Polymer Woofer Grilles (attached to speaker) with

integrated blue LED lighting

• Two 0.75-inch (19 mm) Tweeters (mounted to grilles)

• Two 2nd order high-pass filters (mounted to grilles)

• Twelve #8 x 1 1/8-inch (29 mm) phillips-head stainless-steel

screws for speaker mounting

• Twelve #8 stainless-steel washers for speaker mounting

• Two 150mA fuses (type 3AG)

• Two in-line fuseholders (type 3AG)

• Mounting Template

• Logo Badges

One Pair Black (White & Titanium/Black & Chrome Models)

One Pair Red (White & Titanium/Black & Chrome Models)

One Pair Titanium (Titanium/Black Models Only)

One Pair White (White Models Only)

One Pair Blue (Chrome Models Only)

CCX models have woofers specifically designed

for infinite-baffle applications. In plain english,

this means that they are designed to operate

without an enclosure behind them. The bass

response of the speaker will suffer significantly if

placed in a small enclosure.

While these speakers are designed to be water

and spray resistant, they are not designed to be

submerged or to withstand high-pressure water

spray. Please exercise care when washing your

boat to avoid damaging your speakers. Do not

install on submersibles, personal watercraft or any

other vessel likely to be under water at any time.

Prolonged exposure to sound pressure levels in

excess of 100dB can cause permanent hearing

loss. This high-performance speaker can

exceed this level. Please exercise restraint in its

operation in order to preserve your ability to

enjoy its fidelity.

When installing speakers in your vessel, it is

extremely important to secure them firmly. This

applies not only to the speakers themselves,

but also any structure they are mounted to. If

not firmly attached, the speakerscan become

dangerous projectilesin a collision. Please

review the mounting information carefully and

use the supplied marine-grade hardware to

mount this product.

It is absolutely vital that your coaxial speaker

system is connected as shown in this manual.

Failure to connect the system as shown will

result in damage to your speakers which

is NOT covered under warranty. Do not

substitute different crossover networks!

Do not attempt to remove the tweeter or

lighting LEDs from the grille or the grille

from the speaker! The tweeter and LEDs are

permanently fixed to the grille and their wiring

is permanently attached to the speaker frame.

Attempting to remove the grille, tweeter or

LEDs will damage the speaker and this damage

will not be covered under warranty.

4 | JL Audio - MX650-CCX-SG (LED) Owner’s Manual

BEFORE YOU BEGIN INSTALLING

• Check with your local waterway authority

for any regulations regarding the use of

accent/speaker lighting on your vessel.

• Turn off the audio system. It is also advisable

to disconnect your battery system whenever

performing installation work.

• Before cutting, drilling or inserting any screw,

check clearances on both sides of the planned

mounting surface. Also check for any potential

obstacles, such as wiring harnesses, fuel lines,

hydraulic lines, etc. Check both sides of the

vessel before cutting any holes.

• If you are running cables through bulkheads,

drill holes for the cable and use a urethane

or plastic grommet to protect the wire from

chafing in the hole. Make sure that the cables

will clear any mechanical devices in the boat

and secure them with wire ties.

• Wear protective eyewear at all times and a dust

mask and gloves when drilling or cutting.

If you have any questions about the installation

or setup of your coaxial speaker system not

covered in this manual, please contact your

dealer or technical support.

JL Audio Technical Support:

(954) 443-1100

9:00 AM – 5:30 PM (Eastern Time Zone)

Monday - Friday

TWEETER PROTECTION

The crossover networks are equipped with

an advanced electronic tweeter protection circuit

designed to minimize the possibility of tweeter

failure. This electronic device monitors current going

to the tweeter and will disconnect the tweeter from

the signal when it senses overload. Should this occur

while listening to the audio system, simply reduce the

volume for a few seconds and the protection circuit

will reset itself automatically.

INTERCHANGEABLE LOGO BADGE

Interchangeable Logo Badges for Sport

Grille model coaxial speakers are included to

further customize your installation. The design

of the Sport Grille allows for the JL Audio logo

to be added in your choice of included colors and

oriented in the manner that best suits

your installation.

NOTE: A left and a right badge of each

color is included. These two different

orientations ensure the “JL Audio” Logo will

read correctly wherever positioned (most

commonly the 3:00 or 9:00 position).

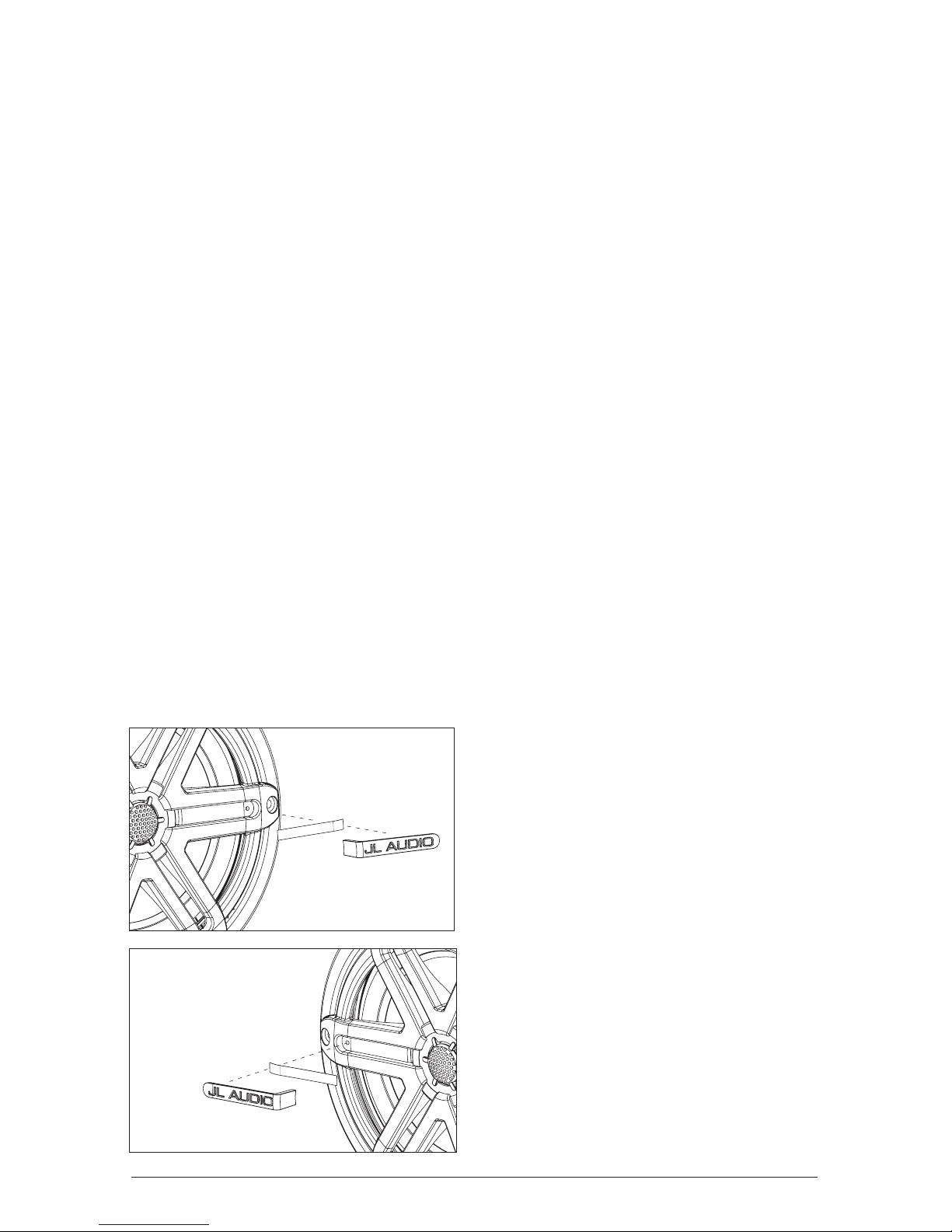

Remove the adhesive backing from the badge

and affix the badge to the grille using the small

positioning hole as a guide. See diagram below.

3:00 Position

9:00 Position

COAXIAL INSTALLATION PROCEDURE

Diagram A (page 6) shows typical installation

procedures into a fiberglass panel, using the

supplied hardware. Always follow proper safety

procedures. Use eye-protection at all times and a

dust mask and gloves when cutting.

1) Choose a flat mounting surface that has

sufficient depth and air space behind it to

accept the speaker.

2) Using a hole saw or jigsaw, cut a mounting

hole for your respective speaker model (see

“Mounting Hole Diameter (E)” specifications,

page 2). If using a jigsaw, tracing the supplied

mounting template will provide you with an

accurate line on which to cut.

3)Place the speaker in the hole (or use the

mounting template) and mark the screw hole

locations using a sharp, pointed tool.

4) Remove the speaker and drill a pilot hole (see

Pilot Hole Recommendation chart on page

6) in each of the screw locations. It is also

advisable to use a hand-driven countersink

tool on each hole to further inhibit gel-coat

cracking of fiberglass panels.

5) Connect the speaker wires from the

amplifier to the woofer connections.

See Speaker Wiring Diagram on page 7.

6) Connect the LED activation wires to the

LED circuit leads. See LED Wiring on page 7.

8)Place the speaker into the opening.

9) While holding the speaker firmly in its

mounting location, place the #8 x 1 1/8-inch

Phillips pan-head mounting screws (with

washers) and snug in a criss-cross pattern,

then tighten with a hand screwdriver in a

criss-cross pattern.

Non-standard installations may require different

hardware. Always use marine-grade, stainless-steel

fasteners to ensure a secure, reliable installation.

LED WIRING CONSIDERATIONS

• Do not connect the speakers' LED lights to the

vessel's navigational lighting circuits.

• For short-circuit protection, install a supplied

fuseholder onto EACH speaker's BLUE (+12V)

LED power connection lead.

• Connect all BLUE (+12V) leads together

(parallel) and connect to a switched +12V

supply. Connect all YELLOW (GND) leads

together and connect to negative ground or to

the NEGATIVE battery post. See LED Wiring

on page 7.

• We recommend activating the speakers' LEDs

thru a cabin/interior lighting circuit that

supplies +12V via an existing switch. If an

existing switched circuit is not available, you

may install a dedicated toggle/rocker style

switch that will supply positive (+12V) power.

Fuse this connection according to how many

LED circuits you have (LED circuits x 150 mA).

• We recommend a minimum of 16AWG wire

size for each speaker's LED connection circuits.

INSTALLING THE SPEAKERS

Once mounting locations have been

established, run speaker cables from the amplifier

outputs to the mounting locations. Now is also a

good time to run wires to each speaker location

for LED activation.

6 | JL Audio - MX650-CCX-SG (LED) Owner’s Manual

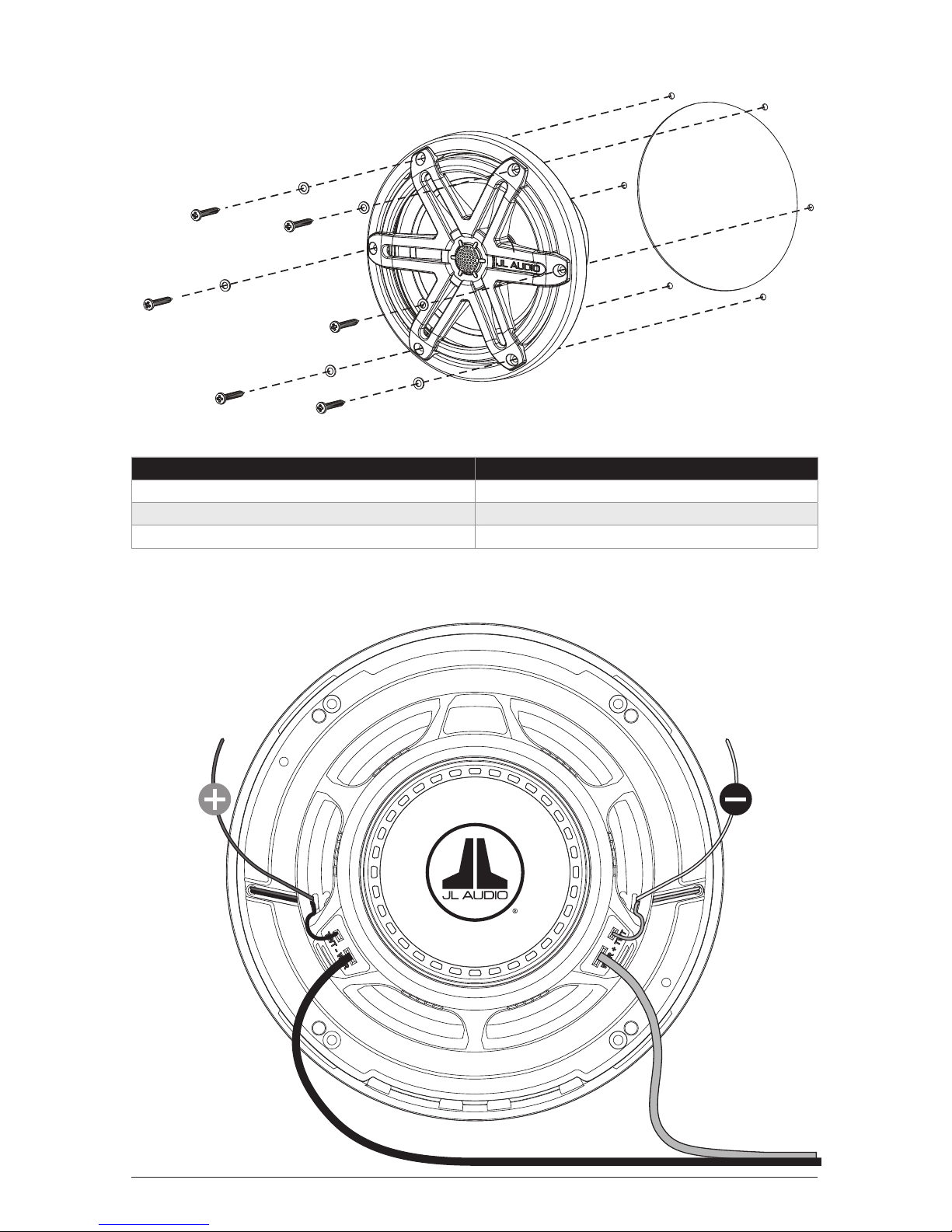

DIAGRAM A

to amplier output

BLUE: LED Circuit

Positive (+12V)

Power Connection

YELLOW: LED Circuit

Negative (GND)

Ground Connection

Fiberglass Thickness Recommended Pilot Hole Drill Size

0.312 in. (7.92 mm) or less 1/8 in. (3.18 mm) pilot hole

foam core / fiberglass sandwich 1/8 in. (3.18 mm) pilot hole

larger than 0.312 in. (7.92 mm) 9/64 in. (3.57 mm) pilot hole

#8 SCREW: PILOT HOLE RECOMMENDATIONS

SPEAKER WIRING DIAGRAM:

tweeter

negative

input

from

amplier

negative

output

from

amplier

positive

output

tweeter

positive

input

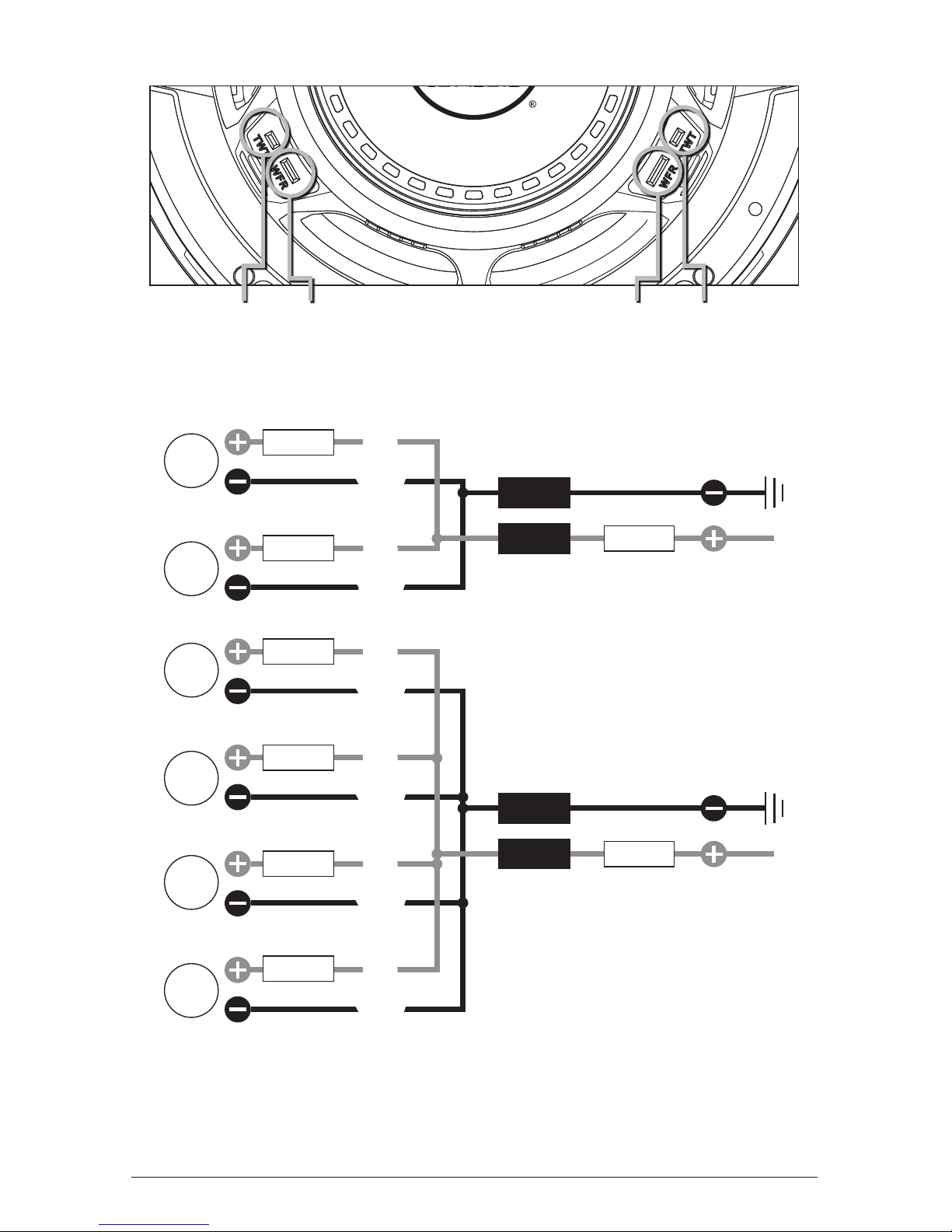

LED WIRING:

[GND]

LED

[+12V]

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

LED

Fuse

[GND]

[+12V]

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

Blue

Yellow

LED

Fuse

Example: Two speaker pairs of

LED circuits connected in parallel.

Example: One speaker pair of

LED circuits connected in parallel.

Individually fuse each BLUE (+12V) lead and wire together (parallel) to a fused, switched +12V

activation circuit.

Wire all YELLOW (GND) leads together (parallel) and connect to negative ground or to the

NEGATIVE battery post.

We recommend fusing the +12V connection point according to how many LED circuits you have

(LED circuit quantity x 150 mA).

MX650-CCX-SG-(LED)_0115_SKU#011392

Printed in USA

LIMITED WARRANTY  MARINE SPEAKER SYSTEMS USA

JL AUDIO warrants this product to be free of defects in materials and workmanship for a period of two

(2) years from the original date of purchase.

This warranty is not transferable and applies only to the original purchaser from an authorized

JL AUDIO dealer. Should service be necessary under this warranty for any reason due to manufacturing

defect or malfunction, JL AUDIO will (at its discretion), repair or replace the defective product with new

or remanufactured product at no charge.

Damage caused by the following is not covered under warranty: accident, misuse, abuse, product

modification or neglect, failure to follow installation instructions, unauthorized repair attempts,

misrepresentations by the seller. This warranty does not cover incidental or consequential damages and

does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal

wear and tear is not covered under warranty.

Warranty is void if the product’s serial number has been removed or defaced.

Any applicable implied warranties are limited in duration to the period of the express warranty as

provided herein beginning with the date of the original purchase at retail, and no warranties, whether

express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied

warranties, therefore these exclusions may not apply to you. This warranty gives you specific legal rights,

and you may also have other rights which vary from state to state.

If you need service on your JL AUDIO product:

All warranty returns should be sent to JL AUDIO freight prepaid through an authorized

JL AUDIO dealer and must be accompanied by proof of purchase (a copy of the original sales receipt.)

Direct returns from consumers or non-authorized dealers will be refused unless specifically authorized

by JL AUDIO with a valid return authorization number. Warranty expiration on products returned

without proof of purchase will be determined from the manufacturing date code. Coverage may be

invalidated as this date is previous to purchase date. Return only defective components. If one speaker

fails in a system, return only that speaker component, not the entire system. Non-defective items received

will be returned freight-collect. Customer is responsible for shipping charges and insurance in sending the

product to JL AUDIO. Freight damage on returns is not covered under warranty.

For Service Information in the U.S.A. please call

JL Audio Customer Service:(954) 443-1100

9:00 AM – 5:30 PM (Eastern Time Zone)

JL Audio, Inc

10369 North Commerce Pkwy.

Miramar, FL 33025

International Warranties:

Products purchased outside the United States of America are covered only

by that country’s distributor and not by JL Audio, Inc.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JL Audio Intervenants

JL Audio

JL Audio C1-570X Manuel utilisateur

JL Audio

JL Audio TR050-CT Manuel utilisateur

JL Audio

JL Audio PAVILION PV-FX6 Manuel utilisateur

JL Audio

JL Audio C1-100CT Manuel utilisateur

JL Audio

JL Audio C1-690X Manuel utilisateur

JL Audio

JL Audio JL AUDIO Evolution TR350-CXi Manuel utilisateur

JL Audio

JL Audio JLTR400CXi Manuel utilisateur

JL Audio

JL Audio SB-F-EXPL3 Manuel utilisateur

JL Audio

JL Audio M6-103EWS-Gw-C-GwGw-R Manuel utilisateur

JL Audio

JL Audio C1-650 Manuel utilisateur

JL Audio

JL Audio M6-650 Series Manuel utilisateur

JL Audio

JL Audio TR650-CXI Manuel utilisateur

JL Audio

JL Audio PS-SWMCP Manuel utilisateur

JL Audio

JL Audio C2-075ct Manuel utilisateur

JL Audio

JL Audio STEALTHBOX SB-POL-SLINGSPKR/M770 Manuel utilisateur

JL Audio

JL Audio TR690-TXi Manuel utilisateur

JL Audio

JL Audio M6-650X Manuel utilisateur

JL Audio

JL Audio M3-770x Manuel utilisateur

JL Audio

JL Audio TR650-CXi Manuel utilisateur

JL Audio

JL Audio Stealthbox SB-F-MUSCPE/12TW3 Manuel utilisateur

JL Audio

JL Audio C7-350cm Manuel utilisateur

JL Audio

JL Audio Evolution XR650-CS Manuel utilisateur

JL Audio

JL Audio C5-570 Manuel utilisateur

JL Audio

JL Audio C1-650X Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
