JET TECH TECHNICAL MANUAL

737E VER1.02 2015/12

Contacts

Tools

Some of the tools you will need

to repair and service the 737e.

Volt Meter

Temperature meter

Allen Keys (Metric)

Phillips screw driver

Nut drivers (Metric)

Wrenchs (Metric)

US Metric

(inches) (mm)

1/8 3.18

5/32 3.97

3/16 4.76

13/64 5.16

7/32 5.56

15/64 6.05

1/4 6.35

17/64 6.75

9/32 7.14

5/16 7.94

11/32 8.73

3/8 9.53

7/16 11.11

15/32 11.91

1/2 12.7

17/32 13.49

Technical Support 1-888-275-4538

Robert Marsolais Service Manager 225 [email protected]

Alan Gallagher Service Consultant 214 [email protected]

Jonathan Menard Service Consultant 230 [email protected]

Richard M. Hiller Special Projects Manager 211 [email protected]

service @mvpgroupcorp.com

Top of 737e

20104

20173

20716

20715

20713

20067

20732

20714

20718

temperature probe Wash Tank

Temperature probe rinse booster

Power line L1

Power line L2

Door switch signal

Water level signal

Booster Heat

Wash Heat

Incoming Water (chemicals) Drainage

Wash

Power Line L2

Final Rinse Probe

Touch-Pad

Wash Cycles

4m 3m 2m

Display

ON/OFF

Cycle Start

Unused Drain

ELECTRONIC BOARD PROGRAMMING

START

CBAD

MENU ACCESS

1 TURN THE MACHINE ON AND OFF BY PRESSING BUTTON A.

(IF THE MACHINE IS ALREADY ON, TURN IT OFF BY PRESSING BUTTON A)

2 PRESS BUTTON B SEVEN (7) TIMES WITHIN (10) SECONDS FROM TURNING OFF

MACHINE.

3 PRESS AND KEEP PRESSING BUTTON C ONCE QUICKLY.

“P-00 STOP” WILL BE ON THE DISPLAY.

MODIFY PARAMETERS

1 SELECT A PARAMETER BY SCROLLING THROUGH THE MENU WITH BUTTON B.

2 PRESS BUTTON C TO ENTER INTO THE PARAMETER MODIFICATION.

3 PRESS BUTTON B TO MODIFY THE PARAMETER WITH AVAILABLE OPTIONS

AND BUTTON C TO CONFIRM THE MODIFICATION.

ONCE YOU CONFIRM THE MODIFICATION, YOU RETURN TO POINT 1 WITH THE OPTION TO

SELECT ANOTHER PARAMETER BY SCROLLING THROUGH THE MENU WITH BUTTON B.

Level 1

Level 1 access will allow you to change the ﬁrst 4 settings.

P-00

STOP

P-01

T-BL

P-02

T-VA

P-03

SOFT

Thermostop

0= not active

1=active

default:0

Temperature boiler

Min 60C 140F

Max 95C 200F

Default 85C 185F

Temperature Tank

Set to 70C 160F

Default 60C 140F

Soft start

0= not active

1= active

default: 1 ,set to 0

AVAILABLE PARAMETERS

MAX HEATING TANK

Min 1 min

Max 60 min

∗DEFAULT 45 min

DON’T MODIFY

TEMPERATURE UNITS

FAR = FAHRENHEIT

CEL = CELSIUS

∗DEFAULT CEL=CELSIUS

OFFSET TEMPERATURE TANK

Min - 20°C

Max +20°C

∗DEFAULT 0°C

DON’T MODIFY

MAX HEATING BOILER

Min 5 min

Max 60 min

∗DEFAULT 30 min

DON’T MODIFY

REAL TEMPERATURE

0 = FILTERED

1 = REAL

∗DEFAULT 0 = FILTERED

DON’T MODIFY

MAX LOADING TANK

Min 1 min

Max 20 min

∗DEFAULT 10 min

DON’T MODIFY

MAX DRAIN TANK

Min 1 min

Max 20 min

∗DEFAULT 2 min

DON’T MODIFY

TEMPERATURE BOILER

Min 60°C

Max 95°C

∗DEFAULT 85°C

TEMPERATURE TANK

Min 40°C

Max 65°C

∗DEFAULT 60°C

TYPE MACHINE

Min 1

Max 2

∗DEFAULT SEE CHART

SOFT START

0 = not active

1 = active

∗DEFAULT 1=ACTIVE

OFFSET TEMPERATURE BOILER

Min - 20°C

Max +20°C

∗DEFAULT 0°C

THERMOSTOP

0 = not active

1 = active

∗DEFAULT 0=NOT ACTIVE

MODEL MACHINE

Min 1

Max 27

∗DEFAULT SEE CHART

P04

(DISPLAY)

P05

(DISPLAY)

MODEL

CYCLE

DRAIN PUMP

2 8

4 31 70 + 120 + 180 + 240 sec

757E

120 + 180 + 240 sec YES

727E / 737E

1 TURN THE MACHINE ON AND OFF BY PRESSING BUTTON A.

(IF THE MACHINE IS ALREADY ON, TURN IT OFF BY PRESSING BUTTON A)

2 PRESS BUTTON B SEVEN (7) TIMES WITHIN (10) SECONDS

FROM TURNING OFF MACHINE.

3 PRESS AND KEEP PRESSING BUTTON C FOR THREE (3) SECONDS

UNTIL P-00 STOP IS ON THE DISPLAY.

Level 2

Level 2 access will allow you to change all 14 settings.

P-04

TIPO

P-05

MODL

P-06

O-BL

P-07

O-VA

TYPE OF MACHINE

SET AT 2

MODEL OF MACHINE

SET AT 8

OFFSET

TEMPERATURE BOILER

! DO NOT CHANGE

SET AT 0

OFFSET

TEMPERATURE TANK

! DO NOT CHANGE

SET AT 0

PP-0

P-01

P-02

P-03

P-08

REAL

P-09

FARH

A-00

N-BL

A-01

N-VA

REAL TEMPERATURE

0= FILTERED

1= ACTUAL

DEFAULT=0

TEMPERATURE UNIT

0=CELSIUS

1= FAHRENHEIT

SET TO 1

MAX HEATING TIME

FOR BOILER

MIN 5 MIN

MAX 60 MIN

DEFAULT 30 MIN

MAX HEATING TIME

FOR TANK

MIN 1 MIN

MAX 60 MIN

DEFAULT 45MIN

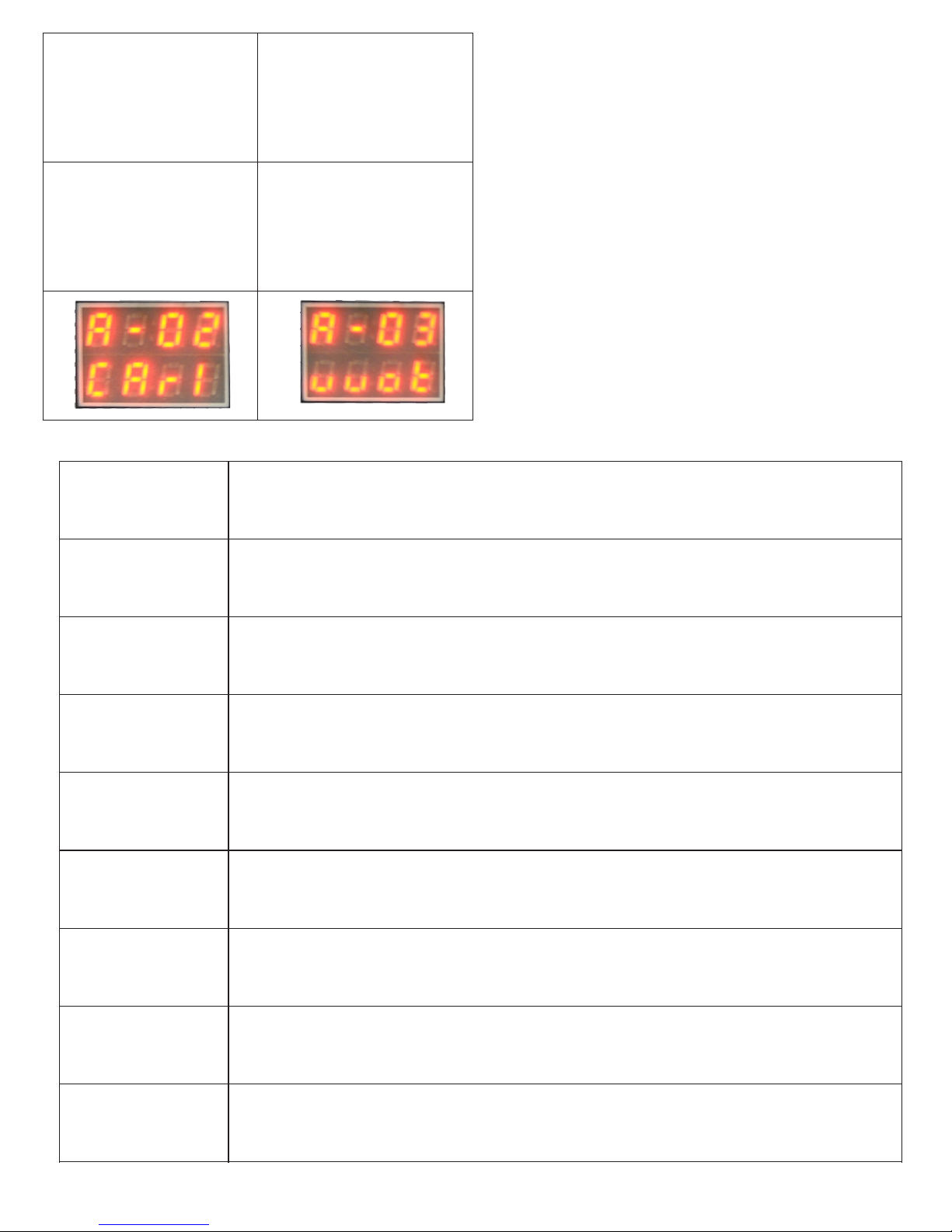

A-02

CARL

A-03

VUOT

MAX FILL TIME

MIN 1 MIN

MAX 20 MIN

DEFAULT 10 MIN

MAX DRAIN TIME

MIN 1 MIN

MAX 20 MIN

DEFAULT 2 MIN

ntcb

E-01

Booster temperature probe faulty or not connected properly

ntcu

E-02

Tank temperature probe faulty or not connected properly

FILL

E-03

Water ﬁll not completed within allocated time (10 min)

Obstruction in water line, or faulty solenoid valve.

t bo

E-04

Booster temperature limit setpoint reached (+14C/ 57F)

t UA

E-05

Tank temperature limit setpoint reached (+14C/57F)

drA

E-06

Drain problem; Drainage not completed on maximum set time.

Bad drain pump, obstruction in drain line or pump.

bnot

E-07

Maximum booster heating time reached (15min)

unot

E-08

maximum tank heating time reached (30 min)

SErulCE

E-09

Memory error or electronic board damaged

Error Codes

-PS-

d--1

-PL-

d--1

88:88

empty

-r r-

0143

Drain pump test

door closed

d--0 = door open

Wash pump test

door closed

N/A

SALT

OPEN

-rb-

0078

empty

88:88

-rL-

0046

N/A

Booster heater test

temperature in Celsius

Wash Tank Heater test

Temperature in Celsius

-EC-

d--1

-ER-

d--1

-Er-

d--1

-Eb-

d--1

P-10

door closed

P-13

door closed

P-25

door closed

Solenoid valve

(chemical pumps) test

door closed

1 TURN THE MACHINE ON AND OFF BY PRESSING BUTTON A.

(IF THE MACHINE IS ALREADY ON, TURN IT OFF BY PRESSING BUTTON A)

2 PRESS BUTTON C SEVEN (7) TIMES WITHIN (10) SECONDS

FROM TURNING OFF MACHINE.

Level 3

Level 3 access will allow you test different components.
