Jensen VM9226BT Manuel utilisateur

VM9226BT

Operating Instructions

160

watts peak

40W x 4

VM9226BT

CONTENTS

Thank you for choosing a Jensen product. We hope you will nd the instructions

in this owner’s manual clear and easy to follow. If you take a few minutes to look

through it, you’ll learn how to use all the features of your new Jensen VM9226BT

Mobile Multimedia Receiver for maximum enjoyment.

Features 3

Controls and Indicators 6

Remote Control 7

Operating Instructions 13

Settings Menu 19

Tuner Operation 26

DVD/VCD Video Operation 30

DVD/CD Audio Operation 36

MP3/WMA Operation 40

iPod® Operation 46

Pandora Radio Operation 50

Bluetooth Operation 53

SiriusXM Radio Operation 60

Rear Camera Operation 67

Troubleshooting 68

Disc Error Messages 71

Pandora Error Messages 71

Care and Maintenance 72

Specications 73

VM9226BT

FEATURES

Congratulations on your purchase of the Jensen VM9226BT Mobile Multimedia

Receiver. It’s a good idea to read all of the instructions before beginning the

installation. We recommend having your Jensen VM9226BT installed by a reputable

installation shop.

DVD

• Fast Forward/Reverse - 2X, 4X, 8X and 20X

• Slow Motion Forward/Reverse - 1/2, 1/4, 1/6 and 1/8

• Play, Pause, Stop, Next Chapter and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA / Europe / Latin America / Asia Frequency Spacing

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod®/iPhone®

• iPod®/ iPhone® via USB

• High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums

and Songs. Play music and view video/photo* les from your iPod®. *Video/photo

playback requires jLink-USB iPod® interface cable (sold separately).

• Power Management Charges iPod® while Connected

SiriusXM® Ready

• Satellite Channel Name, Artist, Song and Categories Displayed on Monitor

VM9226BT

Chassis

• 2.0 DIN (Import / ISO-DIN Mountable)

• Fixed Front Panel

• 6.2” High Denition TFT LCD

• 1,152,000 Sub Pixels (800 x 3 X 480)

• Beep Tone Conrmation (ON-OFF Option)

• Heat Management System - Forced-Air Cooling To Keep The Chip-Sets

Operating at Nominal Temperatures

General

• Navigation Ready (NAV104)

• Built-In Bluetooth® with external microphone, providing Hands-Free operation

for safety and convenience and A2DP for streaming music from your

smartphone or other Bluetooth® device.

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Three-Band Tone control (Bass, Mid and Treble) with Eight Preset EQ Curves

• Front Panel A/V Aux Input for Portable Media Devices

• Rear Subwoofer Line Output

• Programmable Volume Control

• Rear Camera Input (Normal and Mirror Image View)

• Touch Screen Calibration Mode

• 4VRMS Line Output - All Channels

• Rotary Encoder Audio Control

• Optional Equipment

NAV104

The VM9226BT is “navigation ready.” Before accessing any navigation features, you

must purchase and install the navigation module (NAV104). All installation and

operating instructions will be included with the navigation module.

Once the navigation module is connected and operating properly, the NAV source

mode will become active. While the navigation module is not installed, the NAV

option appears gray, indicating the function is not available.

Rear Camera

The VM9226BT is “camera ready.” Before accessing any camera features, you must

purchase and install a rear video camera. Once the camera is connected and

operating properly, the CAMERA source mode will become active. While the

camera is not installed, the CAMERA option appears gray, indicating the function

is not available.

VM9226BT

WARNING! Never install this unit where operation and viewing could interfere

with safe driving conditions.

WARNING! To reduce the risk of a trac accident (except when using for rear

view video camera) never use the video display function while driving the

vehicle. This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or re, never expose this unit to

moisture or water.

WARNING! Never use irregular discs.

VM9226BT

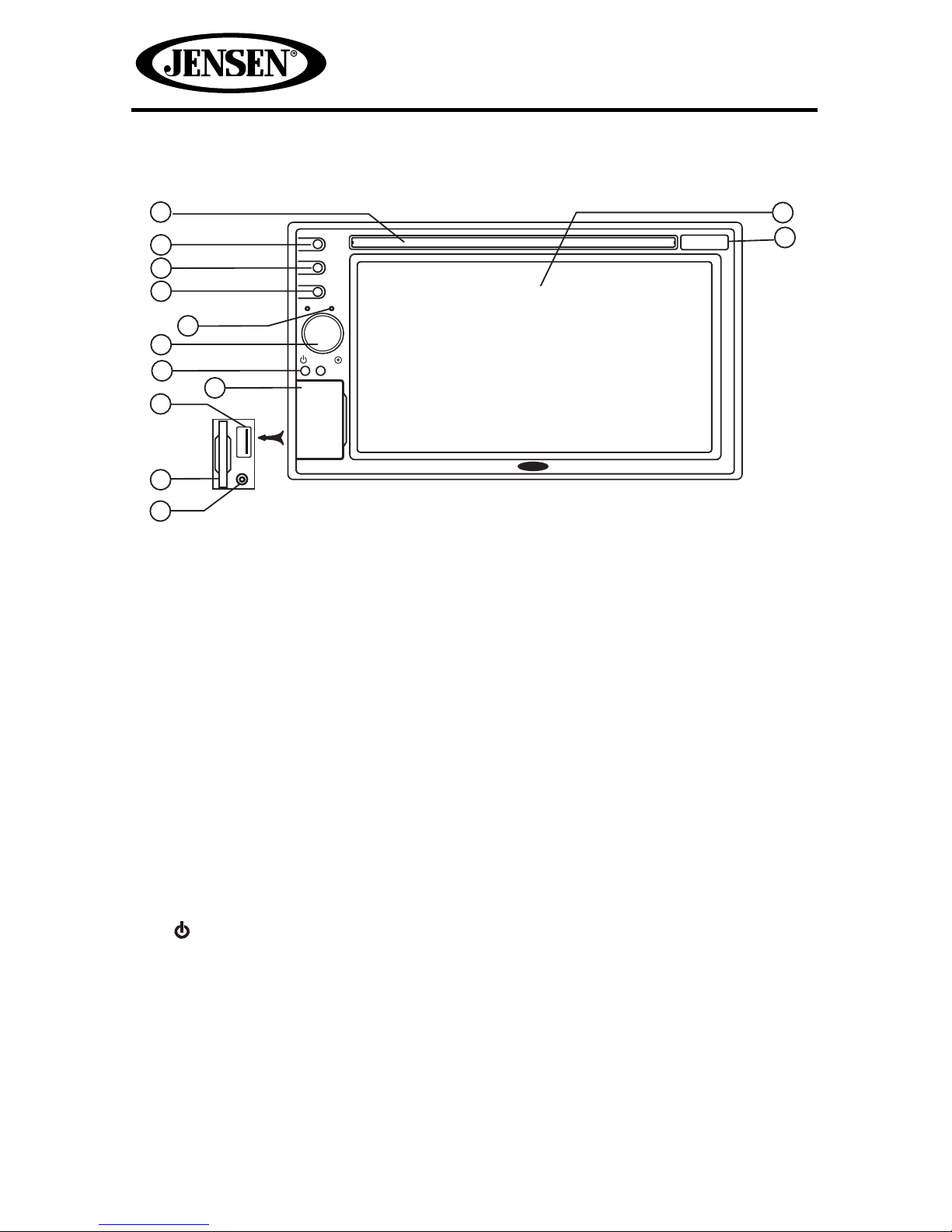

CONTROLS AND INDICATORS

SRC

EJECT

OPE N

VM9226BT

SD CARD

AV INPUT

1. Disc Slot

2. EJECT Button

Press to eject a disc.

3. SRC Button

Press to switch between the

available audio/video sources

applied to the unit.

4. NAV Button

Press to toggle back and forth

between the navigation and

currently selected source.

5. Reset Button

Press to reset system settings to

factory default (except password

and parental lock settings).

6. Rotary Encoder / Power On/O

( ) Button

Rotate to adjust the volume. Press

momentarily to activate the MUTE

function. Press again to resume

normal listening.

Press to turn the unit ON. Press and

hold to turn the unit OFF.

7. Remote Sensor

8. USB/SD/AV Interface Connector

Cover

9. USB Interface Connector

Connect a USB device for playback

of music/video les.

10. SD Interface Connector

Insert an SD card for playback of

music/video les.

11. A/V Input

Accepts a 3.5 mm jack through

which signals from various audio/

video devices can be applied to

the unit.

12. TFT Display

13. Map Cover

Covers the Mini SD card slot.

The Mini SD card is used for the

Navigation Map only, not for music

or other les. This may be used for

rmware updates if required.

VM9226BT

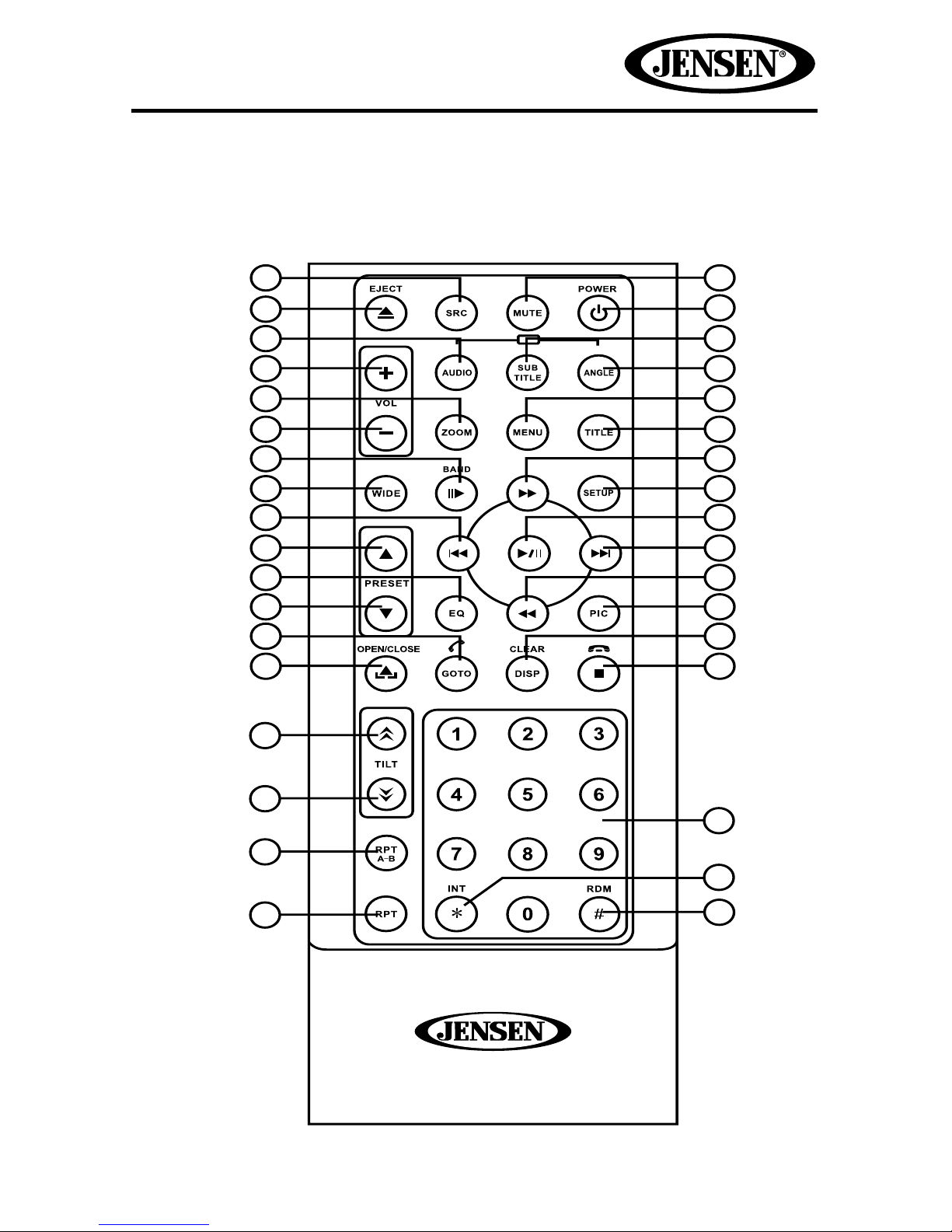

1. REMOTE CONTROL

See Table 1 for remote control functions.

MUSICPHOTO

VIDEO

iPod

VM9226BT

Table 1: Remote Control Functions

Button Function

Name # DVD VCD TUNER CD/MP3/

USB

iPod

MENU 1 Enters

the main

menu of

the disc.

Turns on/o

PBC when

playing

VCD.

Selects


mode.

TITLE 2 Enters the

title menu

of the disc.

Plays the

rst ten

seconds

of each

chapter/

title.

Selects

Music

mode.

MUTE 3 Toggles

on/o

audio

output.

Toggles on/

o audio

output.

Toggles on/

o audio

output.

Toggles

on/o

audio

output.

Toggles

on/o

audio

output.

POWER

(( ) )

4 Turns the

power on/

o.

Turns the

power on/

o.

Turns the

power on/

o.

Turns the

power on/

o.

Turns the

power

on/o.

MUSIC/

AUDIO

5 Changes

the audio

language

for disc

playback.

Selects

Music

mode.

REPT A-B 6 Setup to

repeat

playback

from time

frame A

to time

frame B.

Setup to

repeat

playback

from time

frame A

to time

frame B.

REPT 7 Repeats

playback

of current

chapter.

Repeats

playback

of current

chapter.

Repeats

playback

of current

track.

Repeats

playback

of current

track.

SRC 8 Selects

playing

mode.

Selects

playing

mode.

Selects

playing

mode.

Selects

playing

mode.

Selects

playing

mode.

VM9226BT

Table 1: Remote Control Functions

Button Function

Name # DVD VCD TUNER CD/MP3/

USB

iPod

PHOTO/

SUBTITLE

9 Language

selection

for subtitle.

Selects


mode.

DISP/

CLEAR

10 Displays

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct

Access

mode.

Displays

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct Access

mode.

Displays

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct

Access

mode.

Display

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct

Access

mode.

Displays

playing

information.

Delete entry

or move

backwards

to correct

error in

Direct

Access

mode.

PRESET 11 Navigates

the preset

station list.

PRESET 12 Navigates

the preset

station list.

VIDEO/

ANGLE

13 Plays back

disc in

dierent

angle for a

scene.

Plays back


CD with

dierent

angle of


displayed.

Selects

Video

mode.

14 Fast

forwards

the disc

content.

Fast

forwards

the disc

content.

Fast

forwards

the disc

content.

Accesses

iPod

Menu..

VOL - 15 Decreases

volume.

Decreases

volume.

Decreases

volume.

Decreases

volume.

Decreases

volume.

VM9226BT

Table 1: Remote Control Functions

Button Function

Name # DVD VCD TUNER CD/MP3/

USB

iPod

VOL + 16 Increases

volume.

Increases

volume.

Increases

volume.

Increases

volume.

Increases

volume.

17 Selects

the

chapter

for

playback.

Selects the

chapter for

playback.

Searches for

an available

radio

station by

decreasing

tuning

frequency.

Selects

the

track for

playback.

Pauses

playback/

starts

playback.

18 Pauses

playback/

starts

playback.

Pauses

playback/

starts

playback.

Pauses

playback/

starts

playback.

19 Selects

the next

chapter

for

playback.

Selects

the next

chapter for

playback.

Searches

an available

radio

station by

increasing

the tuning

frequency.

Selects

the next

track for

playback.

Selects

the next

track for

playback.

/ 20 Stops

playback.

Stops

playback.

Stops

playback.

GOTO 21 Open

direct

entry

screen.

Open

direct

entry

screen.

22 Slow

playback/

slow

rewind

playback.

Slow

playback/

slow

rewind

playback.

ZOOM 23 Zooms in/

out on an

image.

Zooms in/

out on an

image.

Autres manuels pour VM9226BT

Table des matières

Autres manuels Jensen Récepteur de voiture

Jensen

Jensen JCDWIN Manuel utilisateur

Jensen

Jensen VX3024 Fiche technique

Jensen

Jensen VM9022 - DVD Player With LCD Monitor Manuel utilisateur

Jensen

Jensen JWM452 Instructions d'installation

Jensen

Jensen VX3026 Fiche technique

Jensen

Jensen JCD3007 Manuel utilisateur

Jensen

Jensen Heavy Duty JHD1620 Manuel utilisateur

Jensen

Jensen DMX5020 Manuel utilisateur

Jensen

Jensen VX4014 Manuel utilisateur

Jensen

Jensen Phase Linear UV10 Manuel utilisateur

Jensen

Jensen CMR3710 Mode d'emploi

Jensen

Jensen VM9412 - In-dash DVD Receiver Manuel utilisateur

Jensen

Jensen AM/FM RADIO WITH AUDIO CASSETTE PLAYER Manuel utilisateur

Jensen

Jensen JBR550PKG Manuel utilisateur

Jensen

Jensen VM9022 - DVD Player With LCD Monitor Manuel utilisateur

Jensen

Jensen CR560X Manuel utilisateur

Jensen

Jensen VM9225BT Manuel utilisateur

Jensen

Jensen DV354 Manuel utilisateur

Jensen

Jensen cd3010x Manuel utilisateur

Jensen

Jensen VM8013 Manuel utilisateur

Jensen

Jensen AWM960 Manuel utilisateur

Jensen

Jensen VX7020 Manuel utilisateur

Jensen

Jensen VX3010 Manuel utilisateur

Jensen

Jensen VM9312 - DVD Player With LCD Monitor Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
