Jensen VM9215BT Manuel utilisateur

VM9215BT

VM9215BT Head Unit

Single DIN Sleeve

Wiring Harness

Parking Brake Sensor Extension Wire

Mounting Hardware

Cosmetic Trim Ring

Owner’s Manual

Installation Guide

Tools and Supplies

You will need these tools and supplies to install your VM9215BT:

• Torx type, at-head and Philips screwdrivers

• Wire cutters and strippers

• Tools to remove existing radio (screwdriver, socket wrench set or other tools)

• Electrical tape

• Crimping tool

• Volt meter/test light

• Crimp connections

• 18 gauge wire for power connections

• 16 – 18 gauge speaker wire

What’s in the Box

WARNING! Never install this unit where operation and viewing could interfere

with safe driving conditions.

Installation Guide

VM9215BT

Disconnecting the Battery

To prevent a short circuit, be sure to turn o the ignition and remove the negative (-) battery cable prior to installation.

NOTE: If the VM9215BT is to be installed in a car equipped with an on-board drive or navigation computer, do not

disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use

extra caution during installation to avoid causing a short circuit.

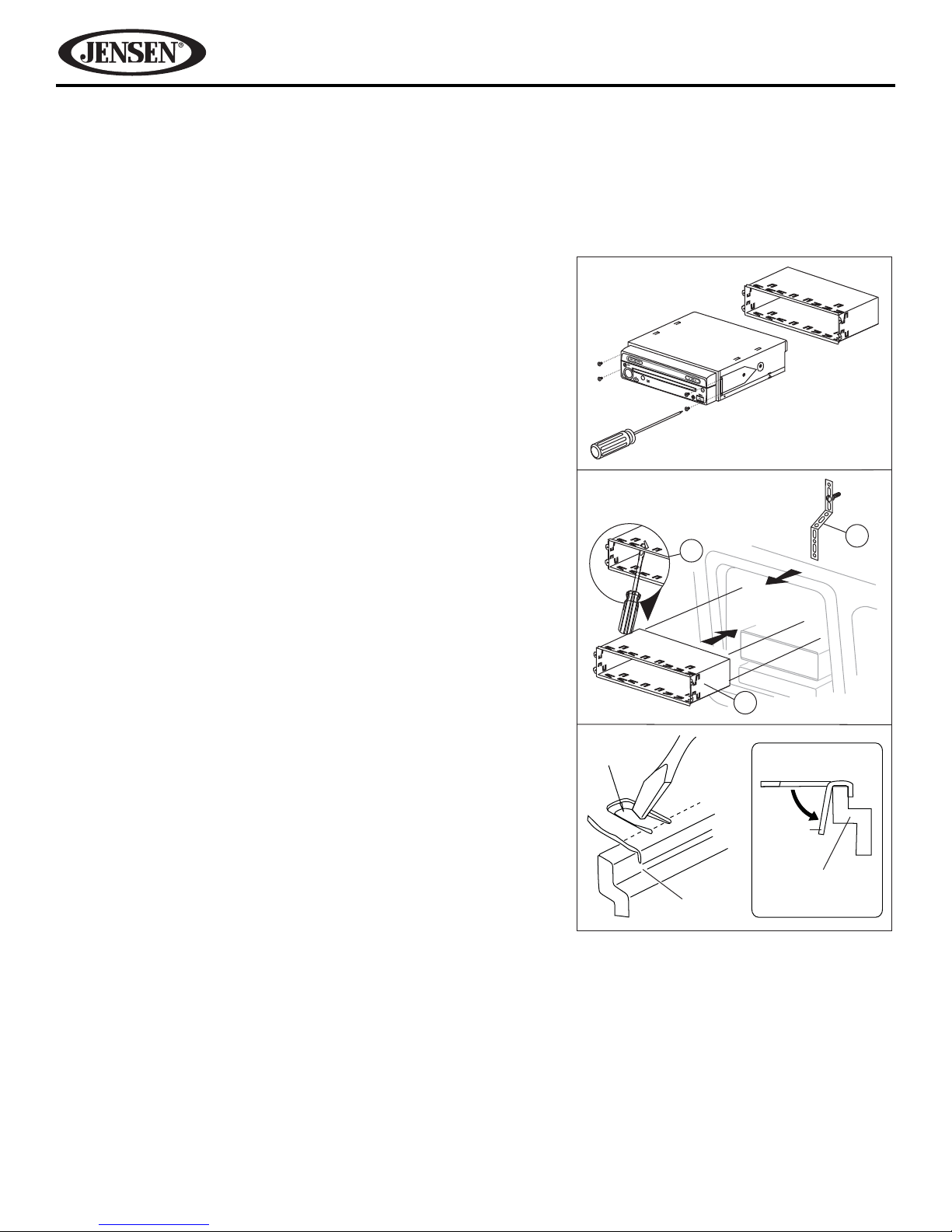

Pre-installation

1. Remove the four screws that attach the mounting sleeve to the

radio and remove the sleeve.

2. Install the mounting sleeve:

a. Install mounting sleeve into the dashboard or optional adapter.

Do not force the sleeve into the opening or cause it to bend

or bow.

b. Locate the series of bend-tabs along the top, bottom and sides

of the mounting sleeve. With the sleeve fully inserted into the

dashboard opening, bend as many of the tabs outward as

necessary so that the sleeve is rmly secured to the dashboard.

c. Install the support strap to make the unit more stable.

3. Place the radio in front of the dashboard opening so the wiring can

be brought through the mounting sleeve.

CAUTION! Be careful not to damage the car wiring.

TAB

DASHBOARD

TAB

EJECT

A/V

INPUT

VM9215BT

Wiring

WARNING! Only connect the unit to a 12-volt power supply with proper grounding.

Complete wiring as illustrated in the wiring diagram on page 4. Once the wiring is complete, reconnect the battery

negative terminal. If there is no ACC available, connect the ACC lead to the power supply with a switch.

NOTE: When replacing a fuse, be sure to use correct type and amperage to avoid damaging the radio. The VM9215BT

uses one 15 amp fuse, located in the black lter box in-line with the main wire harness.

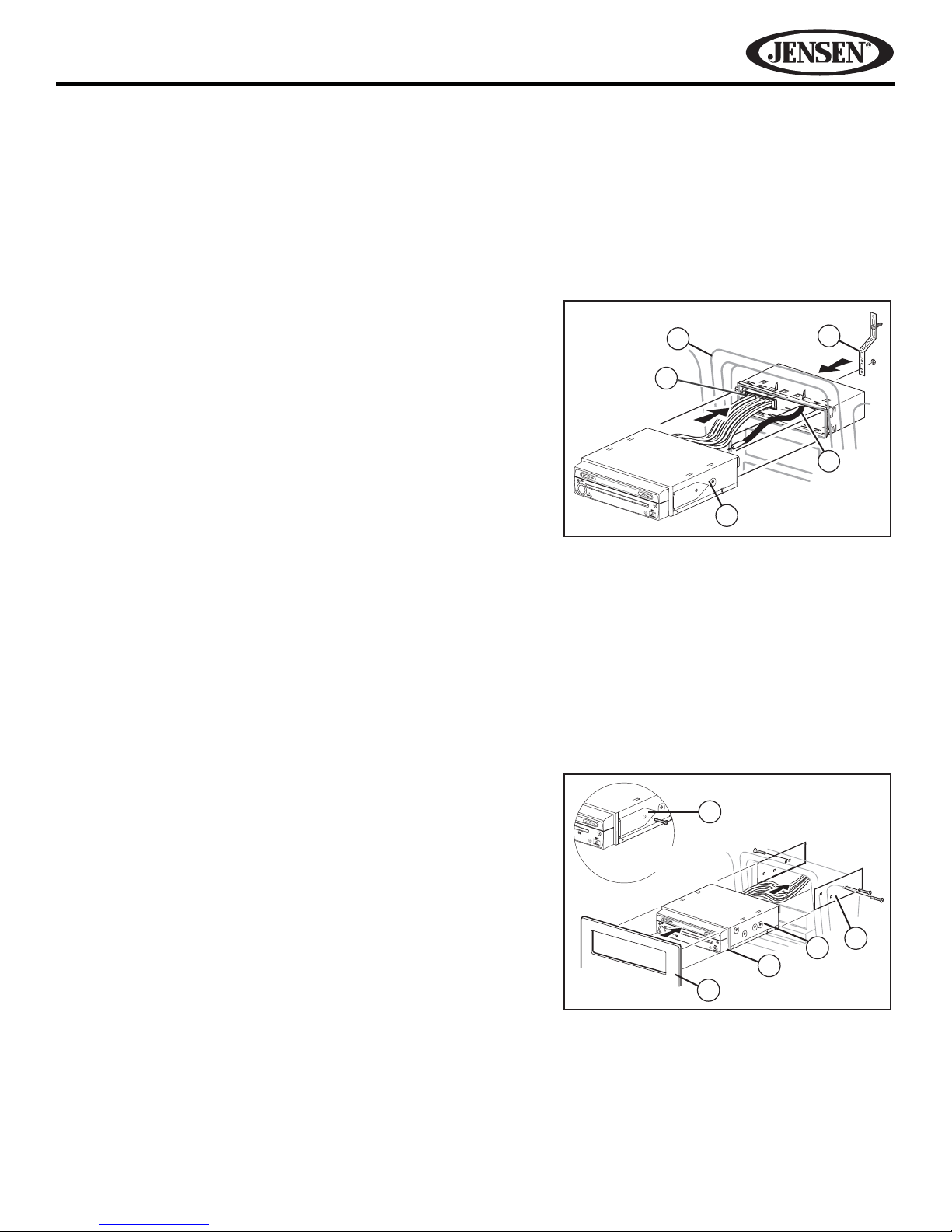

Final Installation

After completing the wiring connections, turn the unit on to conrm

operation (ignition switch must be on). If unit does not operate,

recheck all wiring until the problem is corrected. Once proper

operation is achieved, turn o the ignition switch and proceed with

nal mounting of the chassis.

1. Connect the wiring adapter to the existing wiring harness.

2. Connect the antenna lead.

3. Carefully slide the radio into the mounting sleeve, making sure it

is right-side-up, and secure with the original four screws.

4. Attach one end of the perforated support strap (supplied) to the

screw stud, which is screwed into the threaded insert on the back

of the unit, using the hex nut provided. Fasten the other end of

the perforated strap to a secure part of the dashboard either

above or below the radio using the screw and hex nut provided.

Bend the strap to position it as necessary.

5. Replace any items you removed from the dashboard.

ISO-DIN Installation

1. Remove the mounting sleeve brackets.

2. Remove the trim ring.

3. Mount the factory brackets on the new radio using the existing

screws from the old radio.

4. Slide the radio chassis into the dash opening and secure.

5. Re-install the dash panel.

EJECT

A/V

INPUT

CAUTION! The rear of the radio must be

supported with the strap to prevent damage

to the dashboard from the weight of the radio

or improper operation due to vibration.

EJECT

A/V

INPUT

EJECT

A/V

INPUT

Remove Mounting

Sleeve Brackets

NOTE: For proper operation of the CD/DVD

player, the chassis must be mounted within 20°

of horizontal. Make sure the unit is mounted

within this limitation.

VM9215BT

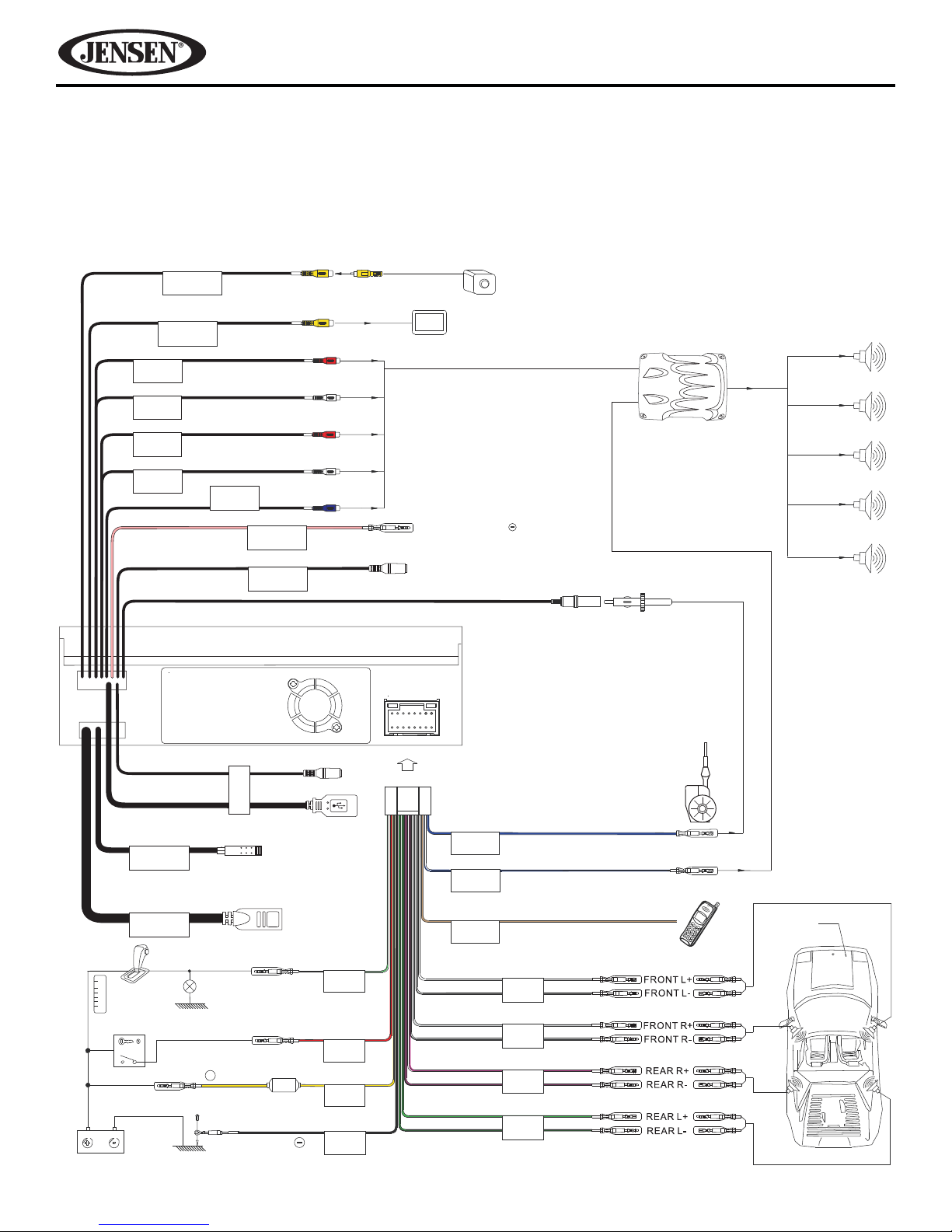

Wiring Diagram

IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the

installation handled by an experienced technician.

For basic iPod® connectivity, you can use the white 30-pin to USB iPod® cable that came with your Apple device. For

iPod® video or photo playback, you must purchase the jLink-USB cable. Connect the iPod® cable to the rear chassis

iPod® inputs (USB / 3.5mm connectors) and route the iPod® cable to an accessible part of the dash area for easy

connectivity. For occasional iPod® use, keep an iPod® cable in your glove box and use it to connect the iPod® to the

front USB connector.

Harness Cord

Auto antenna control (connect to antenna

control lead & power supply of antenna

amplifier)

External power amplifier control

Antenna Jack

REAR R

FRONTL

FRONTR

REAR L

BLUE

BLUE/WHITE

WHITE/BLACK -

GREEN/BLACK -

WHITE +

GREEN +

PURPLE +

PURPLE/BLACK -

GREY/BLACK -

GREY+

Car

Mute (leave open if not connected)

BROWN

Car Phone

FRONTL

FRONTR

REAR R

REAR L

MUTE

P.CONT

ANT.CONT

ACC

GREEN/WHITE

BLACK

YELLOW

RED

FUSE (15A)

Battery

Ignition Switch Ground

Gearbox

Switch

BATTERY

BATTERY +

Ground

BATT

ACC

REVERSE +

GND

PINK

Rear View

Video Camera

YELLOW

External PowerAmplifier

Antenna

VIDEO OUT

YELLOW

Rear Video

CAMERA

SUBWOOFER

NAV104 Connector

(optional equipment)

SWC

BTBus

NAV BUS

Steering Wheel Control (SWC)

(Requires PAC SWI-PS Interface Adapter,

Sold Separately)

Bluetooth Connector

(Connect to optional BTM10)

PRK SW

doPi

PARKING BRAKE

Need Help?

For technical assistance, call the Jensen

customer support line at 1-800-323-4815.

128-9061
