JBL W10GTI Manuel d'instructions
SPECIFICATIONS
DIAMETER: 10" (254.0 MM)
SENSITIVITY (2.83V @ 1M): 92 dB
POWER HANDLING: 600 WRMS, 3,000 WPK
FREQUENCY RESPONSE: 16 HZ~ 1 KHZ
NOMINAL IMPEDANCE:6OHMS (PER COIL)
VOICE-COIL DIAMETER: 3.0" (76.2 MM)
BASKET DISPLACEMENT: 0.090 FT3 (2.549 LITERS)
DIMENSIONS:
THIELE-SMALL PARAMETERS
VOICE COIL DCRESISTANCE:R
EVC (OHMS)*. . . . . 3.80
VOICE COIL INDUCTANCE @ 1 KHZ:L
EVC (MH)* . . . . . . 0.41
DRIVER RADIATING AREA:S
D(FT2). . . . . . . . 0.333
SD(M2) . . . . . . . . 0.031
MOTOR FORCE FACTOR: BL (TM)*. . . . . . . 12.12
COMPLIANCE VOLUME:V
AS (FT3) . . . . . . . . 1.25
VAS (LITERS) . . . . . 35.48
SUSPENSION COMPLIANCE:C
MS (µM/N) . . . . 253.41
MOVING MASS, AIR LOAD:M
MS (GRAMS). . . . 118.00
MOVING MASS, DIAPHRAGM:M
MD (GRAMS) . . . 114.80
FREE-AIR RESONANCE:F
S(HZ) . . . . . . . . 29.11
MECHANICAL Q: QMS . . . . . . . . . . . 7.67
ELECTRICAL Q: QES. . . . . . . . . . . . 0.56
TOTAL Q: QTS. . . . . . . . . . . . 0.52
MAGNETIC-GAP HEIGHT:H
AG (IN). . . . . . . . . 1.00
HAG (MM) . . . . . . . 25.40
VOICE-COIL HEIGHT:H
VC (IN). . . . . . . . . 2.40
HVC (MM) . . . . . . . 60.96
MAXIMUM EXCURSION:X
MAX (IN). . . . . . . . 0.70
(ONE-WAY LINEAR)X
MAX (MM) . . . . . . 17.78
*VOICE COILS CONNECTED IN PARALLEL
SEALED BOX VOLUME
(INCLUDES DRIVER DISPLACEMENT)
SEALED
FREQUENCY RESPONSE @ 2.83 V
SEALED
TRANSDUCER EXCURSION @ 1700 W
JBL, Incorporated • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com
W10GTi 10" Woofer – Technical Data
mounting depth
9.13" (231.78 mm)
cutout diameter
9.19"(233.38 mm)
outer diameter
10.00"(254.00mm)
VBOX = 0.75 ft3 (21.24 liters)
(all sides lined with 1-inch fiberglass or fiberfill)
W10GTi
(side view)
C
dB
95
90
85
80
75
70
65
60
55 20 Frequency 50 100 Hz 200 500 1k 2k
Out-Of-Car
In-Car
12 dB LP@ 90Hz
C
Xd mM
20.0
17.5
15.0
12.5
10.0
7.5
5.0
2.5
0.0
20 Frequency 50 100Hz 200 500 1k 2k

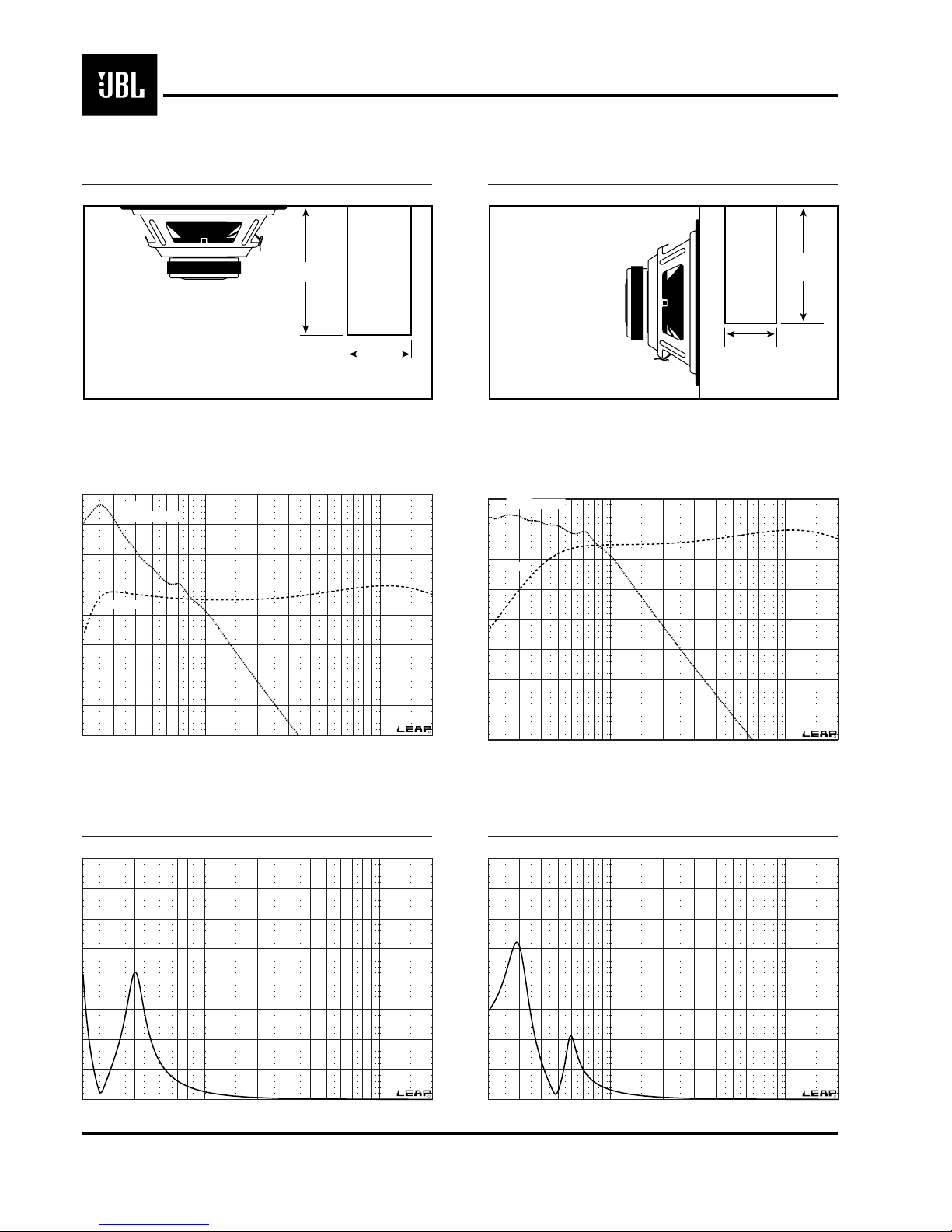

VENTED BOX VOLUME
(INCLUDES DRIVER/PORT DISPLACEMENTS)
VENTED
FREQUENCY RESPONSE @ 2.83 V
VENTED
TRANSDUCER EXCURSION @ 1900 W
SEALED BANDPASS BOX VOLUME
(INCLUDES DRIVER/PORT DISPLACEMENTS)
SEALED BANDPASS
FREQUENCY RESPONSE @ 2.83 V
SEALED BANDPASS
TRANSDUCER EXCURSION @ 1300 W
JBL, Incorporated • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com
W10GTi 10" Woofer – Technical Data
W10GTi
(side view)
Port
fo= 25.0Hz
diameter = 3.0"
length = 11.96"
VBOX = 1.75 ft3 (49.56 liters)
(all sides lined with 1-inch fiberglass or fiberfill)
C
dB
105
100
95
90
85
80
75
70
65 20 Frequency 50 100 Hz 200 500 1k 2k
Out-Of-Car
In-Car
12 dB LP@ 90Hz
C
Xd mM
40
35
30
25
20
15
10
5
0
20 Frequency 50 100Hz 200 500 1k 2k
VREAR = 1.75 ft3 (49.56 liters)
(all sides lined with 1-inch fiberglass or fiberfill) VFRONT = 1.25 ft3
(35.40 liters)
W10GTi
(side view)
diam. = 4.0"
Port
fo= 47.0 Hz length =
6.81"
C
dB
95
90
85
80
75
70
65
60
55 20 Frequency 50 100 Hz 200 500 1k 2k
Out-Of-Car
In-Car
12 dB LP@ 90Hz
C
Xd mM
40
35
30
25
20
15
10
5
0
20 Frequency 50 100Hz 200 500 1k 2k
