JBL SCS 138-178 Manuel utilisateur

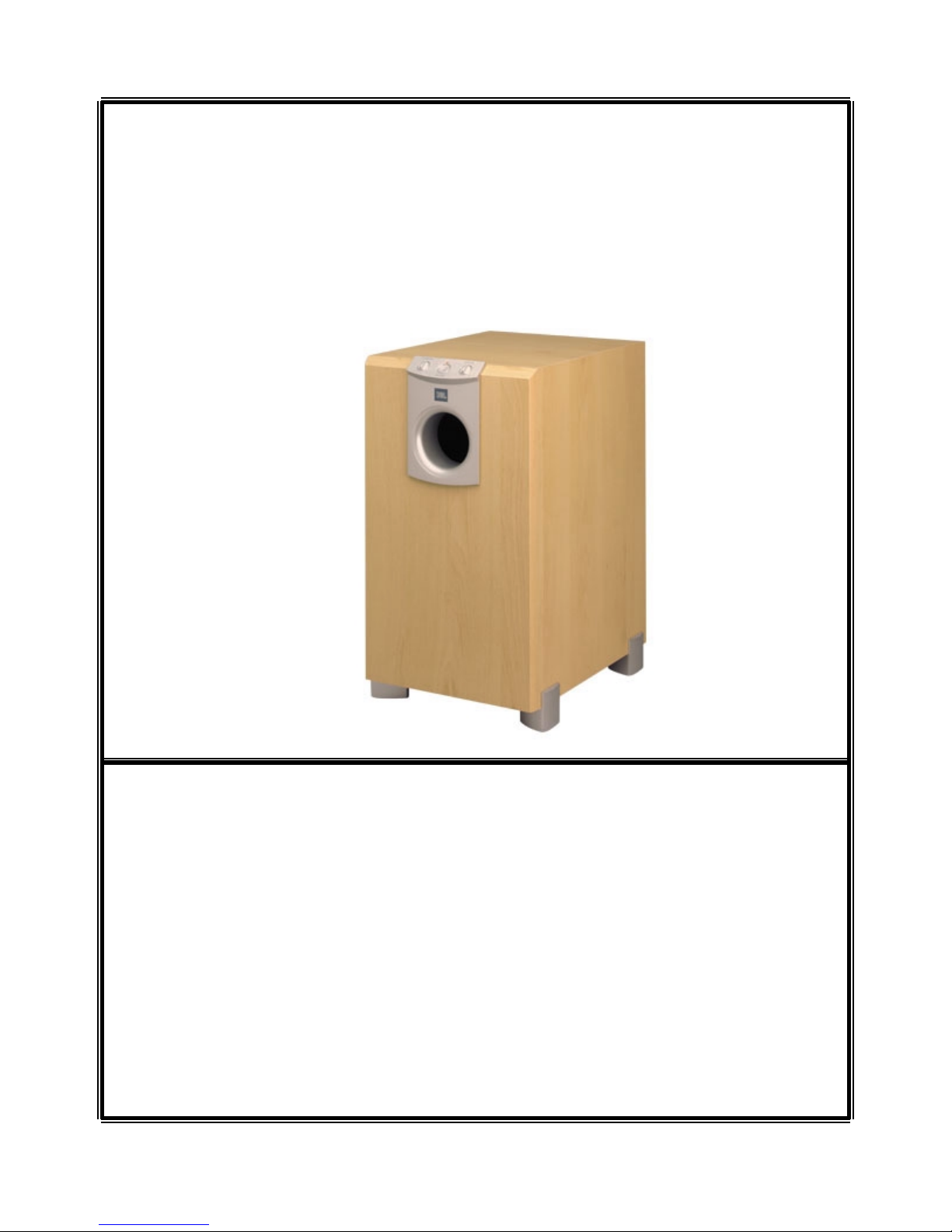

SIMPLY CINEMA - SCS 138-178 Subwoofer

Service manual V1 (E)

SPECIFICATIONS:

Active Subwoofer Section

• Low Frequency Cut-off: 35Hz

• High Frequency Cut-off: 40Hz - 120Hz Variable

• Built-In Amplifier Power: 100 Watts RMS

• Drive Units: 200mm Paper Cone Long Throw Driver

Bass Reflex Enclosure

• Dimensions (H x W x D): 450mm x 250mm x 360 mm

• Weight: 13.6kg

106SUB138E 106SUB138E

PART NO. DESCRIPTION QTY REFERENCE

1101OSUB138C PCB AMP ASS'Y 1

2101ASUB138C AI PCB AMP ASS'Y 1

3104sub138c01 PCB 1

411016103j26 Resistor 10K 1/6W ±5% CF 1R303

511016273j26 Resistor27K 1/6W ±5% CF 1R304

611016472j26 Resistor 4.7K 1/6W ±5% CF 2R301,2

7 115h203b205 Variable Resistor B20K 1VR302

8115h503a202 Variable Resistor A50K 1VR301

9180sms50126 SLIDE SW MS50126 1SW301

10 19006m4558d I.C. OPA 4558D 1U301

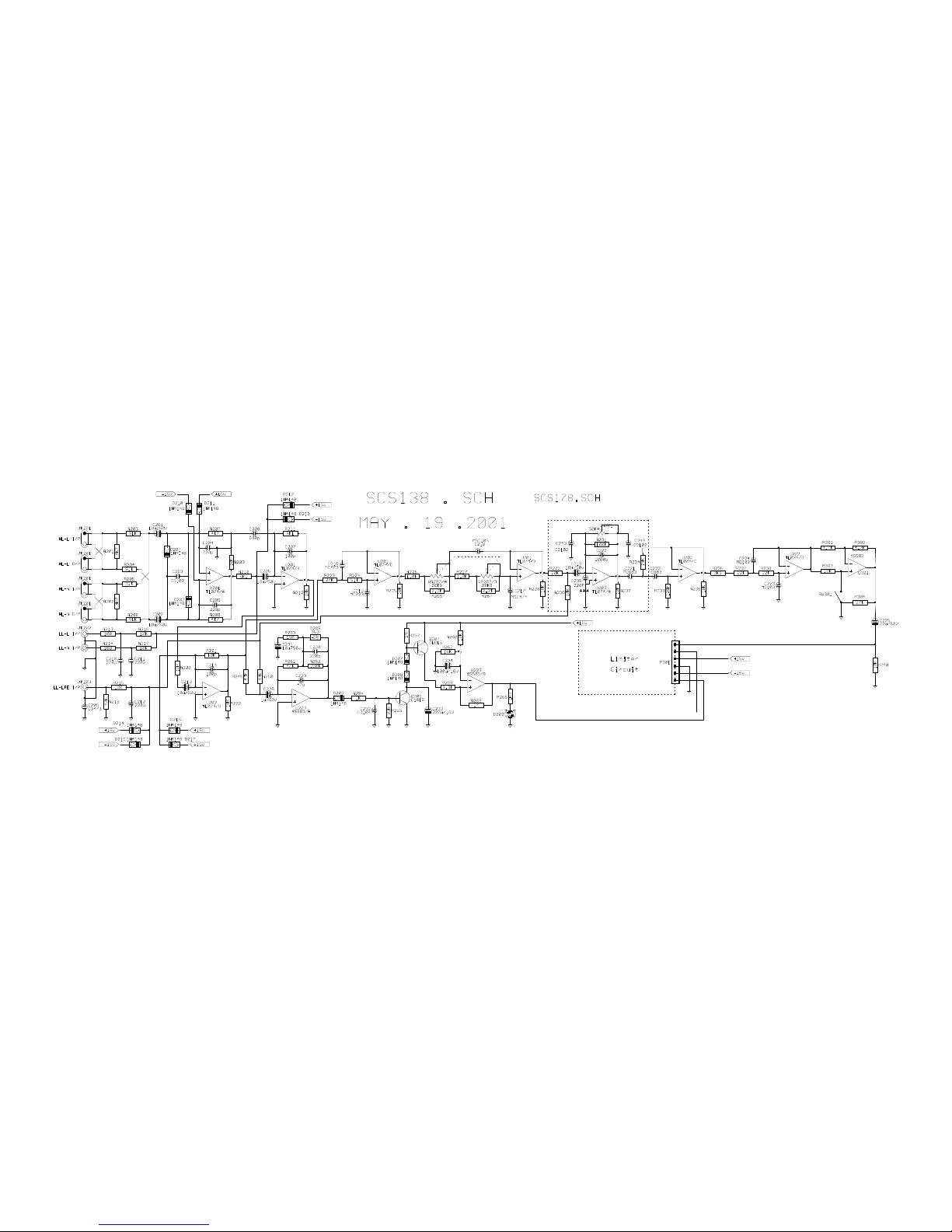

11 101OSUB138E PCB ASS'Y AMP 1

12 101ASUB138E AI PCB ASS'Y AMP OF SUB138 1

13 104sub135e00 PCB OF SUB135CE 1

14 11014122j26 Resistor 1.2K 1/4W ±5% CF 1R265

15 11014472j26 Resistor 4.7K 1/4W ±5% CF 2R201,2

16 11014560j26 Resistor 56 1/4W ±5% CF 1R117

17 11016101j26 Resistor 100 1/6W ±5% CF 4R120,213,4,5

18 11016102j26 Resistor1K 1/6W ±5% CF 3R124,66,254

19 11016103j26 Resistor 10K 1/6W ±5% CF 17 R133,4,209,12,6,7,20,1,2,5,8,9,30,2,5,40,60

20 11016104j26 Resistor100K 1/6W ±5% CF 3R231,163,4

21 11016105j26 Resistor1M 1/6W ±5% CF 2R143,259

22 11016123j26 Resistor 12K 1/6W ±5% CF 3R135,9,65

23 11016124j26 Resistor 120K 1/6W ±5% CF 1R233

24 11016151j26 Resistor 150 1/6W ±5% CF 1R253

25 11016152j26 Resistor 1.5K 1/6W ±5% CF 7R103,23,36,7,41,2,53

26 11016153j26 Resistor15K 1/6W ±5% CF 5R118,45,52,4,234

27 11016154j26 Resistor 150K 1/6W ±5% CF 2R131,252

28 11016181j26 Resistor180 1/6W ±5% CF 2R111,4

29 11016205j26 Resistor2.0M 1/6W ±5% CF 1R257

30 11016223j26 Resistor22K 1/6W ±5% CF 10 R128,9,55,6,8,60,237,8,55,62,3

31 11016273j26 Resistor27K 1/6W ±5% CF 1R223

32 11016332j26 Resistor 3.3K 1/6W ±5% CF 5R106,7,44,236,58

33 11016392j26 Resistor 3.9K 1/6W ±5% CF 2R105,8

34 11016393j26 Resistor39K 1/6W ±5% CF 1R126

35 11016470j26 Resistor47 1/6W ±5% CF 4R112,3,5,6

36 11016471j26 Resistor470 1/6W ±5% CF 3R140,61,2

37 11016472j26 Resistor 4.7K 1/6W ±5% CF 8R110,25,30,47,50,9,207,8

38 11016473j26 Resistor47K 1/6W ±5% CF 5R101,219,49,50,1

39 11016512j26 Resistor 5.1K 1/6W ±5% CF 2R210,1

40 11016513j26 Resistor 51K 1/6W ±5% CF 1R224

41 11016563j26 Resistor 56K 1/6W ±5% CF 1R104

42 11016681j26 Resistor680 1/6W ±5% CF 2R148,51

43 11016682j26 Resistor6.8K 1/6W ±5% CF 1R109

44 11016913j26 Resistor 91K 1/6W ±5% CF 4R203,4,5,6

45 1302b101k503 Disc Capacitor 100P 50V ±10% 4C139,40,207,14

46 1302b102k503 Disc Capacitor 1000P 50V ±10% 4C116,41,203,20

47 1302b221k503 Disc Capacitor 220P 50V ±10% 6C204,5,10,1,2,30

48 1302b681k503 Disc Capacitor 680P 50V ±10% 1C208

49 1302f104z503 Disc Capacitor 0.1U 50V +80/-20% 13 C108,13,5,9,37,8,232,5,6,7,9,40,1

50 1303f473m503 Disc Capacitor 0.047U 50V ±20% 2C106,209

51 130sl470k503 Disc Capacitor 47P 50V +350/-1000 ±10% 1C229

52 132103j503 Mylar Capacitor 0.01U 50V ±5% 2C223,4

53 132104j503 Mylar Capacitor 0.1U 50V ±5% 3C107,221,2

54 132223ja03 Mylar Capacitor 0.022uF 100V ±5% 9C123,4,5,6,7,8,31,2,215

55 132473j503 Mylar Capacitor 0.047U 50V ±5% 1C216

56 1353105m50 Electrolytie Cap. 1U 50V ±20% 3C105,12,228

57 1353106m50 Electrolytie Cap. 10U 50V ±20% 6C201,2,6,13,9,31

58 1353107m16 Electrolytie Cap. 100uF 16V ±20% 7C109,10,17,20,234,8,42

59 1353107m50 Electrolytie Cap. 100U 50V ±20% 1C136

60 1353226m50 Electrolytie Cap. 22U 50V ±20% 2C114,8

61 1353227m10 Electrolytie Cap. 220U 10V ±20% 2C129,30

62 1353227m16 Electrolytie Cap. 220U 16V ±20% 1C111

63 1353336m16 Electrolytie Cap. 33U 16V ±20% 1C233

64 1353476m25 Electrolytie Cap. 47U 25V ±20% 1C103

65 192027c1815gr Transistor 2SC1815GR 9Q102,11,2,3,8,23,6,206,7

66 192027c2235y Transistor 2SC2235Y 1Q121

67 192028a1015gr Transistor 2SA1015GR 3Q114,6,27

68 192028a965y Transistor 2SA965Y 1Q125

69 1921672n5551 Transistor 2N5551 2Q103,9

70 1921682n5401 Transistor 2N5401 AI-PNP 350V 500mA 2Q104,10

71 197131n4148 Ziode 1N4148 19 D101,3,5,8,13,4,201,2,6,7,8,10,1,2,3,4,5,6,7

72 19915000335 Zener Ziode 3.3V 1/2W 2D102,205

73 19915000625 Zener Ziode 6.2V 1/2W 2D106,7

74 19915001605 Zener Ziode 16V 1/2W 1D109

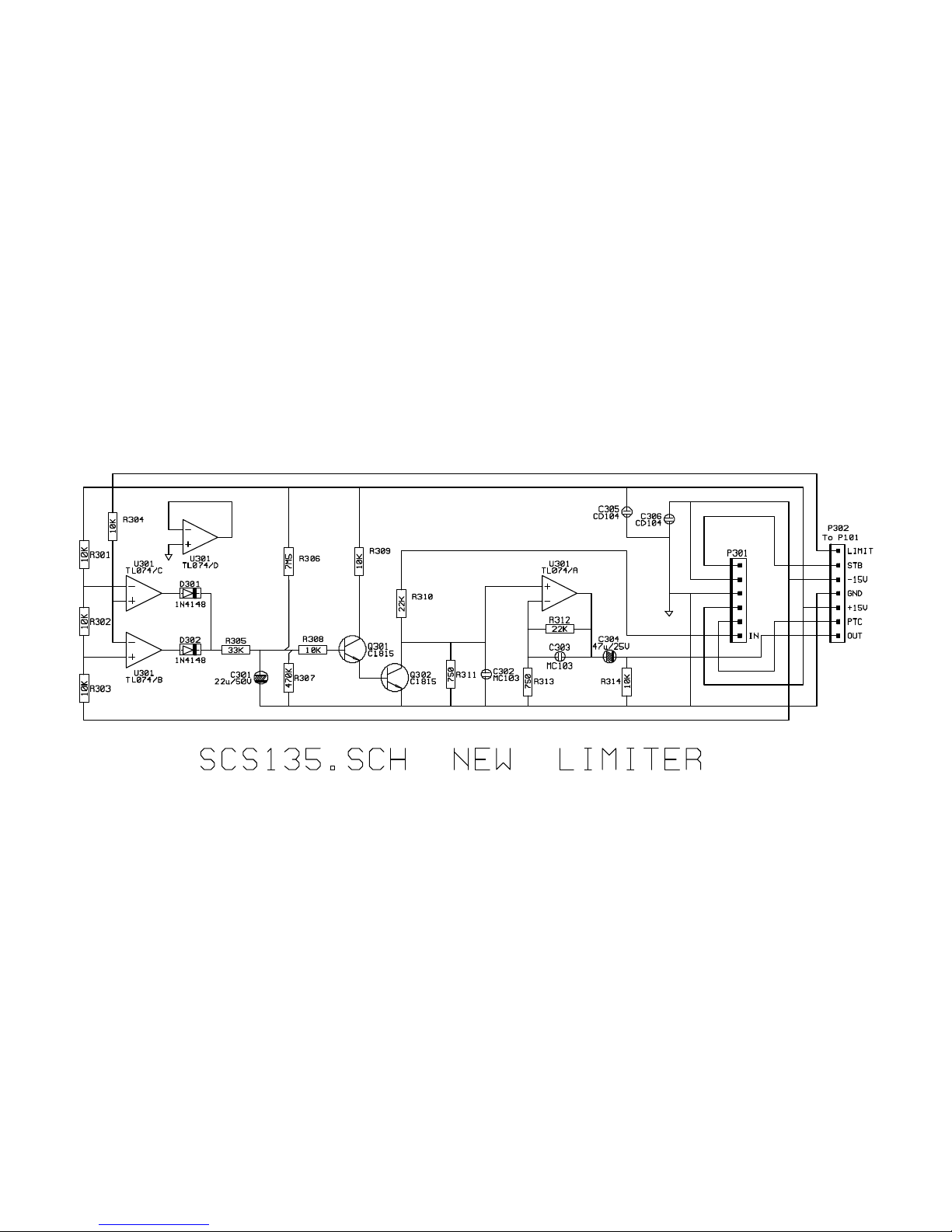

75 101OLIMIT PCB ASS'Y OF LIMITER 1

76 101ALIMIT AI ASS'Y OF LIMITER 1

77 104limit00 PCB OF LIMITER 1

78 11016103j26 Resistor 10K 1/6W ±5% CF 6R301,3,4,8,9,14

79 11016153j26 Resistor15K 1/6W ±5% CF 1R302

80 11016223j26 Resistor22K 1/6W ±5% CF 2R310,2

81 11016333j26 Resistor 33K 1/6W ±5% CF 1R305

82 11016474j26 Resistor 470K 1/6W ±5% CF 1R307

83 11016751j26 Resistor750 1/6W ±5% CF 2R311,3

84 11016755j26 Resistor 7.5M 1/6W ±5% CF 1R306

85 1302f104z503 Disc Capacitor 0.1U 50V +80/-20% 2C305,6

86 132103j503 Mylar Capacitor 0.01U 50V ±5% 2C302,3

87 1353226m50 Electrolytie Cap. 22U 50V ±20% 1C301

88 1353476m25 Electrolytie Cap. 47U 25V ±20% 1C304

89 192027c1815gr Transistor 2SC1815GR 2Q301,2

90 197131n4148 Ziode 1N4148 2D301,2

91 1759f40hr2 40PIN PITCH=2.54mm HR2*40 0.15 P301

92 19016tl074cn I.C. TL074CN ST 1U301

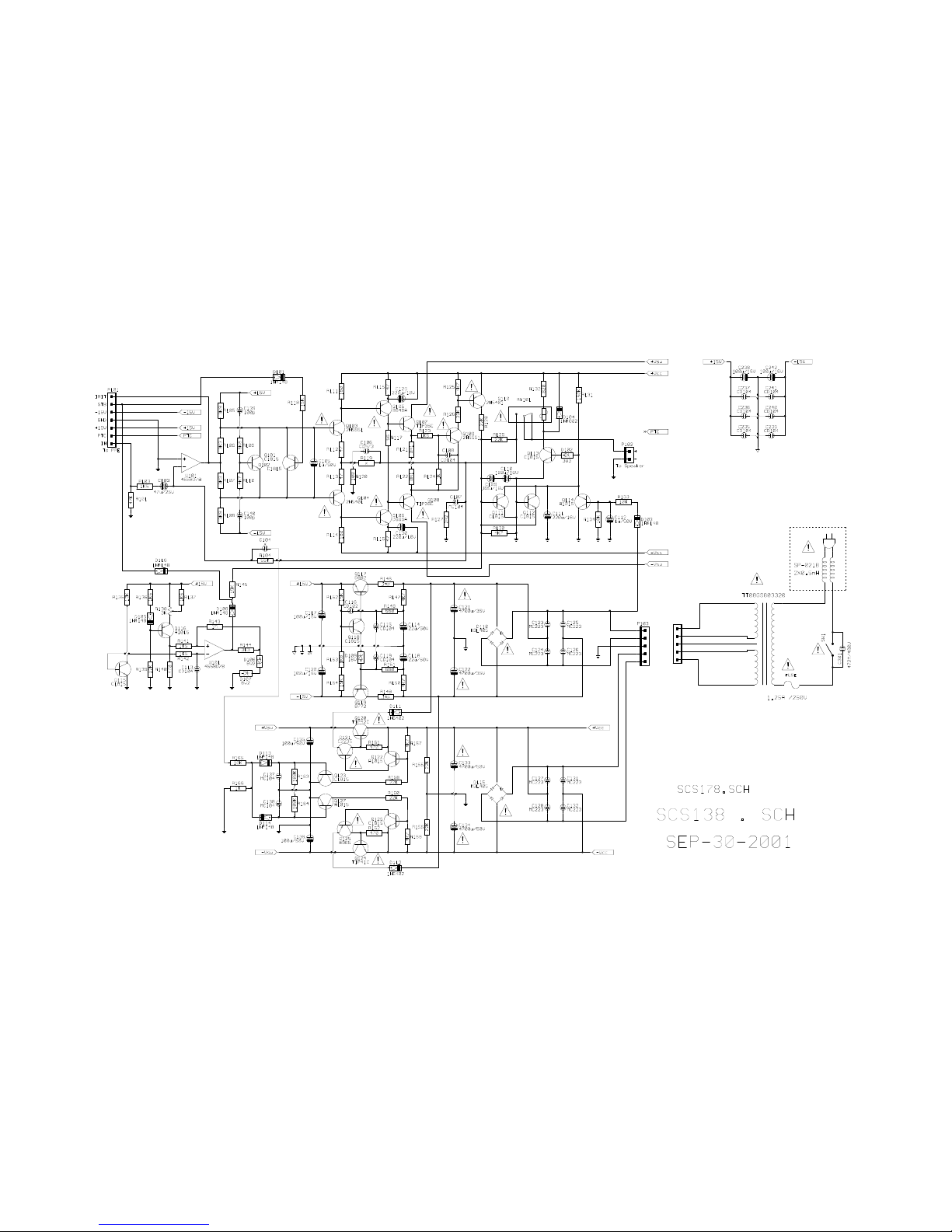

93 11010821jk1 Resistor 820 1W ±5% 1R132

94 110122r2j15 Resistor 2.2 1/2W ±5% 1R127

95 11016102j26 Resistor1K 1/6W ±5% CF 2R226,7

96 11016222j26 Resistor2.2K 1/6W ±5% CF 2R266,7

97 11016472j26 Resistor 4.7K 1/6W ±5% CF 1R157

98 113500r1j10 Cement Resistor 0.1 5W 2R121,2

99 11403302m0 Semi-fixed Resistor 3K 0.3W ±20% 1R138

100 129a105j633 Metallize Cap. 1uF 63V ±5% 1C218

101 129a474j633 Metallize Cap. 0.47U 63V ±5% 1C217

102 1302b102k503 Disc Capacitor 1000P 50V ±10% 2C243,4

103 1302b221k503 Disc Capacitor 220P 50V ±10% 1C235

104 1353107m50 Electrolytie Cap. 100U 50V ±20% 1C135

105 1353226m50 Electrolytie Cap. 22U 50V ±20% 1C225

106 1354478m35 Electrolytie Cap. 4700U 35V ±20% 2C121,2

107 1354478m50 Electrolytie Cap. 4700U 50V ±20% 2C133,4

108 171udhss124d Relay 5A 24V UDH-SS124D 1RY101

109 1740rcb202v RCA JACK RCB-202V 1JK202

110 1740rcb242v1 JACK RCA RCB-242V-1 1JK203

111 1742rsp108v 8 PIN SPK JACK RSP-108V 1JK201

112 19006m4558d I.C. OPA 4558D 2U101,203

113 19016tl074cn I.C. TL074CN ST 2U201,2

114 192021c1815gr Transistor 2SC1815GR 2Q101,15

115 192021tip35c Transistor TIP35C 1Q107

116 192022tip36c Transistor TIP36C 1Q108

117 192028a1015gr Transistor 2SA1015GR 1Q122

118 192161tip41c Transistor TIP41C NPN SGS 1Q124

119 192162tip42c Transistor TIP42C PNP SGS 1Q120

120 192201d882y Transistor KSD882Y 1Q117

121 192202b772y Transistor KSB772Y 1Q119

122 192991d669a Transistor HSD669A 1Q106

123 192992b649a Transistor HSB649A 1Q105

124 19510204hgw LED 204HGW 1

125 19700kbl405 Diode 4A 500V KBL405 2D110,5

126 197101n4002 Ziode 1N4002 1D104

127 197101n5402 Ziode 1N5402 2D111,2

128 197131n4148 Ziode 1N4148 1D116

129 1302g472md00 Disc Capacitor 4700P 400V ±20% 1

130 150e8604106 Power Transformer EI-86 230V/50Hz 1

131 152v60202601 Line Cord SP-021B 6FT VDE 1

132 154v12506t0 Fuse TSD 1.25A 250V VDE 1

133 155520020 Fuse Holder R3-11 1

134 180psddl1a2 Switch 1
