JBL Studio S26 Manuel utilisateur

JBL Consumer Products

250 Crossways Park Drive, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

800-336-4JBL (4525) (USA only)

www.jbl.com

JBL is a registered trademark of JBL, Incorporated.

Part No.

S26/38/310/312 O/G

TWEETER TYPE: Pure-titanium dome with EOS™ waveguide

DESIGN GOAL: Bring the thrill of live performance and movie sound to

the homeenvironment bycalling on JBL’s professional engineering leadership.

CROSSOVER NETWORK: Straight-Line Signal Path™ (SSP)

WOOFER TYPE:

Cast-aluminum basket with HeatScape™ motor structure

PORT DESIGN:FreeFlow™ flared

PROFESSIONAL REFERENCE: Studio Monitor

OWNER’S GUIDE PRO SOUND

COMES HOME™

PRODUCT LINE: STUDIO SERIES

MODEL

S26,S38,S310,S312

NUMBERS:

Studio Series-S26,38,310,312 OM 8/10/99 4:20 PM Page 8

X +

0 +

MHZ

4”

8”

X +

0 +

MHZ

X + 0 + Y

TWEETER TYPE: Pure-titanium dome with EOS™ waveguide

DESIGN GOAL: Bring the thrill of live performance and movie sound to

the homeenvironment bycalling on JBL’s professional engineering leadership.

CROSSOVER NETWORK:Straight-Line Signal Path™ (SSP)

WOOFER TYPE:

Cast-aluminum basket with HeatScape™ motor structure

PORT DESIGN: FreeFlow™ flared

PROFESSIONAL REFERENCE:Studio Monitor

OWNER’S GUIDE

PRODUCT LINE: STUDIO SERIES

MODEL

S26,S38,S310,S312

NUMBERS:

Studio Series-S26,38,310,312 OM 8/10/99 4:20 PM Page 1

For more than 50 years,

JBL has been involved in

every aspect of music

and film recording and

reproduction, from live

performances to the

recordings you play in

your home, car or office.

We’re confident that the

JBL loudspeakers you have

chosen will provide every

note of enjoyment that you

expected – and that when

you think about purchasing

additional audio equipment

for your home, car or

office, you will once again

choose JBL.

Please take a moment to

complete the enclosed

profile card. It enables us

to keep you posted on our

latest advancements, and

helps us to better

understand our customers

and build products that

meet their needs and

expectations.

JBL Consumer Products

THANK YOU FOR CHOOSING JBL

Declaration of Conformity

We, JBL Europe A/S

Kongevejen 194B

DK-3460 Birkerød

DENMARK

Steen Michaelsen

JBL Europe A/S

Birkerød. DENMARK. 8/99

declare in own responsibility, that the loudspeakers

described in this owner’s manual (model numbers

S26, S38, and S310 only) are in compliance with

technical standards

EN 50081-1:1992

EN 50082-1:1992

Studio Series-S26,38,310,312 OM 8/10/99 4:20 PM Page 2

Less than 6–8 feet

More than 6–8 feet

0-2 ft.

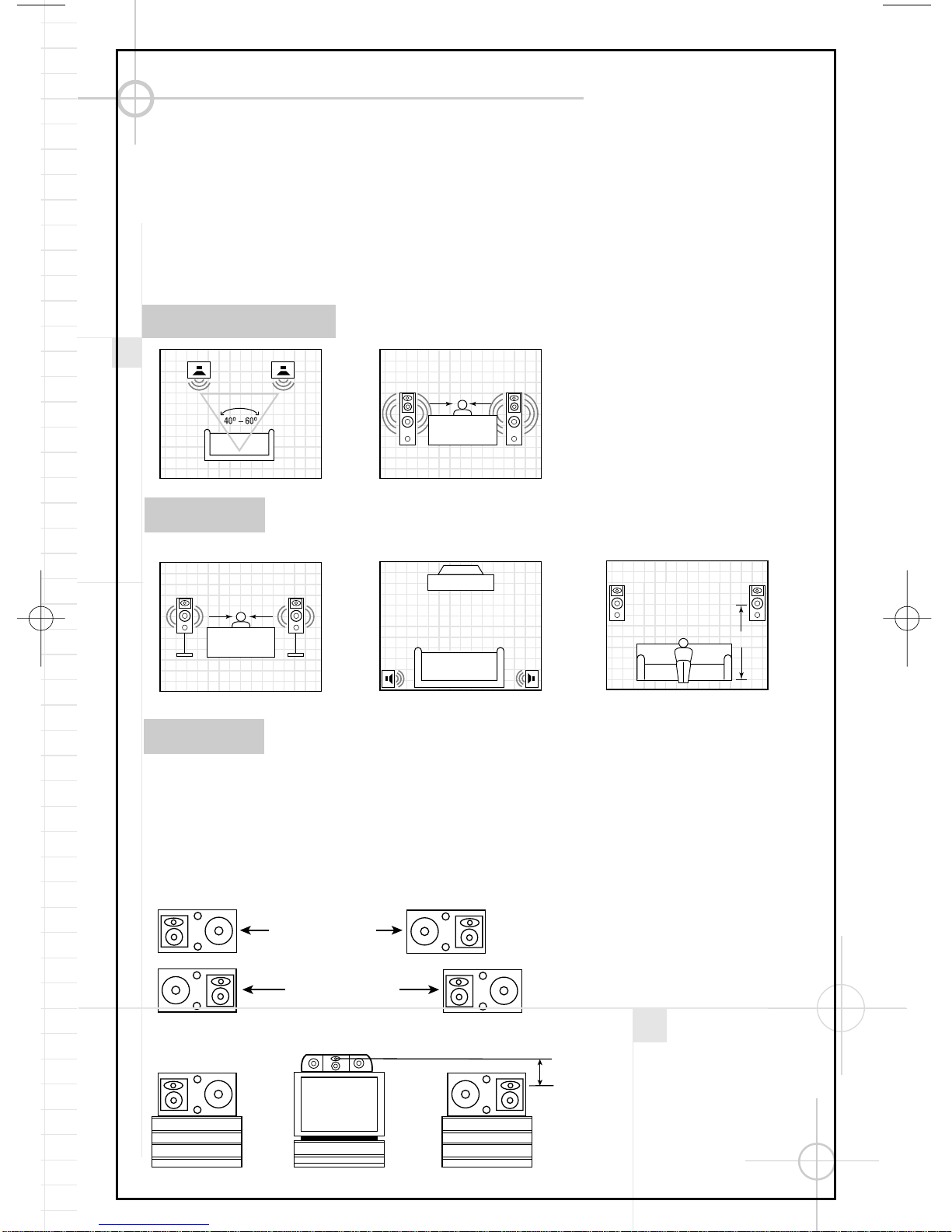

SPEAKER PLACEMENT

Proper placement of the

speakers is an important step

in obtaining the most realistic

soundstage possible. These

recommendations are for the

optimum placement of the

loudspeakers. Use these

placement recommendations

as a guide. Slight variations

will not diminish your

listening pleasure.

All of the Studio Series

loudspeakers are video-

shielded and can safely be

placed near a television.

The S38 can be oriented

either horizontally or

vertically; however, best

performance will result from

horizontal placement.

Although these loudspeakers

are designed as a mirrored

pair, the decision as to which

one is left or right will

depend on the amount of

space left between them.

As Front Speakers As Surround Speakers

MODEL:S26

MODELS:S310,S312

MODEL:S38

This placement provides a

wide spread in sound,

supplemented by the center-

channel speaker.

5–6 ft.

A wider stereo image is

presented with the

tweeter/midrange array

outboard, and a tighter image

is presented with the array

inboard.

For stereo-only applications:

For Home Theater applications:

Studio Series-S26,38,310,312 OM 8/10/99 4:20 PM Page 3

SPEAKER CONNECTIONS

Speakers and electronics

terminals have corre-

sponding (+) and (–)

terminals. It is important to

connect both speakers

identically: (+) on the

speaker to (+) on the

amplifier and (–) on the

speaker to (–) on the

amplifier. Wiring “out of

phase” results in thin

sound, weak bass and a

poor stereo image.

– +– +

– +

Speaker Outputs

LEFT

RIGHT

– +

CONNECTIONTIPS

These models are shipped

with four self-adhesive

nonskid pads that are to be

used when the loud-

speaker is intended to be

placed on a smooth-

surfaced floor, such as tile

or hardwood. Gently lay

the speaker on its side (not

its front or back) on a soft

nonabrasive surface.

Attach each pad to

the bottom of its foot in

the widest portion of the

recessed area.

DO NOT attach the pads if

the speaker will be placed

on carpeting.

NEVER drag the speaker

to move it, as this will

damage the pads, the feet

and/or the wood cabinet

itself. Always lift the

speaker and carry it to its

new location.

Without pad With pad

MODELSS310&S312

Studio Series-S26,38,310,312 OM 8/10/99 4:20 PM Page 4

TROUBLESHOOTING

If there is no sound from

any of the speakers:

• Check that receiver/

amplifier is on and that a

source is playing.

• Review proper operation

of your receiver/amplifier.

If there is no sound

coming from one speaker:

• Check the “Balance”

control on your

receiver/amplifier.

• Check all wires and

connections between

receiver/amplifier

and speakers.

• Make sure all wires are

connected. Make sure

none of the speaker wires

are frayed, cut or

punctured.

If the system plays at low

volumes but shuts off as

volume is increased:

• Check all wires and

connections between

receiver/amplifier

and speakers.

• Make sure all wires are

connected. Make sure

none of the speaker

wires are frayed, cut or

punctured.

• If more than one pair of

main speakers is being

used, check the minimum

impedance requirements

of your receiver/amplifier.

If there is no (or low) bass

output:

• Make sure the polarities

(+ and –) of the left and

right “Speaker Inputs” are

connected properly.

If there is no sound from

the center speaker:

• Make sure that your

receiver’s “Center-

Channel” mode is in the

”Normal“ or ”Wide“

position. If it is in the

”Phantom“ position, the

center speaker will not

play.

• Check all connections

between processor/

amplifier and the center

speaker.

Studio Series-S26,38,310,312 OM 8/10/99 4:20 PM Page 5

S26 S38

Description: 2-Way 6" bookshelf 3-Way 8" horizontal,

mirror-image bookshelf

Maximum Recommended

Amplifier Power*: 150W 175W

Nominal Impedance: 8 Ohms 8 Ohms

Sensitivity (2.83V/1m):

87dB 89dB

Frequency Response (–3dB):

48Hz – 20kHz 45Hz – 20kHz

Crossover Frequency: 2000Hz 800, 3200Hz

High-Frequency Transducer: 1" Pure-titanium dome, with 1" Pure-titanium dome, with

rubber surround, shielded; rubber surround, shielded;

Elliptical Oblate Spheroidal™ Elliptical Oblate Spheroidal™

(EOS) waveguide (EOS) waveguide

Midrange Transducer: NA 4" PolyPlas™ (polymer-coated

cellulose fiber) cone, rubber

surround, shielded; Linear Field

Proximity™ (LFP) bezel

Low-Frequency Transducer(s)

:6" PolyPlas™ (polymer-coated 8" PolyPlas™ (polymer-coated

cellulose fiber) cone, rubber cellulose fiber) cone, rubber

surround, SFG™

, magnetic surround, SFG™

, magnetic

shorting rings, high-temp shorting rings, high-temp

oversized Kapton®voice oversized Kapton®voice coil,

coil, HeatScape™ motor HeatScape™ motor structure,

structure, cast-aluminum cast-aluminum baskets, shielded

baskets, shielded

Baffle: Low Diffraction, IsoPower™ Low Diffraction, IsoPower™

Port: FreeFlow™ flared FreeFlow™ flared

Network: Straight-Line Signal Path™ (SSP) Straight-Line Signal Path™ (SSP)

Terminals: All-metal, gold-plated, 5-way All-metal, gold-plated, 5-way

binding posts binding posts

Dimensions (H x W x D): 17" x 10" x 10" 11-1/2" x 17-1/2" x 12-7/8"

432mm x 254mm x 254mm 292mm x 445mm x 327mm

Weight per Speaker: 22lbs, 10kgs 28lbs, 12.7kgs

SPECIFICATIONS

Studio Series-S26,38,310,312 OM 8/10/99 4:20 PM Page 6

S310 S312

Description: 3-Way 10" floorstanding 3-Way 12" floorstanding

Maximum Recommended

Amplifier Power*: 200W 250W

Nominal Impedance: 8 Ohms 8 Ohms

Sensitivity (2.83V/1m):

91dB 92dB

Frequency Response (–3dB):

40Hz – 20kHz 35Hz – 20kHz

Crossover Frequencies: 850, 3500Hz 750, 3000Hz

High-Frequency Transducer: 1" Pure-titanium dome, with 1" Pure-titanium dome, with

rubber surround, shielded; rubber surround, shielded;

Elliptical Oblate Spheroidal™ Elliptical Oblate Spheroidal™

(EOS) waveguide (EOS) waveguide

Midrange Transducer: 4" PolyPlas™ (polymer-coated 4" PolyPlas™ (polymer-coated

cellulose fiber) cone, rubber cellulose fiber) cone, rubber

surround, shielded; Linear Field surround, shielded; Linear Field

Proximity™ (LFP) bezel Proximity™ (LFP) bezel

Low-Frequency Transducer(s)

:10" PolyPlas™ (polymer-coated 12" PolyPlas™ (polymer-coated

cellulose fiber) cone, rubber cellulose fiber) cone, rubber

surround, SFG™

, magnetic surround, SFG™

, magnetic

shorting rings, high-temp shorting rings, high-temp

oversized Kapton®voice coil, oversized Kapton®voice coil,

HeatScape™ motor structure, HeatScape™ motor structure,

cast-aluminum baskets, shielded cast-aluminum baskets, shielded

Baffles: Low Diffraction, IsoPower™ Low Diffraction, IsoPower™

Port: FreeFlow™ flared FreeFlow™ flared

Network: Straight-Line Signal Path™ (SSP) Straight-Line Signal Path™ (SSP)

Terminals: All-metal, gold-plated, 5-way All-metal, gold-plated, 5-way

binding posts binding posts

Dimensions (H x W x D): 34-1/2" x 13" x 12" 41" x 16" x 12-7/8"

876mm x 330mm x 305mm 1041mm x 406mm x 327mm

Weight per Speaker: 50lbs, 22.7kgs 68lbs, 31kgs

*The maximum recommended amplifier power rating will ensure proper system headroom to allow for

occasional peaks. We do not recommend sustained operation at these maximum power levels.

Occasional refinements may be made to existing products without notice but will always meet or exceed

original specifications unless otherwise stated.

Studio Series-S26,38,310,312 OM 8/10/99 4:20 PM Page 7

Autres manuels pour Studio S26

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JBL Intervenants

JBL

JBL Control 12C-VA Guide de dépannage

JBL

JBL EON 1500 Manuel utilisateur

JBL

JBL SCS 178 SatPair Manuel utilisateur

JBL

JBL L8400P/230 Manuel utilisateur

JBL

JBL PRO III Manuel utilisateur

JBL

JBL Simply Cinema SCS200.5 Manuel utilisateur

JBL

JBL PROPERFORMER Manuel utilisateur

JBL

JBL FLIP 3 Manuel utilisateur

JBL

JBL Studio 235C Manuel d'installation et d'exploitation

JBL

JBL VRX932LAP Manuel utilisateur

JBL

JBL Control 24C Micro Manuel utilisateur

JBL

JBL Control Control 47HC Manuel utilisateur

JBL

JBL CL505 Manuel utilisateur

JBL

JBL TR125 Manuel utilisateur

JBL

JBL VTX Series Guide de démarrage rapide

JBL

JBL Voyager Manuel utilisateur

JBL

JBL SR-X Series Manuel utilisateur

JBL

JBL Harman Clip 2 Manuel utilisateur

JBL

JBL Trimline L54 Manuel utilisateur

JBL

JBL CLIP+ Manuel utilisateur

JBL

JBL K2 S9900 Manuel utilisateur

JBL

JBL SR4722A Manuel utilisateur

JBL

JBL JRX112M Manuel utilisateur

JBL

JBL ON BEAT VENUE LT Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
