JBL EON 510 Manuel utilisateur

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL EON510/230 REV J

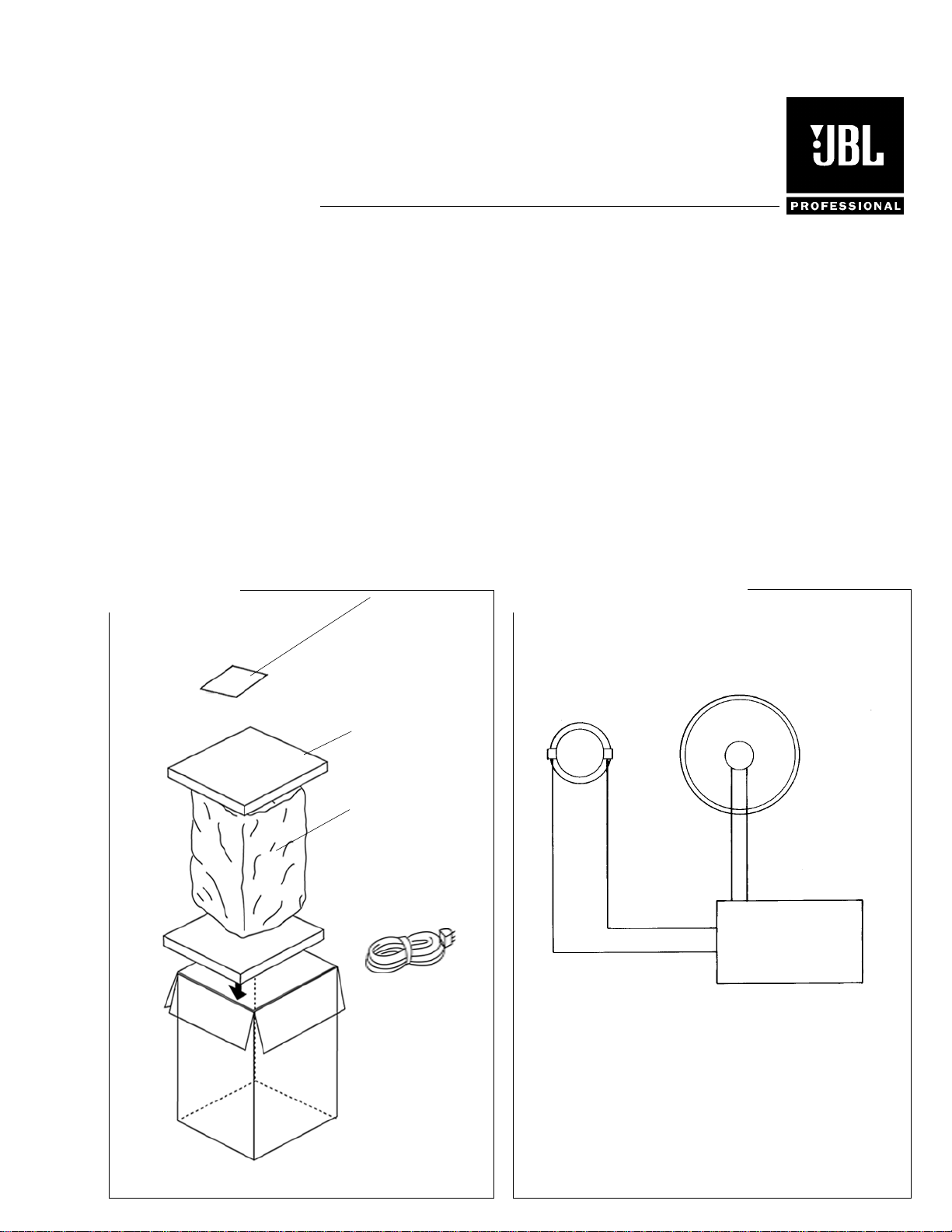

PACKAGE WIRING DIAGRAM

04-13

Technical Manual

JBL EON510/230

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• System Power Rating: 280W continuous, 560W peak

• Frequency Response: 70 Hz – 17 kHz (± 3 dB) (EQ in “Flat”

position

• Frequency Range: 58 Hz – 18.5 kHz (-10 dB)

• LF Power amp: 220W continuous at driver impedance

• HF Power amp: 60W continuous at driver impedance

• Input Gain (input 3): Mic position: -Infinity to +40 dB

Line position: -Infinity to +4 db (+20

dBu Max signal input)

• Input Gain (input 1 & 2): -Infinity to +4 (+20 dBu Max signal

input)

• Input Impedance: 64 K ohms (balanced), 32 K ohms

(unbalanced)

• Boost EQ: LF +3 dB Shelving, Filter @ 150 Hz

HF +2.5 dB Shelving Filter @ 4 kHz

• Low Cut Filter Preset high pass @ 120 Hz

• Crossover Freqeuncy: 1.8 kHz

SYSTEM COMPONENTS:

• Low Frequency 261F, 254 mm (10 in) Differential Drive®

Transducer: integrated woofer with dual 1.5” voice

coils

• DC Resistance: 1.20 ohm ±10%

SYSTEM COMPONENTS:

(CONT’D)

• High Frequency 2414H-1, 25.4 mm (1 in) polymer

Transducer: diaphragm, neodymium compression

driver

• DC Resistance: 3.60 ohm ±0.2%

• Input 3 connector: Balanced XLR / /14 inch TRS combo

jack with XLR loop through

• Input 1 & 2 connector: 1/4 inch TRS jack

• Output (Loop/Mix switch): Balanced male XLR,+20 dBu (peak)

o/p level in Mix position

• XLR Pin Assignments: Pin 2 (+), Pin 3 (-), Pin 1 (GND)

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 0.25 V Input, 20 Hz to 2 kHz

Ch1 Input all pots full clockwise

B. L.F. Aural Sweep Test: 5.0V Input, 10 Hz to 300 Hz

C. H.F. Aural Sweep Test: 0.75V Input, 500 Hz to 1.5 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 490 x 313 x 262 mm D

(19.3 x12.3 x 10.3 in D)

• Shipping Weight: 17 lb (7.7 kg)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Amplifier Assembly

Wire Harness Assembly

364836-001

Driver, High Freq

2414H-1

(363858-001X)

(SEE SCHEMATIC PAGE)

Driver, Low Freq.

261F

(364742-003X)

Cone Repl

C2R261

BLU / BLK

GRN

BLU

GRN / BLK

Warranty 59660

Owners manual

440941-001

(available on web-

site only)

Fillers, (2)

364893-001

Bag

322591-001

19”x16”x42” LG

.003 THKLDPE

CLEAR

Carton

364894-001

Cord, AC, Line

425-00000-00 120V

425-00000-01 230V

JBL EON510/230

SCHEMATIC ( Wire Harness)

JBL EON510/230

364836-001

COMPONENT EXPLODEDVIEW JBL EON510/230

Screw

813-21300-10

M3.5X 10MM

RND,PH,CLR

ZINC,LCS

(Logo)

Rubber Foot (2)

364870-001

Driver, Low Freq.

261F

(364742-003X)

Cone Repl

C2R261

Dust Dome

31385-07

Screw (4)

804-01110-16

10-32 x 1

FIL,PH,BLK,ZINC,

LCS

Gasket, Woofer

(2)

365350-001

Thumbscrew

364983-001

Side Pocket (2)

364869-001

Screw (6)

814-01100-25

M4 x 25MM

FL,PH,CLR

ZINC, LCS

Amp Board

444970-001

Input Module

358358-001

A/C Inlet PCB

444285-001

Interface PCB

138927-1JBL

Ribbon Cable

141027-1JBL

Amplifier Gasket (2)

364892-001

Screw (10)

813-41300-15

M3 .5X 15MM

PAN,PH,CLR

ZINC,LCS

Wire Harness

364836-001

Heat sink

364881-001

Input Plate

364860-001

Logo Badge

364863-001

Bolt Cover, Badge

364862-001

Insulator Chassis

140493-1JBL

Silipad

140492-1JBL

Cover,Fly Bolt (2)

364805-001

Driver,High Freq.

2414H-1

(363858-001X)

Screw (12)

862-41410-10

6 x 5/8

PAN,PH,HIGHLO,

BLK ZINC,LCS

Screw (8)

365270-001

M4 x 65

Screw (2)

365270-002

M4-33mm

Upper Handle

364868-001

Screw (3)

814-01100-10

M4 x 10MM

FL,PH,CLR,ZINC,LCS

Fly Bolt (3)

364616-001

Nut (3)

838-00800-00

M14 REG,CLR

ZINC,RH

Washer (3)

848-00100-02

M14,REG,CLR ZINC

Enclosure

Assembly EON510

(Not Avilable for

Sale)

Gasket,Enclosure

364835-001

Insert

365433-001

M6 x 12MM

PPB Type

Screw (2)

3654446-001

M3 X 5MM

TREAD CUTTING

Amplifier Shield

365289-001

Screw (4)

814-41300-06

M4 X 6MM

PAN,PHILLIPS

CLEAR ZINC

JBL EON 510/230

Baffle/Grille Assembly

441957-001

EON Letters

365346-001

Grille

Assembly

365357-001

Logo Terminal

Plate

365433-001

Led Board

363395-001

Logo Assembly

364804-001

Please note: grille assembly

not available seperately)

JBL PROFESSIONAL

CUSTOMER SERVICE DEPARTMENT

EON210P, EON 300, EON 500 SERIES REFERENCE CHART

Revision A - October 11, 2012 Page 1 of 1

MODEL LOW HIGH NETWORK AMPLIFIER WIRE LAST

FREQUENCY FREQUENCY ASSEMBLY ASSEMBLY HARNESS YR

MFD

EON210P 443639-001 (328H) 2414H-1 (363858-001X) 444944-001 445356-001 10/5/2012

EON305

M115-8A (124-67001-01X

2414H-1 (363858-001X) 364903-001

EON315 M115-2 (365153-001) 2414H-1 (363858-001X) 365375-001

EON510 261F (364742-003X) 2414H-1 (363858-001X) 364836-001

EON515 261F-1 (363837-001X) 2414H (342423-002X) 364836-001 6/30/2011

EON515XT/230 261F-1 (363837-001X) 2414H (342423-002X) 364836-001

EON518S 268G (364481-001X)
