JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL AM5212/95-WH

REV C

PACKAGE WIRING DIAGRAM

01-10

Technical Manual

JBL AM5212/95-WH

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms

• Transducer Power LF: 400W (1600W peak), 2 hrs

Rating (AES): 300W (1200W peak), 100 hrs

HF: 40W (160W peak), 2 hrs

• Long-Term Power Passive mode: 300W (1200W peak),

Rating (IEC): 100 hrs

• Frequency Response: 43 Hz - 18 kHz (±3 dB)

• Frequency Range: 37 Hz - 20 kHz (-10 dB)

• Maximum SPL:

Bi-amp mode: LF: 122 dB-SPL cont avg (128 dB peak)

HF: 129 dB-SPL cont avg (135 dB peak)

Passive mode: 121 dB-SPL cont avg (127 dB peak)

• System Sensitivity: Passive mode: 96 dB SPL

1 watt @ 1 meter

• Crossover Frequency: 1.4 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not For Sale)

• Grille: 338163-007, 338163-107 (WH)

SYSTEM COMPONENTS:

(CONT’D)

• Low Frequency 262H-1, 300 mm (12 in) driver

Transducer: with 50.8 mm (2 in) dual voice coil

• DC Resistance: 5.5 ohm +/- 10%

• High Frequency 2408H-1, 38 mm (1.5 in) exit

Transducer: compression driver, 38 mm (1.5 in)

voice coil

• DC Resistance: 4.80 ohm +/- 0.2 ohm

• Crossover Network: 443748-001

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 7.0V Input,10 Hz to 10 kHz

B. L.F. Aural Sweep Test: 7.0V Input,10 Hz to 1 kHz

C. H.F. Aural Sweep Test: 0.75V Input, 200 Hz to 1.5 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 713 x 371 x 458 mm D

(28.06 x 14.6 x 18.1in.D.)

• Net Weight: 45 lb (20.2 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

YEL/BLK

GRN/BLK GRN

YEL

Network Assembly

443748-001

Driver, Low Freq.

262H-1

(363916-003X)

Cone Repl

C8R262

Driver, High Freq

2408H-1

(365011-001X)

Diaph Repl

D8R2408-1

SEE NETWORK SCHEMATIC PAGE

Carton

352188-001

Filler (2)

352187-001

PKG,Microfoam (4)

49790P

20” x 18” Sheets

Warranty

59660

Installation Sheet

339390-064

Sticker, Logo

339397-001

Bag

21784

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

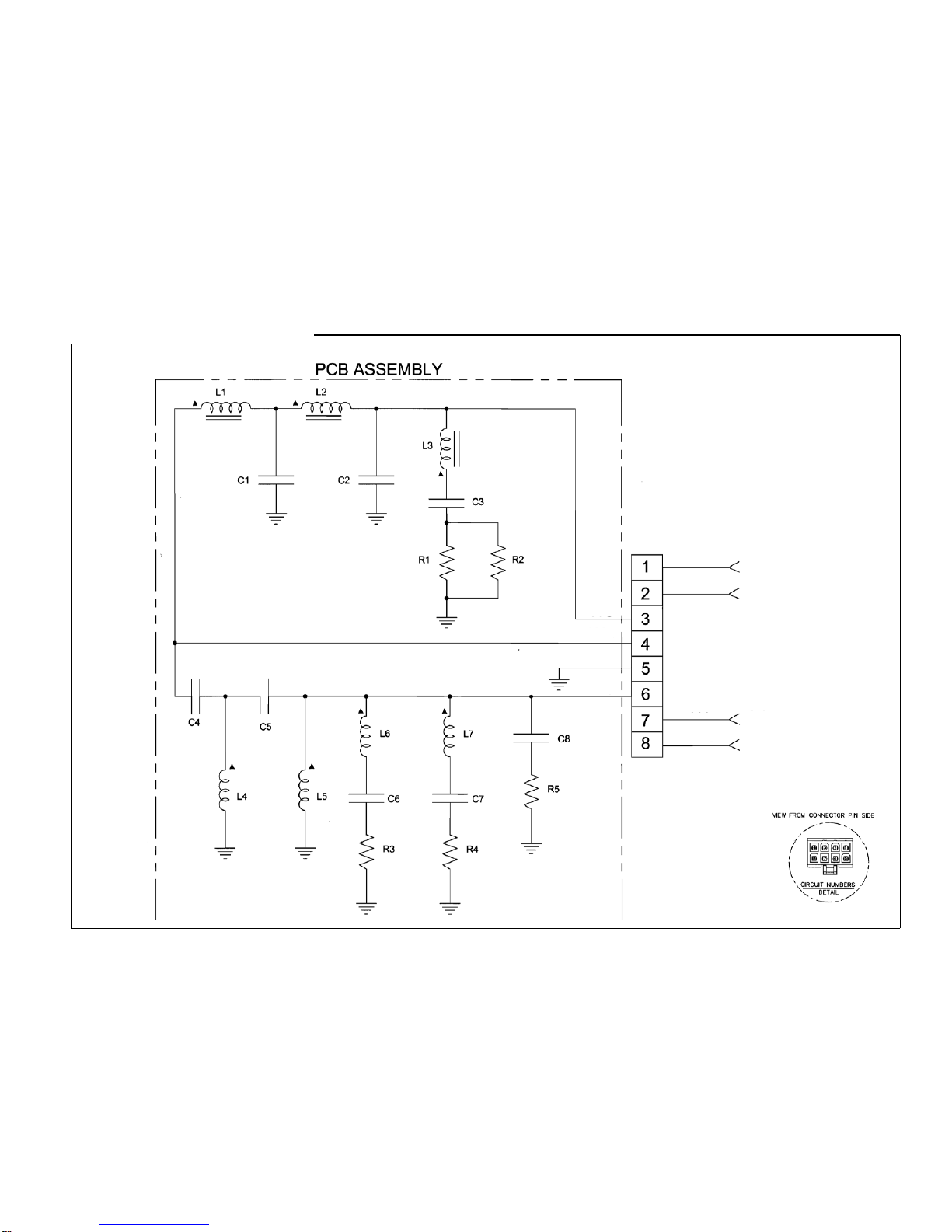

SCHEMATIC (443748-001) JBL AM5212/95-WH

JBL AM5212/95-WH

2.00mH 1.75mH

4.00mH

0.75mH 0.33mH

0.200mH 0.400mH

20.0uF

250V 24.0uF

250V 11.0uF

250V

1.69uF

250V 2% 9.10uF

250V

13.0uF

250V 0.68uF

250V

0.47uF

250V

44.0 Ohms 44.0 Ohms

2.7 Ohms 5.6 Ohms

5.6 Ohms

GRN/BLK

GRN

RED

BLK

YEL

YEL/BLK

YEL

- 0.187

+ 0.187

+ 0.250

- 0.250

Individual Parts for the above crossover are not available.

A complete replacement assembly should be ordered.

8 Pin

Connecotr

Molex P/N

39-01-2080

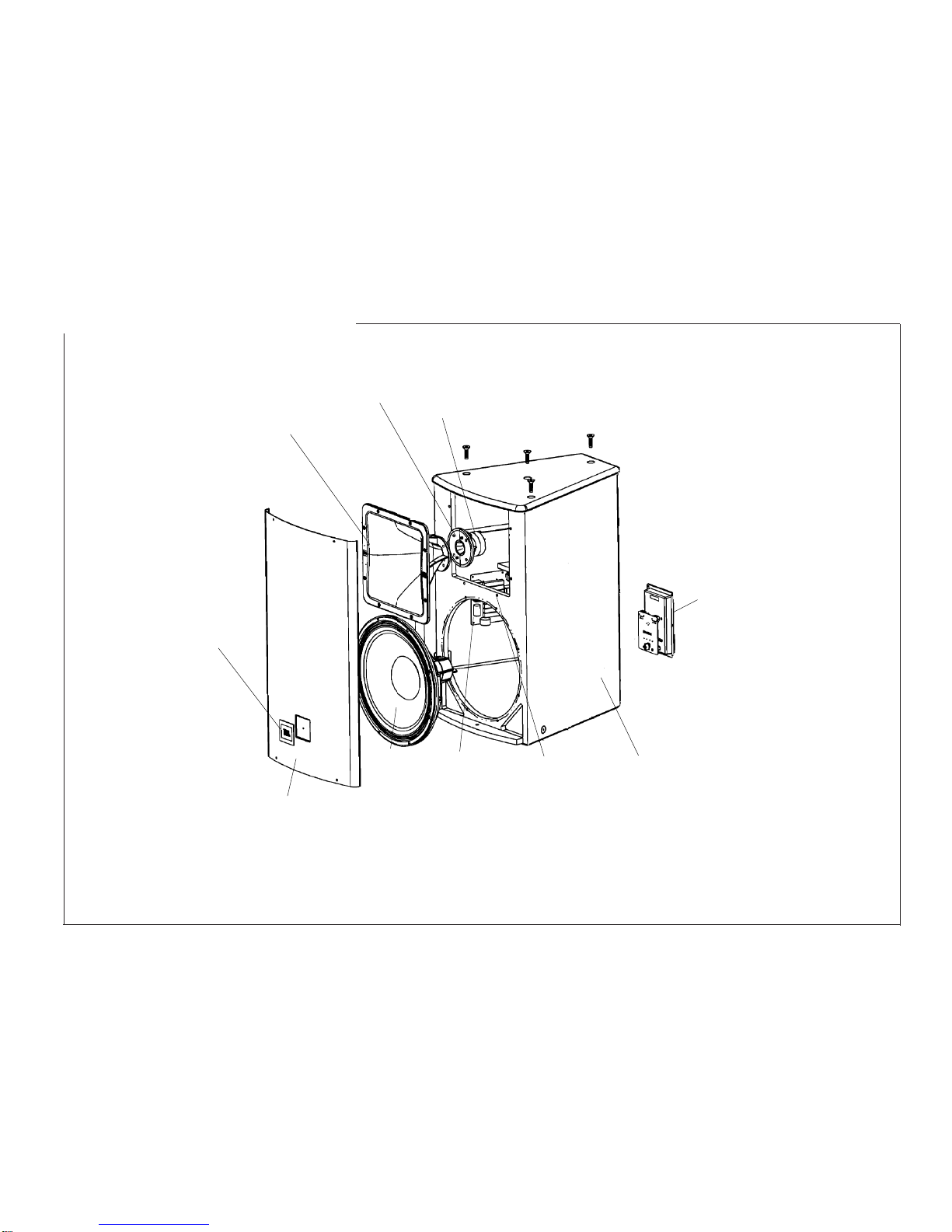

COMPONENT EXPLODEDVIEW JBL AM5212/95-WH

JBL AM5212/95-WH

Grille Assembly

338163-007

338163-107 (WH)

Screw (8)

882-51110-12

882-51160-12 (WH)

6 x 3/4

OV,PH,PTCL

ZINC,LCS

Driver, Low Freq.

262H-1

(363916-003X)

Cone Repl

C8R262

Screw (8)

804-01110-16

10-32 x 1

FIL,PH,BLK ZINC,

LCS

Gasket

339391-001

Dome

31385-09

Network Assembly

443748-001

Screw (7)

882-41110-10

6 x 5/8

PAN.PH,PB,BLK

ZINC,LCS

Mounting Bracket (3)

338652-001

Flat Single M10

Screw (6)

883-41110-08

8 x 1/2

PAN,PH,PB,BLK

ZINC,LCS

Mounting Support (6)

381-00023-01

90 DEGREES 2X M10

Bolt (15)

352051-001

352051-002 (WH)

M10 x 25MM,HEX

Screw (12)

883-41110-08

8 x 1/2

PAN,PH,PB,BLK

ZINC,LCS

Input Plate

339336-001

NL4

Screw (6)

882-41110-10

6 x 5/8

PAN,PH,PB,BLK

ZINC,LCS

Input Label (HADM)

440926-007

Label

339339-069

T-Nut (16)

61861

10-32x7/16

Step Barrel

Driver, High Freq.

2408H-1

(365011-001X)

Diaph Repl

D8R2408-1

Throat Adapter

443323-001

Bolt (4)

854-03010-16

1/4-20 x 1

CAP,BLK ZINC,

LCS

Nut (4)

834-30010-00

1/4-20

KEPS,BLK ZINC,

LCS, RIGHT

Waveguide

443495-001

Screw (8)

804-41110-12

10-32 x 3/4

PAN,PH,BLK

ZINC,LCS

Logo, Grille

339401-001

339401-002 (WH)

Push Nut

350689-001

7/16”

Compression Spring

365201-001

Washer

76168

BLK.175ID .75OD Enclosure Assembly

AM5212/95-WH

(Not Available for Sale)
