JBL AM4212/64-WH Manuel utilisateur

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

PACKAGE WIRING DIAGRAM

07-04

Technical Manual

JBL AM4212/64-WH

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms

• Power Capacity: 600W

• Frequency Range: 55 Hz – 20 kHz (± 3 dB)

• Sensitivity: 95 dB, 1 watt @ 1 meter (3.3ft)

• Crossover Frequencies: 1.3 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not for Sale)

Right Panel (338620-002), Left Panel

(338620-001),Rear Panel (338621-001),

Top/Bottom Panels (338622-001)

• Grille: 338163-007, 338163-107 (WH)

• Low Frequency Transducer: 2023H, 300 mm (12 in.) Driver with

75 mm (3 in.) voice coil

• DC Resistance: 5.3 ohms ±10%

• High Frequency Transducer: 2407H, 38 mm (1.5 in.) Exit

Compression Driver, 38 mm (1.5 in)

voice coil

SYSTEM COMPONENTS

(CONT’D)

• DC Resistance: 4.3 ohms ±10%

• Network Assembly: 339439-002

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 6.0VRMS Input, 20 Hz to 16 kHz

B. L.F. Aural Sweep Test: 6.0VRMS Input, 20 Hz to 2 kHz

C. H.F. Aural Sweep Test: 2.83VRMS Input, 1.6 kHz to 16 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 713 x 371 x 460 mm D

(28.1 x 14.6 x 18.1 in.D.)

•Shipping Weight: 57 lb (25.9 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Installation Sheet

339390-001

Logo Sticker Grille

Assembly

339397-001

Sticker JBL

337638-001

PKG, Microfoam(8)

49790P

Poly bag

350691-001

End Pads (2)

350277-001

Carton

352188-001

Filler

352187-001

YEL

GRN

YEL/BLK

YELLOW

YEL/BLK

GREEN

GREEN/BLK

YELLOW

GREEN

BLACK

RED

Network

Assembly

339439-002

8ohm

25W

2.7µF

2.2 mH

25W L2

1.1 mH

.58 mH

.1 mH L6

.35 mH L7

.46 mH

L10

.77 mH R1

1.5 ohm R4

3.5 ohm R5

4.0 ohm

18µF

22µF C7

1µF C8

16.2µF

16µF

16.2µF

5.1 mH L3

.12 mH

R13

8 ohm R6

24 ohm R19

3 ohm

C10

13µF C11

10µF C4

4µF

8ohm

25W

POS

NEG

NEG NEG NEG NEG

POS

NEG

NEG NEG NEG

POS

H/F out

L/F out

Driver, High Freq

2407H

(339150-001X)

Diaph Repl

D8R2407

Driver, Low Freq

2023H

(337215-001X)

Cone Repl

C8R2023

NETWORK SCHEMATIC:339439-002

GRN/BLK

JBL AM4212/64-WH REV P

.187

.250

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

JBL AM4212/64-WH

Baffle

338619-001

Grille Support (2)

338623-001

Driver,High Freq

2407H

(339150-001X)

Diaph Repl

D8R2407

Bolt (4)

854-03010-16

1/4-20 x 1, CAP,

BLK, ZINC, LCS

Throat Adapter

339308-001

Input Plate

339336-001

Input Plate

Label

339338-002

Model Label

339339-001

339339-110

(Wh)

Screws (4)

804-01110-16

10-32 x 1

FIL, PH, BLK,

ZINC

Waveguide

338782-001

Grille Asembly

338163-007

338163-107 (WH)

Screws (6)

882-51110-12

882-51160-12 (WH)

6 x 3/4

OV, PH,PTCL, LCS

Logo, Grille

339401-001

339402-001 (WH)

Push Nut

#7/16”

350689-001

Compression Spring

350690-001

Washer

76168

.175ID .750D

BLK

Screws (6)

882-41110-10

6 x 5/8

PAN PH PB

BLK ZINC

Driver,Low Freq

2023H

(337215-001X)

Gasket, 12”

339391-001

Gasket

339395-001

Washer

76168

.175ID .750D

Screws (12)

804-41110-12

10-32 x 3/4

PAN PH BLK

T-Nut (20)

10-32)

61861

Mounting

Support 90° (6)

381-00023-01

Screws (18)

883-41110-08

8-32 X .5

PAN, PH, PB,

BLK

Mounting

Bracket (3)

338652-001

Bolt (15)

Top/Bottom, Rear,

Right & Left

352051-001(BLK)

352051-002 (WH)

M10 x 25MM

SCKT HEX ZINC

Network

Assembly

339439-002

Screws (6)

339389-001

# 6 x 1/2

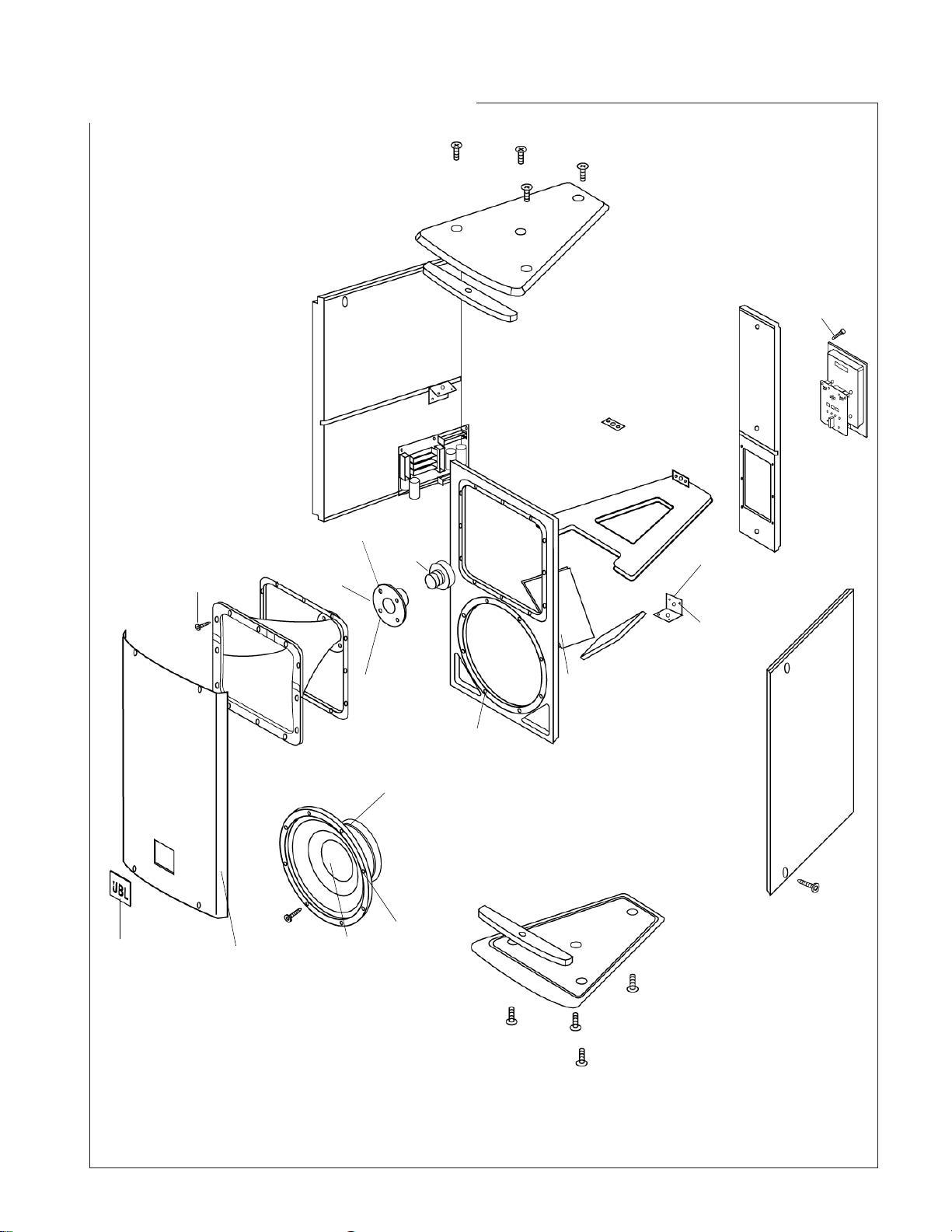

COMPONENT EXPLODED VIEW

Enclosure:

Right Panel

338620-002

Enclosure:

Left Panel

338620-001

Port Wall Left

338624-001

Port Wall

Right

338624-002

Enclosure:

Rear Panel

338621-001

Enclosure:

Top Panel

338622-001

Enclosure:

Bottom Panel

338622-001

Bulkhead

338630-001

NOTE: BLACK DURAFLEX REPAIR

KIT 30052

WHITE DURAFLEX REPAIR KIT

30053

JBL AM4212/64-WH

Enclosure Assembly

AM4212/64-WH

(Not Available for Sale)

Dome

71646
