BAR 500

OWNER’S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

Verify Line Voltage Before Use

The JBL BAR 500 (soundbar and subwoofer) has been designed

for use with 100-240 volt, 50/60 Hz AC current. Connection to

a line voltage other than that for which your product is intended

can create a safety and re hazard and may damage the unit. If

you have any questions about the voltage requirements for your

specic model or about the line voltage in your area, contact your

retailer or customer service representative before plugging the

unit into a wall outlet.

Do Not Use Extension Cords

To avoid safety hazards, use only the power cord supplied

with your unit. We do not recommend that extension cords be

used with this product. As with all electrical devices, do not run

power cords under rugs or carpets, or place heavy objects on

them. Damaged power cords should be replaced immediately

by an authorized service center with a cord that meets factory

specications.

Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet, always

pull the plug; never pull the cord. If you do not intend to use this

speaker for any considerable length of time, disconnect the plug

from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product.

Opening the cabinet may present a shock hazard, and any

modication to the product will void your warranty. If water

accidentally falls inside the unit, disconnect it from the AC power

source immediately, and consult an authorized service center.

www.jbl.com

English

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 2

1. INTRODUCTION 4

2. WHAT’S IN THE BOX 5

3. PRODUCT OVERVIEW 6

3.1 SOUNDBAR 6

3.2 SUBWOOFER 6

3.3 REMOTE CONTROL 7

4. PLACE 8

4.1 DESKTOP PLACEMENT 8

4.2 WALL-MOUNTING 8

5. CONNECT 9

5.1 CONNECTION WITH YOUR TV AND DIGITAL DEVICES 9

5.2 BLUETOOTH CONNECTION 11

5.3 CONNECTION WITH YOUR HOME NETWORK 11

6. SETUP 12

6.1 CONNECT THE SUBWOOFER 12

6.2 3D SURROUND SOUND 13

7. PLAY 14

7.1 POWER-ON/AUTO STANDBY/AUTO WAKEUP 14

7.2 PLAY FROM THE TV SOURCE 15

7.3 PLAY FROM THE HDMI IN SOURCE 15

7.4 PLAY FROM THE BLUETOOTH SOURCE 16

7.5 PLAY THROUGH THE JBL ONE APP 16

7.6 PLAY THROUGH CHROMECAST BUILT-IN 17

7.7 PLAY THROUGH AIRPLAY 17

7.8 PLAY THROUGH AMAZON MUSIC 17

7.9 MULTI-ROOM PLAYBACK 18

8. SOUND SETTINGS 19

8.1 AUDIO SYNC 19

8.2 SMART MODE 19

8.3 PUREVOICE DIALOGUE ENHANCEMENT TECHNOLOGY 19

9. RESTORE FACTORY SETTINGS 20

10. SOFTWARE UPDATE 20

11. RE-CONNECT THE SUBWOOFER 21

12. PRODUCT SPECIFICATIONS 22

13. TROUBLESHOOTING 23

14. TRADEMARKS 25

15. OPEN SOURCE LICENSE NOTICE 26

1. INTRODUCTION

Thank you for purchasing the JBL BAR 500 (soundbar and

subwoofer) which is designed to bring an extraordinary 3D sound

experience to your home entertainment system. We encourage

you to take a few minutes to read through this manual, which

describes the product and includes step-by-step instructions for

setting up and getting started.

To make the most of product features and support, you may

need to update the product software through the Internet

or the USB connector in the future. Refer to the software

update section in this manual to ensure that your product

has the latest software.

Designs and specications are subject to change without notice.

If you have any questions about the soundbar, installation or

operation, please contact your retailer or customer service

representative, or visit our website: www.jbl.com.

JBL One app

With the JBL One app, you can

• easily complete product setup;

• connect *music streaming services;

• discover new music with integrated music services;

• use one button to access your preset playlist and speaker

settings;

• access software updates when they are available.

JBL One

For more information, see “5.3 Connection with your home

network” and “7.5 Play through the JBL One app”.

NOTES:

– *Subscription may be needed and not provided by the JBL One app.

www.jbl.com

English

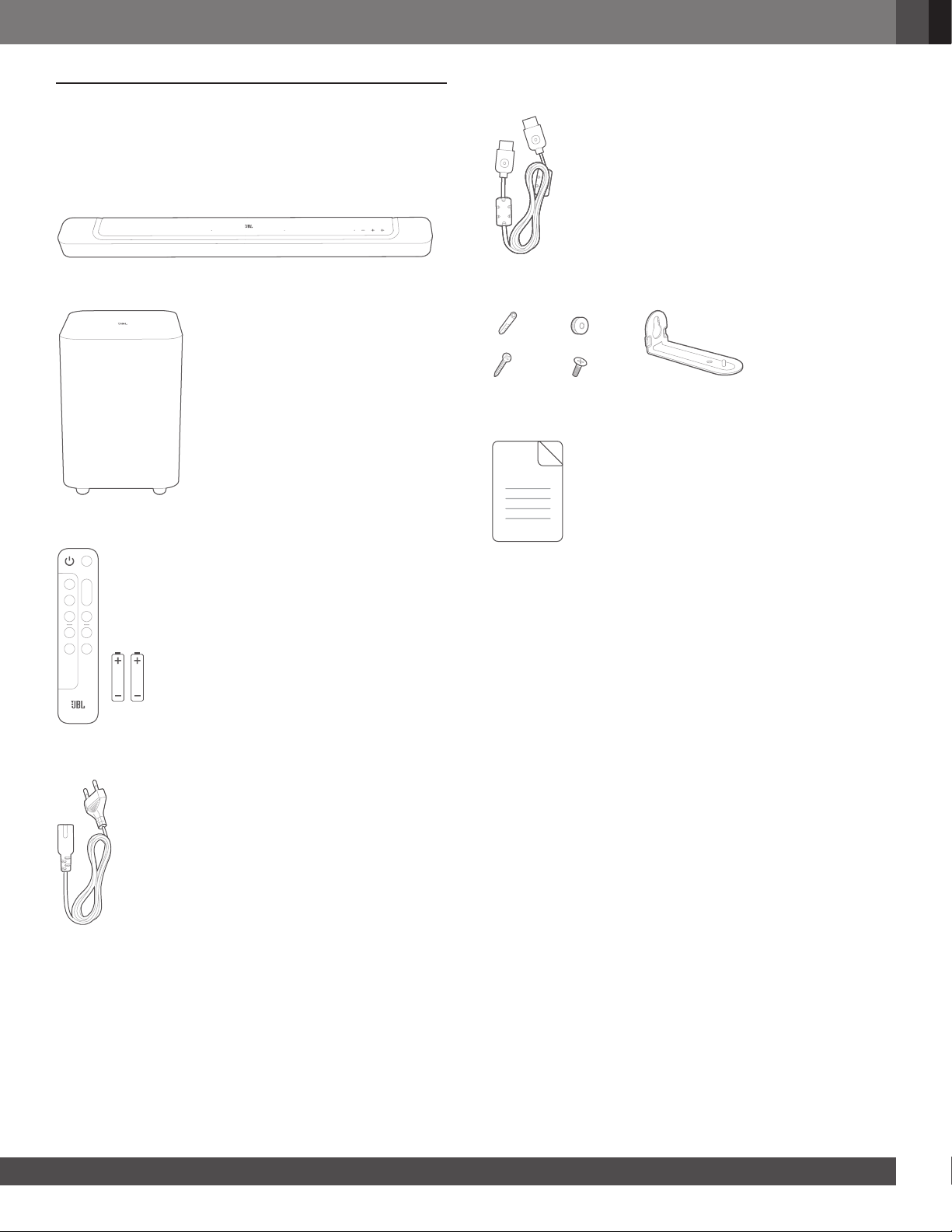

2. WHAT’S IN THE BOX

Unpack the box carefully and ensure that the following parts are

included. If any part is damaged or missing, do not use it and

contact your retailer or customer service representative.

Soundbar

Subwoofer

Remote control (with 2 AAA batteries)

(AAA)

Power cord*

x 2

* Power cord quantity and plug type vary region.

HDMI cable (1.2 m/3.9 ft.)

Wall-mounting kit

x 2

Product information & wall-mounting template

3. PRODUCT OVERVIEW

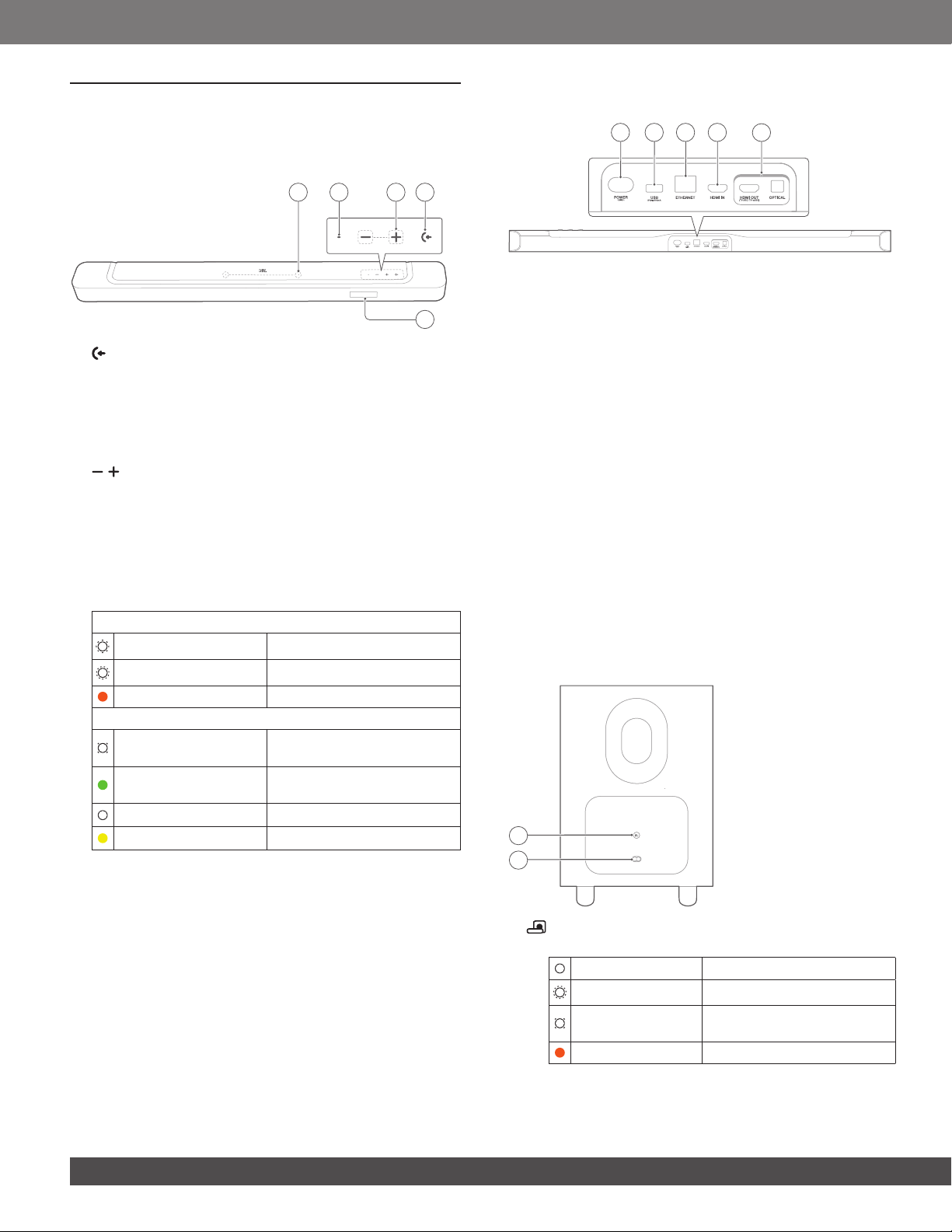

3.1 Soundbar

3.1.1 Controls

34 12

1) (Source)

• Switch on

• Select a sound source: TV (default, for audio input

from TV connection where the HDMI OUT (TV ARC/

TV eARC) connector is prioritized over the OPTICAL

connector), Bluetooth or HDMI IN

2) /(Volume)

• Switch on

• Decrease or increase the volume

• Press and hold to decrease or increase the volume

continuously

• Press the two buttons together to mute or unmute

3) Status indicator

System:

Regular flashing (white) System startup

Fast flashing (white) Software updating in progress

Solid (amber) Restoring factory settings

Network connection:

Slow breathing (white) Entering Wi-Fi setup mode, or

network disconnected

Solid (green) Soundbar discovered by the

JBL One app

Solid (white) Network connected

Solid (yellow) Weak Wi-Fi connection

4) Microphone

• For sound calibration

5) Status display

3.1.2 Rear connectors

1 2 3 4

1) POWER

• Connect to power (with the supplied power cord)

2) USB

• USB connector for software update

• Connect to a USB storage device for MP3 le playback

(for US version only)

3) ETHERNET

• Connect to your home network through an Ethernet

cable

4) HDMI IN

• Connect to the HDMI output on your digital device

5) TV connectors

HDMI OUT (TV ARC/ TV eARC)

• Connect to the HDMI ARC / HDMI eARC input on

your TV

OPTICAL

• Connect to the optical output on your TV or digital device

3.2 Subwoofer

• Connection status indicator

Solid (white) Connected to the soundbar

Fast ﬂashing (white) Pairing mode

Slow ﬂashing (white) Reconnecting or exiting the

pairing mode

Solid (amber) Standby mode

2) Power connector

• Connect to power (with the supplied power cord)

www.jbl.com

English

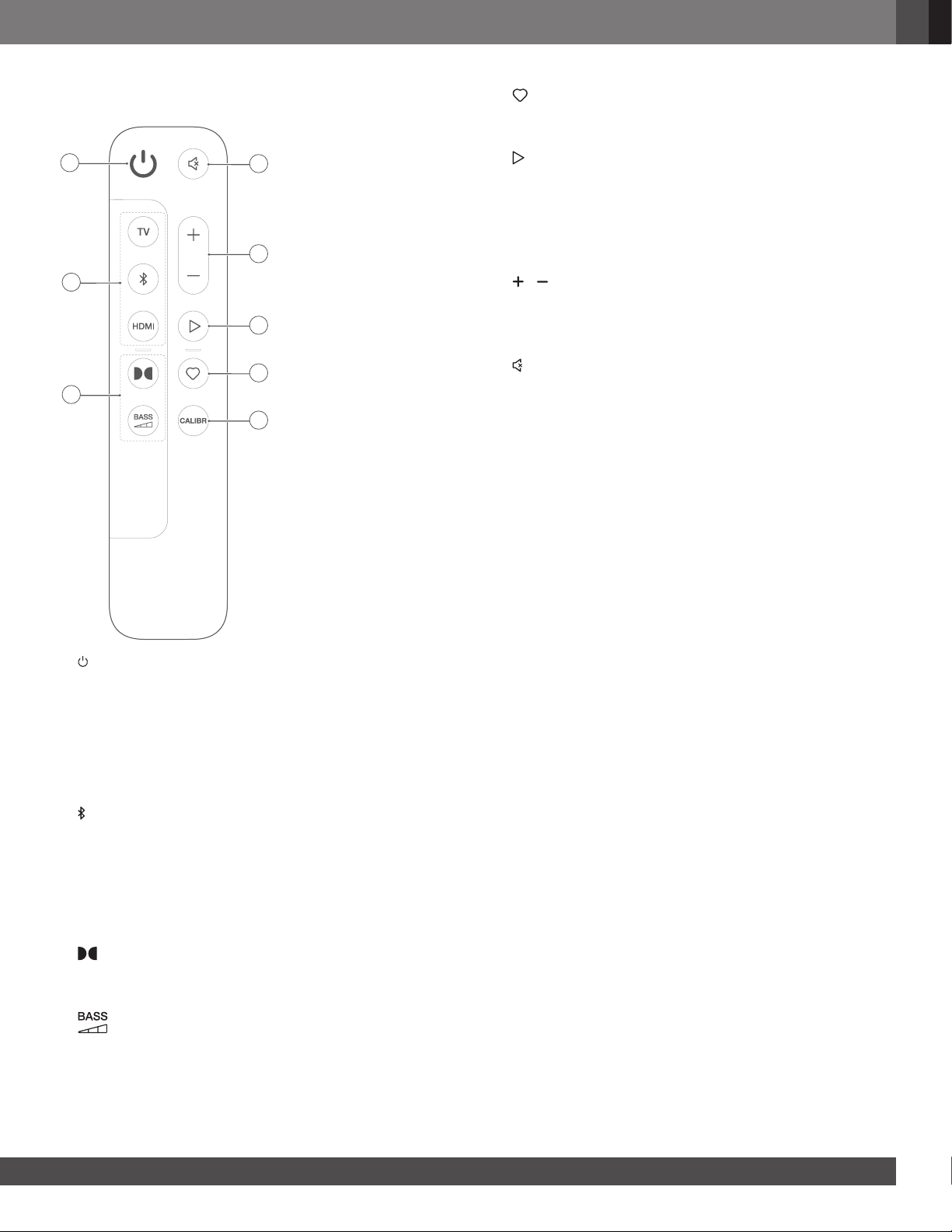

3.3 Remote control

• Switch on or to standby

2) Source selectors

• Select the TV source (default, for audio input from TV

connection where the HDMI OUT (TV ARC/ TV eARC)

connector is prioritized over the OPTICAL connector)

(Bluetooth)

• Select the Bluetooth source

• Press and hold to connect a Bluetooth device

HDMI

• Select the HDMI IN source

3) Sound effect buttons

• Switch the virtual Dolby Atmos®sound effects on or off

(Default: on)

• Select the bass level for subwoofer: 1/2/3 (default)/4/5

4) CALIBR

• Press to start sound calibration

5) (Moment)

• Press to directly access the playlist or speaker settings

that you have personalized in the JBL One app

6) (Playback controls during the music streaming over

JBL One app, Chromecast built-in™, AirPlay, Alexa or

Bluetooth)

• Single press: Pause or resume playback

• Double press: Next track

• Triple press: Previous track

7) /

• Increase or decrease the volume

• Press and hold to increase or decrease the volume

continuously.

8) (Mute)

• Mute/unmute

3.3.1 App-enabled control

With the JBL One app on your Android and iOS device, you can

do the following:

• Wi-Fi setup;

• Audio calibration & demo;

• Personalize audio settings;

• Manage and control device;

• Music service integration;

• Additional features.

4. PLACE

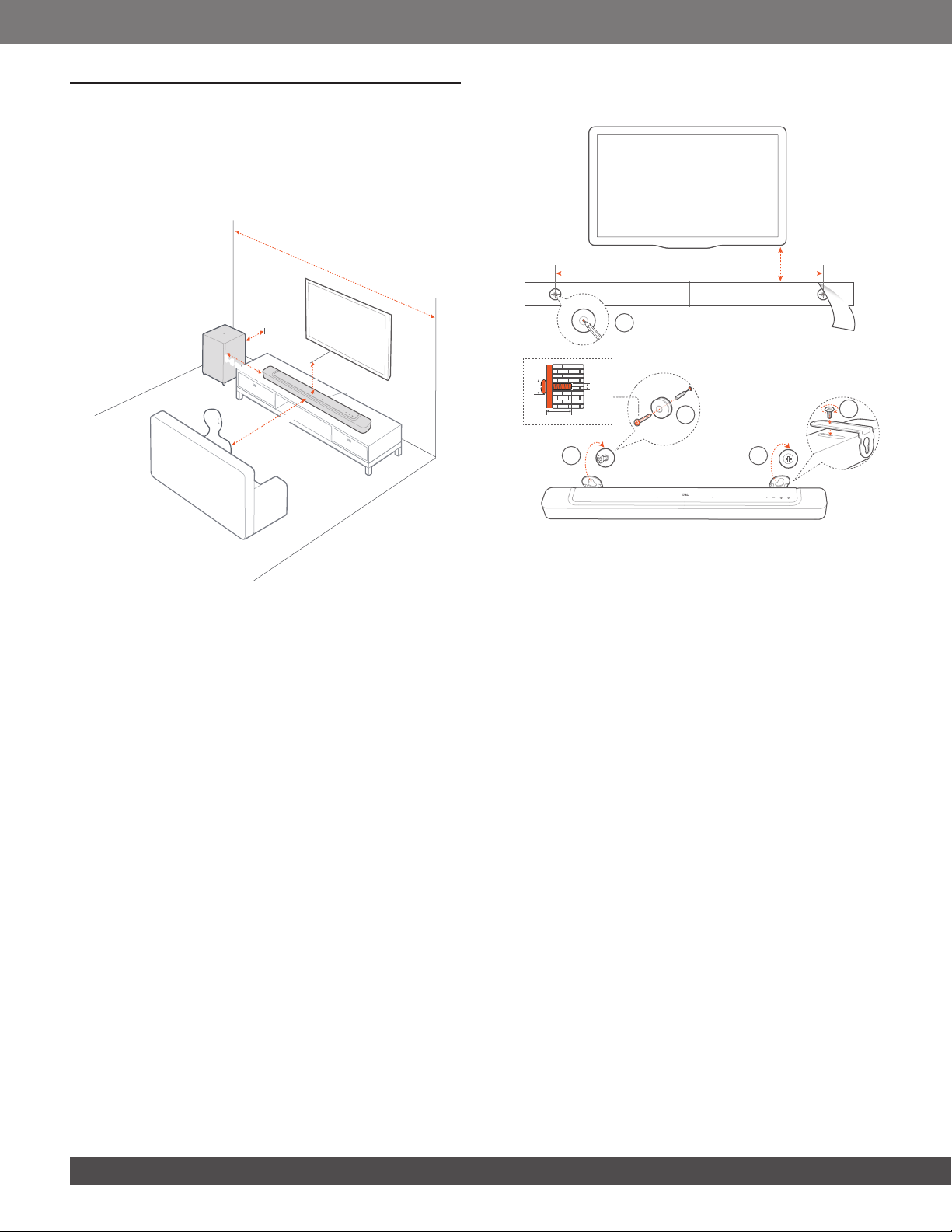

4.1 Desktop placement

Place the soundbar and subwoofer on a at and stable surface.

Make sure that the subwoofer is at least 3 ft (1 m) away from the

soundbar, and 4” (10 cm) away from a wall.

>10 cm / 4”

2.5-3.0 m / 8.2-9.8 ft

> 4 m / 13 ft

>5cm / 2”

1-6 m/3-20 ft

NOTES:

– The power cord shall be properly connected to power.

–Do not place any objects on the top of the soundbar or subwoofer.

– Make sure that the distance between the subwoofer and the

soundbar is less than 20 ft (6 m).

4.2 Wall-mounting

1a)

1b)

1c)

> 50 mm/2’’

≤8 mm/0.31"

4mm/0.16"

≥30 mm/1.18"

708 mm/27.87’’

1. Preparation:

a) With a minimum distance of 2” (50mm) from your TV, stick

the supplied wall-mounting template to a wall by using

adhesive tapes.

b) Use your ballpen tip to mark the screw holder location.

Remove the template.

c) On the marked location, drill a 4 mm/0.16” hole.

2. Install the support for wall-mounting bracket.

3. With the screw, fasten the wall-mounting bracket onto the

bottom of the soundbar.

4. Mount the soundbar.

NOTES:

– Make sure that the wall can support the weight of the soundbar.

–Install on a vertical wall only.

–Avoid a location under high temperature or humidity.

–Before wall-mounting, make sure that cables can be properly

connected between the soundbar and external devices.

–Before wall-mounting, make sure that the soundbar is unplugged

from power. Otherwise, it may cause an electric shock.

www.jbl.com

English

5. CONNECT

5.1 Connection with your TV and digital

devices

For audio playback through the soundbar, connect the soundbar

with your TV through the supplied HDMI cable or an optical cable

(sold separately).

An HDMI connection supports digital audio and video with a

single connection. HDMI connectivity is the best option for your

soundbar.

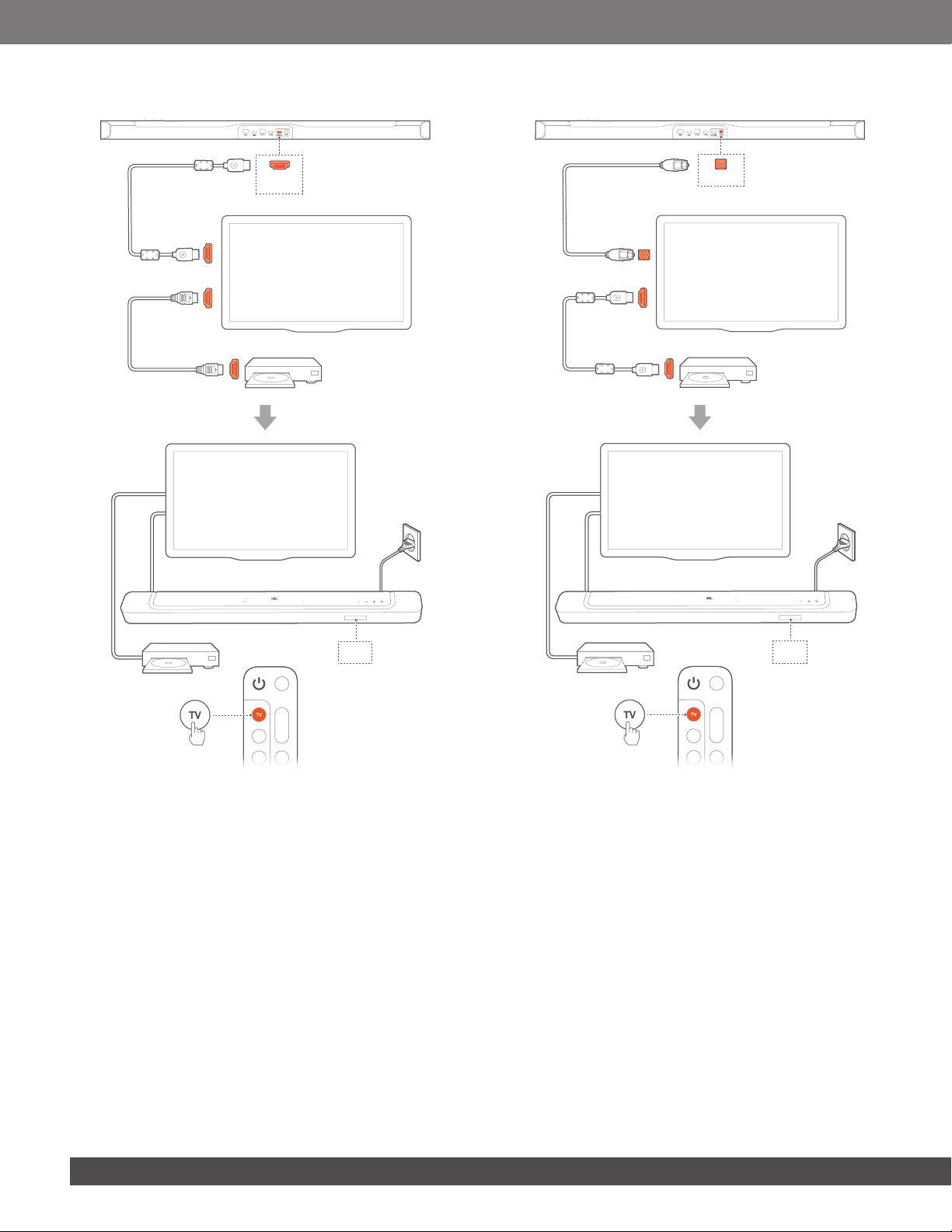

5.1.1 TV (HDMI ARC / eARC)

(Recommended connection for the best Dolby Atmos experience)

HDMI (ARC)

HDMI OUT

HDMI IN

HDMI OUT

(TV ARC/TV eARC)

HDMI IN

1. Connect the soundbar with the HDMI IN (ARC / eARC)

connector on your TV by using the supplied HDMI cable.

• On your TV, check that HDMI-CEC and HDMI ARC have

been enabled. Refer to the owner’s manual of your TV for

more information.

2. Use an HDMI cable (V2.0 or later) to connect the soundbar

with your digital device, such as a set-top box, DVD/Blu-ray

player or game console.

• On your digital device, check that HDMI-CEC has been

enabled. Refer to the owner’s manual of your digital

device for more information.

• On your digital device, select “Bitstream” or “Raw data”

in the audio output settings for the best Dolby Atmos

experience.

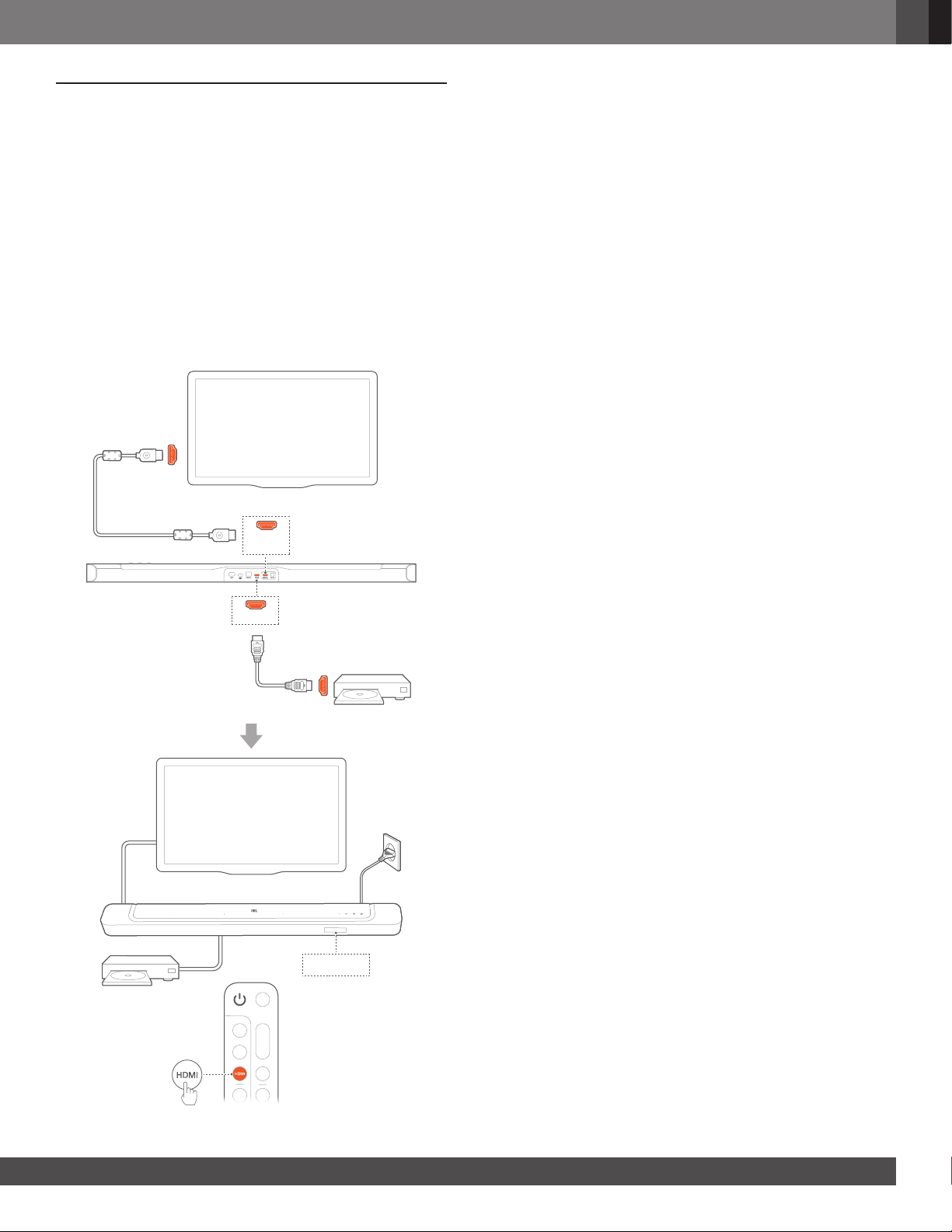

3. To play audio from the digital device connected to the

soundbar, select HDMI on the remote control.

NOTES:

–If your TV does not support HDMI eARC, make sure that you

connect your digital device through the HDMI IN connector on

the soundbar instead of your TV. Otherwise, the Dolby Atmos

information cannot pass through the HDMI (ARC) connectors from

the TV to the soundbar.

1010

5.1.2 TV (HDMI eARC)

HDMI OUT

(TV ARC/TV eARC)

HDMI OUT

HDMI (eARC)

HDMI IN

1. Connect the soundbar with the HDMI IN (eARC) connector

on your TV by using the supplied HDMI cable.

• On your TV, check that HDMI-CEC and HDMI eARC have

been enabled. Refer to the owner’s manual of your TV for

more information.

2. Use an HDMI cable (eARC compatible, V2.0 or later) to connect

your TV with your digital device, such as a streaming device,

set-top box, DVD/Blu-ray player or game console.

• On your digital device, check that HDMI-CEC has been

enabled. Refer to the owner’s manual of your digital

device for more information.

• On your TV and digital device, select “Bitstream” or “Raw

data” in the audio output settings for the best Dolby

Atmos experience.

3. To play audio from the digital device connected to your TV,

select TV on the remote control.

5.1.3 OPTICAL

HDMI OUT

OPTICAL

HDMI IN

OPTICAL

NOTES:

–With the Virtual Dolby Atmos design, the Dolby surround upmixer

of the soundbar can expand the legacy channel-based audio of

Dolby Digital format, including 5.1 and 7.1 content, and provide an

immersive 3D Atmos experience.

1. Connect the soundbar with your TV by using an optical cable.

2. Use an HDMI cable (V2.0 or later) to connect your TV with your

digital device, such as a streaming device, set-top box, DVD/

Blu-ray player or game console.

3. To play audio through the optical cable, select TV on the

remote control.

NOTES:

–* The HDMI cable (for digital device connection) and the optical cable

are sold separately.

–Full compatibility with all HDMI-CEC devices is not guaranteed.

–When both HDMI ARC and optical cables are connected to the

soundbar for audio input from TV connection, the HDMI ARC

connection is prioritized.

Table des matières

Autres manuels JBL Système de haut-parleurs

JBL

JBL CBT 70LE Manuel utilisateur

JBL

JBL T696 Limited Manuel utilisateur

JBL

JBL CINEMA SB100 Manuel utilisateur

JBL

JBL TRIO138S Manuel utilisateur

JBL

JBL Control SB210 Guide de l'utilisateur

JBL

JBL SRX900 Series Manuel utilisateur

JBL

JBL 4301E Manuel

JBL

JBL Two-Piece Speaker System Manuel utilisateur

JBL

JBL BAR 2.0 ALL-IN-ONE Manuel utilisateur

JBL

JBL Studio L810 Manuel utilisateur

JBL

JBL Ranger Paragon Manuel utilisateur

JBL

JBL GO2 Manuel utilisateur

JBL

JBL CINEMA SB400 Manuel utilisateur

JBL

JBL CS460 Guide de l'utilisateur

JBL

JBL Bar 5.1 Surround Manuel utilisateur

JBL

JBL TLX271P Manuel utilisateur

JBL

JBL SYNTHESIS S1S-EX Manuel utilisateur

JBL

JBL ES20 Manuel utilisateur

JBL

JBL P-20t Manuel utilisateur

JBL

JBL MS28 Manuel utilisateur

JBL

JBL MOVIES 2 Manuel utilisateur

JBL

JBL SCS150SI Manuel utilisateur

JBL

JBL EON 612 Manuel utilisateur

JBL

JBL AVR480 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
