JBL EON515XT/230 Manuel utilisateur

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL EON515XT/230 REV D

PACKAGE WIRING DIAGRAM

07-12

Technical Manual

JBL EON515XT/230

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• System Power Rating: 625W (525 + 100)

• Frequency Response: 42 Hz – 18 kHz (± 3 dB)

• Frequency Range: 39 Hz – 20kHz (-10 dB)

• Maximum SPL Output: 132 dB

• Mic Input Gain: -Infinity to +40 dBu

• Line Input Gain -Infinity to +4 dBu (+18 dBu maximum

input level)

• Input Impedance: 14k ohms

• Crossover Frequency: 1.7 kHz

SYSTEM COMPONENTS:

• Baffle/Grille Assembly: 445873-001

• Low Frequency 265F-1 380 mm (15 in) Different-

Transducer: ial Drive®integated woofer with dual

2” voice coils

• DC Resistance: 1.35 ohm ±10%

• High Frequency 2414H 37.5 mm (1 in ) annular poly

mer diaphragm, neodymium com-

Transducer: pression driver

• DC Resistance: 3.60 ohm ± 0.2%

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 0.2V Input, 50 Hz to 20 kHz

B. L.F. Aural Sweep Test: 3.5V Input,10 Hz to 300 Hz

C. H.F. Aural Sweep Test: 0.75V Input, 500 Hz to 1.5 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 673 x 406 x 368 mm D

(26.5 x 16 x 14.5 in D)

• Shipping Weight: 42.5 lbs. (19.2 kg)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Amplifier Assembly

Wire Harness Assembly

364836-001

Driver, High Freq

2414H

(342423-002X)

(SEE SCHEMATIC PAGE)

Driver, Low Freq.

265F-1

(363837-001X)

Cone Repl

C2R265-1

Warranty 59660

Owners Manual

445387-002

-+-+

Filler, Side (2)

445385-001

Fillers, Top & Bottom (2)

44538-001

Bag

322591-001

19 x 16 x 42 LG

Outer Carton

445389-001

Carton

445386-001

Cord, AC, Line CEE 7/7

425-00000-00 120V

425-00000-01 230V

BLU/BLK

BLU

GRN/BLK GRN

JBL EON515XT/230

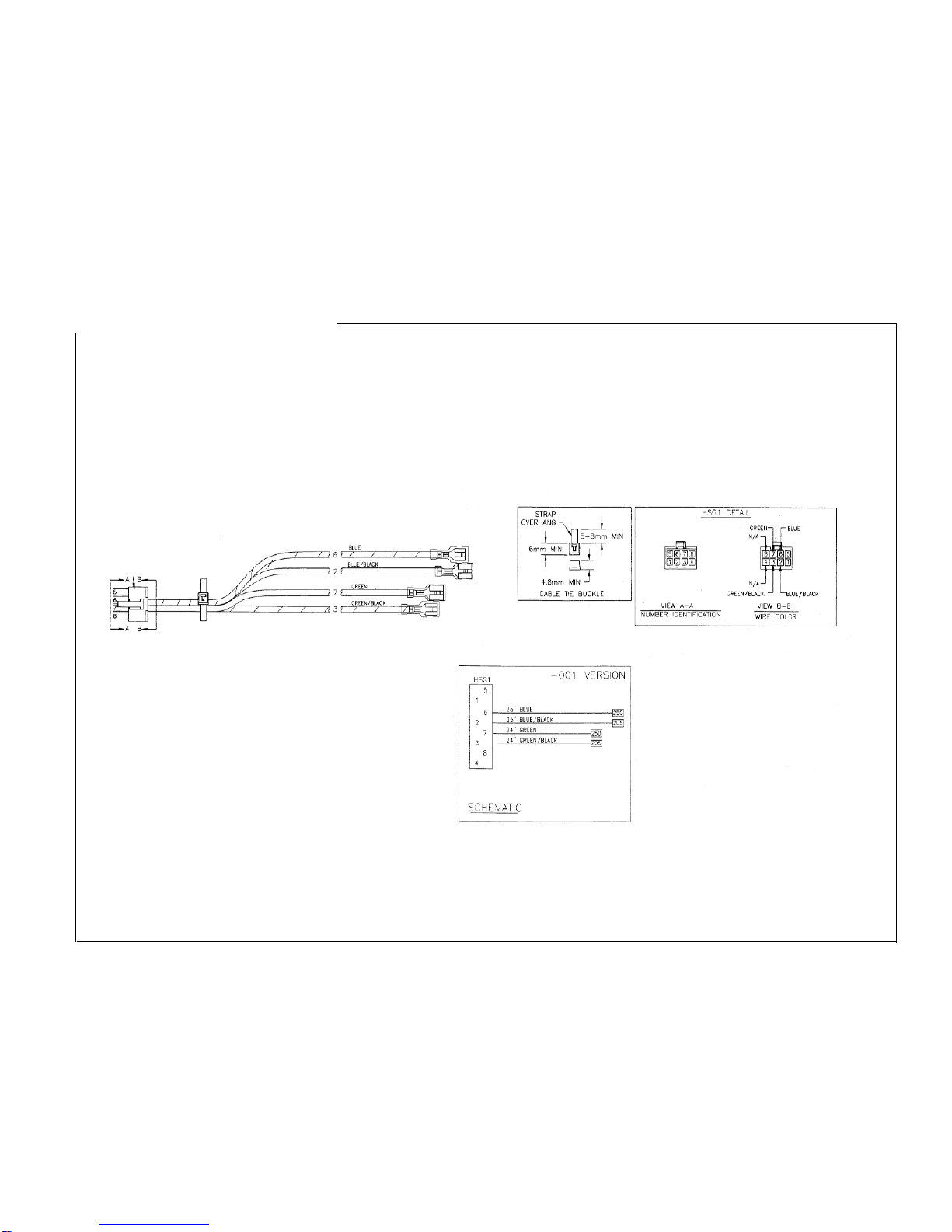

SCHEMATIC (Wire Harness)

364836-001

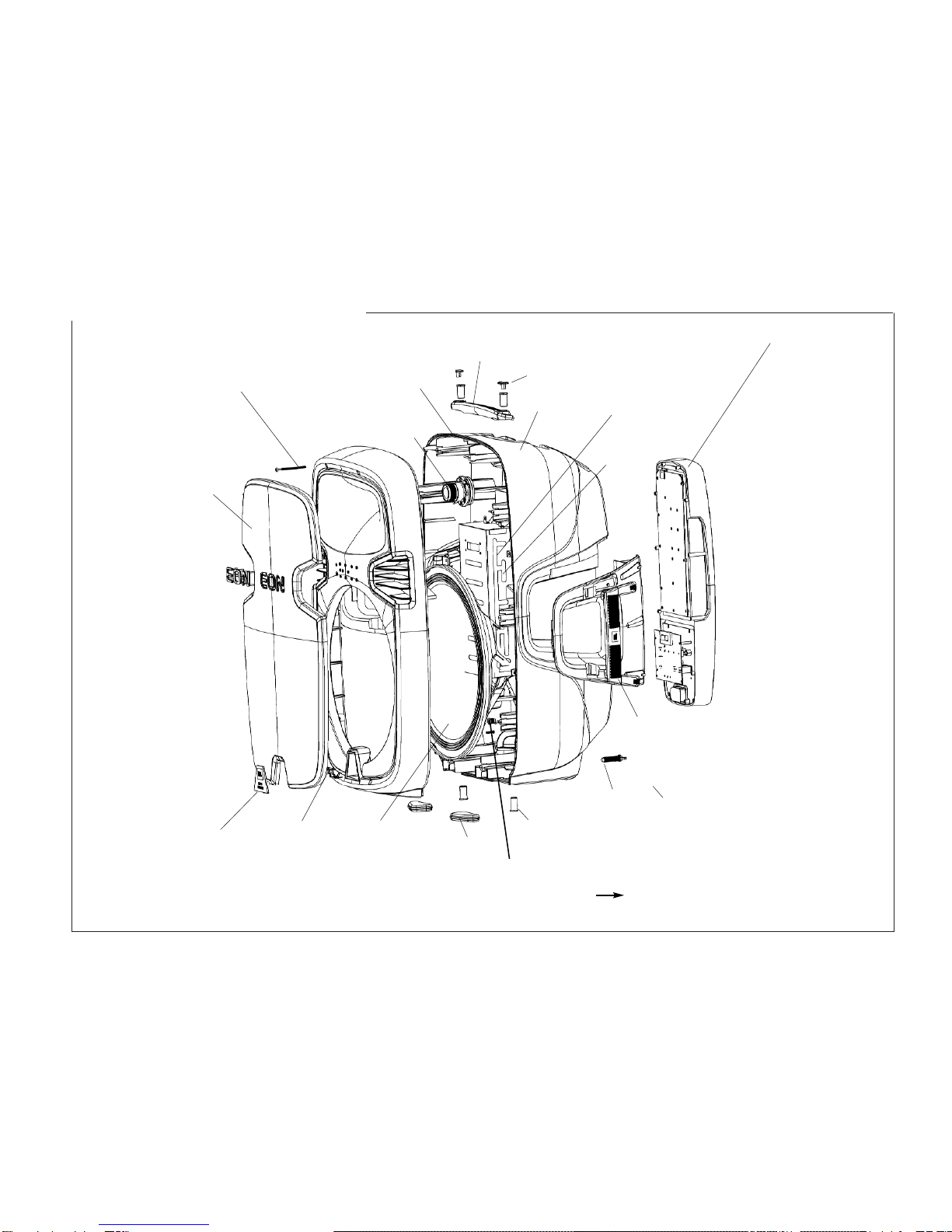

COMPONENT EXPLODEDVIEW JBL EON515XT/230

Screw

813-21300-10

M3 .5X 10MM

RND, PH, CLR,

ZINC LCS

Rubber Foot (2)

364802-001

Fly Bolt (4)

364616-001

Nut (4)

838-00800-00

M14,REG,CLR ZINC,RH

Washer (4)

848-00100-02

M14,REG, CLR ZINC

Driver, Low Freq.

265F-1

(363837-001X)

Cone Repl

C2R265-1

Screw (8)

365626-001

M5 PTx25MM

FIL,PH,BLK,ZINC,

Thumbscrew

364983-001

Insert

365433-001

M6 x 12MM,PPB,TYPE

Handle Pocket Assembly (2)

365135-002

Screw (4)

365627-001

M4 X 25MM

FIL,PH,BLK, WASHER HD

Amp Board

140296-6JBL (120/230)

500988 (only for 230V)

Input Module

445548-001

A/C Inlet PCB

365428-001

(includes fuse)

A/C Inlet Fuse

365428-001

Interface PCB

138927-1_4JBL

Amplifier Gasket (2)

364821-001

Screw (12)

813-41300-15

M3 .5X 15MM

PAN,PH,CLR ZINC,LCS

Wire Harness

364836-001

Heat Sink

364674-001

Input Plate

445279-001

Logo, Heat Sink

364678-001

Cover Badge, Heat Sink

364679-001

Clip, MRX IGBT

138556-1JBL

Clip, EON 515 to -220

140323-1JBL

Silipad, EON515

140324-1JBL

Silipad, EON515 GBT

140326-1JBL

Clip, MRX

138822-1JBL

Sound Dampener (3)

365625-001

Cover,Fly Bolt (2)

364805-001

Upper Handle

364654-002

Enclosure Assembly

EON515XT/230

(Not Available for Sale)

Gasket,Enclosure

364835-001

Driver,High Freq.

2414H

(342423-002X)

Screw (10)

365270-001

M4 x .65

Washer (10)

365156-001

Rubber

Screw (33)

862-41410-10

6 x 5/8

PAN,PH,HIGHLO,

BLK ZINC,LCS

Screw (4)

814-41300-06

M4 x 6MM

PAN,PHILLIPS CLEAR,

ZINC

Screw (2)

365435-001

M4 x 5MM

TREAD CUTTING

Amplifier

Sheild

365107-001

JBL EON515XT/230

Logo Badge

445332-001

(includes the

logo terminal

plate)

Screw (4)

365628-001

(SM Handle)

Cup Plug

365462-001

Logo Terminal

Plate Assembly

365170-001

Stickers (2)

445554-001

EON Hexoganal

Baffle / Grille

Assembly

445873-001

Please note: grille

assembly is not

available seperately
