Jbc PK-5A Manuel utilisateur

Pick and Place unit

Ref. PK-5A

INSTRUCTION MANUAL

www.jbctools.com

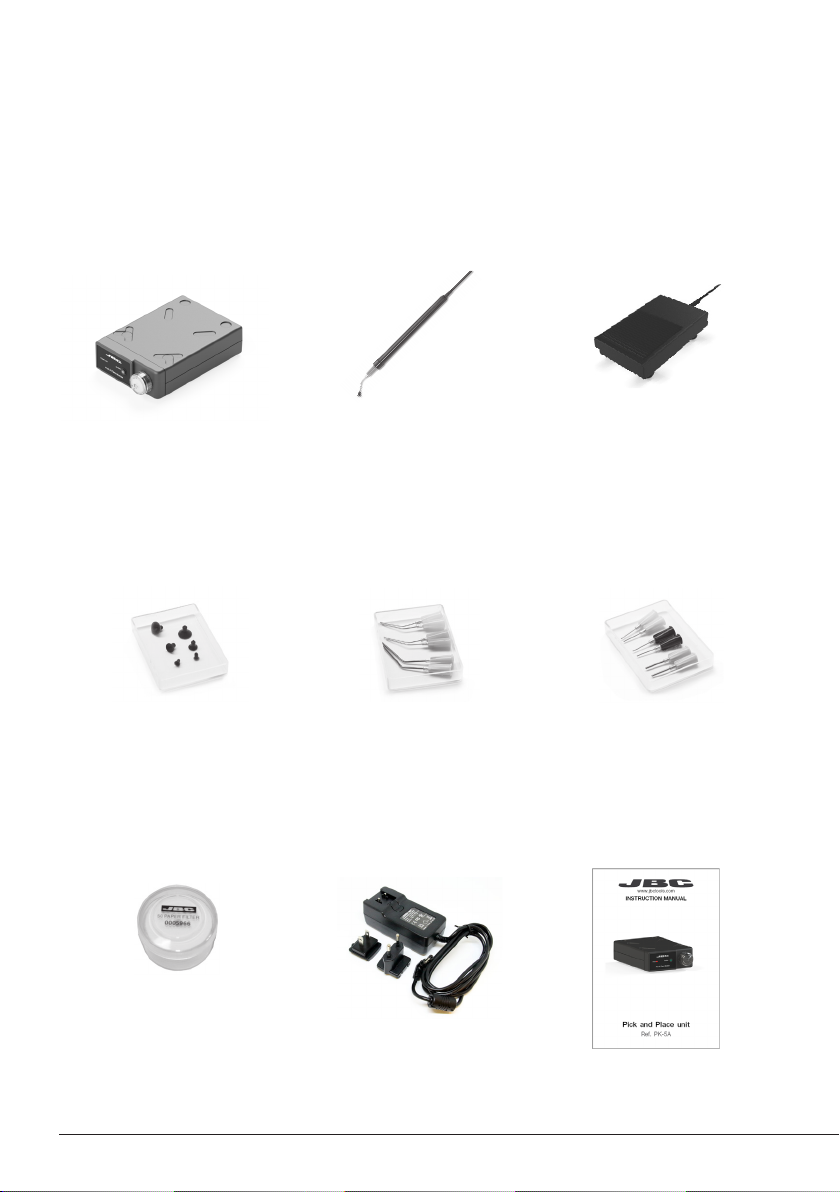

Packing List

The following items are included:

Pick and Place

module............................ 1 unit

Ref. PK-5A

Filter Box ........................ 1 unit

Ref. 0005966

It contains 50 filters Ref. 0004716

Power Cord.....................1 unit

Ref. 0022529

Manual .............................1 unit

Ref. 0024027

Cups Set ......................... 1 unit

Ref. 0940163

Bent Needles Set .........1 unit

Ref. 0861660

Straight Needles

Set ............................. 1 unit

Ref. 0901546

Pick and Place

tool......................................1 unit

Ref. T260-A

Pedal.................................. 1 unit

Ref. P-405

2

to Power

Supply to Pedal

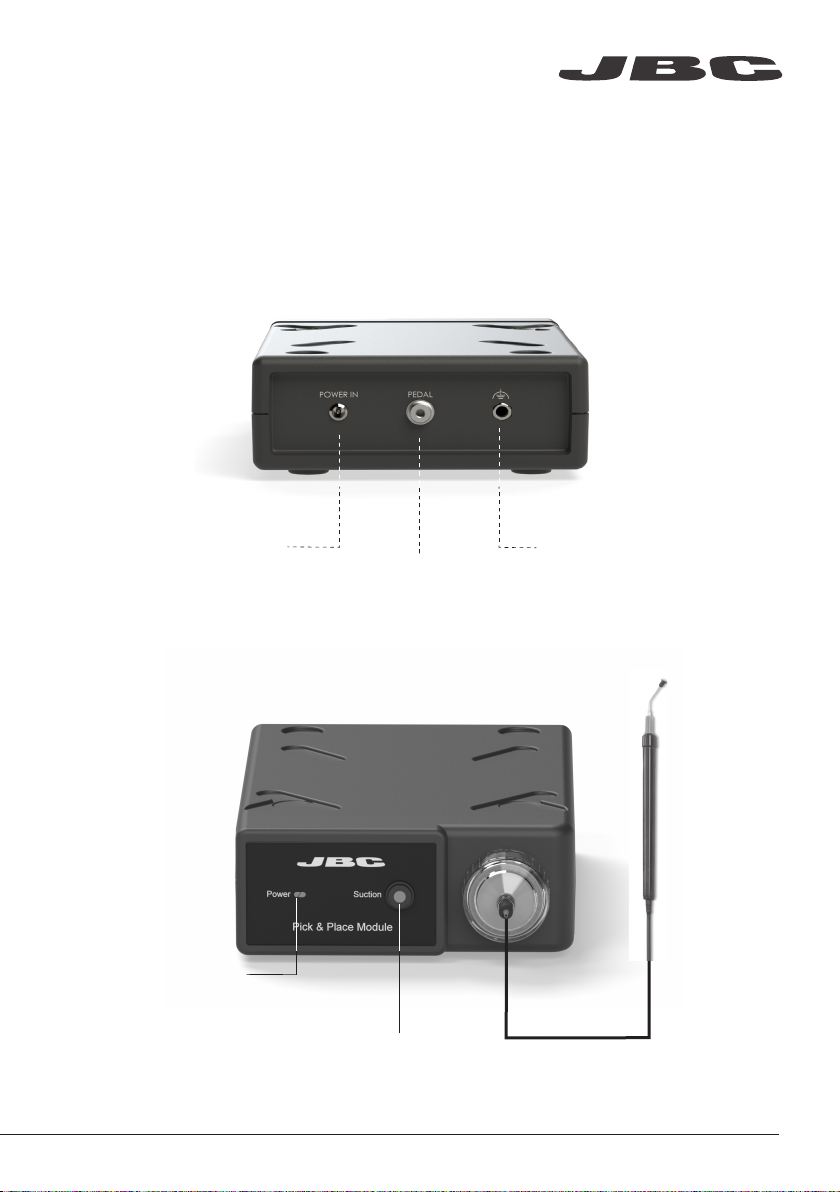

Features

to Ground

Power LED

Start/Stop Button

Pick and Place Module

Ref. PK-5A

T260-A

www.jbctools.com

3

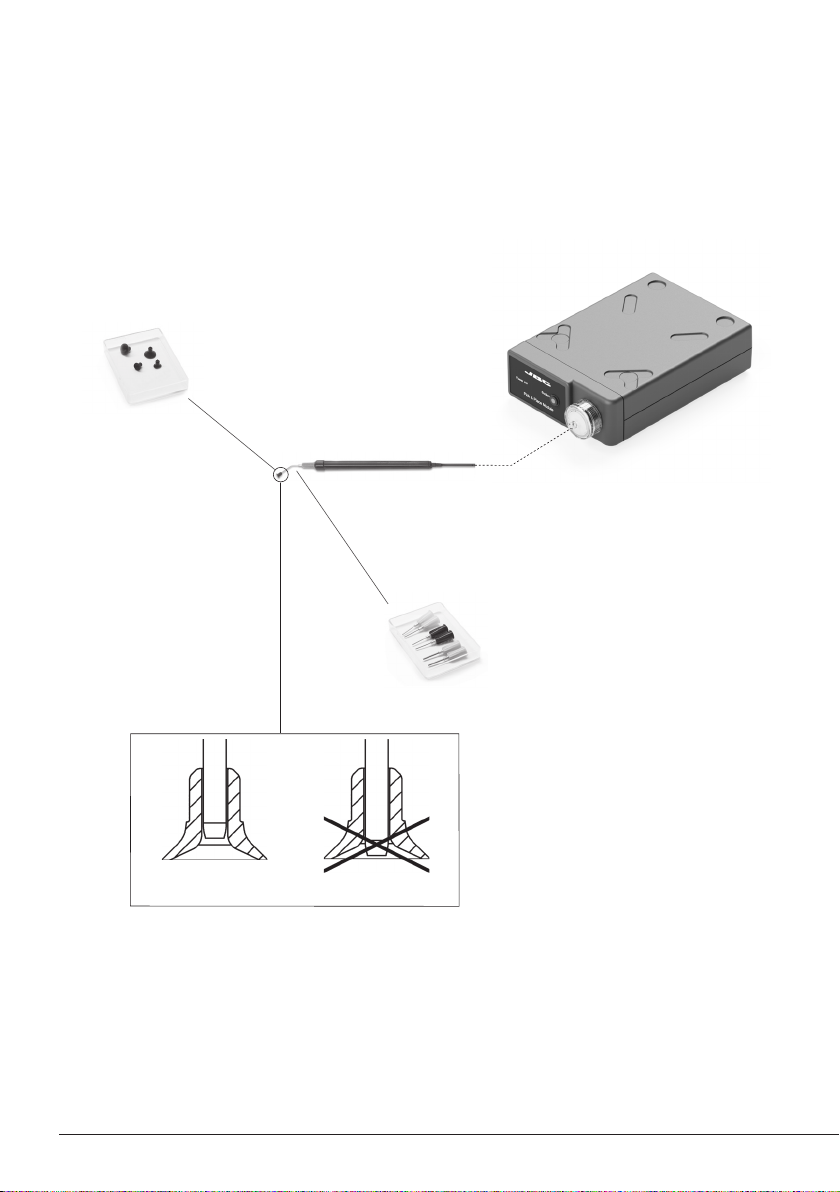

Choose the needle and the suction cup that best fits the component and start as follows:

Tool assembly

Suction cups

Insert a needle and attach the

appropriate cup for a correct suction

process.

Make sure the needle does not protrude

from the cup.

Maximum working temp: 250ºC (482ºF)

Needles

4

Suction Release

Cover the pen hole with your finger and lift off

the component.

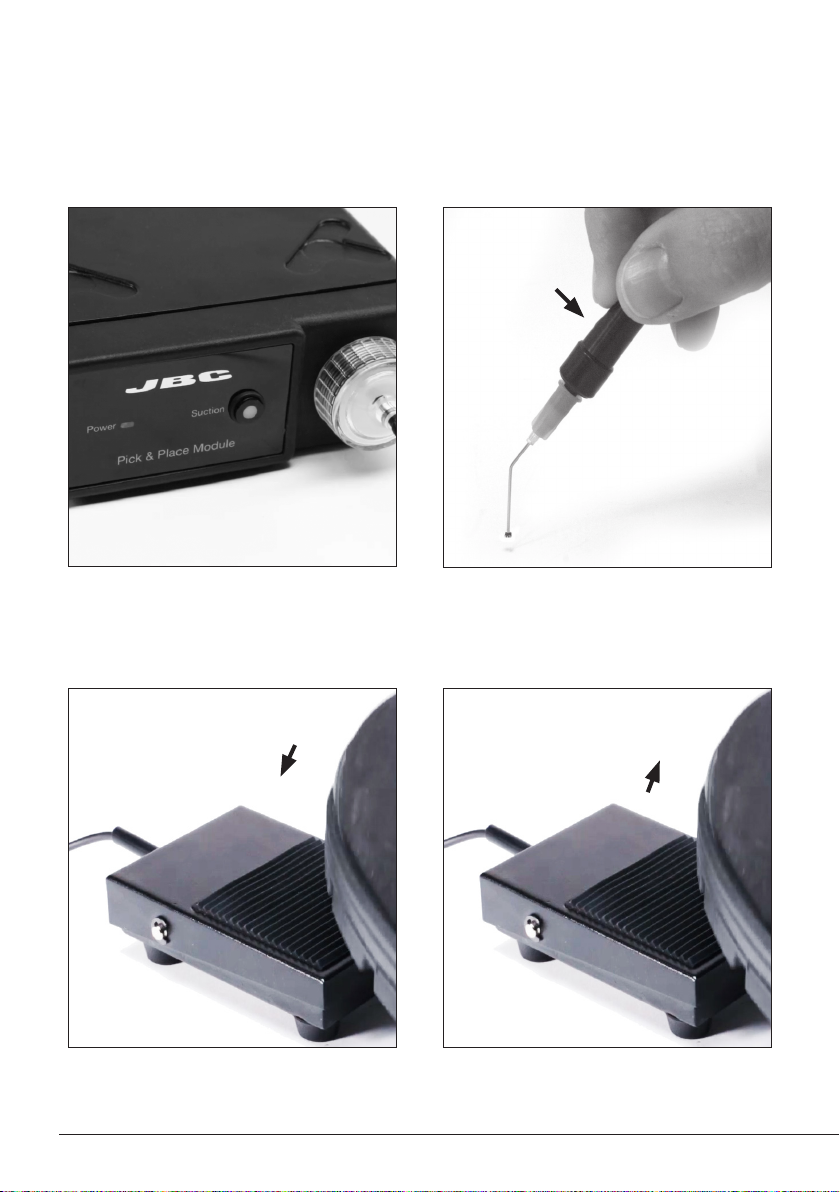

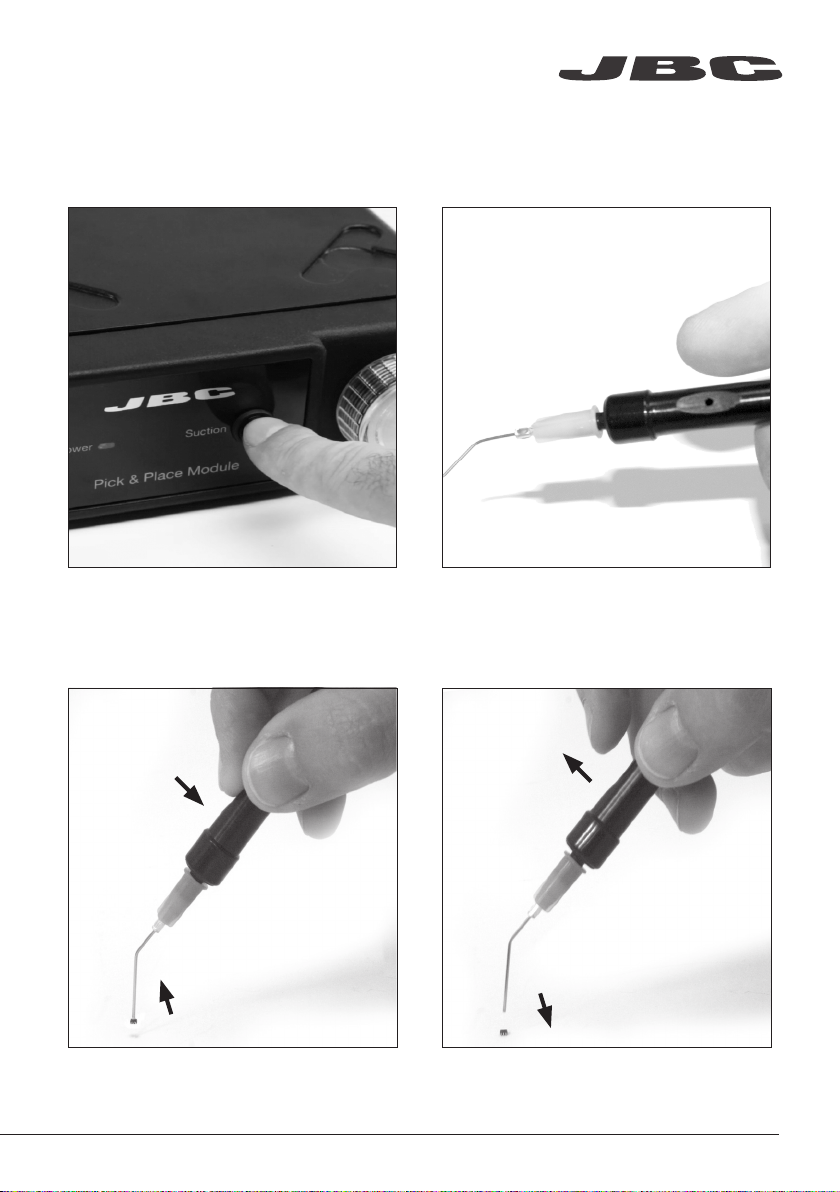

Operation modes

a) Hand control

Press the button to activate or stop the

suction.

Lift your finger to release the component.

Hold the pen so the hole is accessible to your

finger tip.

www.jbctools.com

5

Keep your finger on the pen hole.

ReleaseSuction

Press the pedal to start the suction Lift your foot to release the component

Keep suction button off to allow pedal

function.

b) Pedal control

6

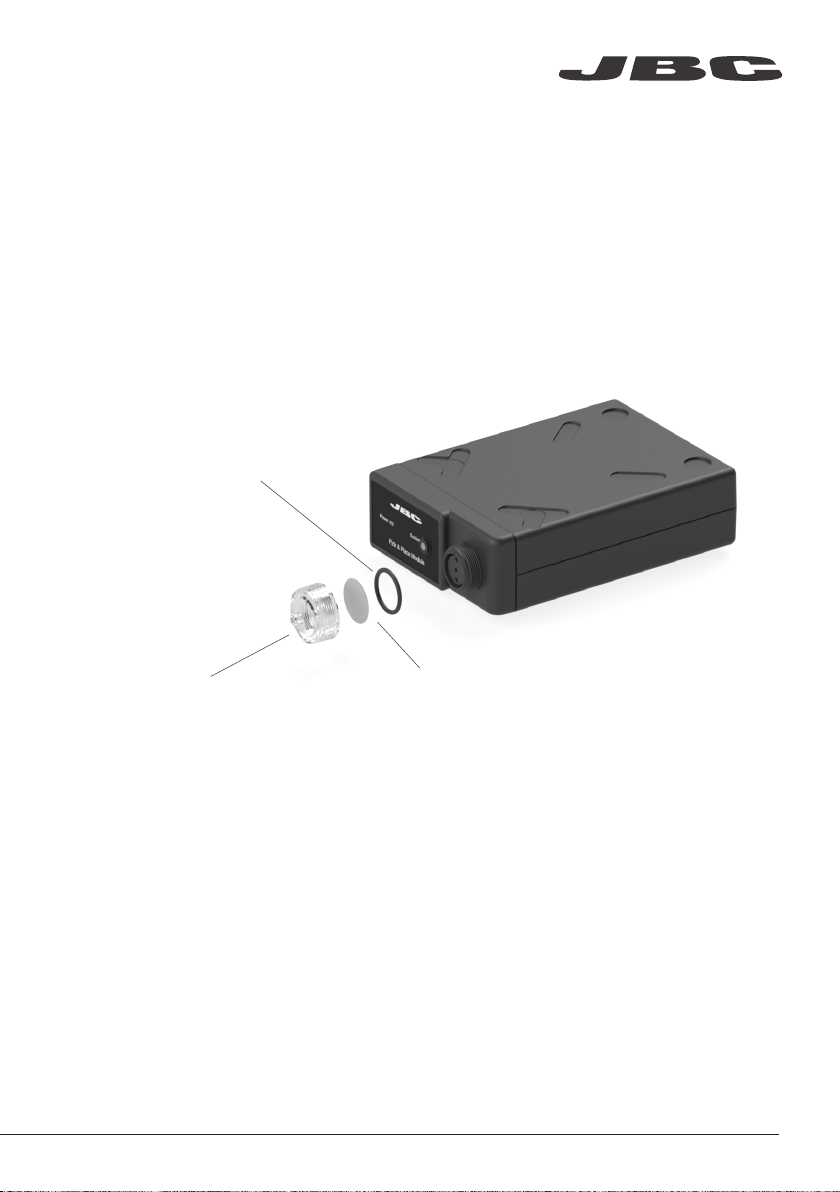

Maintenance

Spare filter

Ref. 0005966

O Ring

Ref. 0007717

Filter cover

Ref. 0004710

Before carrying out maintenance or storage, always unplug the equipment.

- Keep the casing clean by using a damp cloth. Specially use a soft cloth for the front side.

- Periodically check all cable and tube connections.

- Keep filters clean to ensure proper suction and replace them when necessary.

- Use original JBC spare parts only.

- Do not work with defective or damaged pieces.

- Repairs should only be performed by a JBC authorized technical service.

- Maintenance must not be carried out by children unless supervised.

www.jbctools.com

7

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Avoid flux coming into contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced

physical, sensory or mental capabilities or lack of experience provided that they have been given

adequate supervision or instruction concerning use of the appliance and understand the hazards

involved. Children must not play with the appliance.

Safety

Notes

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.

8

Notes

www.jbctools.com

9

Notes

10
