Jaycar Electronics QC8021 Manuel utilisateur
Wifi Sports Camera
UserManual
1
Quick Guide:
1. Download and install the app “SYMAGIX” from Itunes® or Google Play
2. Press the Wi-Fi button on the side of the camera to initialize the signal, the LED will be red
3. Search for the wireless signal “QC8021” on your smartphone or tablet using
the password “1234567890”.
4. You can now start using the camera once the wireless signal is connected and you have opened the app.
Note: Class 10 Micro SD Cards are required for this camera
2
3
Care & Maintenance
Limit the cameras exposure to direct sunlight; also do not point its lens into direct sunlight. This may
damage the image sensor of the video camera.
Take precautions to prevent water or sand particles from entering the video camera when it is used on the
beach or near water, as this may damage the video camera.
Keep the video camera free of dust and chemical materials. Place it in a cool, dry and well ventilated place.
Avoid placing the video camera in high temperature conditions, moist or dusty places to avoid damage of
the video camera.
If dirt or stains are accumulated on the video camera or on its lens, use soft, clean and dry rag to wipe it
away gently. If the video camera or its lens is covered with sand particles, blow them away gently. Do not
use a cloth to wipe. Otherwise, it may scratch the surface of video camera or its lens.
If you are required to clean the camera lens surface, firstly blow away the sand or dust accumulated on this
surface, and then wipe the camera gently with a clean dry cloth. Do not use solvents to clean the video
camera.
Do not touch the lens surface with fingers.
Please back up the data if the memory card inside this digital camera is used for the first time. After that,
format the memory card..

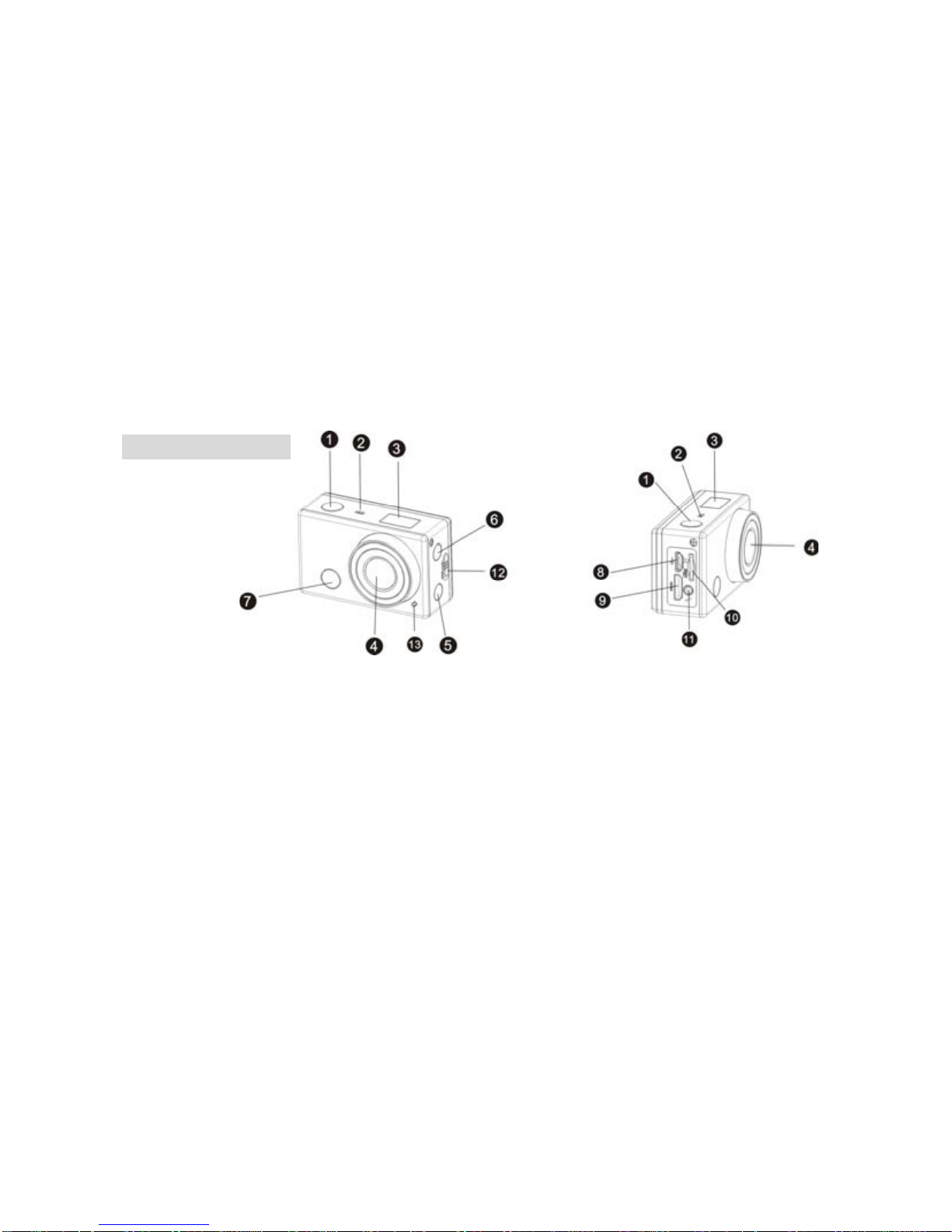

Camera Diagram:
1. Shutterbutton 8.MicroBUSBport
2. Microphone 9. Mini C HDMI port
3. LCD display 10. Micro SD card slot
4. Lens 11.Externalmicrophoneport
5. Wi-Fi switch and status indicator (red) 12. Battery cover push switch
6. Power / Mode button 13. LED light
4
7. Infrared signal reception light
LCD Display Diagram:
Turn on the Wi-Fi camera, the LCD will display the following status and settings:
1. Camera mode
2. Video recording mode (default)
3. Wi-Fi icon (display when enabled)
4. Micro SD card icon (display when loaded)
5. Resolution icon:
In camera mode, HI stands for 8 Mega Pixels (interpolated) (3264x2448), and in video recording mode, it stands
for FHD (1920x1080, 30fps);
5
6
In camera mode, LO stands for 5 Mega Pixels (2592x1920), and in video recording mode, it stands for 720P
(1280x720, 30fps);
HILO only displays in video recording mode, standing for 720P (1280x720,60fps).
6. Mute mode, displays when enabled, and disabled by default.
7. Counter, displays up to 999.
8. Timer, displays hours and minutes.
9. Battery icon: current battery level of the camera.
Note: The above icons may vary according to the status of the camera.
Operation:
After turning on the camera, you can press the Power/Mode button to switch the following modes in turn:
Video preview mode (1080P default) Video mode (720P, 60fps)
Video mode (720P, 30fps)
Camera mode (8MP) Camera mode (5MP)
In video mode, press the Shutter button to start recording, LED will flash，and press it again to stop;
In camera mode, press the Shutter button to take photo.
7
Using your Camera:
When you use the camera for the first time, please:
1. Insert a micro SD or micro SDHC card (not included), as shown in the following picture.
A Class 10 Micro SD Card is required for this camera.
Turn off the camera before inserting or removing the card.
8
2. Using the battery
2.1 Install the battery.
Please install the lithium battery correctly as shown:
Figure1 Figure2 Figure3 Figure4
Step 1. Push the battery cover switch to the lock position( ), and remove the battery cover. As shown in
figure 1.
Step 2. Place the lithium battery into the battery slot. Make sure the polarity of the battery is corresponding to the
9
