JAI GO-5000M-USB-UV Manuel utilisateur

User Manual

Thank you for purchasing this product.

Be sure to read this manual before use.

This manual includes important safety precautions and instructions on how to operate the unit. Be sure to read

this manual to ensure proper operation.

The contents of this manual are subject to change without notice for the purpose of improvement.

CMOS Digital Progressive Scan

Monochrome UV Camera Document

Version: 1.0

GO-5000M-USB-UV_Ver.1.0_Feb.2021

GO-5000M-USB-UV

Notice/Warranty/Certifications

Calculation of the maximum frame rate

Usage Precautions

Exposure Mode

Features

Trigger Control

Parts Identifications

Normal continuous operation

Timed mode

Preparation

Trigger width mode

Preparation Process

RCT (Reset Continuous Trigger) mode

Step 1:Installing the Software

Video Send Mode

Step 2:Connecting Devices

Multi ROI mode

Step 3:Verifying Camera Operation

Delayed Readout function

Step 4:Verifying the Connection between

Operation and function matrix

the Camera and PC

Black level control

Step 5:Configuring Basic Settings for the Camera

Gain control

Step 6:Adjusting the Image Quality

LUT

Step 7:Saving the Settings

Gamma

Shading Correction mode

Main Functions

Blemish compensation

Digital IN/OUT interface

ALC

Optical Interface

HDR(High Dynamic Range)

Opt In Filter Selector function

External appearance and dimensions

Pulse Generator

Spectral response

Sensor layout

Specifications table

Camera output format

Appendix

Pixel Format

User's Record

Output timing(Horizontal)

Output timing(Vertical)

ROI(Region Of Interest) setting

Digital ouput Bit allocation

Acquisition control

Contents

—2 —

GO-5000M-USB-UV

—3 —

Notice

The material contained in this manual consists of information that is proprietary to JAI Ltd.,

Japan and may only be used by the purchasers of the product. JAI Ltd., Japan makes no

warranty for the use of its product and assumes no responsibility for any errors which may

appear or for damages resulting from the use of the information contained herein. JAI Ltd.,

Japan reserves the right to make changes without notice.

Company and product names mentioned in this manual are trademarks or registered

trademarks of their respective owners.

Warranty

For information about the warranty, please contact your factory representative.

Certifications

CE compliance

As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC

(Electromagnetic compatibility), JAI Ltd., Japan declares that GO-5000M-USB-UV comply with

the following provisions applying to their standards.

EN 61000-6-3 (Generic emission standard part 1)

EN 61000-6-2 (Generic immunity standard part 1)

FCC

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications to this unit not expressly approved by the party responsible for FCC

compliance could void the user’s authority to operate the equipment.

GO-5000M-USB-UV

—4 —

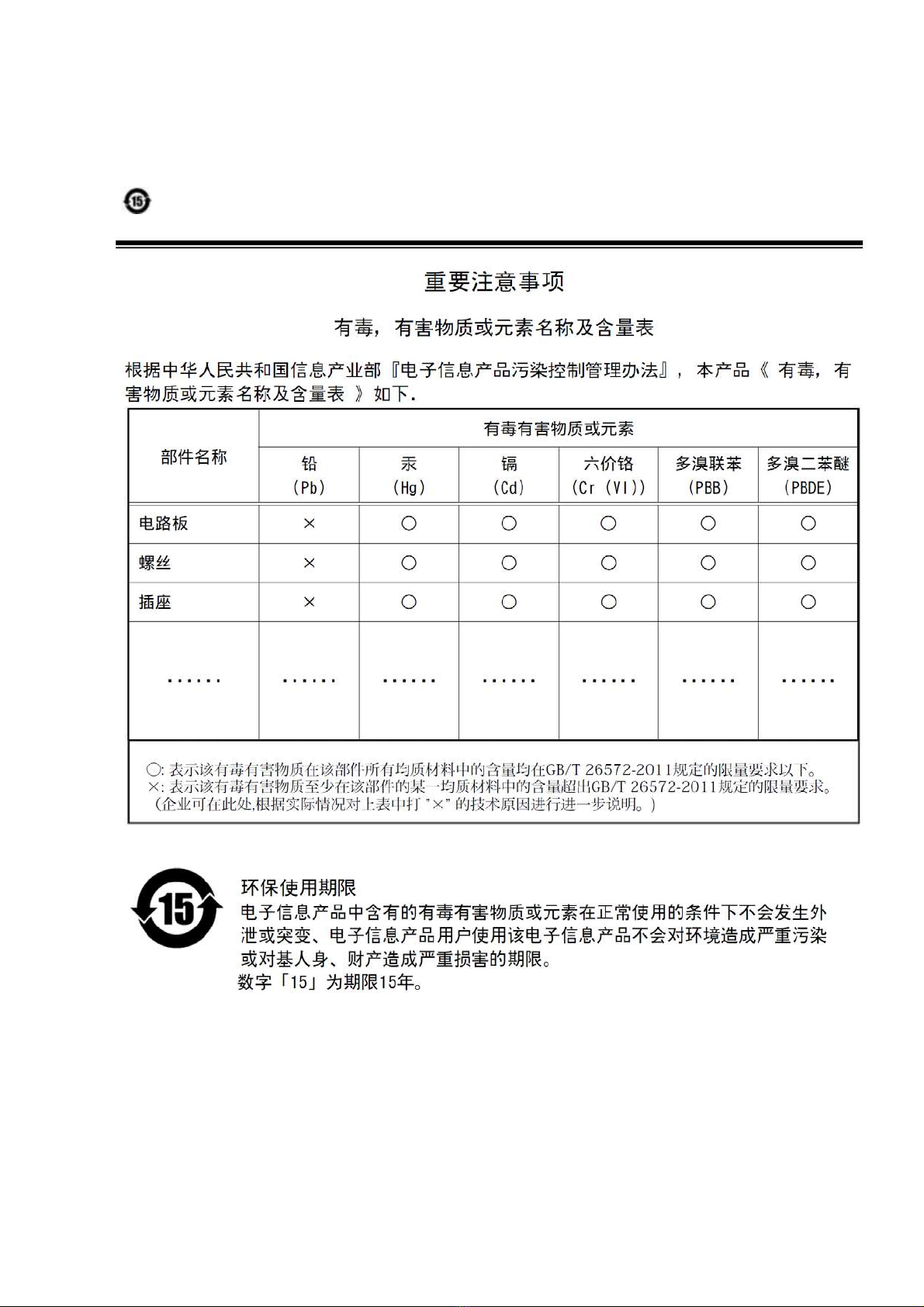

Supplement

The following statement is related to the regulation on “Measures for the Administration

of the control of Pollution by Electronic Information Products“ ,known as “China RoHS“.

The table shows contained Hazardous Substances in this camera.

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

GO-5000M-USB-UV

Usage Precautions

Notes on cable configurations

The presence of lighting equipment and television receivers nearby may result in

video noise. In such cases, change the cable configurations or placement.

Notes on attaching the lens

Avoiding dust particles

When attaching the lens to the camera, stray dust and other particles may adhere

to the sensor surface and rear surface of the lens. Be careful of the following

when attaching the lens.

• Work in a clean environment.

• Do not remove the caps from the camera and lens until immediately before

you attach the lens.

• To prevent dust from adhering to surfaces, point the camera and lens

downward and do not allow the lens surface to come into contact with your

hands or other objects.

•Always use a blower brush to remove any dust that adheres.

Never use your hands or cloth, blow with your mouth, or use other methods to

remove dust.

Phenomena specific to CMOS image sensors

The following phenomena are known to occur on cameras equipped with CMOS

image sensors. These do not indicate malfunctions.

• Aliasing

When shooting straight lines, stripes, and similar patterns, vertical aliasing

(zigzag distortion) may appear on the monitor.

• Blooming

When strong light enters the camera, some pixels on the CMOS image sensor

may receive much more light than they are designed to hold, causing the

accumulated signal charge to overflow into surrounding pixels.This

“blooming” phenomenon can be seen in the image, but does not affect the

operation of the camera.

• Fixed pattern noise

When shooting dark objects in high-temperature conditions, fixed pattern noise

may occur throughout the entire video monitor screen.

• Defective pixels

Defective pixels (white and black pixels) of the CMOS image sensor are

minimized at the factory according to shipping standards. However, as this

phenomenon can be affected by the ambient temperature, camera settings

(e.g., high sensitivity and long exposure), and other factors, be sure to operate

within the camera’s specified operating environment.

Notes on exportation

When exporting this product, please follow the export regulations of your country

or region.

—5 —

GO-5000M-USB-UV

Features

Connection example:

Camera

External Trigger

AC adapter

PoE-compatible switching hub

— 6 —

The GO-5000M-USB-UV is an industrial progressive scan camera equipped with a

1-inch global shutter CMOS image sensor with 5.2 effective megapixels (2560 ×2048).

This CMOS image sensor has sensitivity in the UV region.

The unit is compact and lightweight in design and is equipped with USB3 Vision interface.

Compact and lightweight

The unit’s compact size (approx. 29 ×29 ×41.5 mm, excluding lens mount) and lightweight

design (approx. 46 g) allows for easy assembly and installation.

Feature overview

New Compact and Rugged housing Series, 1” progressive scan camera

Intelligent body design for easy and flexible installation

USB3 Vision (USB 3.0) interface with power-over-USB capability.

Aspect ratio 5:4, 2560(H) x 2048(V) -5.2 million effective pixels

5 μm square pixels

S/N 55 dB with Dark Compression ON

8-bit, 10-bit or 12-bit output

61.9 frames/second with full resolution in continuous operation (8-bit)

Various readout modes, including horizontal and vertical binning

and ROI (Region Of Interest) for faster frame rates

0 dB to +24 dB gain control

10 μs (1/100,000) to 8 seconds exposure control in 1 μs step

Auto exposure control

Timed and trigger width exposure control

RCT trigger mode for specific applications

ALC control with combined function of AGC and auto shutter

HDR (High Dynamic Range) function is available

Various pre-processing circuits are provided

Programmable LUT

Gamma correction (3 steps: 0.45, 0.6 and 1.0)

Blemish compensation

C-mount for lens mount

GO-5000M-USB-UV

Parts Identification

①Lens mount（C-mount）

Mount a C-mount lens, microscope adapter, etc. here.

❖Before mounting a lens, be sure to refer to “Step 2:Connecting Devices” and confirm

the precautions for attaching a lens and the supported lens types.

②USB 3.0 connector

Use a USB 3.0 compatible cable to connect this to a USB port on the computer.

—7 —

GO-5000M-USB-UV

③POWER/TRIG LED

Indicates the power and trigger input status.

LED status and camera status

LED Light Status

POWER/

TRIG LED

（Lit amber）Camera initializing.

（Lit green）Camera in operation.

（Blinking green）During operation in trigger mode, trigger signals are

being input.

❖The blinking interval is not related to the actual input interval of

the external trigger.

④LINK LED

Indicates whether the GigE network connection is established or not.

⑤ACT LED

Indicates the GigE network status.

⑥DC IN/TRIG connector（6-pin round）

Connect the cable for a power supply (optional) or for DC IN / trigger IN here.

—8 —

Pin No. Input/Output Signal Description

1Power In DC In DC 10 V ～25 V

2In Opto In +

3In Opto In -

4Out Opto Out +

5Out Opto Out -

6GND GND

Compatible connectors

Camera side : HR10A-7R-6PB (73）（Hirose Electric or equivalent ）

Cable side : HR10A-7P-6S (plug) (Hirose Electric or equivalent ）

⑦Camera locking screw holes（M3, 3mm depth）

Use these holes mounting the camera directly to a wall or other structural system.

GO-5000M-USB-UV

Preparation

Preparation Process

Step 1 Installing the Software (first time only)

Install the software for configuring and controlling the camera (eBUS SDK for JAI) on the computer.

Step 2 Connecting Devices

Connect the lens, LAN cable, AC adapter, computer, and other devices.

Step 3 Verifying Camera Operation

Verify whether the camera is turned on and ready for use.

Step 4 Verifying the Connection between the Camera and PC

Verify whether the camera is properly recognized via Control Tool.

Step 5 Changing the Camera Settings

Refer to the procedure for changing the output format setting as an example, and change various

settings as necessary.

Step 6 Adjusting the Image Quality

Refer to the procedures for adjusting the gain, white balance, and black level as examples, and adjust

the image quality.

Step 7 Saving the Settings

Save the current setting configurations in user memory.

Step 1: Installing the Software (first time only)

When using the camera for the first time, install the software for configuring and

controlling the camera (eBUS SDK for JAI) on the computer.

❖When you install eBUS SDK for JAI, eBUS SDK for JAI player will also be installed.

Download the eBUS SDK for JAI from the JAI website.

URL https://www.jai.com/support-software/jai-software

Install eBUS SDK for JAI on the computer.

— 9 —

GO-5000M-USB-UV

Step 2: Connecting Devices

①Lens

・C-mount lenses with lens mount protrusions of 10 mm or less can be attached.

Lens mount protrusion

Lens

10 mm or less

・To prevent vignetting and to obtain the optimal resolution, use a lens that will cover

the image sensor size.

—10 —

・The maximum performance of the camera may not be realized depending on the lens.

・Attaching a lens with a mount protrusion of 10 mm or longer may damage the lens or

camera.

Caution

Model name

GO-5000M-USB-UV Mono 1 inch

12.8mm x 10.24mm (16.392mm diagonal)

Image Sensor

Note

The following formula can be used to estimate the focal length.

Focal length ＝WD /（1 ＋W/w）

WD ：Working distance （distance between lens and object）

W ：Width of object

w：Width of sensor

GO-5000M-USB-UV

①Lens

Camera body

③USB cable

②Direct connection

(or MP-45 tripod

adapter plate)

to external trigger

④DC IN / trigger IN

connection cable

⑤AC adapter(not supplied)

(power supply)

Autres manuels pour GO-5000M-USB-UV

Table des matières

Autres manuels JAI Système de vision industrielle

JAI

JAI GO-5000M-PGE-UV Manuel utilisateur

JAI

JAI SW-4010Q-MCL-M52 Manuel utilisateur

JAI

JAI GO-5000M-PGE-1 Manuel utilisateur

JAI

JAI GO-5000M-USB-UV Manuel utilisateur

JAI

JAI GO-5100MP-USB Manuel utilisateur

JAI

JAI GO-5000M-PGE-UV Manuel utilisateur

JAI

JAI BM-500 GE Manuel utilisateur

JAI

JAI GO-5000M-PMCL-UV Manuel utilisateur

JAI

JAI GO-5000M-PGE Manuel utilisateur

JAI

JAI GO-2400M-PGE Manuel utilisateur

Manuels Système de vision industrielle populaires d'autres marques

Festo

Festo SBOC-M-R1B-H Manuel utilisateur

Banner

Banner VE200G1B Manuel utilisateur

SVS-Vistek

SVS-Vistek CoaxPress EoSens Creation 1.1CXP2 Manuel utilisateur

Sony

Sony Vision Exchange PEQ-C100 Manuel utilisateur

Datalogic

Datalogic MX-U81 Instructions d'installation

Cognex

Cognex In-Sight D900 Series Manuel utilisateur

Spektrum

Spektrum SPMVR2520 Manuel utilisateur

Huaray

Huaray Movidius Series Manuel utilisateur

Daheng Imaging

Daheng Imaging MERCURY2 USB3 Manuel utilisateur

SVS-Vistek

SVS-Vistek exo174 U3 Series Manuel utilisateur

Teledyne

Teledyne e2v Eliixa+ Series Manuel utilisateur

Photron

Photron FASTCAM Mini CX Series Manuel utilisateur

National Instruments

National Instruments Vision CVS-1455 Manuel utilisateur

Omron

Omron FH-L550 Manuel utilisateur

iGen

iGen NV20/20 Manuel utilisateur

Ark Vision Systems

Ark Vision Systems AVS-Monitor 7 FHD Manuel utilisateur

Cognex

Cognex In-Sight 9902L Manuel utilisateur

Feniex

Feniex C-5500 Manuel utilisateur
