JCL 1

1. Introduction

Thank you for deciding to purchase a JCL counting scale from Jadever. This goods has the

excellent performance and splendid properties under severe quality management. It is

recommended to read this manual in full before using it for good function application.

2. Precautions

◎ Place the scale on a flat and stable surface. ee 3-3 Leveling the cale for details.

◎ Verify that the input voltage and the plug type matches the local AC power supply. ee 4-3

Power upply.

◎ Warm up the scale for 15 minutes before using it the first time.

◎ Keep the scale away from EMI noise, strong wind and vibration, which might cause

incorrect reading.

◎ Avoid sudden temperature changes (suitable operating temperature is between -5℃~ 40

℃.)

◎ Disconnect the power supply when cleaning the scale.

◎ Do not immerse the scale in water or other liquids.

◎ ervice should be performed by authorized personnel only.

3. Before Using the Product

3-1 Un acking and Checking

Open the package and check the instrument for transport damage. Immediately inform your

dealer if you have complaints or if parts are missing. The package should contain:

● cale body ● User manual

● tainless steel and plastic weighing pans ● Wire (power cord)

3-2 Installing Com onents

1) Before using the scale, remove the shipping protection screw (rotate counterclockwise),

which located underneath the scale and cork the plug buckle.

Note: the JCL-30K model was shipped without the shipping protection screw.

2) Cover the weighing pans on the scale body properly.

3-3 Leveling the Scale

To compensate for small irregularities or inclinations at the location, the scale can be leveled.

The scale is equipped with a level indicator at the front panel .Adjust the leveling feet until the

air bubble in the indicator is centered as shown.

Note: The scale should be leveled each time its location is changed.

(II)

JCL 2

4. Product Introduction

1) Leveler

2) Leveling foot

3) R -232 interface

4) Plastic weighing pan

5) tainless teel weighing pan 6) On/Off witch

7) Two-stage witch 8) Power socket

9) Transport protection screw 10) Plug buckle

4-1 S ecifications& General Features

S ecifications

General Features

· A/D covered by aluminium plate, prevent PCB from static and moisture

· Tare, Preset Tare, auto zero tracking

· Automatic counting accuracy improvement (ACAI) for enhanced counting accuracy

· HI/OK/LO quantity checking function

· tainless steel weighing pan

· Weighing platter easy to disassemble

(with anti-cockroach design)

· Dust proof PVC cover

Model JCL-1.5K JCL-3K JCL-6K JCL-7.5K JCL-15K JCL-30K

Capacity(kg) 1.5 3 6 7.5 15 30

Weighing units Kg/g/lb

Display 3 backlit LCD displays (6/5/6 Digits)

Pan size 294X228X13.5mm

cale dimensions 341X294X104mm

Power supply AC 110V/220V (AC±10%) or rechargeable battery（6V/4A）

JCL 3

· Low battery and charging status indication

· Accumulation of weight and quantity (max 99 pieces)

· ingle point and linear calibration available

· Auto shut off for power saving

4-2 Front Panel

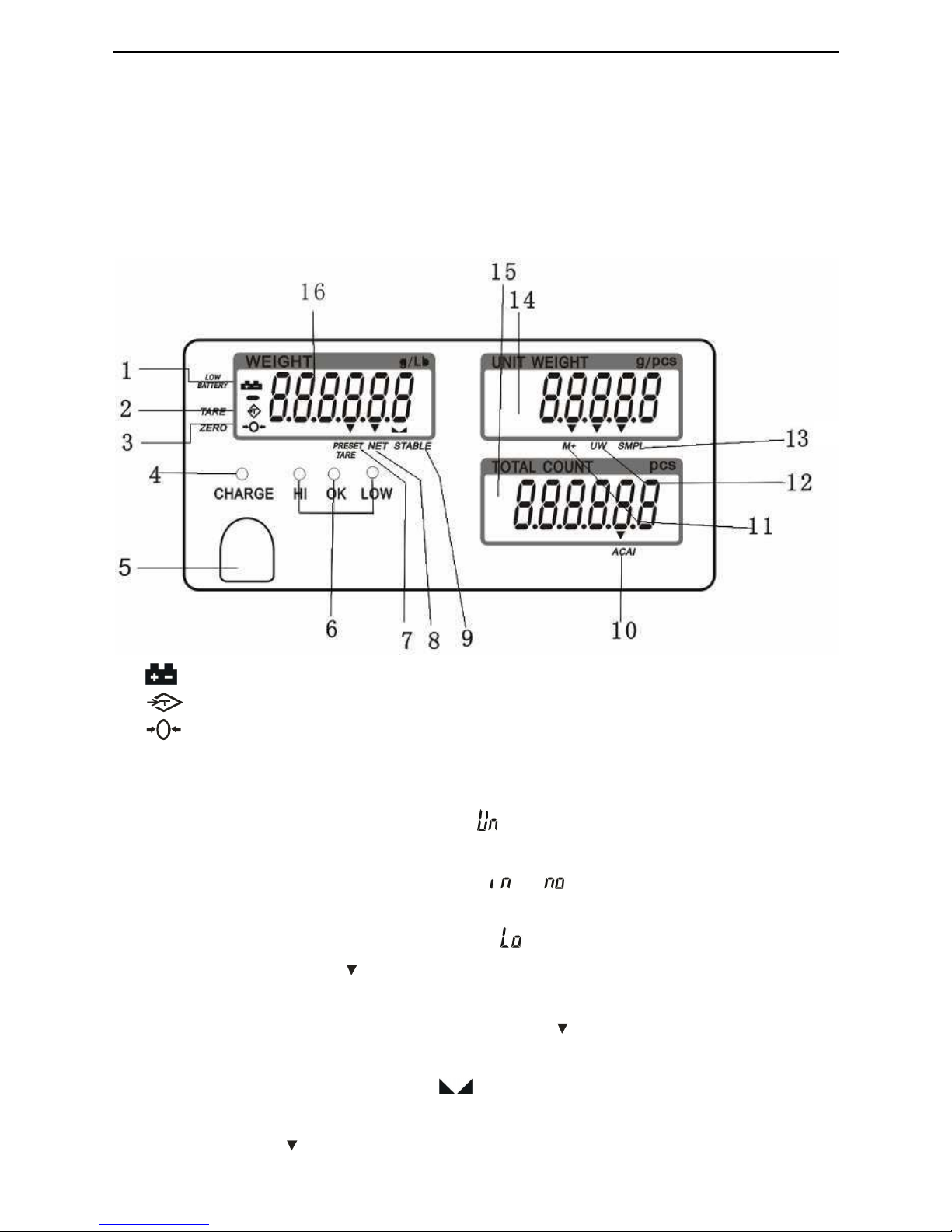

4-2-1 Dis lay

1) Low battery indication

2) Tare or Preset Tare indication

3) Center of Zero indication, The zeroing range is ±2﹪of weighing capacity.

4) Charge Lamp

5) Leveler

6) HI Lam (ON) Indicating parameter item

is selected when setting buzz

sounds. ( ee 5. Function etting, setting buzz sounds)

OK Lam (ON) -- Indicating parameter item or is selected when setting buzz

sounds.

LOW Lam (ON)—Indicating parameter item is selected when setting buzz sounds.

7) “PRESET TARE” ymbol “ ” points at “PRESET TARE” when Tare value entered via

numeric keys.

8) “NET” Net weight--Gross weight minus Tare. ymbol “ ” points at “NET” when TARE or

PRE ET TARE action is done.

9) “STABLE” table indication, ymbol “ ” appears at the top of “STABLE” when scale

is in stable condition.

10) “ACAI” ymbol “ ” points at “ACAI” when the average unit weight is calculated or

(II)

recalculated.

11) “M+” ymbol “ ” points at “M+” when scale is in accumulation mode.

12) “UW” Under entering a known unit weight mode, ymbol “ ” points at “UW” when

entered unit weight is lower than 4/5 of scale division. Unit weight is too small for ensuring

accurate quantity calculations.

13) “SMPL” Under the sample counting mode, ymbol “ ” points at “SMPL” when

calculated unit weight is lower than 4/5 of scale division or the quantity of sample is less than

10 pieces.

14) “UNIT WEIGHT” Unit Weight Window --Displays the average unit weight value, or

number of weighments.

15) “TOTAL COUNT” Total count window –Displays the calculated number of pieces on the

weighing pan, or accumulated piece count value.

16) “WEIGHT” Weight Window--Displays weight of object on weighing pan, or accumulated

weight value.

4-2-2 Keyboard

1) 0 ~9 numeric keys Enters specific values for tare; unit weight and other data entries.

2) ● key Decimal point

3) SMPL key hort press enters the sampling mode. Long press closes ACAI after

sampling. And shift Units when capacity setting.

4) G N/SET key hift the displays of Gross weight and Net weight after tare. Long press to

enter parameters setting. And turn on or off check weighing when entering HI, LO, OK

setting.

5) UWS/ITEM key Find out the unit weight in memory or save the unit weight reset again.

Inputs the indicated unit weight via numeric keys and press it to start counting function.

6) M+/SAVE key Accumulate the records of counting or weighing. ave the changing

parameter. et the capacity and resolution.

7) M-/HI key Clear the input figures. et the value of HI. Enable the blinking figure plus

(II)

one when inputting the figures.

8) ZERO/ESC key Zeros the display (within 2% of max.capacity) or cancels Tare action.

Exit from the setting or without saving.



/MR key Recalls and displays the total Accumulation data (weight, total count

and number of weightments ) and the first 10 records in details. Circle the choices

in the setting. Make the blinking spot shift leftwards when inputting the figures.

10) PRINT/LO key Press the key to print when printing manually is selected. et the LO

value. Enable the blinking figure decrease one when inputting the figures.

11) TARE/



key Inputs the weight of the object on the weighing pan as a Tare value ;

Inputs the indicated value entered via the numeric keys as a pre-set Tare value ; cancel

tare action. Display rightwards the first 10 records in detail. Make the blinking spot

shift rightwards when inputting the figures.

4-3 Power Su ly

Power su ly

Please verify the local AC power source and switch the two-stage switch to the proper place

before plugging into the power outlet.

Alternative ower su ly

1) AC 110V/220V (AC±10%)

2) (6V/4A) internal rechargeable battery

Power Consum tion

About 300mW (without backlight)

About 380 mW (with backlight)

Low battery warning

When “ ” appears in the upper left corner of the weight window, the battery power

requires recharging. The charge lamp turns green from red when the recharging is completed

(which takes about 8 hours). Disconnect the scale from power supply when it is fully charged.

A full charged battery can operate the scale for approximately 65 hrs with backlight, 80hrs

without backlight.

Note: Battery is to replaced only by an authorized service dealer .Risk of explosion can occur

if replaced with the wrong type or connected improperly

5. Setting Mode

5-1 Function Setting

1) Press G N/SET key while powering on

Or long press G N/SET key in the weighing mode to enter parameter setting.

(II)

2) Press key



/MR or TARE/



to circle the parameters

3) Press key G N/SET to enter the selected parameter.

4) Press key



/MR or TARE/



to circle the items of present parameter.

5) Press key M+/SAVE to save after changing and return to parameters choosing. While

Press key ZERO/ESC to return without saving.

6) Press key ZERO/ESC again to return to weighing mode.

Note: In the arameter setting mode, ress the numeric key to choose the arameter

directly.

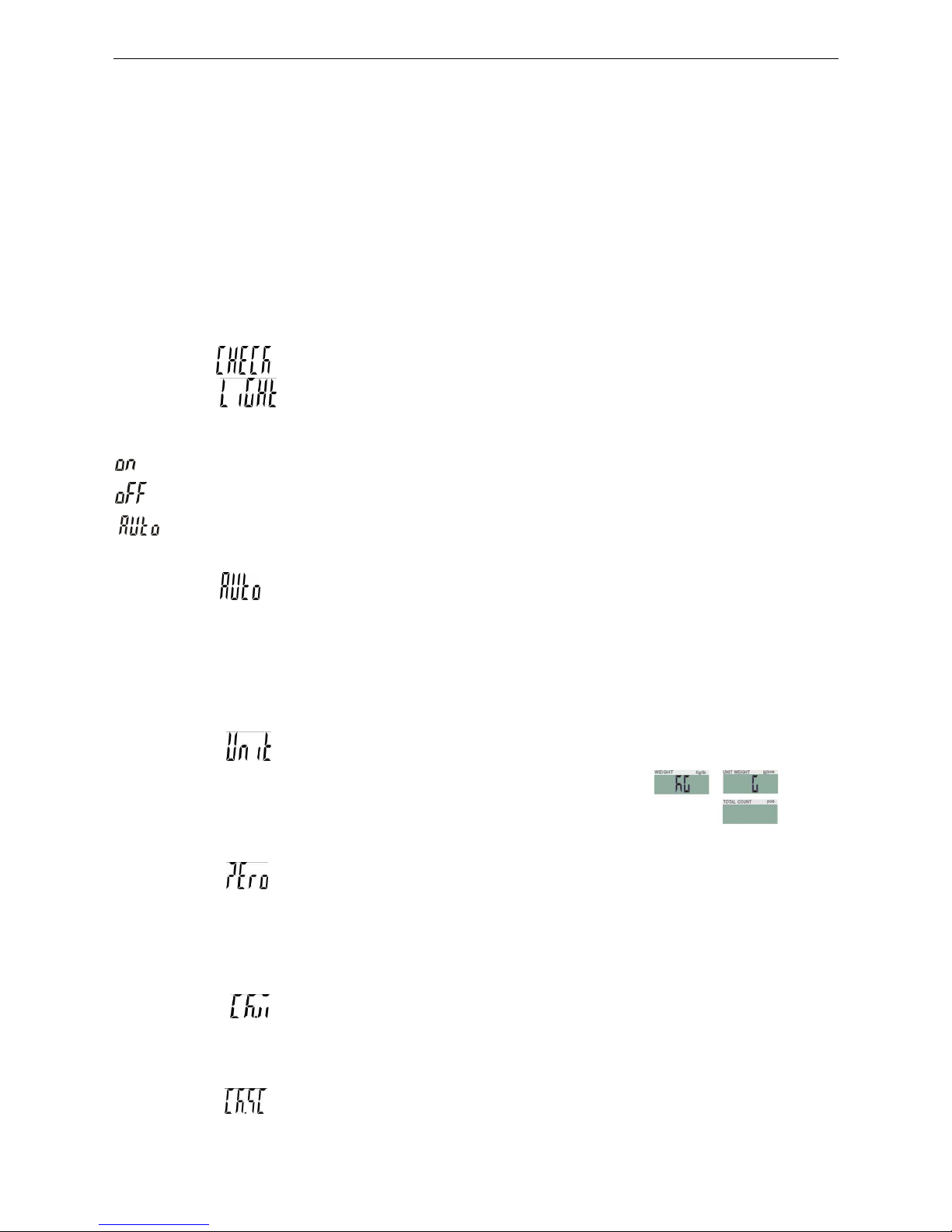

5-2 Parameters

1) SET00 internal code checking

2) SET01 backlight modes shifting

Options are On, OFF, and AUTO

= Backlight

= No backlight

= Auto-on with items greater than 9d placed on the pan. Auto-off within 2s,4s,6s., 20s,

ev ever(ever=the backlight lasts forever with more than 9d placed on the pan) when it is stable.

3) SET02 auto-off time setting

Options are off, 5min, 10min, 30min, and 60min.

Off : close auto-off function

5，10，30，60：Auto off with less than 9d of gross weight when there is not any operation

within 5min (10, 30, 60min available)

4) SET03 using units setting: press AMPLE to choose unit Kg Kg，Kg g，

g g，lb lb

Note: it refers to the weighing unit and unit weight unit.

uch as, if Kg, G is selected, it means the weighing unit is Kg and unit weight unit g.

5) SET04 zero range setting: d0, d1, d2, d3, d4, d5.

d0: display zero with 1 d placed on the pan.

d1: display zero with 2 d placed on the pan. No display with 1d on the pan.

o do as d2, d3, d4 and d5

6) SET05 weight checking setting: on, off

On: weight checking starts automatically when powering on

Off: weight checking closes when powering on

7) SET06 stable weight checking setting: on, off

On: it starts checking weight when the weight and amounts are within the checking range

(II)

and the stable symbol appears.

Off: it starts checking weight when the weight and amounts are within the checking range

8) SET07 beep setting: Hi，ok ，Lo，out，no.bee

Hi: There will be a warning sound when the material quantity is more than the upper limit,

and the weight of the material is more than 20 divisions

Ok: There will be a warning sound when the quantity of the articles is between the upper

and lower limit (including the upper and lower limits).

Lo: There will be a warning sound when the material quantity is less than the lower limit,

and the weight of the material is more than 20 divisions.

Out: There will be a warning sound when the material quantity exceeds the upper and

lower limits, and the weight of the material is more than 20 divisions

no.bee : No sound alarm.

9) SET08 external equipment setting: PC , JM , Godex , BIRCH, ZEBRA, DMP,

GP, CK , ET , CX, U-KEY.

PC: computer output

JMS: connect with weighing system

GODEX: Godex printer (paper size 5cm*3cm)

BIRCH: Birch printer (paper size 5cm*3cm)

ZEBRA: Zebra printer (paper size 5cm*3cm)

DMP: Dot matrix printer ( H-24)

GP：Adhesive label sticker printer (5cm*3cm)

CK: thermal printer (Chinese available)

ET: Large LED display

CX: CX large screen display (version 0.02)

EXCEL: Work with the function of “Use erial Keys” in Windows in outputting the data to

Excel. Reference user manual: http://www.jadever.com.cn/Download.aspx

U.KEY: U.KEY connector works with PC to send the weighing data to computer

(WinXP/Win7) in form of Excel and so on.

Note: pecial setting is needed by distributor if you want to print in Chinese.

10) SET09 baud rate setting: 9600, 4800, 2400

11) SET10 printing modes setting: key, stable, contin

contin：Printing continually

stable：Printing when stable with more than 20d placed on the pan

key：Printing by pressing keys

(II)

12) SET11 printing format setting: prt01~prt03

13) SET12 filtering setting: 1, 2, 3, 4

1：uitable in very stable environment with the quickest weighing

2：uitable in the common environment

3：uitable in a bit shaking environment

4：uitable in the very shaking environment with the slowest weighing

14) SET13 zeroing or taring setting: stable, auto, always

stable ：Taring or zeroing works when stable only

always：Taring or zeroing works no matter it is stable or not

auto： Press key TARE or ZERO when unstable, but it works when stable.

15) SET14 time setting (optional): on, off

RTC setting: press key G N/SET to enter RTC setting and set to on. Press key

G N/SET again to enter the RTC window. Press key G N/SET to enter the figure

changing and key



/MR or TARE/



to shift the figures. Press key M-/HI or

PRINT/LO to modify the value (or via numeric keys). Press key M+/SAVE to save and

shift the windows.

16) SET15 weight memory parameter: on, off

On: display the last weight when powering on again

Off: do not display the last weight when powering on again

17) SET16 the kinds of checking: Qty.ck, Wt.ck

Qty.ck: start amount checking

Wt.ck: start weighing checking

18) SET17 parameter initialization

press key G N/SET then key M+/SAVE to start initialization. It is finished when

displaying OK.

6. Single and Multi- oint Calibration

Note: Before calibration, please set the capacity first. The unit used in calibration is the one

that has been set before. During the calibration procedure, LONG press ZERO/ESC to

return to normal weighing mode without saving.

Here we take 3kg/10g as an example

1. Press and hold TARE/ while powering on.

Do not release it till the window displays “CAL”

2. With no load on the weighing pan,

(II)

press TARE/ to start zero point calibration.

3. Wait till the window displays the first calibration value.

Note: The first calibration value is default. If the value

has been changed, the default value is 1/3 of full load.

If you need to change the value, do as the following: Press key G N/SET to enter the

value setting. Press key



/MR or TARE/



to move leftwards or rightwards. Press

key M-/HI or PRINT/LO to modify the value (or via numeric keys). Press key

M+/SAVE to save.

4. Put the corresponding weight on the weighing pan,

and then press TARE/ to complete the first point calibration.

Note: After the first point calibration, the window can display the weight value. If no need

for the other point calibration, move to tep 6 to finish the calibration procedure.

5. Add another weight 500g to the current weight. The window

will show the total weights value. Press TARE/ to complete.

Repeat this step to complete the calibrations of on3, on4 and on5.

6. Press ZERO/ESC to save. After the window displays “ ”,

It will return to normal weighing mode.

Note: the window displays automatically when on5 is finished. It will be saved and

return to the normal weighing.

7. O eration

7-1 Weighing

Place item to be weighed on the scale. The Weight

window shown is 1.00kg, Gross Weight.

7-2 Tare & Preset Tare

Tare

When weighing a sample that must be held in a container, taring stores the container weight

into memory.

1) Under the weighing mode, place the container on the scale.

Press the key TARE to complete tare action.

The symbol appears and the window displays as shown on the right

2） Place the item into the container.

Then the window displays the net weight.

3） Clear the pan. The window displays the taring weight

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Jadever Échelle

Jadever

Jadever JCAII Manuel utilisateur

Jadever

Jadever JWL-1.5K Manuel utilisateur

Jadever

Jadever IDS701-CTRUCK Manuel utilisateur

Jadever

Jadever JC Manuel utilisateur

Jadever

Jadever JWI 700C Manuel utilisateur

Jadever

Jadever 1.5K Manuel utilisateur

Jadever

Jadever JCL Manuel utilisateur

Jadever

Jadever JWE Manuel utilisateur

Jadever

Jadever SNUGIII Series Manuel utilisateur

Jadever

Jadever JCAII Manuel utilisateur

Jadever

Jadever JCL Manuel utilisateur

Jadever

Jadever JCL Series Manuel utilisateur

Jadever

Jadever JWA series Manuel utilisateur

Jadever

Jadever JWE-3K Manuel utilisateur

Jadever

Jadever JWI-501 Series Manuel utilisateur

Jadever

Jadever JCL Series Manuel utilisateur

Jadever

Jadever LPWN-1530 Manuel utilisateur

Jadever

Jadever JKH Manuel utilisateur

Jadever

Jadever NWTE Manuel utilisateur

Jadever

Jadever JWE Manuel utilisateur

Jadever

Jadever JWI-700W Manuel utilisateur

Jadever

Jadever JKD 250 Manuel utilisateur

Jadever

Jadever Jadever SKY Manuel utilisateur

Jadever

Jadever LGCN-3075 Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
