Jacuzzi Nova 5 Manuel utilisateur

nova™ 5 whirlpool bath and soaking bath

nova—a brightly burning star. the nova™ whirlpool bath—a rejuvenating point of light in your day, your night, your routine.

Clean lined and classic, the Nova™ whirlpool

is versatility deﬁned.

whirlpool bath features:

• 4 fully adjustable TheraPro™ jets

• 1 directionally adjustable AccuPro™ jet

• RapidHeat™ in-line heater

• Electronic on/off control

• Patented Fixed Air Flow System

• Exclusive Tru-Level™ self-leveling base system

• Drain included on whirlpool baths

nova™ 5

whirlpool bath

model number: 9230 – RH, 4480 – LH

exterior dimensions:

60" long x 42" wide x 18½" high

interior dimensions:

41" long x 27" wide x 18" high

# of Jets/type of Jets:

4 TheraPro™ Jets,

1 AccuPro™ Lumbar Jet

operating gallons:

46 gallons

nova™ 5

soaking bath

model number: 4481

exterior dimensions:

60" long x 42" wide x 18½" high

interior dimensions:

41" long x 27" wide

Nova® 5 Whirlpool Bath

Model: 4480, 9230

Nova™ 5 Bath

Model: 4481

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

9230 Nova® 5 Whirlpool Bath

Right Hand

4480 Nova® 5 Whirlpool Bath

Left Hand

4481 Nova® 5 Bath

• Right and Left Hand Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

TheraPro™ Jet Rings Kit: #D095

AccuPro™ Jet Rings Kit: #P556

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 42” W x 18-1/2” H

(1524 mm) L x (1067 mm) W x (470 mm) H

Drain/Overﬂow

A: 14-3/4” (375 mm) B: 8-1/2” (216 mm)

Cutout

58” x 40”

Total Weight

4480, 9230: 722 lb (327 kg) / 41 lb/ft2(201 kg/m2)

4481: 682 lb (309 kg) / 39 lb/ft2(190 kg/m2)

Operating Gallonage

4480, 9230: 46 U.S. Gal. (170 liters)

Max. 54 U.S. Gal. (204 Liters)

Product Weight

4480, 9230: 97 lb (44 kg)

4481: 57 lb (26 kg)

Skirt Mounting

Optional, U-Frame

Electrical Speciﬁcations (Models 4480, 9230 only)

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional Models 4480, 9230 only)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

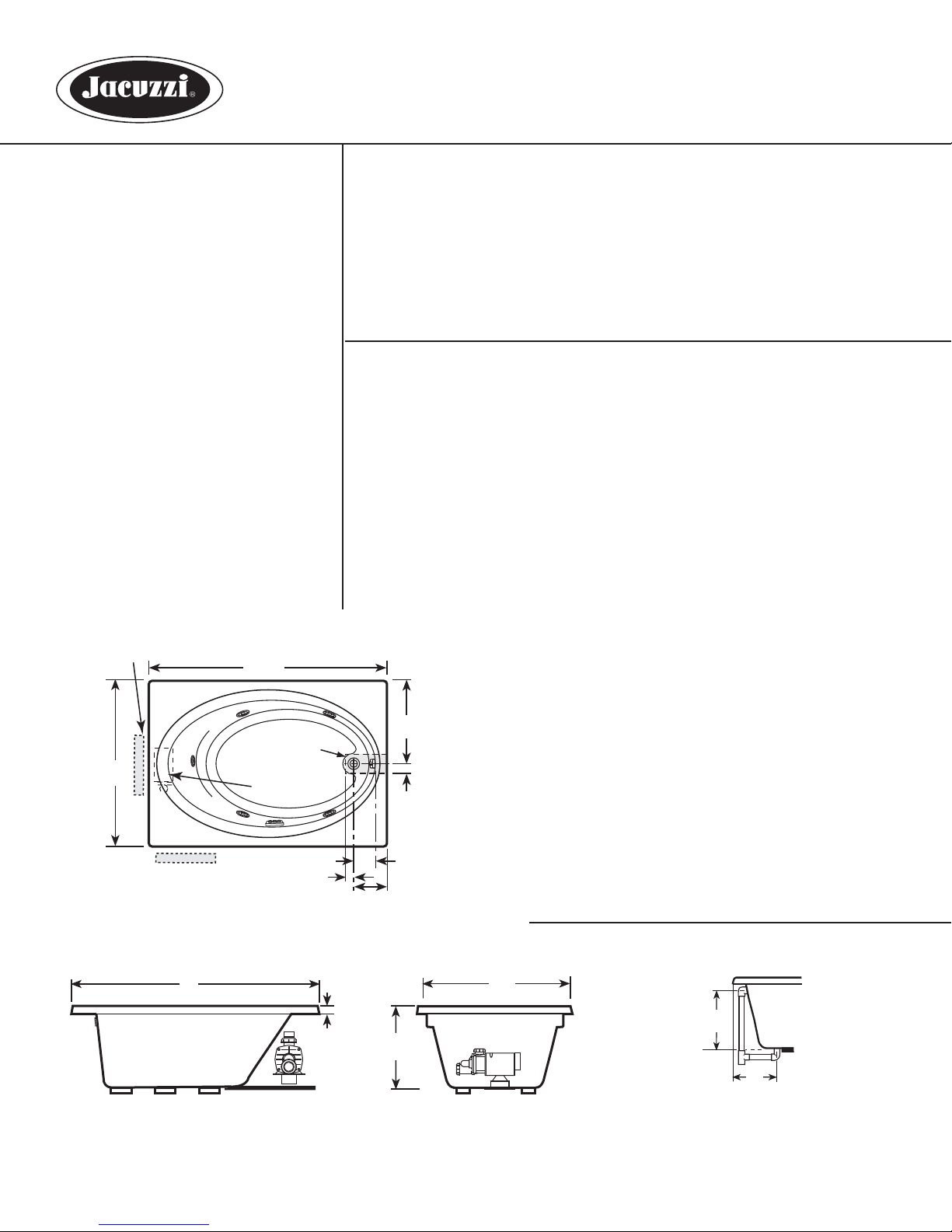

60"

21''

42''

2''

11" x 4"*

8-1/2''

Motor

12" H x 18" L

Service Access

Opt. Service

Access

7''

END VIEW

SIDE VIEW

# FR86 06/07

DRAIN/OVERFLOW

Product Shown: Nova®5 Whirlpool Bath Right Hand Model: 9230

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
