Jacuzzi Tara Plus Whirlpool Bath BR05 Manuel utilisateur

tara™ plus whirlpool bath

like the fabled Irish tower of kings that shares its name, the tara™ plus whirlpool bath is itself a singularly regal experience in an everyday world.

Detail: The Tara™ whirlpool bath places Jacuzzi‘s

Magic Touch®controls right in reach. Perfectly

positioned AccuPro™ jets massage away cares as

you recline against Tara‘s backrest.

Cozy up to the Tara™ plus whirlpool bath’s

corner conﬁguration and linger as you massage

away the cares of the day.

features:

• 4 fully adjustable TheraPro™ jets

• 5 directionally adjustable AccuPro™ jets

• RapidHeat™ in-line heater

• Electronic on/off control with

temperature readout

• Air ﬂow adjustability

• Chromatherapy underwater lighting

• Built-in tile ﬂange and integral skirt with

access panels on skirted model

• PrO3™ Ozone Sanitation System standard

tara™ plus whirlpool bath

model number: BR05 - RH, DB83 - LH

exterior dimensions:

60" long x 60" wide x 20¾" high

interior dimensions (at bottom):

45" long x 40" wide

# of Jets/type of Jets:

4 TheraPro™ Jets,

4 AccuPro™Back Jets,

1 AccuPro™ Foot Jet

operating gallons:

61-87 gallons

Tara™ Plus Whirlpool Bath

Model: BR05, DB83

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

BR05 Tara™ Plus Whirlpool Bath

Right Hand

DB83 Tara™ Plus Whirlpool Bath

Left Hand

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

HTC Jet Trim Kit: #D095

BMH Jet Trim Kit (3 Req’d): #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 60” L x 20-3/4” H

(1524 mm) L x (1524 mm) L x (527 mm) H

Drain/Overﬂow

A: 16” (406 mm) B: 12-3/8” (314 mm)

Cutout

See Illustration Below

Total Weight

984 lb (446 kg) / 39 lb/sq. ft. (192 kg/m2)

Operating Gallonage

Min. 61 U.S. Gal. (231 Liters)

Max. 87 U.S. Gal. (329 Liters)

Product Weight

118 lb (54 kg)

Skirt Mounting

Optional

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Standard)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

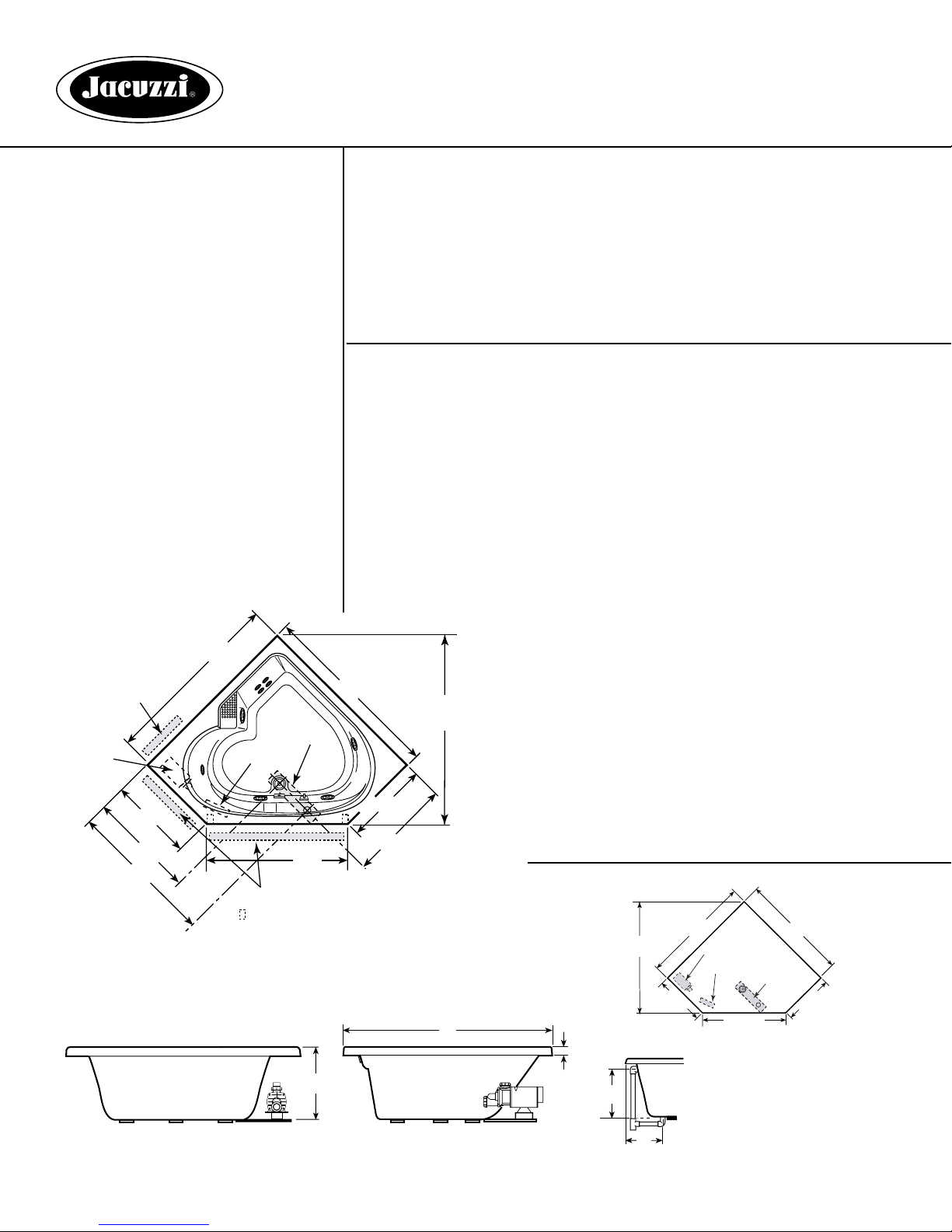

SIDE VIEW END VIEW

#FS22 10/06

DRAIN/OVERFLOW

- 2" x 4" Stud

14" x 4"*

Heater (S)

Motor

12" H x 18" L

Service Access

Opt. Service Access

60"

35"

27-1/4"

Ref.

61-5/8"

46"

44"

35"

27-1/4"

25-1/2"

(648 mm)

58"

(1473 mm)

45-9/16"

(1157 mm)

58"

(1473 mm)

25-1/2"

(648 mm)

Ref.

59"

TARA™PLUS LH CUTOUT

Drain Cutout

Motor

Heater

Product Shown: Tara™ Left Hand Motor Plus Whirlpool Bath LH Model: DB83

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
