milano™ whirlpool bath and soaking bath

milan—or milano, as the Italians say—is the city at the center of attention. the pinnacle of Italian commerce and culture.

Detail: The Milano™ whirlpool bath delivers both

safety and solace through integrated handrails,

sculpted armrests, and precise placement of patented

Jacuzzi®TheraPro™ and AccuPro™ jets.

milano™ whirlpool bath

model number: H547 (RH drain,

LH pump), H546 (LH drain, RH pump)

exterior dimensions:

72" long x 40" wide x 20¾" high

interior dimensions:

45" long x 26" wide x 18" wide

# of Jets/type of Jets:

4 TheraPro™ Jets

2 AccuPro™ Foot Jets

operating gallons:

60 gallons

The Milano™ whirlpool bath is itself a

center–– of invigoration, rejuvenation.

features:

• 4 fully adjustable TheraPro™ jets

• 2 directionally adjustable AccuPro™ jets

• Sculpted armrest and backrest

• Integral Handrails

• Electronic on/off controls

• Drain included on whirlpool baths

milano™ soaking bath

model number: H548

exterior dimensions:

72" long x 40" wide x 20¾" high

interior dimensions:

45" long x 26" wide

Milano™ Whirlpool Bath

Model: H546, H547

Milano™ Bath

Model: H548

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

H546 Milano™ Whirlpool Bath

Left Hand

H547 Milano™ Whirlpool Bath

Right Hand

H548 Milano™ Bath

• Right and Left Hand Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

Trim Kit: 2 BMH Jet Rings #J869

Trim kit: 4 HTC Jet Rings #D095

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

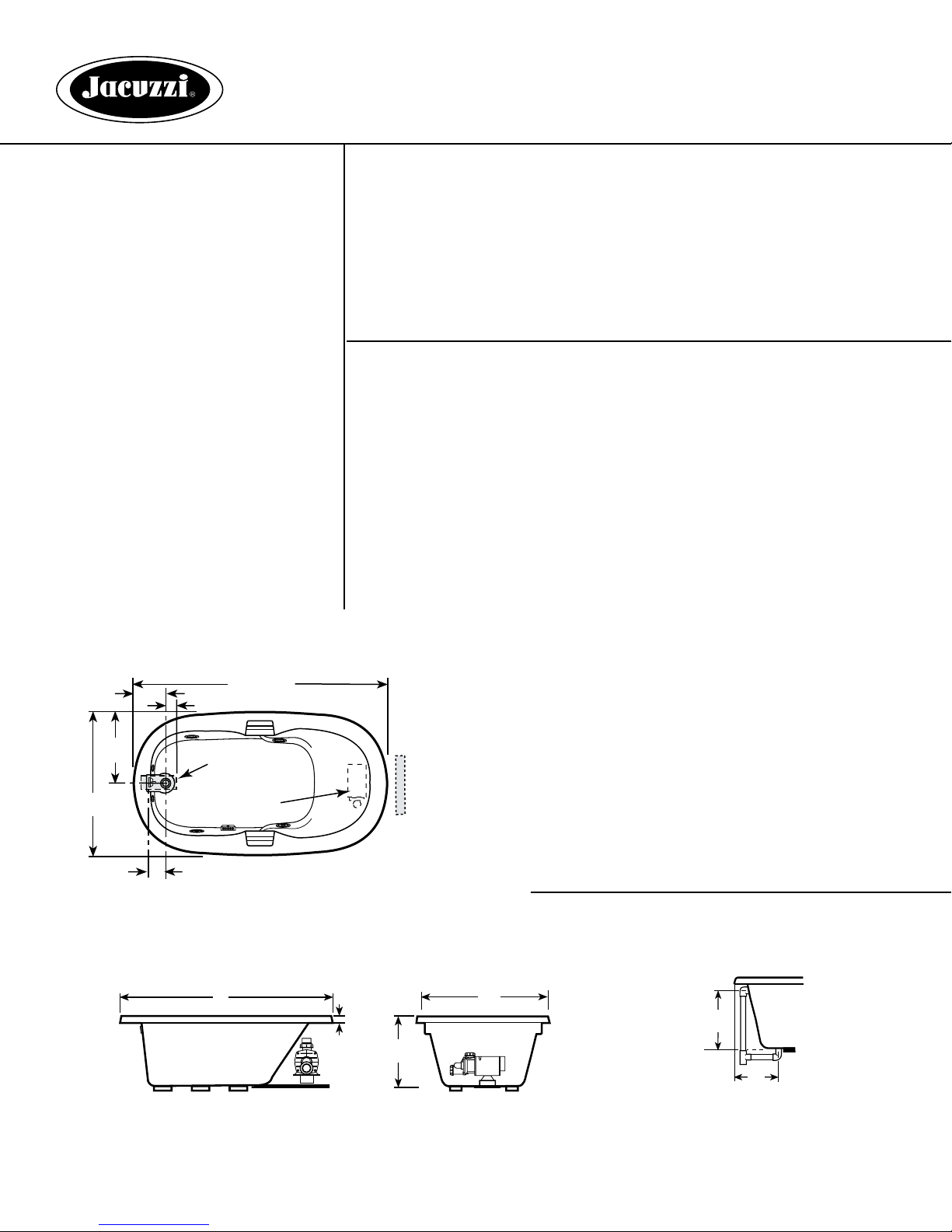

Technical Speciﬁcations

Dimensions

72” L x 40” W x 20-3/4” H

(1829 mm) L x (1016 mm) W x (527 mm) H

Drain/Overﬂow

A: 18-1/2” (470 mm) B: 11” (279 mm)

Cutout

Template Provided Part Number #P188000

Total Weight

H546, H547: 893 lb (405 kg) / 45 lb/sq. ft. (218 kg/m2)

H548: 868 lb (394 kg) / 43 lb/sq. ft. (212 kg/m2)

Operating Gallonage

60 U.S. Gal. (227 Liters)

Product Weight

H546, H547: 143 lb (65 kg)

H548: 118 lb (54 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations Models H546, H547 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Models H546, H547 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

20"

11" 71-1/2"

40"

12" x 4"*

Motor

12" H x 18" L

Service Access

END VIEW

SIDE VIEW

#FR67 12/06

DRAIN/OVERFLOW

Product Shown: Milano™ Whirlpool Bath Left Hand Shown Model: H546

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
