gallery™ 6 oval whirlpool bath and soaking bath

like its namesake, the gallery™ whirlpool bath is a place of reverence—a haven suited for quiet reﬂection.

The Gallery™ is a work of art a clean,

stylish well of relaxation, ideal for quiet

contemplation.

whirlpool bath features:

• 4 Fully adjustable TheraPro

jets

• 3 Directionally adjustable AccuPro™

• Exclusive Tru-Level™ base system

• Slip-resistant bottom

• Patented Fixed Air Flow System

• Sculpted armrest

• Contoured backrest

• Drain included on whirlpool baths

gallery™ 6 oval

whirlpool bath

model number: N860 – LH, N865 – RH

exterior dimensions:

72" long x 42" wide x 20½" high

interior dimensions:

50" long x 28" wide

# of Jets/type of Jets:

4 TheraPro®Jets,

3 AccuPro™ Lumbar and Foot Jet

operating gallons:

62 gallons

gallery™ 6 oval

soaking bath

model number: N870

exterior dimensions:

72" long x 42" wide x 20½" high

interior dimensions:

50" long x 28" wide

Gallery™ 6 Oval Whirlpool Bath

Model: N860, N865

Gallery™ 6 Oval Bath

Model: N870

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

N860 Gallery™ 6 Oval Whirlpool Bath

Left Hand

N865 Gallery™ 6 Oval Whirlpool Bath

Right Hand

N870 Gallery™ 6 Oval Bath

• Right and Left Hand Drain Location

• Accessories / Hardware:

TheraPro™ Jet Rings Kit #D095

AccuPro™ Jet Rings Kit #P556

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

72” L x 42” W x 20-1/2” H

(1829 mm) L x (1067 mm) W x (521 mm) H

Drain/Overﬂow

A: 16” (406 mm) B: 11-1/2” (292 mm)

Cutout

Template Provided

Total Weight

N860, N865: 871 lb (395 kg) / 42 lb/sq. ft. (203 kg/m2)

N870: 826 lb (375 kg) / 39 lb/sq. ft. (192 kg/m2)

Operating Gallonage

62 U.S. Gal. (235 Liters)

Product Weight

N860, N865: 105 lb (48 kg)

N870: 60 lb (27 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations Models N860, N865 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Models N860, N865 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

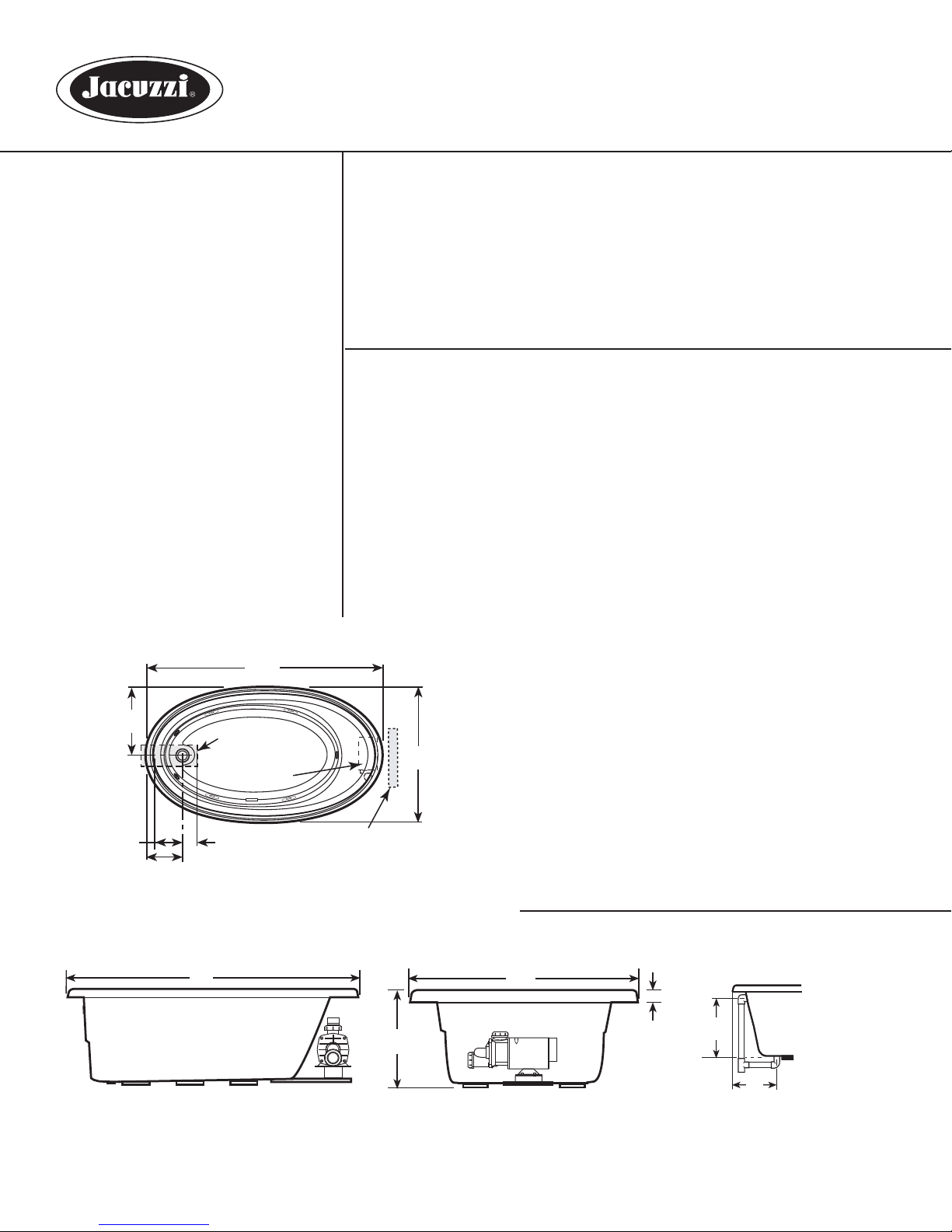

72"

21"

42"

14" x 4"

11-1/2"

Motor

12" H x 18" L

Service Access

6-7/8"

SIDE VIEW

H2''

END VIEW

#FR56 06/07

DRAIN/OVERFLOW

Product Shown: Gallery™ 6 Oval Whirlpool Bath Left Hand Shown Model: N860

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
