capella® 60 corner pure air

II bath w/integral skirt

to the Italians, “la capella”—the chapel—is a sacred place. step into our capella®pure air® II, and you’ll understand.

The Capella’s®unique corner conﬁguration

allows for roomy relaxation.

features:

• Exclusive 360º Balanced Airﬂow™ system

• 600 watt variable speed heated air blower

• Thermal Lumbar Comfort™ (TLC)

• Timed purge cycle

• Safely use salts and aromatic oils

• PrO3™ Sanitation System

capella®60 pure air®II

(with integral skirt)

model number: EA20

exterior dimensions:

60" long x 60" wide x 20½" high

interior dimensions:

50" long x 34" wide(mid) x 18" wide(end)

operating gallons:

73 gallons

Capella® 60 Corner Pure Air® II Bath w/Integral Skirt

Model: EA20

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

EA20 Capella® 60 Corner Pure Air®

II Bath w/ Integral Skirt Right-

Hand

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 60” L x 20-1/2” H

(1524 mm) L x (1524 mm) L x (521 mm) H

Drain/Overﬂow

A: 18” (457 mm) B: 12-1/8” (308 mm)

Cutout

Total Weight

1217 lb (552 kg) / 56.8 lb/ft2(277 kg/m2)

Operating Gallonage

73 U.S. Gal. (276 Liters),

Min. 55 U.S. Gal. (208 Liters)

Max. 90 U.S. Gal. (341 Liters)

Product Weight

170 lb (77 kg)

Skirt Mounting

Integral

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Blower: 120 VAC, 15 AMP, 60 Hz.

Heater

No water heater is available on this unit. Blower has integral air heater.

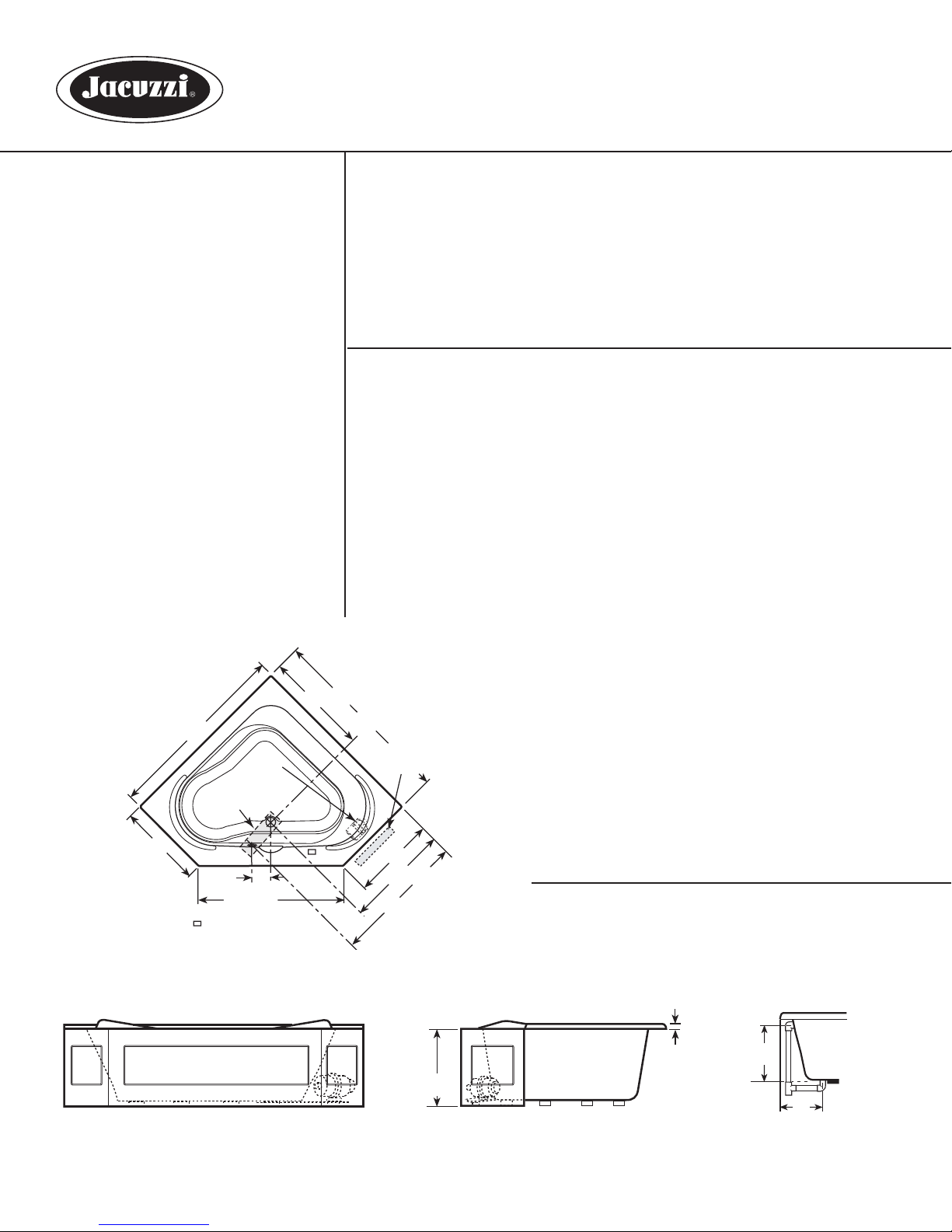

27"

46-5/8"

27"

60"

43-1/8"

60"

34-15/16"

14" X 4"*

33-1/2"

- Junction Box

Blower

90˚ 90˚

90˚

12" H x 18" L

Service Access

(25 mm)

20-1/2"

FRONT VIEW SIDE VIEW

# FQ89 06/07

Product Shown: Capella® 60 Corner Pure Air II Bath with Integral Skirt Model: EA20

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.

DRAIN/OVERFLOW
