Jacuzzi BELLAVISTA 5 Manuel utilisateur

gallery™ 5 oval whirlpool bath and soaking bath

like its namesake, the gallery™ whirlpool bath is a place of reverence—a haven suited for quiet reﬂection.

The Gallery™ is a work of art a clean,

stylish well of relaxation, ideal for quiet

contemplation.

whirlpool features:

• 4 Fully adjustable TheraPro

jets

• 1 Directionally adjustable AccuPro™ lumbar jet

• Exclusive Tru-Level™ base system

• Slip-resistant bottom

• Patented Fixed Air Flow System

• Sculpted armrest

• Contoured backrest

• Drain included on whirlpool baths

gallery™ 5 oval

whirlpool bath

model number: N845 – LH, N850 – RH

exterior dimensions:

62" long x 43" wide x 19" high

interior dimensions:

41" long x 26" wide

# of Jets/type of Jets:

4 TheraPro®Jets,

1 AccuPro™ Lumbar Jet

operating gallons:

48 gallons

gallery™ 5 oval

soaking bath

model number: N855

exterior dimensions:

62" long x 43" wide x 19" high

interior dimensions:

41" long x 26" wide

Gallery™ 5 Oval Whirlpool Bath

Model: N845, N850

Gallery™ 5 Oval Bath

Model: N855

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

N845 Gallery™ 5 Oval Whirlpool Bath

Left Hand

N850 Gallery™ 5 Oval Whirlpool Bath

Right Hand

N855 Gallery™ 5 Oval Bath

• Left and Right Hand Drain Locations

• Accessories / Hardware:

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable #8730

4 X TheraPro™ Jet Rings #D095

AccuPro™ Jet Rings #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze.

Technical Speciﬁcations

Dimensions

62” L x 43” W x 19” H

(1575 mm) L x (1092 mm) W x (543 mm) H

Drain/Overﬂow

A: 14-3/4” (375 mm) B: 9-1/2” (241 mm)

Cutout

Template Provided P/N P186000

Total Weight

N845, N850: 746 lb (338 kg) / 40 lb/sq. ft. (197 kg/m2)

N855: 701 lb (318 kg) / 38 lb/sq. ft. (185 kg/m2)

Operating Gallonage

48 U.S. Gal. (182 Liters)

Product Weight

N845, N850: 96 lb (44 kg)

N855: 51 lb (23 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations Models N845, N850 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Models N845, N850 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

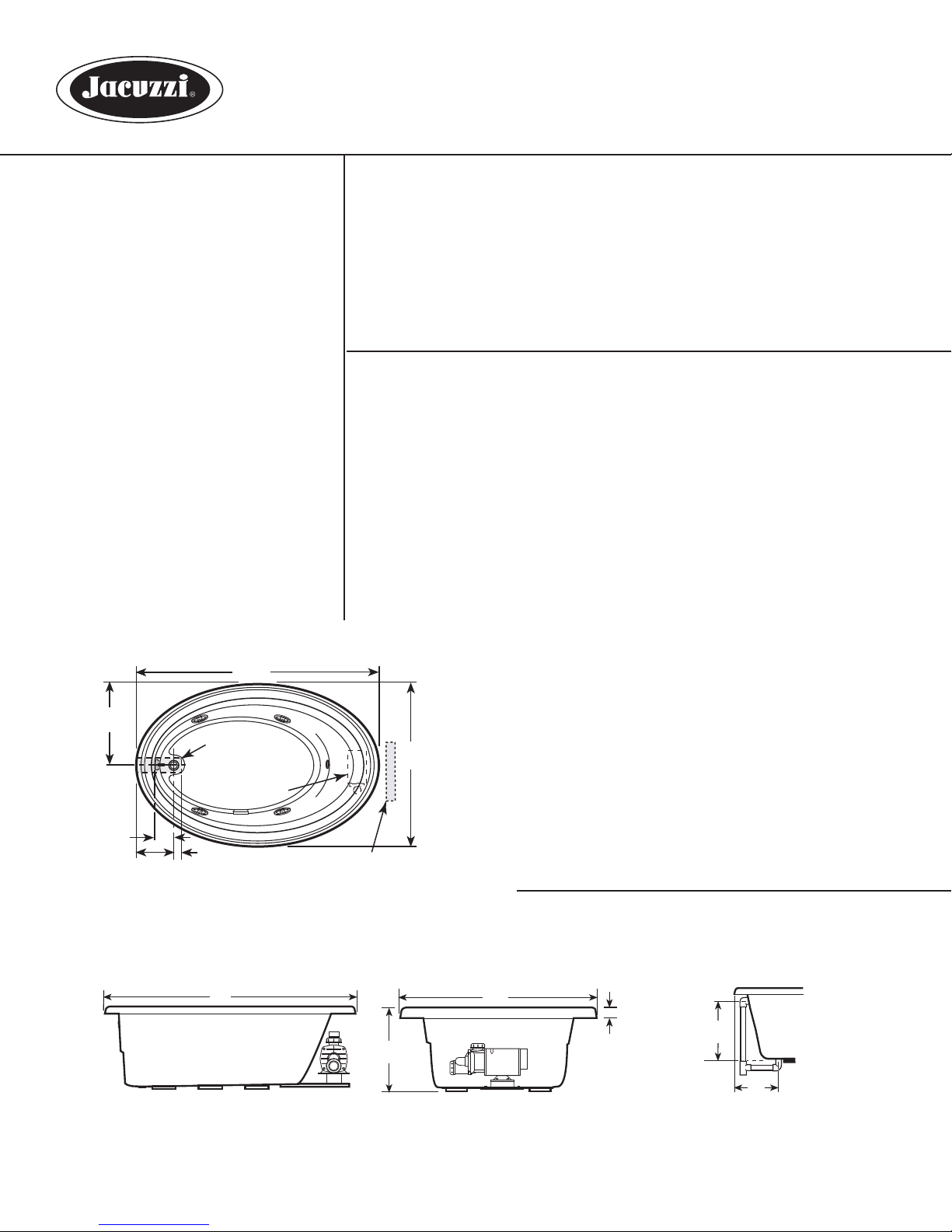

62"

21-1/2"

43"

12" x 4"

9-1/2"

Motor

12" H x 18" L

Service Access

SIDE VIEW

H2''

END VIEW

#FR55 07/07

DRAIN/OVERFLOW

Product Shown: Gallery™ 5 Oval Whirlpool Bath Left Hand Shown Model: N845

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.
