Jacuzzi CAPELLA 60 Manuel utilisateur

capella® 60 corner whirlpool bath and soaking bath with integral skirt

to the Italians, “la capella”—the chapel—is a sacred place. step into our capella®whirlpool, and you’ll understand.

The Capella’s®unique corner conﬁguration

allows for roomy relaxation.

whirlpool bath features:

• 4 fully adjustable TheraPro™ jets

• 3 directionally adjustable AccuPro™ jets

• Electronic on/off control

• Patented ﬁxed air ﬂow system

• Sculpted armrest and contoured backrest

• Built-in tile ﬂange and integral skirt with access

panels on skirted models

• Drain included on whirlpool baths

capella®60 whirlpool bath

(with integral skirt)

model number: K372

exterior dimensions:

60" long x 60" wide x 20½" high

interior dimensions:

50" long x 34" wide(mid) x 18" wide(end)

# of Jets/type of Jets:

4 TheraPro™ Jets,

3 AccuPro™ Foot Jets,

operating gallons:

60 gallons

capella®60 soaking bath

(with integral skirt)

model number: K374

exterior dimensions:

60" long x 60" wide x 20 ½" high

interior dimensions:

50" long x 34" wide (mid)

Capella® 60 Corner Whirlpool Bath w/Integral Skirt

Model: K372

Capella® 60 Corner Bath with Integral Skirt

Model: K374

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

K372 Capella® 60 Corner Whirlpool

Bath w/ Integral Skirt

RightHand

K374 Capella® 60 Corner Bath w/

Integral Skirt

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

AccuPro™ Jet Trim Kit #D095

AccuPro™ Jet Trim Kit #P556

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 60” L x 20-1/2” H

(1524 mm) L x (1524 mm) L x (521 mm) H

Drain/Overﬂow

A: 18” (457 mm) B: 12-1/8” (308 mm)

Cutout

Total Weight

K372: 880 lb (399 kg) / 35 lb/sq. ft. (172 kg/m2)

K374: 855 lb (388 kg) / 34 lb/sq. ft. (167 kg/m2)

Operating Gallonage

60 U.S. Gal. (227 Liters),

Max. 90 U.S. Gal. (341 Liters)

Product Weight

K372: 130 lb (59 kg)

K374: 105 lb (48 kg)

Skirt Mounting

Integral

Electrical Speciﬁcations Model K372 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

Heater

Not available

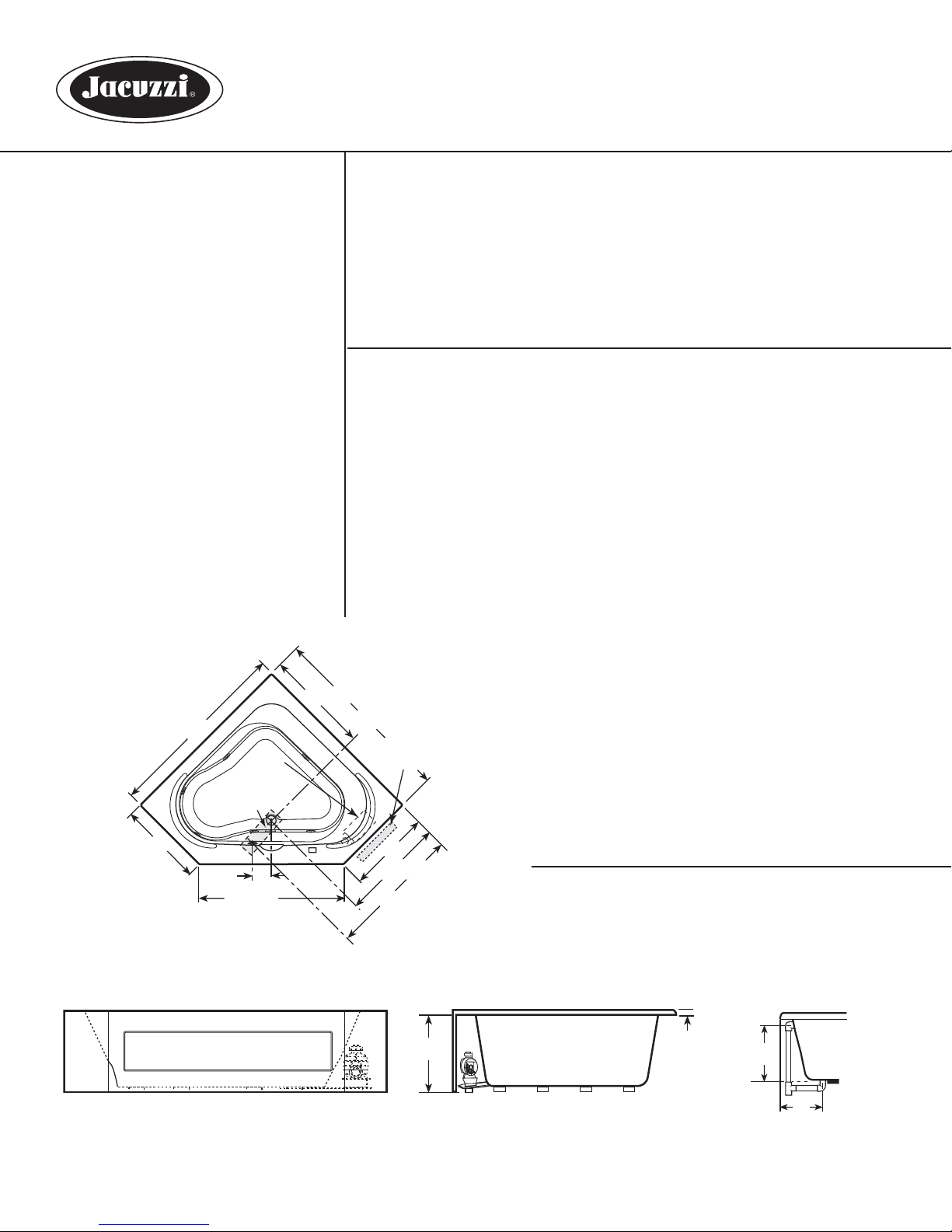

27"

46-5/8"

27"

60"

43-1/8"

60"

34-15/16"

14" X 4"*

33-1/2"

Motor

90˚ 90˚

90˚

12" H x 18" L

Service Access

FRONT VIEW SIDE VIEW

#FQ88 06/07

Product Shown: Capella® 60 Corner Whirlpool Bath with Integral Skirt Model: K372

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.

DRAIN/OVERFLOW
