A4 COMPUTERIZED LOCKSTITCH MACHINE

Product introduction-A

A3

A4

A4S

Followed by A2, A2S, A5, A6, etc.

Product introduction-A

Each operation

has voice guide

Each botton has

voice reminder

USB Port

For charging

cell phone

PROJECT NAME | date 项目名称 | 日

期

CONFIDENTIA

L3

Voice Reminder

Little reminder,big sweetness

operating instructions-Factory Reset

PROJECT NAME | date 项目名称 | 日

期

CONFIDENTIA

L4

P165-0000 change to P165-2115 Reset

Reset with

one button

Operation steps:

On the condition of power on, using a sharp objective

PROJECT NAME | date 项目名称 | 日

期

CONFIDENTIA

L4

insert into the hole for 3 seconds to

restore the factory default. When the screen shows take out the sharp and the

screen shows then panel will display boot screen automatically, which means resets

successfully.

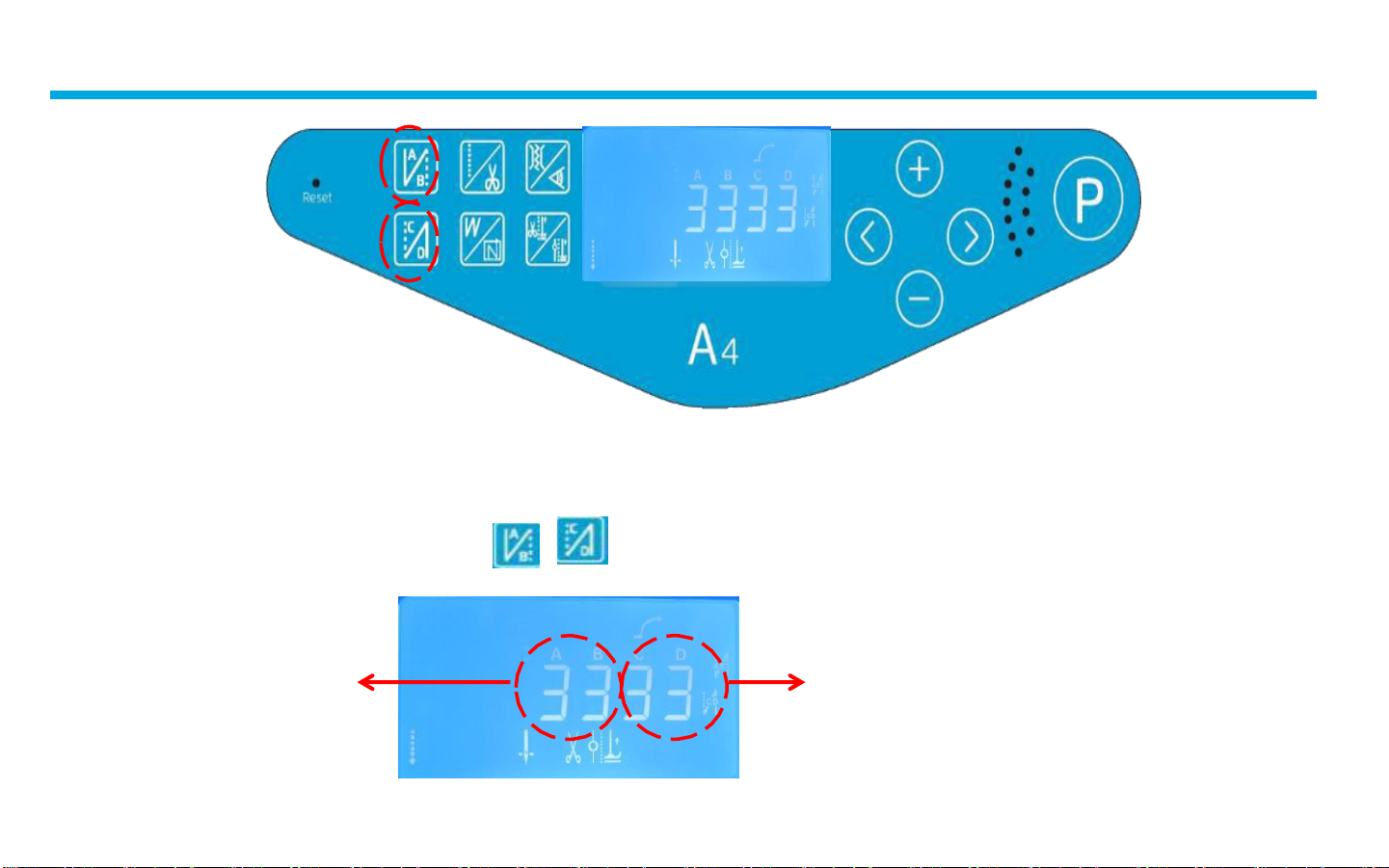

02operating instructions-before and after backstitch

operating steps：

In standby mode, press 、key，Set the number of before and

after backstitch

number of after backstitch

number of before

backstitch

02operating instructions-Free sewing and thread trimming setting.mp4

Free sewing and

thread trimming

switch

LED screen area

PROJECT NAME | date 项目名称日期 6

Free sewing: Press the button and the icon

display, means it’s free sewing mode at present.

Trimming switch: Press the button longer, the icon

display up, means the thread trimming is on.

Press the button longer again, the icon

not display, means the thread trimming is off.

operating instructions-W sewing settings.mp4

PROJECT NAME | date 项目名称 | 日

期

CONFIDENTIA

L7

W sewing /several

segment sewing

button

PROJECT NAME | date 项目名称 | 日

期

CONFIDENTIA

L7

A/B refers to the stitch numbers

of initial and final sewing

D refers to sewing

times

W sewing：Press the button ,and the icon

Press the button to the corresponding number flicking, then we can

use

to adjust. The maximum adjustable stitches of initial and final sewing is 15. The

maximum adjustable sewing times is 15.

operating instructions-Multi-segment sewing setting.mp4

PROJECT NAME | date 项目名称 | 日

期

The total segment number. And the maximum

adjustable segment is 24.

Segment number setting, the first segment, the second ...

Display the total number of segments of the set, change

the section number when you adjust.

The stitch number setting the first segment of the stitch

number is 16, and the range of the stitch is from 1 to 99.

LED screen

area

PROJECT NAME | date 项目名称 | 日

期CONFIDENTIAL 8

Several segment sewing button Multi-segment sewing setting: Press the button longer

longer, and icon display on the LED screen,

means that it＇s multi-segment sewing mode. And press

to move, the number is flicking, then you can use to set.

(Press longer)

operating instructions- Electronic tension device setting2.mp4

PROJECT NAME | date 项目名称 | 日

期

CONFIDENTIA

L9

Button for thread tension /

presser foot lifter sensor

LED screen area

Thread tension device setting : Press the button

and the icon display on the LED screen, means the

tension device is on . Press the button again, the icon

not display, means the tension device is off.

Setting of presser foot lifter sensor: Press the button

longer and the icon

means the presser foot lifter is on. Press the button

longer again, the icon not display, means the presser foot lifter is off.

display on the LED screen,

operating instructions-Automatic presser foot lifter settings .mp4

PROJECT NAME | date 项目名称 | 日

期

CONFIDENTIA

L10

Switch of press foot

lifter

The switch of press foot lifter after trimming：

Press , the icon display, means that the

press foot lifter after trimming is on.

Press again, the icon not display, means

that the press foot lifter after trimming is off.

The midway press foot lifter settings：

Press the button , the icon display ,

means that the midway press foot lifter is on.

Press the button again, the icon not

display, means the midway press foot lifter is

off.
