How to connect my Jabra GN9330e with Aastra Open Phone

63 and 65

Jabra GN9330e

Prerequisite:

Jabra GN9330e + Jabra 8800-00-93 + AZ – Adapter (available from Aastra /

DeTeWe)

In combination with one of the following phones:

Open Phone 63 / 65

System:

Open Com 100 from Software 5.2

Open Com 1000 from Software 3.2

Connection:

1. Insert the supplied RJ9 to RJ9 connection cable into the socket of the

Jabra GN9330e base marked with the "phone" symbol and the other

end into the "handset" socket of the AZ adapter.

2. Now insert the 8-pin RJ45 plug of the Jabra 8800-00-93 connection

cable into the Jabra GN9330 base socket marked "AUX".

3. Please connect the receptacle connector to the AZ adapter socket

marked with the "bell" symbol and insert the 6-pin modular plug into

the "second handset" socket of the AZ adapter.

Software setup:

Put the headset into the base and activate the "RHL mode".

Hold down the "phone" button on the base of the Jabra GN9330e for

24/04/2021 11:16

https://www.jabra.co.uk/supportpages/jabra-gn9330e/9337-508-402/faq/29f778e6-d8bf-

4e0a-baea-a315459d0cc9

Page 1 of 3

approx. 6 seconds until the online display (blue LED) on the headset starts

to flash. The current software is displayed to you by activating the volume

controller in the form of the charge display (green LED).

Now you can switch between the different software modes (LED 1-4) by

using the "volume" up/down controller on the headset. To confirm the

software has successfully installed, the base automatically switches back

to charge mode after approx. 10 seconds.

LEDs from left to right:

LED 1 = RHL

LED 2 = DHSG

LED 3 = AEI

LED 4 = MSH

Base setup:

Set the phone setup switch to "A"".

Microphone level setup:

For this, call someone.

Now adjust the grey volume dial on the Jabra GN9330 base until you can

be understood clearly.

24/04/2021 11:16

https://www.jabra.co.uk/supportpages/jabra-gn9330e/9337-508-402/faq/29f778e6-d8bf-

4e0a-baea-a315459d0cc9

Page 2 of 3

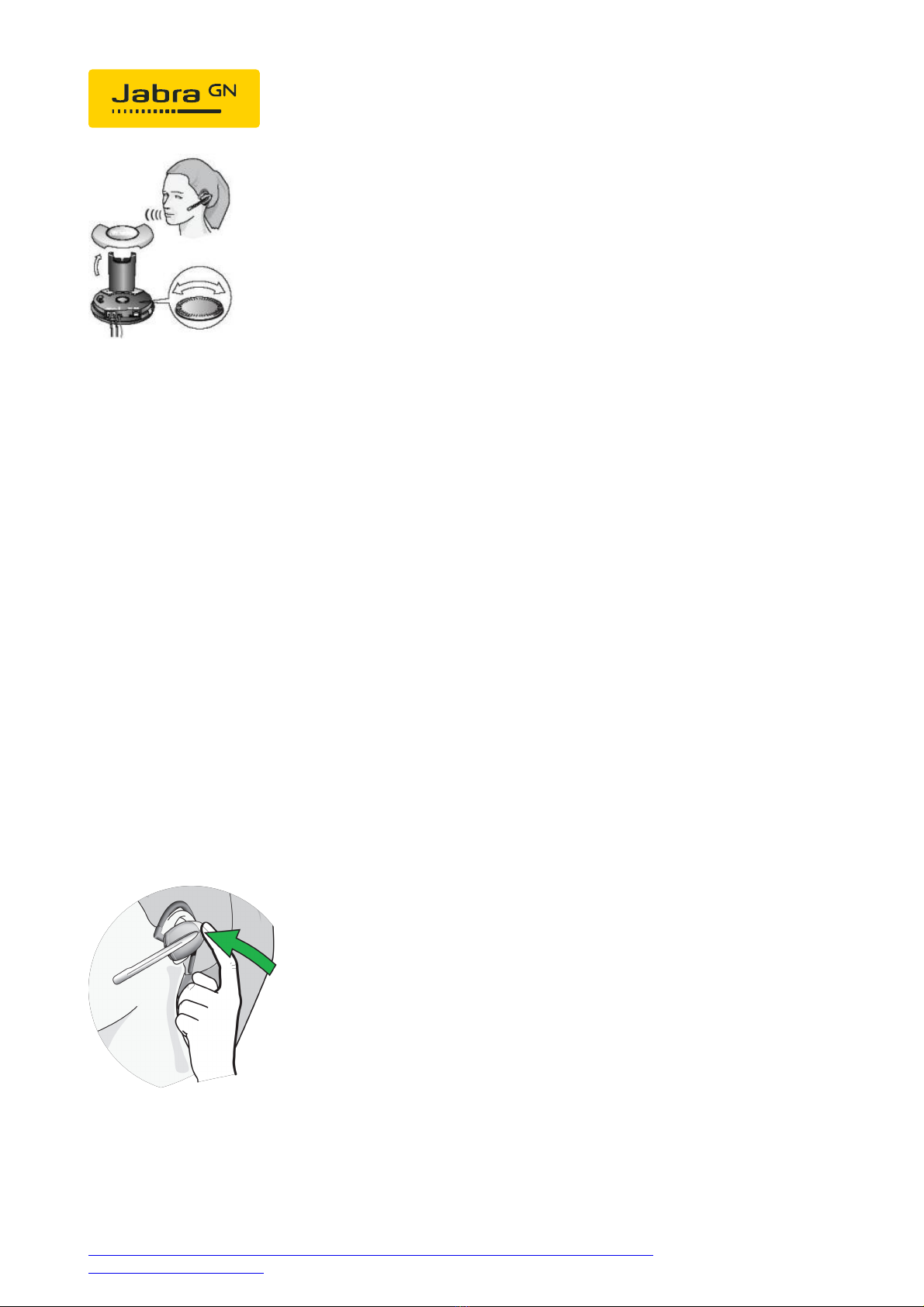

Phone setup:

Activate the "Remote Headset" function (new DECT headset) in your

OpenPhone phone.

Please enter the following key sequence into your Open Phone 63/65:

> MENU> SETTING> PERIPHERALS > Additional Phone Selection >

"Remote Headset" (new DECT headset)

Headset answer/end:

As soon as the dial tone signal can be heard in the headset, you can answer

the call by pressing the "answer/end"button on the headset; by pressing

again the call is ended.

24/04/2021 11:16

https://www.jabra.co.uk/supportpages/jabra-gn9330e/9337-508-402/faq/29f778e6-d8bf-

4e0a-baea-a315459d0cc9

Page 3 of 3
