Jabra GN9120 Flex Alcatel With EHS

How to connect my Jabra GN9120 EHS / GN9125 EHS with

Aastra 6753i, 6755i, 6757i

Prerequisite:

Jabra GN9120 EHS or GN9125 EHS + Jabra LINK 14201-10 + Aastra DHSG

cable kit (only available from Aastra).

In combination with one of the following phones:

Aastra 53i / 55i / 57i / 57iCT

Aastra 6753i / 6755i / 6757i / 6757i CT

From phone firmware 2.5.1.2000 or higher.

Connection:

Aastra DHSG cable:

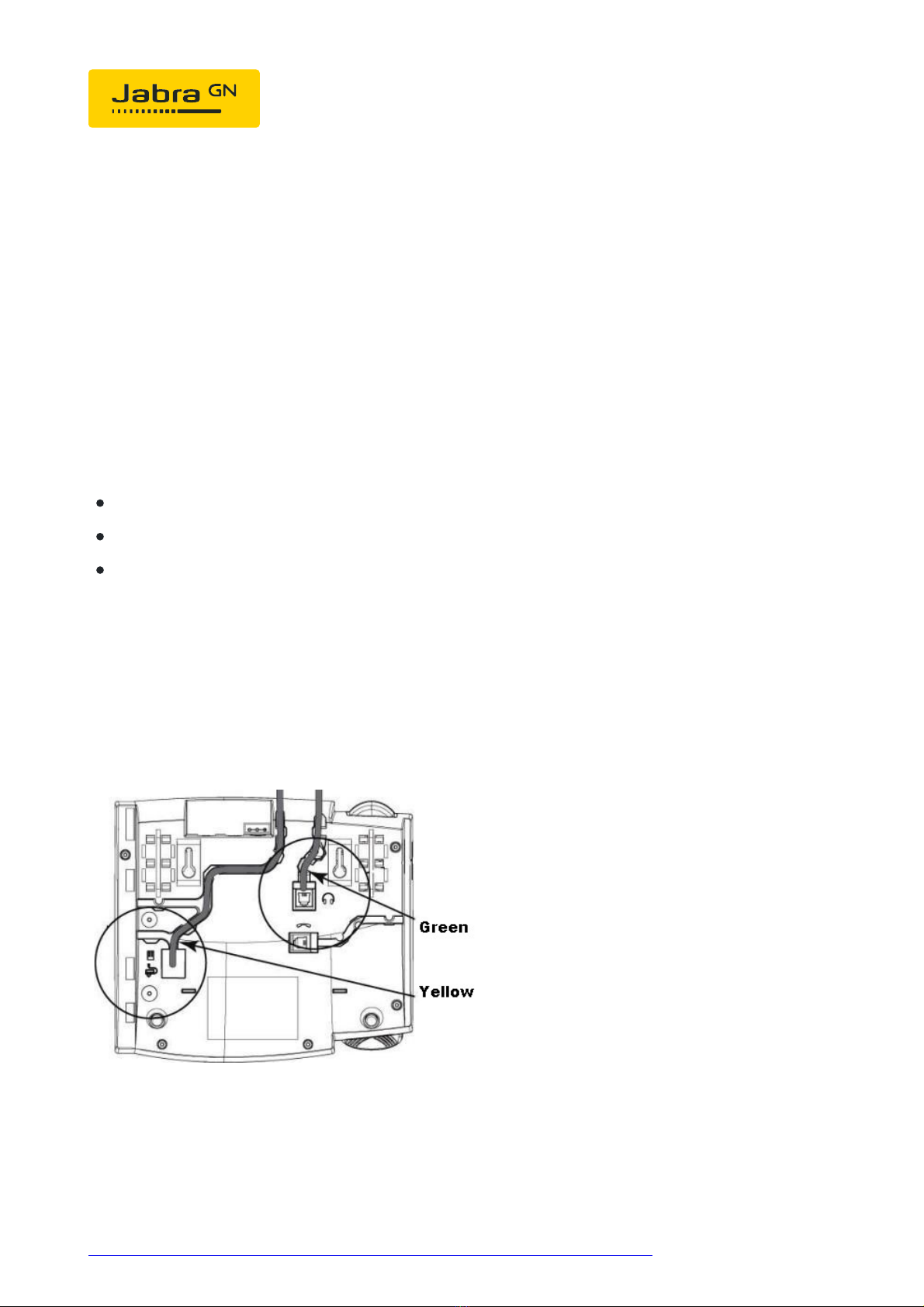

Insert the split end of the Aastra DHSG cable into your phone as follows.

1. Insert the RJ9 plug (marked green) into the "headset" socket and the

RJ45 plug (marked yellow) into the socket for the expansion module.

[Grün = green][Gelb = yellow]

2. Insert the 1-sided end of the Aastra DHSG cable marked in blue into the

28/06/2021 15:41

/supportpages/jabra-gn9120/9120-281-11/faq/4dfffab0-fb7f-42bd-90b7-d4d640831ed7 Page 1 of 4

Aastra RJ45-RJ45 adapter.

3. Now insert the 1-sided end of the Jabra LINK 14201-10 cable marked

"blue" into the free socket of the RJ45 adapter.

4. Insert the RJ9 plug into the socket with the complete "phone" symbol

and the RJ45 plug into the socket marked with "AUX" on the GN9350

base.

EHS setup:

The Jabra GN912x must support and be set up to DHSG EHS.

You can check or set it up as follows:

1. Put the headset in the base.

2. Then press the PLUS and MINUS buttons simultaneously for 6 seconds

until the online display on the headset starts to flash.

3. The base will now display to you the EHS currently installed. The online

indicator light indicates "MSH", the pulsating light indicates "RHL", the

MUTE light "DHSG" and the battery display "AEI".

28/06/2021 15:41

/supportpages/jabra-gn9120/9120-281-11/faq/4dfffab0-fb7f-42bd-90b7-d4d640831ed7 Page 2 of 4

4. With the PLUS or MINUS buttons, you can now switch between the

different EHS types. To confirm the EHS has successfully installed, the

phone automatically switches back to charge mode after approx. 10

seconds.

Base setup:

Set the phone set-up switch to "A"

Microphone level setup:

1. Please call someone with the headset.

2. On the headset, you must now simultaneously press the PLUS and

MINUS buttons which immediately produces a signal tone.

3. You can now increase the microphone volume with PLUS or decrease it

with MINUS.

28/06/2021 15:41

/supportpages/jabra-gn9120/9120-281-11/faq/4dfffab0-fb7f-42bd-90b7-d4d640831ed7 Page 3 of 4

4. To confirm, after approx. 10 seconds a low signal tone sounds in the

headset in the background. The settings are then saved.

Phone setup:

With the version 2.5.1.2000, the DHSG mode is deactivated by default and

must be activated via the Aastra.cfg or mac.cfg with the command dhsg:

1.

From version 2.5.2 Options > Default settings > Audio settings > DHSG >

On

Audio mode must be set in the phone settings to "headset/speaker":

Options > Default settings > Audio settings > Audio mode >

Heads./Loudsp.

Unfortunately, Remote Call Control in combination with an expansion

button field is not supported.
