USER MANUAL

BT530

english

JABRA BT530

english

THANK YOU....................................................2

ABOUT YOUR JABRA BT530 ....................................2

WHAT YOUR HEADSET DOES ...................................3

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

CHARGE YOUR HEADSET.......................................4

TURNING YOUR HEADSET ON AND OFF . . . . . . . . . . . . . . . . . . . . . . . . 5

PAIRING IT WITH YOUR PHONE .................................5

WEARING STYLE ...............................................6

HOW TO .......................................................6

WHAT THE LIGHTS MEAN ......................................8

LISTENING TO MUSIC USING THE JABRA BT530.................9

USING BT530 WITH TWO MOBILE PHONES .....................9

USING A JABRA BLUETOOTH HUB ..............................9

TROUBLESHOOTING & FAQ ...................................10

NEED MORE HELP?............................................11

TAKING CARE OF YOUR HEADSET .............................11

WARNING! ....................................................11

SAFETY INFORMATION! .......................................12

BUILTIN BATTERY CARE: ......................................14

CHARGER CARE: ..............................................15

WARRANTY ...................................................15

CERTIFICATION AND SAFETY APPROVALS.....................17

GLOSSARY ....................................................19

english

JABRA BT530

Thank you

Thank you for purchasing the Jabra BT530 Bluetooth® headset. We

hope you enjoy it! This instruction manual will get you started and

ready to make the most of your headset.

abouT your Jabra bT530

1Answer/end button

2On/o button

3LED light

4Charging socket

5Volume up/volume down

6Microphones

7Ear hook

8Ear gels

english

JABRA BT530

WhaT your headseT does

Your Jabra BT530 lets you do all this:

- Answer calls

- End calls

- Reject calls*

- Voice dialing*

- Last number redialing*

- Call waiting*

- Put call on hold*

- Mute

- Multi-point - being connected to two Bluetooth devices

at the same time

- Play music*

Specications

- Talk time up to 5½ hours/standby time up to 250 hours

- Rechargeable battery with charging option from AC power

supply, PC via USB cable or car charger (not included)

- Multi-colored light for status and battery indicator

- Quiet mode – turns light o after one minute

- Size: L 48 mm x W 18 mm x D 12,5 mm

- Weight: 10 grams

- Dual Microphone solution for Noise Blackout™

- Digital sound enhancement via DSP technology

- Noise reduction on transmitted and received audio

- Noise dependent volume control*

- Automatic volume adjustment on receive audio

- Acoustic shock protection

- Qualied for Bluetooth Specication version 2.0 + EDR

(enhanced data rate), supporting Headset and Hands-free

Proles for phone conversations and Advanced Audio

Distribution Prole (A2DP) for streaming music

- e-SCO for enhanced audio quality

- 128 bit encryption

- Operating range up to 10 meters (approx. 33 feet)

* Phone dependent

english

JABRA BT530

geTTing sTarTed

You should follow three steps before using your headset

1. Charge your headset

2. Activate Bluetooth on your mobile phone (refer to the

manual for your Mobile phone)

3. Pair your headset to your mobile phone

The Jabra BT530 is easy to operate. The answer/end button on the

headset performs dierent functions depending on how long you

press it.

Instruction Duration of press

Tap Press briey

Double Tap 2 quickly repeated taps

Press Approx: 1 second

Press and hold Approx: 5 seconds

Charge your headseT

Make sure that your headset is fully charged before you start

using it (duration app. 2 hours). Use the AC power supply to

charge from a power socket. When the light indicator (LED) has

a solid LED light, your headset is charging. When the LED light is

solid green your headset is fully charged.

Use only the charger provided in the box - do not use chargers

from any other devices as this may damage your headset.

What you see Charge Level

Solid Red Less than 70% charged

Solid Yellow Between 70% and fully charged

Solid Green Fully charged

Please note: The lifetime of the battery will be signicantly

reduced if your device is left uncharged for a long period. We

therefore recommend that you recharge your device at least once

a month.

english

JABRA BT530

Turning your headseT on and off

- Slide the on/o button forward on the side of the headset to

turn on the headset. The LED will ash green for a second when

the headset is on.

- Slide the on/o button backward to turn o the headset.

Pairing iT WiTh your Phone

Headsets are connected to phones using a procedure called

‘pairing’. By following a few simple steps, a phone can be paired

with a headset in a matter of minutes.

1. Put the headset in pairing mode

- When you turn on your Jabra BT530 for the rst time, the

headset will automatically start up in pairing mode – i.e. it is

discoverable for your phone. When the headset is in pairing

mode the LED is constantly lit.

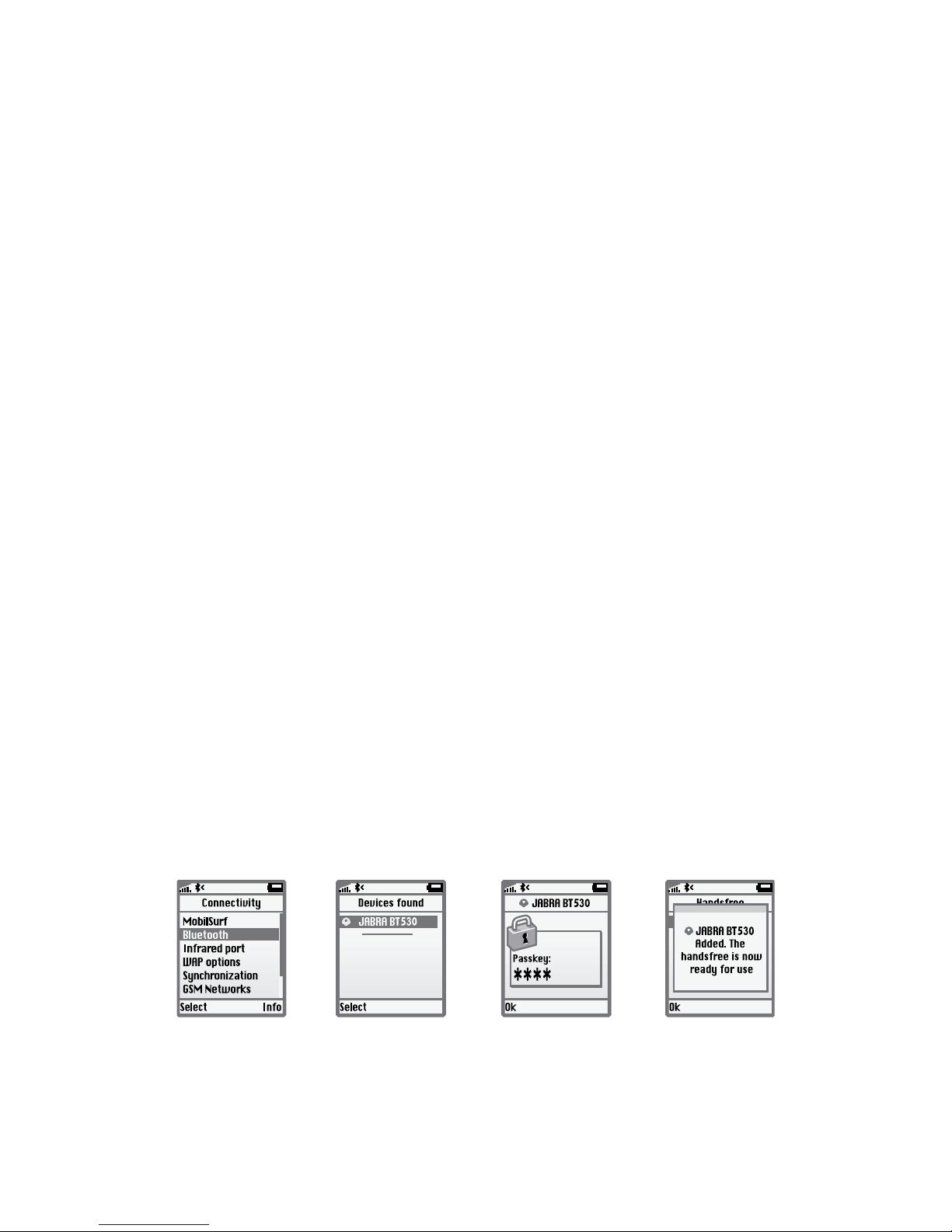

2. Set your Bluetooth phone to‘discover’ the Jabra BT530

- Follow your phone’s instruction guide. First make sure that

Bluetooth is activated on your mobile phone. Then set your

phone to discover the headset. This usually involves going

to a‘setup,’‘ connect’or‘Bluetooth’menu on your phone and

selecting the option to ‘discover’or ‘add’ a Bluetooth device.*

3. Your phone will nd the Jabra BT530

- Your phone will nd the headset under name“Jabra BT530”.

Your phone then asks if you want to pair with the headset.

Accept by pressing‘Yes’or ‘OK’on the phone and conrm with

the passkey or PIN = 0000 (4 zeros). Your phone will conrm

when pairing is complete.

In case of unsuccessful pairing, put the Jabra BT530 into pairing

mode manually. Make sure the headset is on. Press and hold the

answer/end button for approximately 5 seconds until the LED has a

constant light. Keep holding down the button until light is constant.

english

JABRA BT530

Wearing sTyle

The Jabra BT530 is ready to be worn, but can be used with or

without the ear hook. The ear hook can be removed and the

headset can be used with the Ultimate Comfort Ear gels.

The Ultimate Comfort Ear gels can be used for both left and right

wearing. The BT530 comes tted with a medium sized ear gel,

but it can be replaced by a small or large one. You can also twist

the ear gel slightly to optimize the t and comfort. For optimal

performance, wear the Jabra BT530 and your mobile phone on the

same side of your body or within line of sight. In general, you will

get better performance when there are no obstructions between

your headset and your mobile phone.

hoW To

Answer a call

- Tap the answer/end button on your headset to answer a call.

End a call

- Tap the answer/end button to end an active call.

Reject a call*

- Press the answer/end button when the phone rings to reject an

incoming call. Depending on your phone settings, the person

who called you will either be forwarded to your voice mail or

will hear a busy signal.

Make a call

- When you make a call from your mobile phone, the call will

(subject to phone settings) automatically transfer to your

headset. If your phone does not allow this feature, tap on the

Jabra BT530’s answer/end button to transfer the call to the

headset.

Activate voice dialing*

- Press the answer/end button. For best results, record the voice

dialing tag through your headset. Please consult your phone’s

user manual for more information about using this feature.

* Phone dependent

english

JABRA BT530

Redial last number*

- Double tap the answer/end button when the headset is on and

not used.

Adjust sound and volume*

- Tap the volume up or down to adjust the volume.

Mute/un-mute

- To mute, press both volume up and down at the same time. A

low beep alert plays during a muted call.

- To un-mute, tap either of the volume buttons.

Call waiting and placing a call on hold*

- This lets you put a call on hold during a conversation and

answer a waiting call.

- Press the answer/end button once to put the active call on hold

and answer the waiting call.

- Press the answer/end button to switch between the two calls.

- Tap the answer/end button to end the active conversation.

Battery indicator

- Tap one of the volume buttons to see the battery level.

What you see Battery level/Talk time

2 Green ashes 1-5½ hours talk time

2 Yellow ashes 10 min.-1 hour

2 Red ashes 10 min.

* Phone dependent

english

JABRA BT530

WhaT The lighTs mean

What you see Battery level/Talk time

Flashing blue and green light Incoming call

Flashing blue light Flashing every three seconds:

In Standby mode and

connected to mobile phone

(only for 1 minute then o)

Flashing green light Flashing every three seconds:

In standby mode – not

connected (only for 1 minute

then o)

Flashing blue light Flashing every second:

active call (only for 30 seconds

then o)

Flashing red light Running low on battery

Flashing purple light Flashing every seconds:

Connected in A2DP streaming

music (only for 30 seconds

then o)

Solid blue light In pairing mode

Solid purple light Special music pairing mode

See chapter Troubleshooting

& FAQ - Frequently Asked

Questions

Solid green light Fully charged

Solid yellow light Charging level between 70%

and fully charged

Solid red light Charging level less than 70%

english

JABRA BT530

lisTening To musiC using The Jabra bT530

Jabra BT530 is capable of streaming music over Bluetooth - either

from a mobile phone or any other Bluetooth device supporting

A2DP. Once you have paired your BT530 with your mobile phone

or to the Bluetooth music player, use your phone or music player

to play, pause, stop, skip forward and backward. When you recieve

a call, the music will automatically be suspended and you will be

able to answer or reject a call through the headset. Once you end

a call, the music should recommence. On some phones and music

devices you may have to press ‘play’ to start the music again.

using bT530 WiTh TWo mobile Phones

Jabra BT530 is capable of having two mobile phones (or Bluetooth

devices) connected to the headset at the same time. This will give

you the freedom of having only one headset to operate both your

mobile phones. Please note that Last Number Redial will dial the

number from the last outgoing call, independent of the mobile

phone, and the Voice Dialing function will only work on the last

paired mobile phone.

using a Jabra blueTooTh hub

The Jabra BT530 can be used along with the Jabra Bluetooth Hub

(sold separately). This will enable you to use the headset with both

your mobile phone and your oce phone.

To pair the Jabra BT530 with the Jabra Bluetooth Hub

The pairing process is a little dierent:

1. Put your Jabra BT530 in pairing mode

2. Put the Jabra Bluetooth Hub in pairing mode.

3. Place them close together. You do not need a dedicated pin

code to pair the two Jabra products.

Consult the Jabra Bluetooth Hub user manual for more information

on how to connect the Bluetooth hub to your oce phone.

The use of the Jabra BT530 with the Jabra Bluetooth Hub is very

similar to using the headset with a mobile phone only. The only

dierence lies in the transfer of a call to the headset from the

oce phone.

Autres manuels pour BT530 - TECHNISCHE DATEN

Table des matières

Langues :

Autres manuels Jabra casque

Jabra

Jabra BT160 Manuel utilisateur

Jabra

Jabra GN9120 Flex Manuel utilisateur

Jabra

Jabra BT350 - Headset - Over-the-ear Manuel utilisateur

Jabra

Jabra GN9125 Flex Manuel utilisateur

Jabra

Jabra GN9120 Flex Manuel utilisateur

Jabra

Jabra Talk 55 Fiche technique

Jabra

Jabra GN9330e - USB - Headset Manuel utilisateur

Jabra

Jabra CLIPPER Guide de référence

Jabra

Jabra Jabra BH870 Manuel utilisateur

Jabra

Jabra Brage Manuel utilisateur

Jabra

Jabra 23089-899-979 Manuel utilisateur

Jabra

Jabra JXO Bluetooth Headset Manuel utilisateur

Jabra

Jabra BT2070 - Headset - In-ear ear-bud Manuel utilisateur

Jabra

Jabra BT2020 - Headset - Over-the-ear Manuel utilisateur

Jabra

Jabra GN9120 Flex Manuel utilisateur

Jabra

Jabra BT200 - Headset - Over-the-ear Manuel utilisateur

Jabra

Jabra HALO2 Manuel utilisateur

Jabra

Jabra BT4010 Manuel utilisateur

Jabra

Jabra GN2000 OC Series Manuel utilisateur

Jabra

Jabra EXTREME Manuel utilisateur

Jabra

Jabra BT2070 - Headset - In-ear ear-bud Manuel d'instructions

Jabra

Jabra JX 10 CARA Manuel utilisateur

Jabra

Jabra Elite 65e Manuel utilisateur

Jabra

Jabra PRO 9460 Duo Manuel utilisateur

Manuels casque populaires d'autres marques

Sena

Sena SMH10 Manuel utilisateur

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manuel utilisateur

Sennheiser

Sennheiser EPOS ADAPT 230 Manuel utilisateur

Doro

Doro Flexus HS2005 Manuel utilisateur

GE 98971 Manuel utilisateur

Hama

Hama 00184070 Manuel utilisateur

Plantronics

Plantronics Blackwire 3200 Series Manuel utilisateur

Blue Tiger

Blue Tiger Advantage PLUS Manuel utilisateur

Jawbone

Jawbone Icon Manuel utilisateur

Roxcore

Roxcore Flow A+ Manuel utilisateur

Turtle Beach

Turtle Beach XP 510 Manuel utilisateur

Philips

Philips SHB6101 Manuel utilisateur

HyperX

HyperX HyperX Cloud Flight Manuel utilisateur

Bose

Bose MIE2 Mobile Manuel utilisateur

HyperX

HyperX cloud ii Manuel utilisateur

Southwing

Southwing SA505 Manuel utilisateur

Plantronics

Plantronics VOYAGER 520 Manuel utilisateur

Blueant

Blueant X5i Manuel utilisateur
