Jabra GN9330e - USB - Headset Guide de sécurité

Jabra Link 14201-09

How to connect my Jabra GN9330e with Alcatel Touch 4029,

4039

Prerequisite:

Jabra GN9330e + Jabra LINK 14201-09

In combination with one of the following phones:

Touch 4029

Touch 4039

Connection:

Important: Please note that Remote Call Control for the Jabra GN9330e

(Jabra product no. 9337-508-402) is only supported from version "L" or the

Date code 9/09.

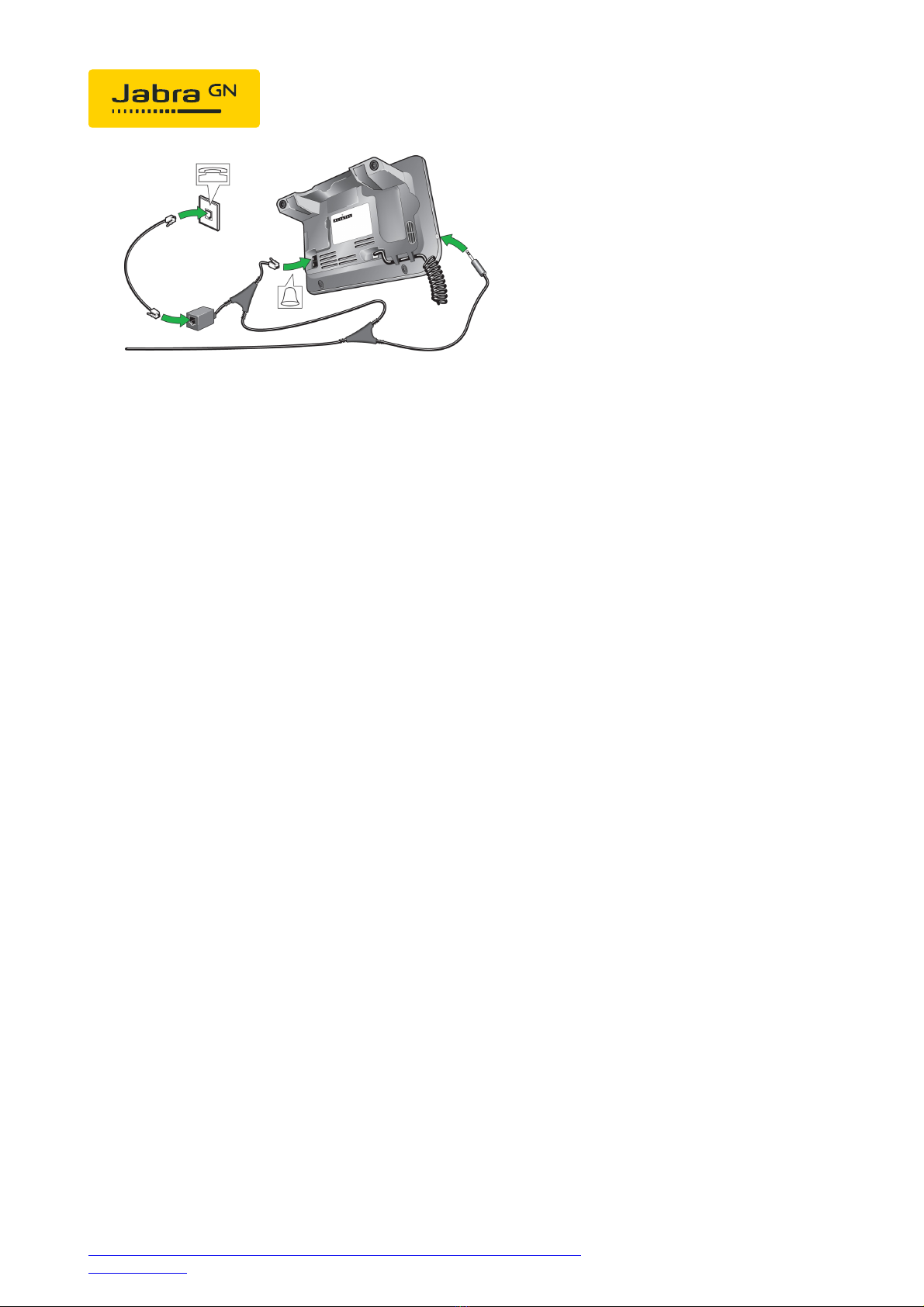

2-sided end:

Insert the RJ45 plug into the socket marked "AUX" and the RJ9 plug into

the socket marked "phone" on the Jabra GN9330e.

2-fold Y-coupling end:

Insert the 3.5 mm audio jack into the "headset" interface and the RJ12

plug into the bell socket of the phone. Now insert the phone's phone cable

directly into the additional connector socket of the Y cable.

28/03/2022 19:02

/supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69-

a05acacc15d7

Page 1 of 4

Software setup:

Put the headset into the base and activate the "MSH" mode.

Hold down the "phone" button on the base of the Jabra GN9330e for

approx. 6 seconds until the online display (blue LED) on the headset starts

to flash. The current software is displayed to you by activating the volume

controller in the form of the charge display (green LED).

LEDs from left to right:

LED 1 = RHL

LED 2 = DHSG

LED 3 = AEI

LED 4 = MSH

Now you can switch between the different software modes (LED 1-4) by

using the "volume" up/down controller on the headset. To confirm the

software has successfully installed, the base automatically switches back

to charge mode after approx. 15 seconds.

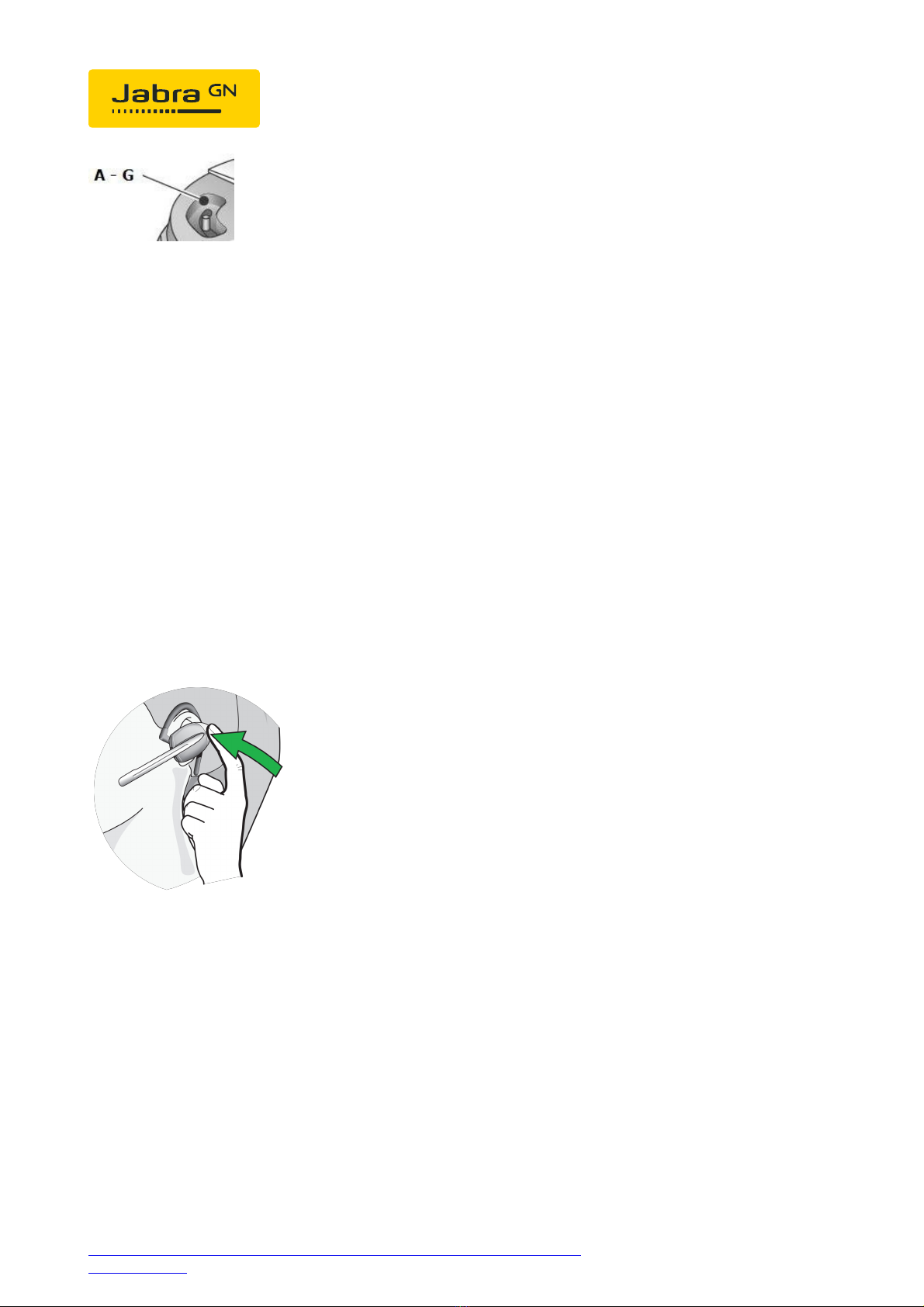

Base setup:

Set the phone set-up switch to "A".

28/03/2022 19:02

/supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69-

a05acacc15d7

Page 2 of 4

Microphone level setup:

Please call someone with the headset.

If the other party cannot hear you well or just faintly, adjust the grey

volume dial on the headset base until you can be understood clearly.

Headset answer/end:

As soon as the dial tone signal can be heard in the headset, you can answer

the call by pressing the "answer/end" button on the headset; by pressing

again the call is ended.

Phone setup with system software version 9.xx and higher:

No settings are required on the phone for the use of a headset. Following

the correct adaptation of the audio jack, a headset symbol should appear

in the "Phone display". If the headset symbol does not appear, please

check the following settings:

Menu> Settings> Phone> Audio Jack> Select/ Activate Headset.

28/03/2022 19:02

/supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69-

a05acacc15d7

Page 3 of 4

Phone setup with system software version below version 9.xx:

Important: The "Force Headset" function must not be activated on the

phone, as otherwise it will not be possible to accept external calls.

Menu> Settings> Phone> Audio Jack> Force Headset OFF

Menu> Settings> Phone> Socket > Activate Headset

Dial tone transfer / phone setup:

Important: The dial tone signal in the headset is only transmitted if one of

the following ringtones is used, e.g. Standard / Classic / Cold River /

Dooing-Dooing. > Menu> Settings> Dial Tone > Internal / External

Should the dial tone signal transfer not work although you have set up the

correct ringtone, please check the following settings:

Menu > Settings > Phone > Internal/External, More Options

No sound, Progressive, Beeps> all points must be set to "OFF".

Calls being made via the headset can be connected / forwarded as follows:

Dial the phone number > "Forward" will now appear in the phone display >

now press on to the appropriate function key next to the phone display >

now you should end the call with the button marked "Handset"

28/03/2022 19:02

/supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69-

a05acacc15d7

Page 4 of 4
