IRIS606

SIX CHANNEL VIDEO SWITCHER

Installation Manual & User Guide

1.01 Conventions:

At various points within this guide, the following icons will be

used to illustrate important or potentially dangerous information:

!!WARNING

!!This symbol indicates a risk of damaging the

! ! camera or other items or an important issue that

! ! may effect the operation of the camera.

!!INFORMATION

!!This symbol points out important information

!!pertaining to the installation, operation and

! ! maintenance of the camera.

!!DANGER

!!This symbols alerts the user of a serious risk of

! ! damage or personal injury or death.

1.02 Limited Warranty:

This product is warranted to be free from defects in materials or

workmanship for one year from the date of purchase. Upon

registration of the product an additional 12 months warranty will

be awarded FOC. Within this period, Iris Innovations will, at its

sole option, repair or replace any components that fail in normal

use. Such repairs or replacement will be made at no charge to

the customer for parts or labour, provided that the customer

shall be responsible for any transportation cost. This warranty

does not apply to: (i) cosmetic damage, such as scratches, nicks

and dents; (ii) consumable parts, such as batteries, unless

product damage has occurred due to a defect in materials or

workmanship; (iii) damage caused by accident, abuse, misuse,

water, ﬂood, ﬁre, or other acts of nature or external causes; (iv)

damage caused by service performed by anyone who is not an

authorized service provider of Iris Innovations Limited or Iris

Innovations USA Corporation; or (v) damage to a product that

has been modiﬁed or altered without the written permission of

Iris Innovations. In addition, Iris reserves the right to refuse

warranty claims against products or services that are obtained

and/or used in contravention of the laws of any country. This

product is intended to be used only as a travel aid and must not

be used for any purpose requiring precise measurement of

direction, distance, location or topography.

Table of Contents:

Section! ! ! ! ! ! ! Page

1.01! ! Conventions! ! ! ! 2

1.02! ! Limited Warranty! ! ! ! 2

2.01! ! Warnings & Important Information! ! 3

3.01! ! Introduction! ! ! ! 5

3.02! ! Contents of Package! ! ! 5

3.03! ! Overview of Key Features! ! ! 5

4.01! ! Connections! ! ! ! 5

4.02! ! Operation!! ! ! ! 5

4.03! ! Conﬁguration! ! ! ! 5

5.01! ! Adding Keypads! ! ! ! 6

2.01 Warnings & Important Product Information

WARNING: Installation and Operation

This product must be installed and operated in accordance with

these instructions. Failure to do so may result in poor product

performance, damage to the product or vessel and or personal

injury. Installation should only be carried out be qualiﬁed

personnel or by persons competent in electrical systems.

WARNING: Power Supply and Grounding

Ensure the boats power supply is switched off during

installation. Ensure suitably rated circuit breakers / fuses are

used in the installation of the product in accordance with the

electrical values shown in the technical speciﬁcations of the

product. Never switch on power until the power connections are

correctly terminated in accordance with the information provided

in this document. Do not connect or disconnect the product with

the power supply switched on. Never disconnect the DC ground

with the power supply on.

WARNING: Wiring terminations

Where the products video, power and data terminations are

extended, ensure that suitable connectors are used and that the

point of termination for each cable is adequately protected

against moisture ingress. Ensure correct polarity is strictly

observed. Do not cut or remove cable connectors without prior

permission from Iris Innovations Limited.

WARNING: Do Not Open the Unit

There are no user serviceable parts within the product so there s

no need to open the device. In opening the device the warranty

becomes void.

WARNING: Disclaimer

This product is intended to be used only as an aid to navigation

and must never be used as an alternative to correct navigational

practices and judgements made on the basis of approved

navigation methods. It is the users responsibility to observe

correct and proper navigational skill when using this product.

Only ofﬁcially approved charts and notices to mariners contain

the current information required for safe navigation.

Operating the switcher or viewing the video input whilst the

vessel is moving could cause a distraction and result in

accidental collision resulting in property damage, injury or death.

Iris Innovations cannot be held liable for any incidental, special,

indirect or consequential damages whether resulting from the

use, misuse or inability to use this product.

CAUTION: Service and Maintenance

This product contains no user serviceable parts. Please refer all

maintenance and repair issues to your authorized Iris

Innovations dealer. Any unauthoriZed work to the product may

affect the warranty.

CAUTION: Care and Cleaning

This product is a sensitive piece of electronic, imaging

equipment and must be handled and treated accordingly. Do not

drop or shake the unit during installation. Never manually alter

the pan or tilt position whilst the power to the unit is on as this

may permanently damage the motors. Avoid exposure of the

imager to direct sunlight where possible as this may degrade the

cameras performance over time.

When cleaning the device, ensure power is switched off to avoid

unintentional movement of the cameras motors. Clean the

camera housing with a soft cloth. Moisten the cloth and use a

mild detergent if required but take care not to get detergent on

the lens window. The lens window has a protective coating

which may suffer damage as a result of improper cleaning. To

clean the lens window use a soft cotton cloth. Moisten with clean

water if necessary. For further advise on cleaning the lens

window, contact Iris Innovations.

INFORMATION: Product Disposal and Recycling

Dispose of this product in accordance with the WEEE Directive.

The Waste Electrical and Electronic Equipment (WEEE)

Directive requires the recycling of waste electronic and electrical

equipment. Iris Innovations supports the WEEE policy and

politely request you observe correct disposal methods. For

further information on how to correctly dispose of this product

please contact Iris Innovations.

Please recycle unwanted packaging and documentation. The

cardboard carton, all paper manuals and documents and the

protective plastic bag in which the camera is shipped are widely

recyclable. Please check with your local recycling plant for

conﬁrmation.

3.01 Introduction

Thanks for buying the IRIS606 Six Channel Video Switcher from

Iris Innovations!

The IRIS606 enables up to six on board CCTV cameras with a

composite video output to be viewed on up to two viewing

sources such as a dedicated video monitor or multi-functional

chart plotter display.

Easy to install, the IRIS606 has been designed to keep unsightly

cabling well out of the way, with a central control box into which

the video signals are terminated and a small, compact control

keypad that sits discretely at the helm for control.

The unit is supplied with a single IRIS560 control keypad and

other keypads can be added as desired.

3.02 Contents of Package

Please unpack your IRIS606 and check to make sure the

following items are included. If there are any items missing

please contact your Iris dealer:

1. IRIS606 Video Switcher

2. IRIS560 Control Keypad

3. 2m BNC~BNC Coaxial Video Cable - to connect the output of

the switcher to your monitoring source.

4. RJ45 Doubler - to facilitate connection of a second IRIS560

keypad is desired.

5. 1m Power cable with in-line 1A fuse.

6. BNC~RCA (Phono) Jack Adapter - for use if your viewing

device has a phono input

7. BNC~BNC Straight Adapter

3.03 Overview of Key Features

Hereʼs a brief list os some of the IRIS606ʼs Key Features:

• 6 Composite Video Outputs

• 2 Composite Video Outputs

• Control via Remote Waterproof Keypad

• Simple Operation and Setup

• User Deﬁned Sequence List

• Low Power Consumption

• Maximize your MFDʼs Video Display Capability

4.01 Connections.

Video:

Connect your camera inputs to the 6 female BNC inputs on the

side of the unit. Connect the video output cable (supplied) to

either of the 2 paralleled female BNC outputs.

Keypad:

Plug the RJ45 connector from your IRIS560 (also referred to as

DCS04 Keypad) into the panel mount socket labelled KEYPAD

on the side of the unit. Multiple keypads can be added. Refer to

the section 5.01 Adding Keypads for further details.

Power:

Connect the device using the power lead provided to a stable

+12VDC supply. The 2 power wires are colour coded RED for

+12VDC and BLACK for Ground. The RED +12VDC wire is

ﬁtted with an in-line 1A fuse for additional protection.

4.02 Operation.

Camera Selection

To switch the desired video input, simply select the

corresponding numbered button on the keypad. The camera

selection will stay on the screen until a different input is

selected, or the sequence mode is activated.

Camera Sequence

To start the camera sequence, simply press the AUTO SEQ key

on the keypad. The switcher will now automatically switch

through each camera in the current sequence list.

4.03 Conﬁguration.

Camera Sequence

In order to program the camera sequence list, follow the

procedure below:

• Press and hold the AUX key for approximately 5

seconds until you hear a long beep. This enters

the camera into Conﬁguration Mode.

• Press each camera button to add it into the

sequence list. To increase the dwell time (the

time the camera stays on the screen before the

next camera is displayed whilst sequencing) for

each camera, press the camera button for each

second you wish to add. After 10 consecutive

presses (10 seconds) each subsequent button

press will add 5 seconds to the dwell time. The

maximum dwell time permitted per camera is

250 seconds.

•Once camera selection and dwell time

programming is complete, press and hold the

ALT button once again until you hear a long

ʻbeepʼ, then release.

NOTE:

If at any time there is no programming activity for 10 seconds,

the switcher will return to itʼs operating mode with the previous

settings.

IRIS560 (DCS04) Keypad

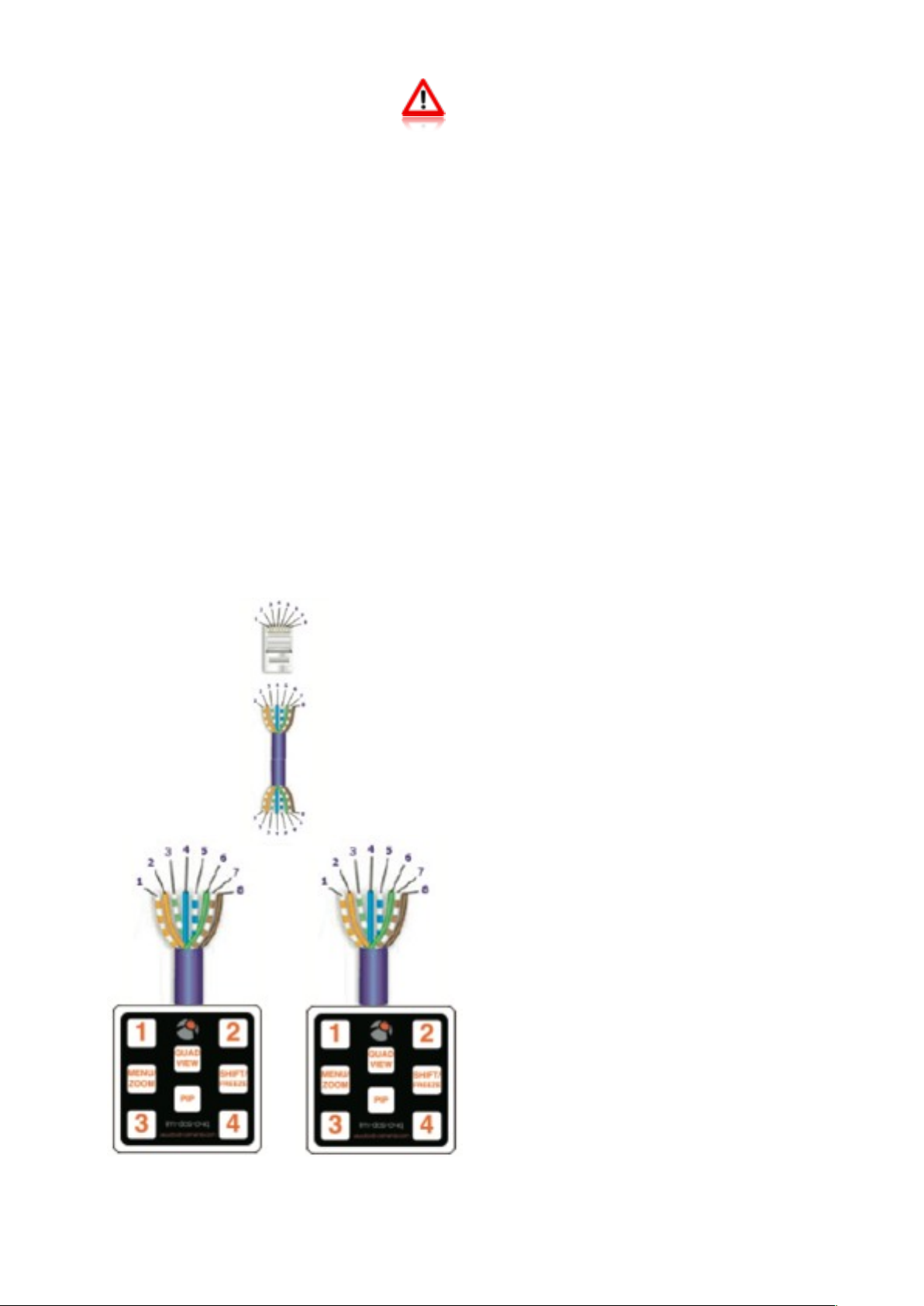

5.01 Adding Keypads

The IRIS560 keypad operates by switching 5V to ground when a

speciﬁc key is pressed. Therefore it is simple to add keypads by

paralleling the wiring.

If speciﬁed, the IRIS606 can be supplied with an RJ45 Doubler,

so a second keypad can easily be added by simply plugging the

RJ45 doubler into the KEYPAD socket on the switcher box and

connecting each keypad into the doubler, otherwise, the diagram

below details how to add an additional keypad.

1. Use CAT5 Cable and RJ45 Plugs. CAT5 cable has been used

as it is inexpensive and easy for installer to source.

2. Cut the RJ45 connectors from each of the keypads and strip

the outer cable sheath back sufﬁciently to expose enough of

the wire to allow termination.

3. Carefully strip back insulation from each of the 8 wires.

4. Use another CAT5 Cable with RJ45 connector at one end only

and the other end of the cable stripped back as described in

step 2 and 3 above.

5. Now join the cables together, ensuring the colours are

correctly matched. Use a suitable method such as screw

terminal connectors, crimps or solder to obtain a good

connection. Ensure each wire is insulated from the other

colours to avoid a short circuit.

If it is necessary to extend the CAT5 cable used, please observe

RJ45(A) wiring standards.

WARNING

Although RJ45 connectors and CAT5 cables are used, the

IRIS606 and IRIS560 (DCS04) are not IP network devices and

must not be connected to computers, routers or other network

equipment.

Keypads Shown are IRIS540 for illustrative purposes only.

Iris Innovations Limited (UK)

Units 8 & 9 Swanwick Business Centre

Bridge Road, Swanwick. Hampshire SO31 7GB

United Kingdom

Tel: +44(0)1489 570797

email: [email protected]

web: www.boat-cameras.com

Iris Innovations Limited (USA)

1535 SE17th Street, Suite B115

Fort Lauderdale, Florida 33316

United States of America

Tel: +1 (954) 533 9381

email: [email protected]

web: www.boat-cameras.com

Speciﬁcations are subject to change without prior notice. E&OE

Table des matières

Autres manuels IRIS Changer

IRIS

IRIS IRIS604 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
