IPORT CONNECT Wall Mount
Install Manual
Whats in box:
1 - IPORT CONNECT Wall Mount bracket
1 - Info Card
1 - PoE+ Network Adapter (72101)
4 - Drywall Anchors
4 - #6 HighLow thread Screws
1 - Molex Male to Female extension cable
1 - Mounting Bracket
4 - Philips machine screws
Glossary of Terms:
• WallMount - The fully assembled CONNECT
MOUNT holding and charging the IPORT CONNECT
Case.
• Mounting Bracket - The removable plastic insert that
attaches to the CASE connecting the CASE to the Wall
Mount bracket
• IPORT Security Tool - The orange handled 1.5mm hex
tool used for locking and unlocking IPORT
Products.
Product Info Page - www.iportproducts.com/connect-
Mount
Thank you for purchasing the all new IPORT
CONNECT Platform. We hope you enjoy this
revolutionary new system and if at any time you
need more assistance please contact IPORT Tech
Support via Online chart or through our help desk.
- IPORT Team
CONNECT
MOUNT
4
WALLMOUNT

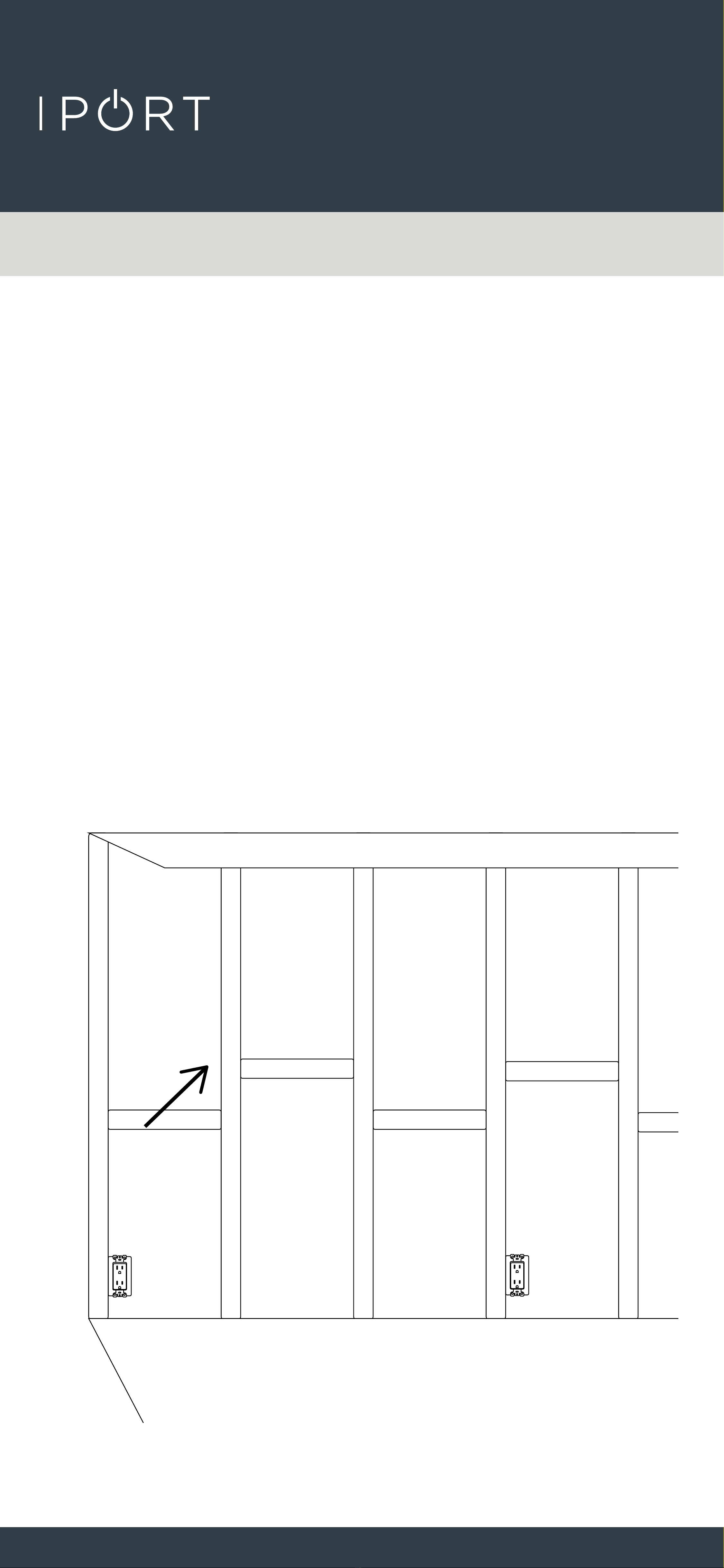

1. Determine the desired location of the
IPORT CONNECT WallMount will live
when the construction is completed.
IPORT CONNECT WallMount Install
New Construction - Cat6
Before Construction is complete
CONNECT
MOUNT
5
WALLMOUNT
2. Install a 1 Gang electrical box or low
voltage ring in the desired location
of the Mount.
NOTE: The CONNECT WallMount will cover a 1G
electrical box only. A 2 Gang electrical box will
interfere with the mounting hardware.
1G
Electrical
Box
New Constructions Cat6
CONNECT
MOUNT
6
WALLMOUNT
3. Run a Cat6 cable terminated with an
RJ45 Connectors (T568A or T568B)
from the WallMount location to a
network rack location and terminate
the other end of the cable the same
as before.
NOTE: Make sure to secure the Cat6 cable
appropriately onto the Electrical box or Low
Voltage ring to retrieve at a later time.
New Constructions Cat6
CONNECT
MOUNT
7
WALLMOUNT
Installing the Mount After Construction
4. Terminate the Cat6 with an RJ45
Connector if not done so previously
using T568A or T568B standards.
5. Remove the Mount, Drywall
anchors and Screws from the box
and place on a table.
x4
x4
New Constructions Cat6
CONNECT
MOUNT
8
WALLMOUNT
6. Insert the WallMount over the 1G
box.
New Constructions Cat6
CONNECT
MOUNT
9
WALLMOUNT
7. Use a leveling tool to level the Wall
Mount and mark the 4 locations
for the provided anchors. Remove the
WallMount from the 1G Box.
8. Screw the 4 provided anchors into
the wall where marked.
New Constructions Cat6
CONNECT
MOUNT
10
WALLMOUNT
9. Connect the Molex Extension
Cable to the Poe+ Network adapter
making sure the gold pins are facing
away from the molex connector.
10. Feed the cable though the hole in
the mount.
New Constructions Cat6
