XB-808-A master control
一、Master control system features
Salient features:
1. Strong performance, can carry up to 160,000 pixels or 60 sub-controls.
2. Integrate BTS synchronization function, 4G network communication function and offline playback function into one,
which is convenient and reliable to use.
3. Support Bluetooth, RF, remote 4G network communication, can be controlled by PC / mobile APP.
4. Can realize any timing, multi-level encryption function.
5. Have a unique identity code UID.
Conventional features:
1. The playback content is stored in the SD card. The SD card can store up to 32 effect files, it’s capacity supports
4G-32GB. It supports single-effect playback, effect loop playback, and the effect is accelerated and decelerated.

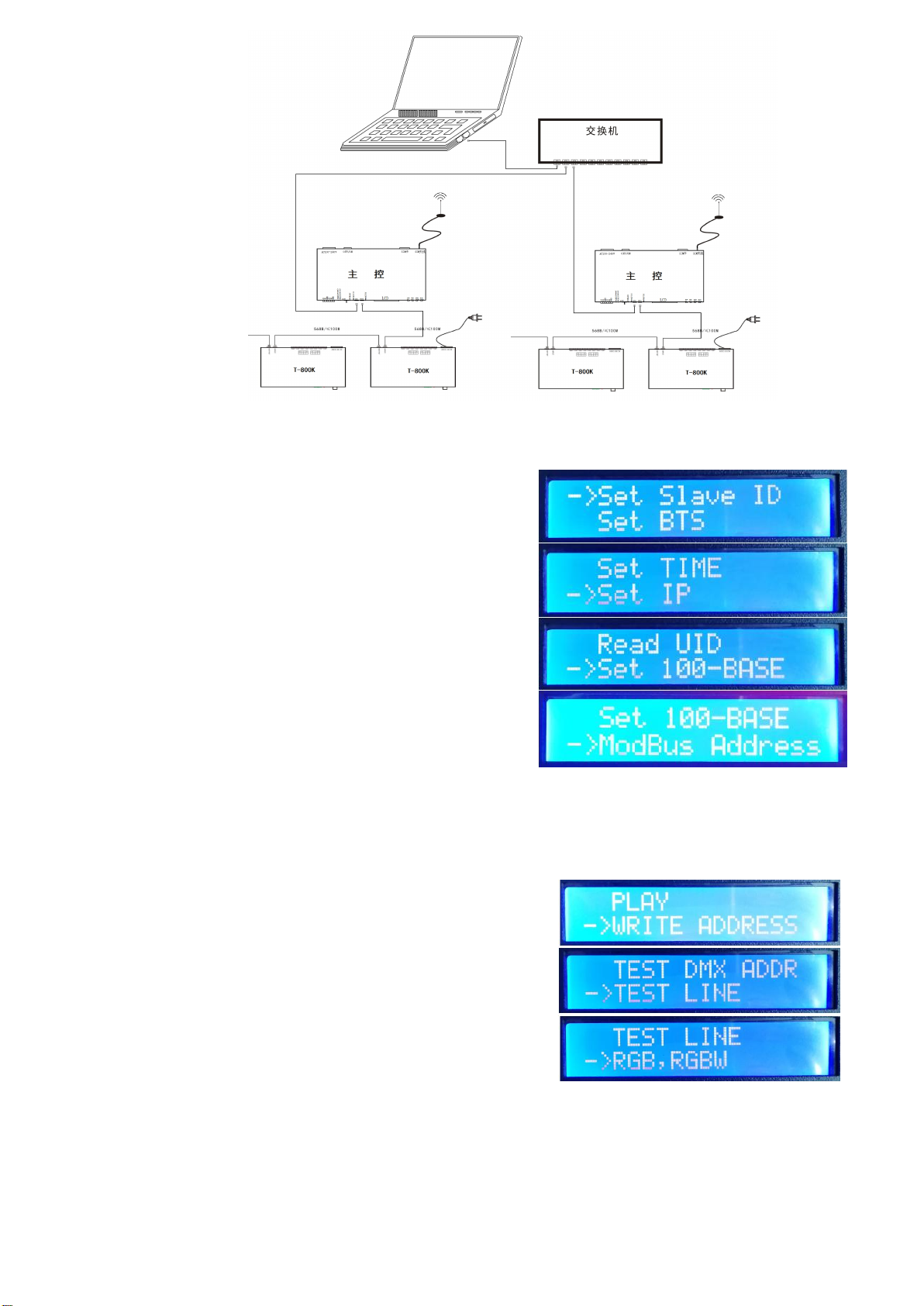

2. The master control can be used for the automatic/manual numbering of the sub-control ID. It can be numbered
together with multiple controllers, or it can be numbered separately.
3, The master control comes with built-in effects, can test the loaded lamps (RGB / RGBW lamps are supported).
4, The controller has DMX512 write address function and address test, single port or all ports support DMX512 IC
write address, and make address test of the lamp.
5, the controller uses the standard TCP / IP network protocol, signal transmission is more stable; optional 100 Mbps /
Gigabit transmission rate.
6, If use together with our T-700K/T-800K for offline use, supports up to 160,000 pixels or 60 controllers.
7, Support timing (holiday) playback.
8. Support BTS base station timing synchronization, GPS satellite timing synchronization.
9, Support a variety of encryption methods.
10. The IC controller for DMX lamps has its own address writing function. In addition, with the latest LedEdit-K
software of our company, one-click address setting function can be set. Press and hold (SET) to write the address with one
click.
二、Support controllers：
