ION FILM 2 SD PRO Manuel utilisateur
35MM FILM AND SLIDE SCANNER
QUICKSTART GUIDE
ENGLISH ( 1 – 6 )
GUÍA DE INICIO RÁPIDO
ESPAÑOL ( 7 – 12 )
GUIDE D’UTILISATION SIMPLIFIÉ
FRANÇAIS ( 13 – 18 )
GUIDA RAPIDA
ITALIANO ( 19 – 24 )
KURZANLEITUNG
DEUTSCH ( 25 – 30 )
SNELSTARTGIDS
NEDERLANDS ( 31 – 36 )
1
MAINTENANCE & CARE
Periodically clean FILM2SD’s glass surface with a dry
cotton swab to ensure it produces a clear image during
operation.
Use the included cleaning brush to remove dust from
FILM2SD’s backlight.
We recommend cleaning your film (and FILM2SD’s
trays) before inserting it into the scanner so dust or dirt
does not mar the image. If you do not have the
materials to do this properly, consult a professional film
store.
OVERVIEW
1. Power Button
2. Power LED
3. OK Button
4. Up / Mirror Button
5. Down / Flip Button
6. Display
7. Film Holder Slot
8. SD Card Slot
9. USB Port
BOX CONTENTS:
FILM2SD
Negative Film Holder
Slide Film Holder
USB Cable
Cleaning Brush
User Manual
Safety Information &
Warranty Booklet
5
4
12
3
8
9
6
7
2

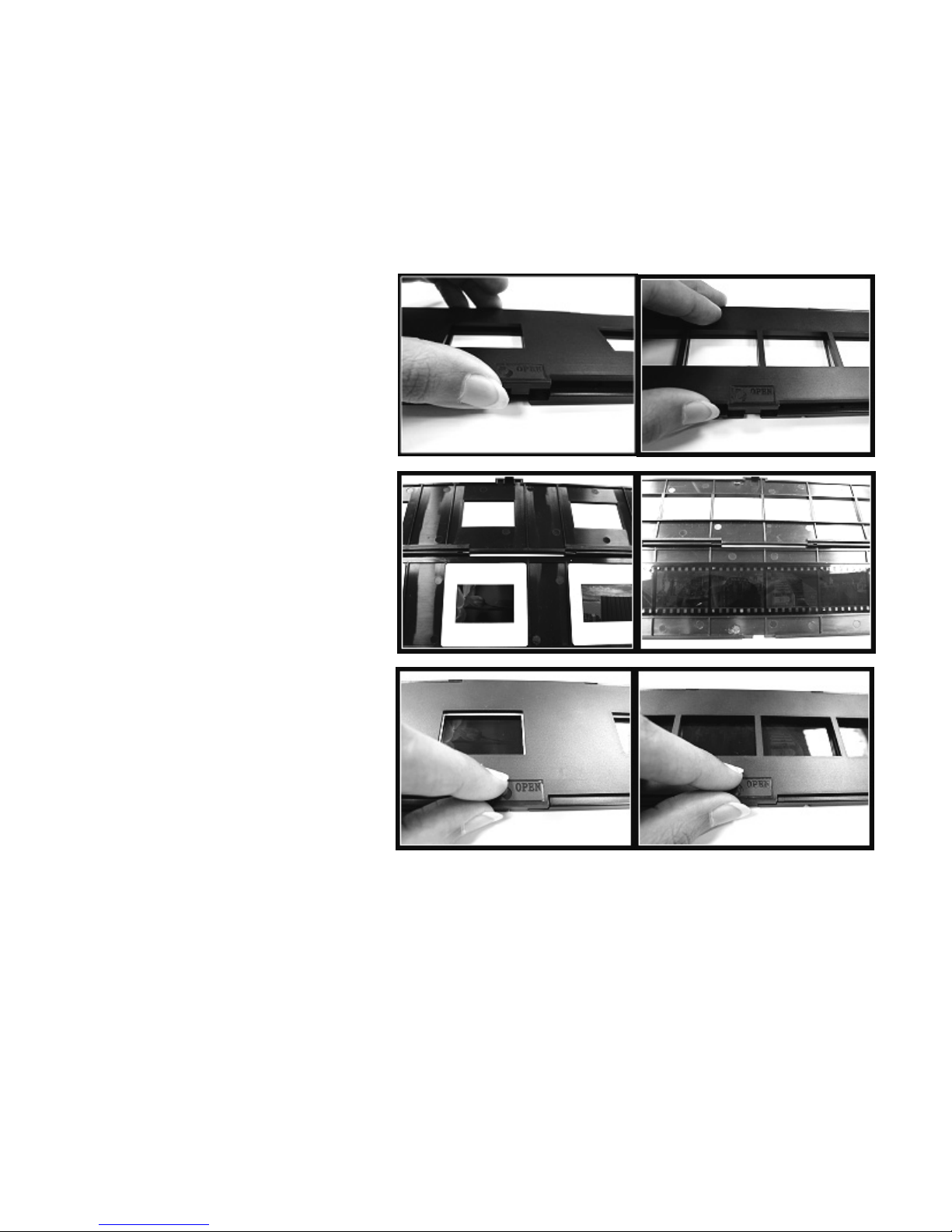

PLACING SLIDES & NEGATIVES IN THE HOLDERS
1. Open the film holder by
lifting the tab on the bottom.
2. Insert the slide(s) into the
slide slot(s) or lay the
negative over the negative
slot.
3. Close the film holder.
Note: If the image is scanned upside down or mirrored, you can also correct this by using the
FLIP or MIRROR buttons later.
Tip: To avoid laying a negative in the wrong direction (which will produce a mirror image), be
sure you can correctly read the serial numbers at the top of the negative when placing it in the
holder.
Slides Negatives
3
QUICKSTART
1. Connect FILM2SD to a power outlet with the included power adapter.
2. Turn on the FILM2SD with the POWER button.
3. Place your slide(s) or negative into the appropriate holder.
4. Insert the holder into the FILM HOLDER SLOT.
5. Insert your SD card into the SD CARD SLOT. When you save your scanned images, they
will be stored on the SD card.
6. Capture your image by pressing the OK button.
7. Press the OK button again to save the image.
8. Now you can remove the SD card and insert it into an SD-compatible device, such as a
digital picture frame, computer or television, to view your pictures.
If you want to transfer your image(s) directly to your computer from FILM2SD, connect
FILM2SD to your computer with the included USB cable and select the USB icon (USB
Mode) from the Main Menu to establish the connection. Once the connection has been
established, you can copy the images to your computer by dragging the image files to
your hard drive.
Note: While FILM2SD is in USB Mode, you will not be able to scan other pictures. To
enable scanning again, remove the USB cable, turn off FILM2SD, then turn it on again.
4
OPERATION & FEATURES
When viewing any menus with multiple options, you can use the UP / MIRROR and DOWN /
FLIP buttons to move through them and press the OK button to select one.
MAIN MENU
1. Capture Mode: Allows you to capture images.
FILM2SD will enter Capture Mode automatically if no
buttons are pressed for five seconds.
2. Playback Mode: Allows you to view your images.
3. Film Type: Select the kind of film you are using.
4. USB Mode: Allows you to transfer your images to a
connected computer via USB. Once your images
are on your computer, you can view and edit them as
you wish.
If there is no SD card in the SD Card Slot, a “?” icon will appear on the screen.
Capture Mode
When in Capture Mode, a red indicator in the upper left-hand corner will indicate FILM2SD is
viewing the image in the film holder. Press OK to capture the image.
Once an image is captured, you will see the following
menu options:
1. Save: Saves the captured image.
2. Rotate Right: Rotates the image clockwise by
90°.
3. Rotate Left: Rotates the image
counterclockwise by 90°.
4. Cancel: Cancels editing without saving the
image to the SD card.
5. Home: Returns to the Main Menu.
After selecting Save or Cancel, you can move the film holder to the next image you want to
capture. Once the SD card is full, a “FULL” icon will appear on the screen. Either transfer the
contents of the SD card to your computer or insert an SD card with available memory.
1
2
3
4
1
2
3
4 5
5
Playback / Edit Mode
When you enter Playback/Edit Mode, your captured images will be displayed in a slideshow,
allowing you to preview and/or edit them. To stop the slideshow, press the OK button.
With the slideshow stopped, you can use the UP / MIRROR and DOWN / FLIP buttons to move
through your saved images one by one. Press the OK button to select one to edit.
In Playback/Edit Mode, you will see the following menu
options.
1. Rotate Right: Rotates the image clockwise by
90°.
2. Rotate Left: Rotates the image
counterclockwise by 90°.
3. Mirror: Flips the image left to right.
4. Flip: Flips the image upside-down.
5. Exit: Returns to the slideshow.
6. Delete: Deletes the image from the SD card.
7. Save: Saves the captured image.
8. Home: Returns to the Main Menu.
If there are no images saved to the SD card while in Playback Mode, a “?” icon will appear on
the screen.
1 5
2 6
3 7
4 8
6
Film Type
Here, select the type of film you have placed in the film
holder.
1. Color Negative
2. Slide
3. Black & White Negative
USB Mode
USB Mode allows you to transfer images from your SD card directly to your computer. While in
USB Mode, FILM2SD becomes an SD card reader for your computer. To enter USB mode, you
can either:
Leave the power adapter unplugged and connect the FILM2SD to a USB port via the
included USB cable.
If the power adapter is plugged in and the FILM2SD is powered on, connect the
USB cable to your computer, then select the USB icon; a USB symbol should
appear on the DISPLAY, signifying that the connection has been established.
Note: While FILM2SD is in USB Mode, you will not be able to scan other pictures. To enable
scanning again, remove the USB cable, turn off FILM2SD, then turn it on again.
1
2
3
7
MANTENIMIENTO Y CUIDADO
Limpie periódicamente la superficie de
vidrio del FILM2SD con un hisopo de
algodón seco para asegurar que produzca
una imagen clara durante el funcionamiento.
Use el cepillo de limpieza incluido para
limpiar el polvo de la luz de retroiluminación
del FILM2SD.
Recomendamos que limpie su película (y las
bandejas del FILM2SD) antes de insertarlas
en el escáner, de modo que el polvo o la
suciedad no arruinen la imagen. Si no
cuenta con los materiales para hacerlo
correctamente, consulte en una tienda
profesional de fotografía.
DESCRIPCIÓN GENERAL
1. Botón de alimentación
2. LED de encendido
3. Botón Aceptar
4. Botón Arriba / Espejo
5. Botón Abajo / Invertir
6. Pantalla
7. Ranura para soporte de la
película
8. Ranura para tarjeta SD
9. Puerto USB
CONTENIDO DE LA CAJA
Film 2 SD
Soporte de negativos
Soporte de diapositivas
Cable USB
Cepillo de limpieza
Manual del usuario
Folleto de información sobre la
seguridad y la garantía
5
4
12
3
8
9
6
7
8
CÓMO COLOCAR LAS DIAPOSITIVAS Y LOS NEGATIVOS EN LOS
SOPORTES
1. Abra el soporte de la película
levantando la lengüeta de la
parte inferior.
2. Deslice la o las diapositivas
en las ranuras para las
mismas o extienda el
negativo sobre la ranura
para negativos.
3. Cierre el soporte de la
película.
Nota: Si la imagen se escanea en forma invertida o espejada, puede corregirlo usando los
botones FLIP (Invertir) o MIRROR (Espejo) más adelante.
Consejo: Para evitar colocar el negativo en sentido incorrecto (lo que produciría una imagen
espejada), asegúrese de que pueda leer correctamente los números de serie de la parte
superior del mismo cuando lo coloca en el soporte.
Diapositivas Negativos
